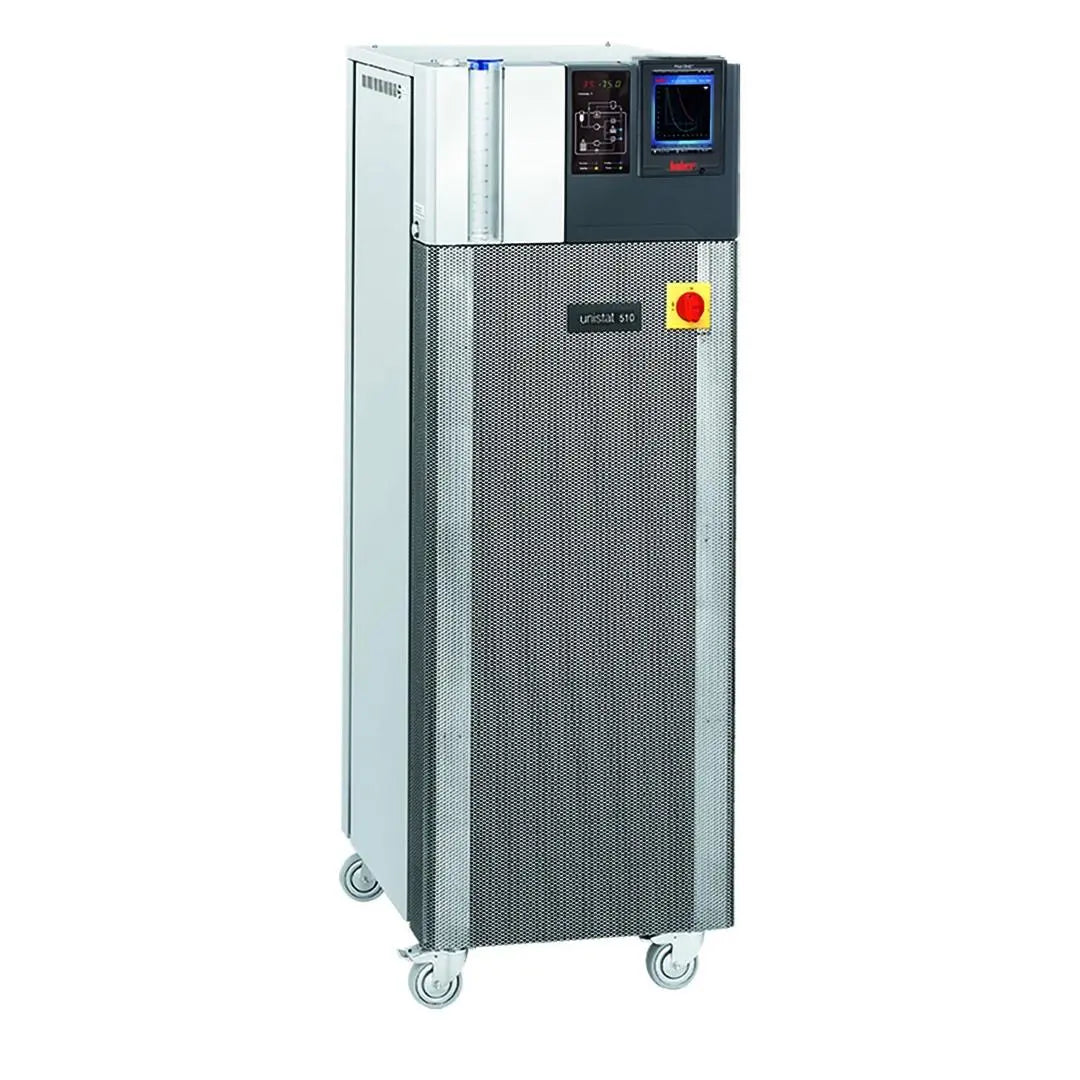

Unistat 510 Dynamic Temperature Control | Huber -50 to 250°C Pilot ONE

The Unistat 510 dynamic temperature control system, by Huber, provides precise and adaptive heating and cooling for laboratory and industrial processes. With a temperature range from -50°C to +250°C and stability to ±0.01°C, results are reproducible every time. The 9kW heating capacity and 5.3kW cooling at 0°C provide ultra-fast ramp rates.

Unistat 510 Dynamic Temperature Control System Features

• Operating range: -50°C to +250°C

• Temperature stability: ±0.01°C

• Heating capacity: 9kW

• Cooling capacity: 5.3kW @ 0°C

• Adaptive, self-optimizing control

• Magnetically coupled stainless steel pressure pump (max 112 l/min, 1.5 bar)

• Pilot ONE 5.7” touchscreen controller

• Digital interfaces: USB host/device, Ethernet, RS232

• No fluid change for wide ranges

• Fill volume min: 4.1L, expansion volume: 5.5L

• Power: 460V 3~ 60Hz, 16A max

• Dimensions: Approx. 22 x 30 x 58 in, 515 lbs

• Safety Class III/FL, IP20 protection

Quick transitions between process setpoints save time and optimize workflow. The Unistat 510 dynamic temperature control system is engineered for highest reliability with process alarms, favorites menus, and easy remote monitoring.
