Technical Narrative

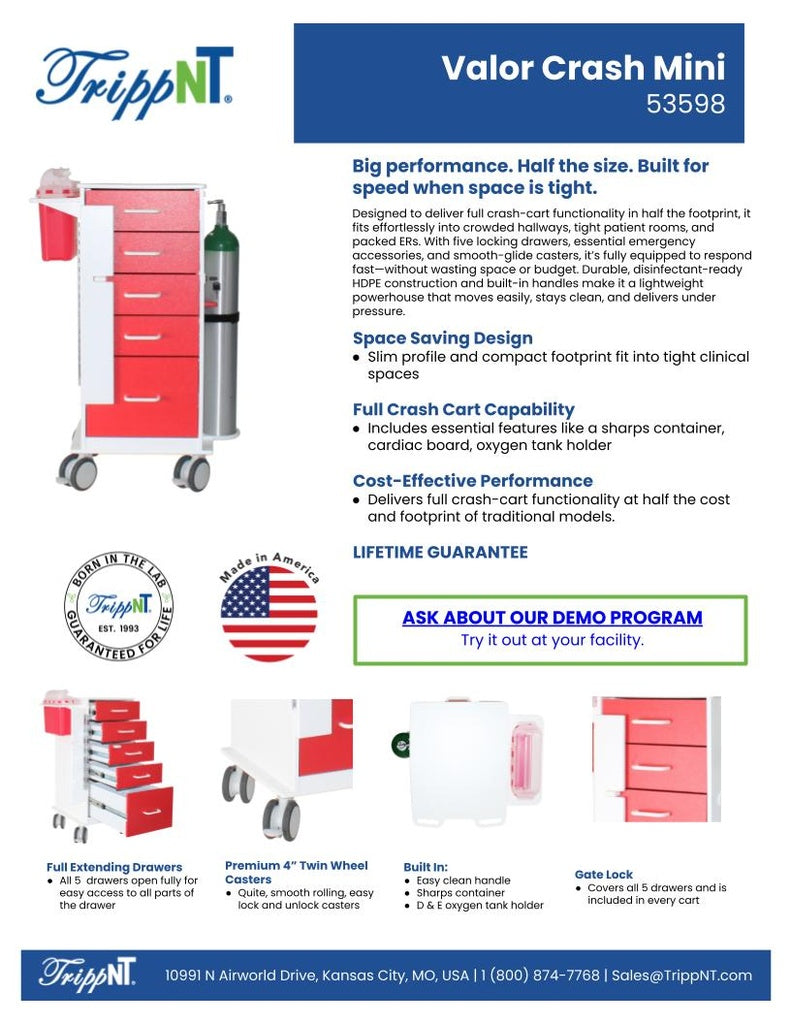

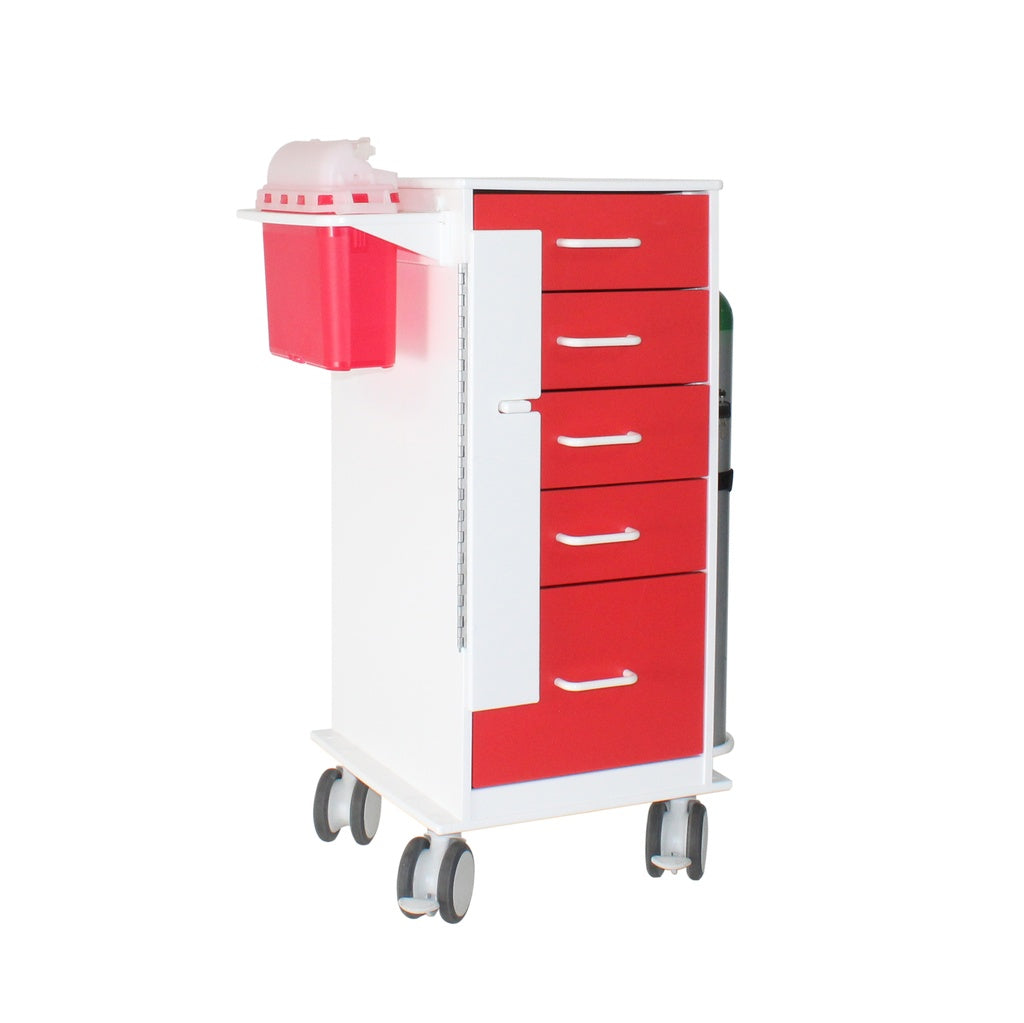

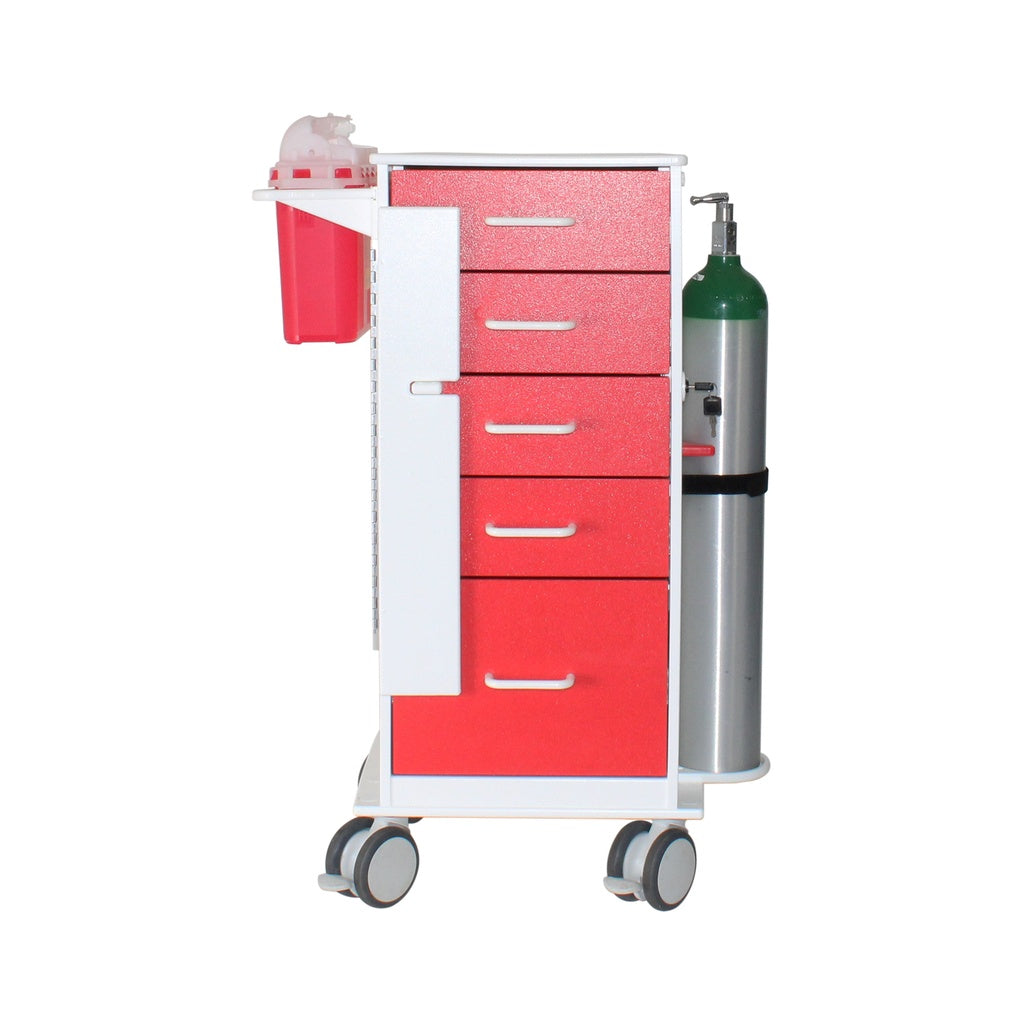

The TrippNT 53598 Valor Mini Crash Cart is a purpose-built emergency resuscitation cart engineered for rapid-access code blue response, ER bay staging, and space-conscious emergency department configurations where a full-size crash cart would be impractical or redundant. The Valor Mini is constructed from ½″ white HDPE and ⅜″ HDPE body panels with red ABS drawer fronts — the international color code for emergency/crash cart identification — and includes the complete accessory set required for a functional crash cart configuration: a security railtop with gate lock and secondary drawer lock for tamper-evident seal integrity; a sharps container dispenser; an integrated cardiac board bracket for defibrillation backboard storage; an oxygen tank holder sized for standard E-cylinder oxygen tanks; and steer handles for rapid transport by a single operator. Five full-extension total locking drawers provide the depth profile for standard ACLS medication and airway management kit organization.
At 25⅛″ W x 37⅜″ H x 20¼″ D and 75 lb, the Valor Mini is small-parcel eligible and ships fully assembled. Backed by TrippNT’s 100% Lifetime Guarantee.
Technical Specifications
| Specification | Value |
|---|---|
| Body Color | White |
| Drawer Front Color | Red |
| Material | ½″ White HDPE, ⅜″ HDPE, 3/16″ Red ABS drawer fronts, ⅛″ ACP |
| Cart Top Style | Security Railtop with Gate Lock |

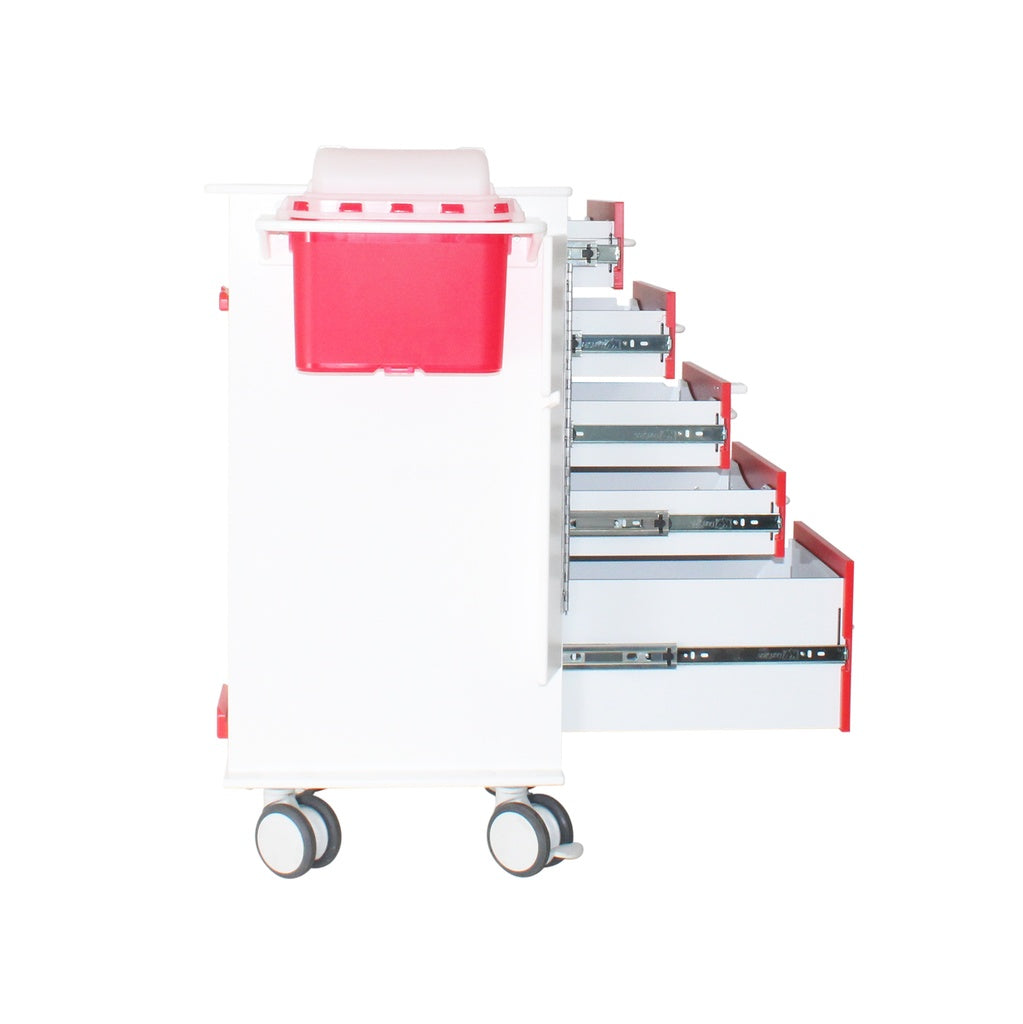

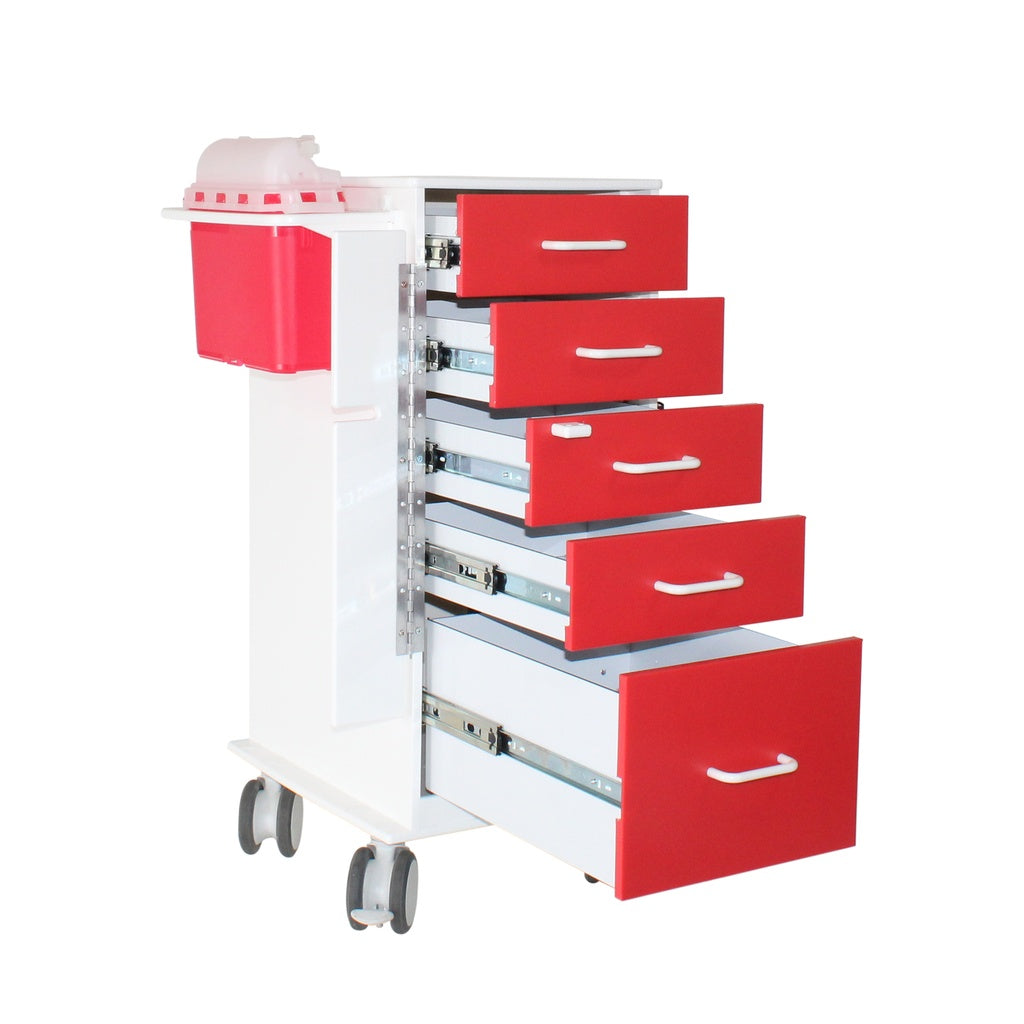

| Drawers | 5 total locking full-extension drawers |
| Secondary Drawer Lock | Yes (tamper-evident secondary lock) |

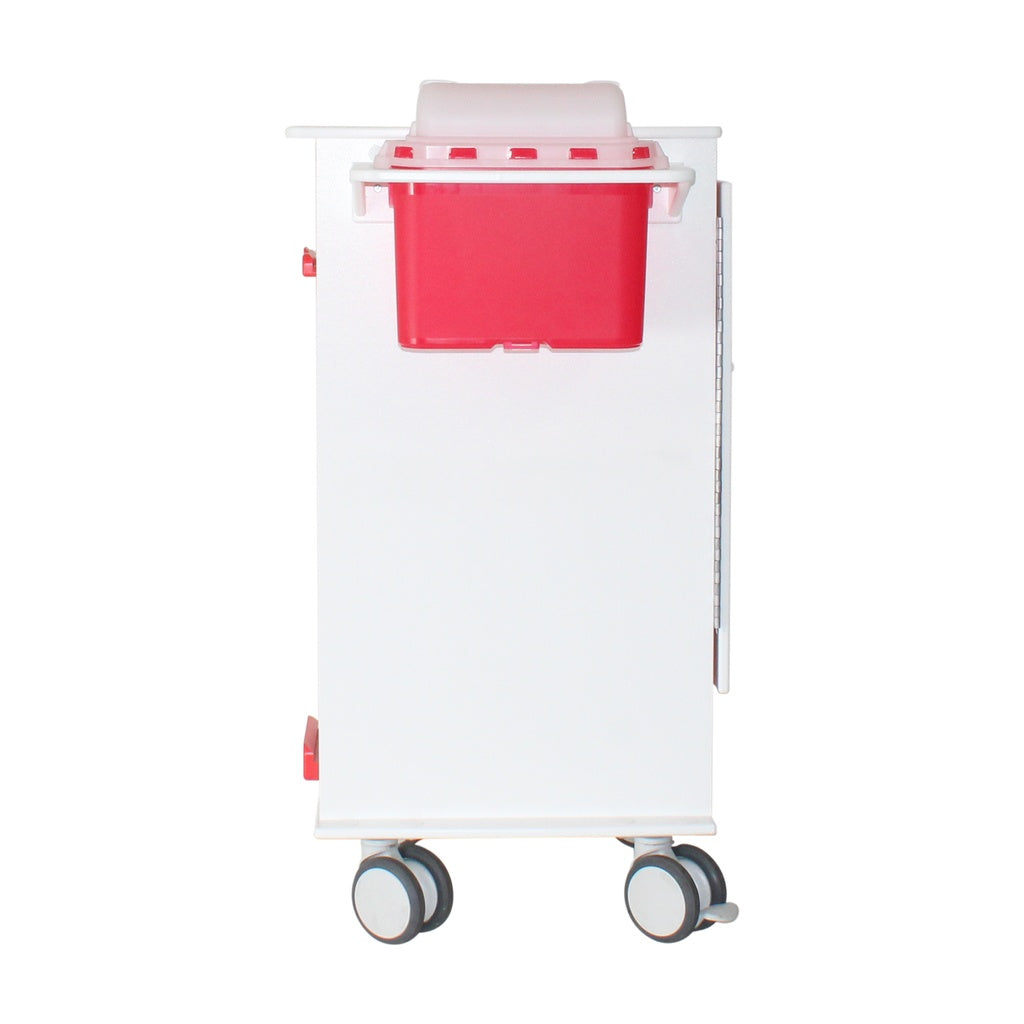

| Sharps Dispenser | Included |
| Cardiac Board | Bracket included |

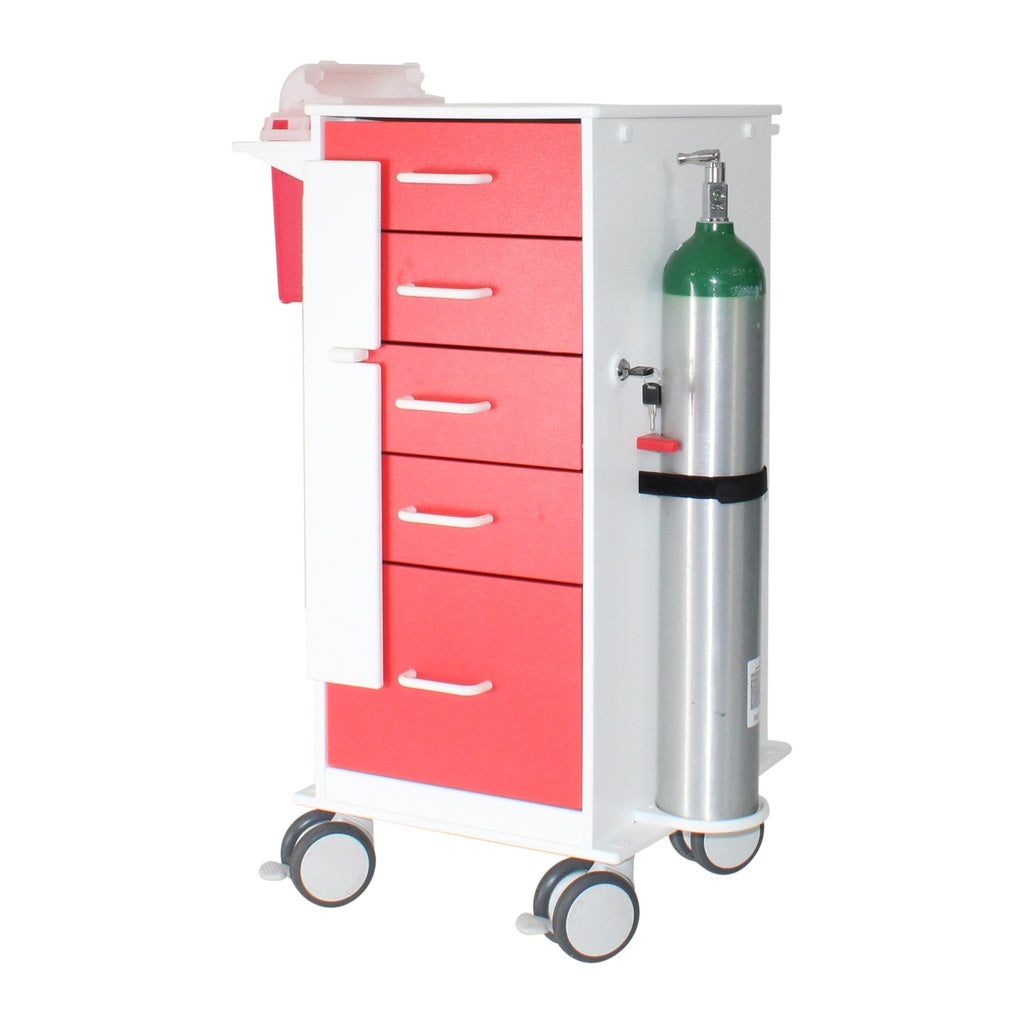

| Oxygen Tank Holder | E-cylinder compatible holder included |
| Steer Handles | Integrated |
| Casters | 2 Locking + 2 Swivel 4-inch Twin Wheel |
| Lock Type | Hafele Cam Key Lock |

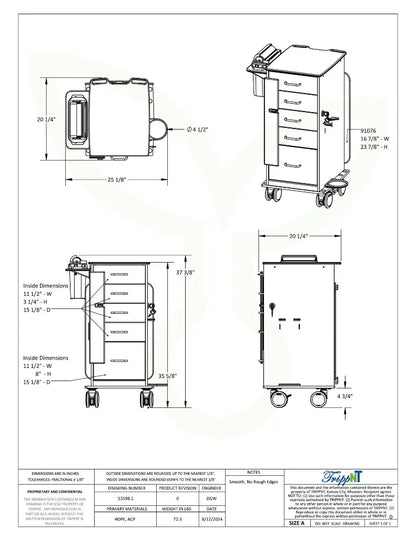

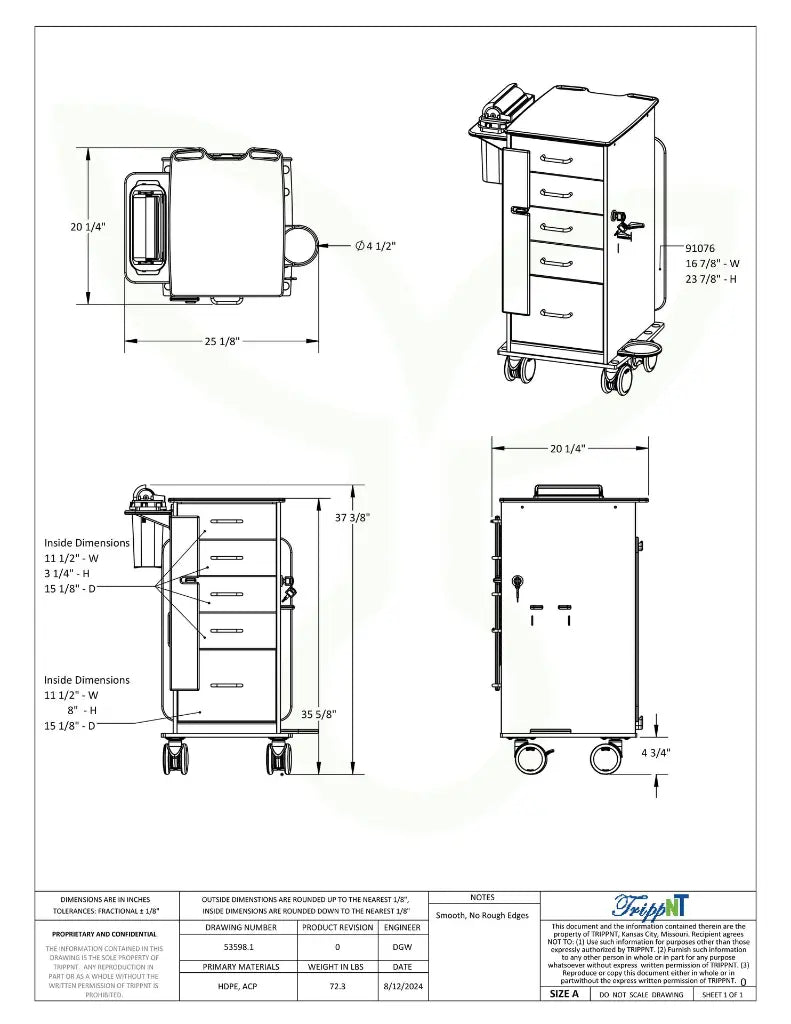

| Product Dimensions (W x H x D) | 25⅛″ x 37⅜″ x 20¼″ |
| Product Weight | 75 lb |
| Shipping | Small Parcel |
| Shipping Carton (L x W x H) | 42″ x 19″ x 23″ |
| UPC | 727431143068 |
| HTS Code | 9403.70 |
| Country of Origin | United States — Kansas City, MO |
Laboratory and Clinical Applications
The 53598 is deployed in emergency response and critical care environments requiring a compact purpose-equipped crash cart, including ED bay-specific code blue crash carts where full-size carts are not bay-appropriate, hospital unit satellite crash carts supplementing central crash cart programs, urgent care center emergency resuscitation carts, ambulatory surgery center emergency medication and airway carts, dental and oral surgery clinic emergency response carts, veterinary emergency and critical care crash carts, outpatient clinic ACLS emergency medication carts, dialysis center emergency response carts, infusion suite emergency medication carts, school and campus health center emergency response carts, industrial first aid station emergency response carts, and any location where a fully-equipped compact crash cart with tamper-evident locking, oxygen tank storage, cardiac board, and sharps dispenser is required in a 25″ wide footprint.
Product Documentation
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. This crash cart is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your facility. Contact TrippNT at 1-800-874-7768 for institutional pricing and crash cart fleet programs.
Frequently Asked Questions
How does the Valor Mini compare to a full-size crash cart — what clinical scenarios specifically justify the compact 25-inch footprint over a standard-width cart?
Full-size crash carts are typically 30″–34″ wide and carry a comprehensive inventory across 8–10 drawers. The Valor Mini at 25⅛″ wide and 5 drawers is sized for: satellite crash cart programs where a second cart is positioned in a sub-unit, procedure bay, or corridor position adjacent to a primary crash cart; ambulatory or outpatient environments where ACLS response requirements are defined but a full OR-grade cart is excessive; ER bay configurations where available floor space restricts full-size cart access; and any facility where a complete tamper-evident, gate-locked, O2-equipped cart is required in a compact footprint. The Valor Mini includes all functional crash cart accessories — gate lock, cardiac board, O2 holder, sharps dispenser, secondary drawer lock — at a reduced width that a standard compact supply cart does not include.
What is the gate lock and secondary drawer lock, and how do they support tamper-evident crash cart inspection protocols?
The security railtop gate lock is a bar-and-lock mechanism across the railtop opening that, when engaged with a breakaway or numbered seal, provides a visible tamper-evident indicator that the cart contents have not been accessed since the last inspection. The secondary drawer lock adds a second lock point on the drawer stack for facilities requiring dual-lock tamper evidence. Standard crash cart inspection protocols (Joint Commission, DNV, and facility-specific) require documentation that the cart is in sealed condition between uses; the gate lock accommodates numbered plastic breakaway seals (not included) for this documentation. Contact your biomedical or pharmacy team for the appropriate seal type and inspection log format required by your accreditation standard.
