TrippNT Triple ABS Bottle Holder 1000 mL | 3-Position Anti-Tip 3.75in Collar 50411

Technical Narrative

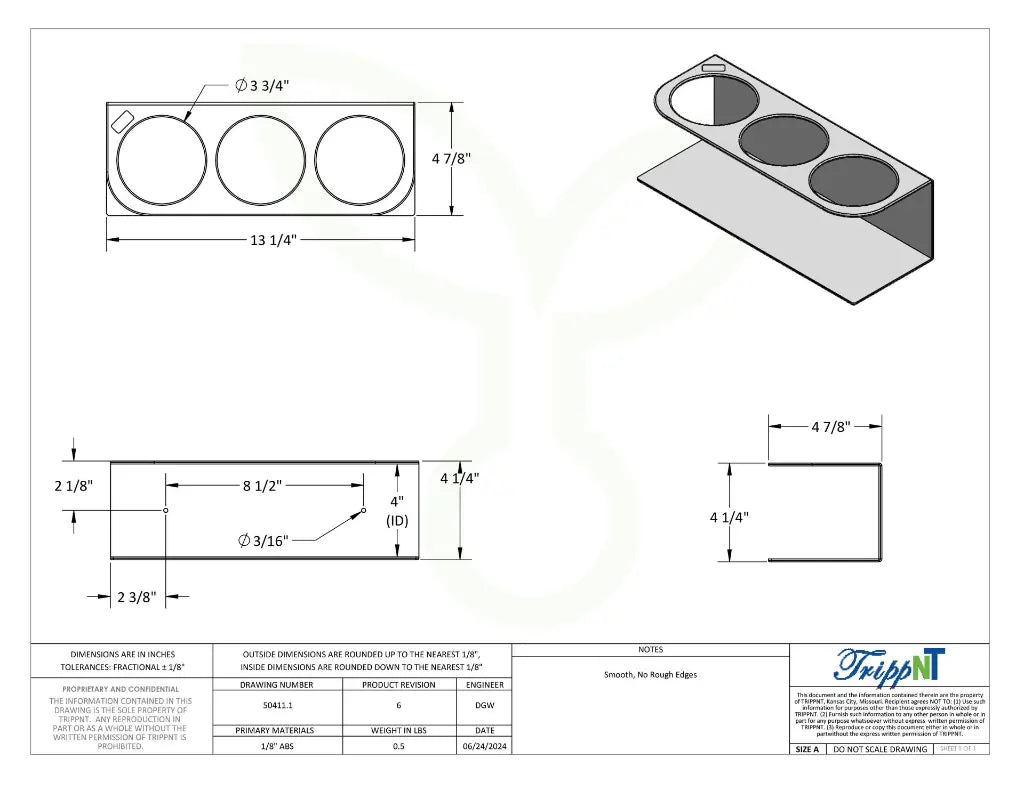

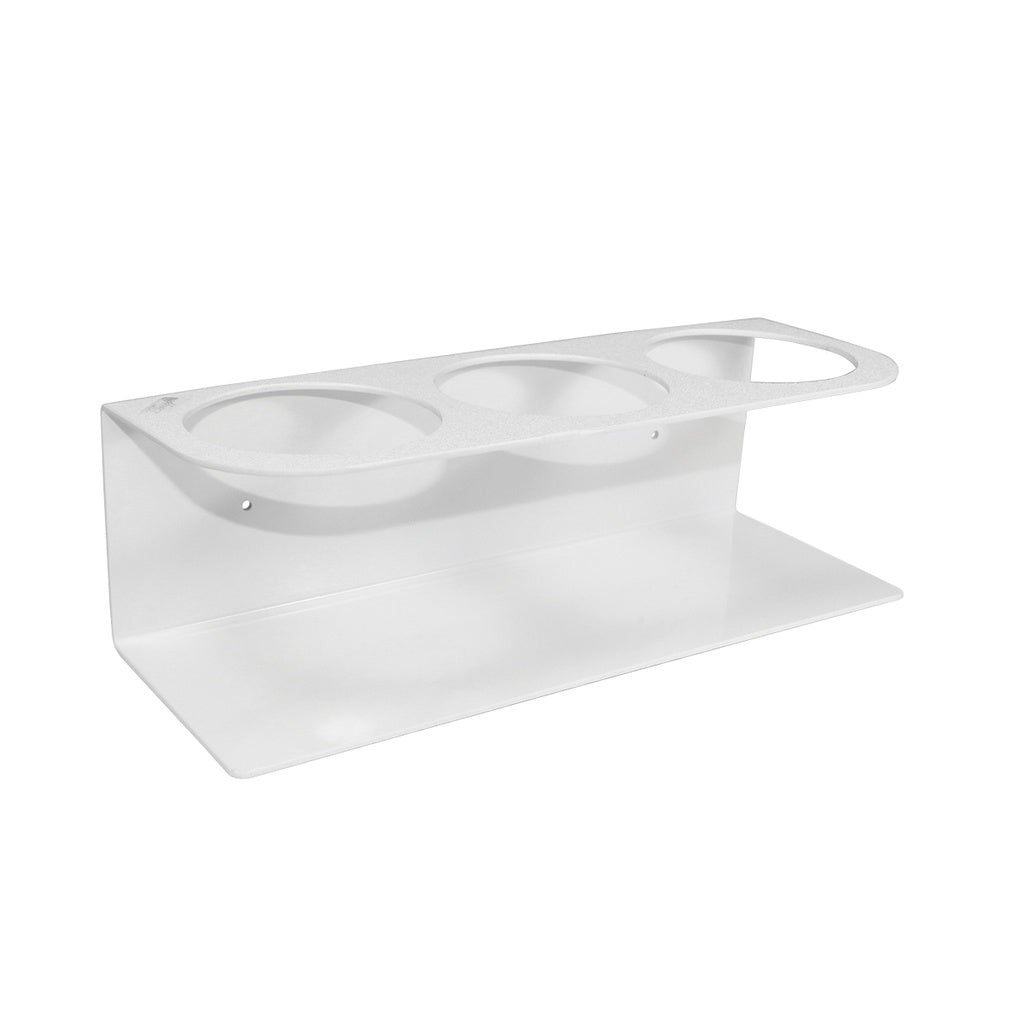

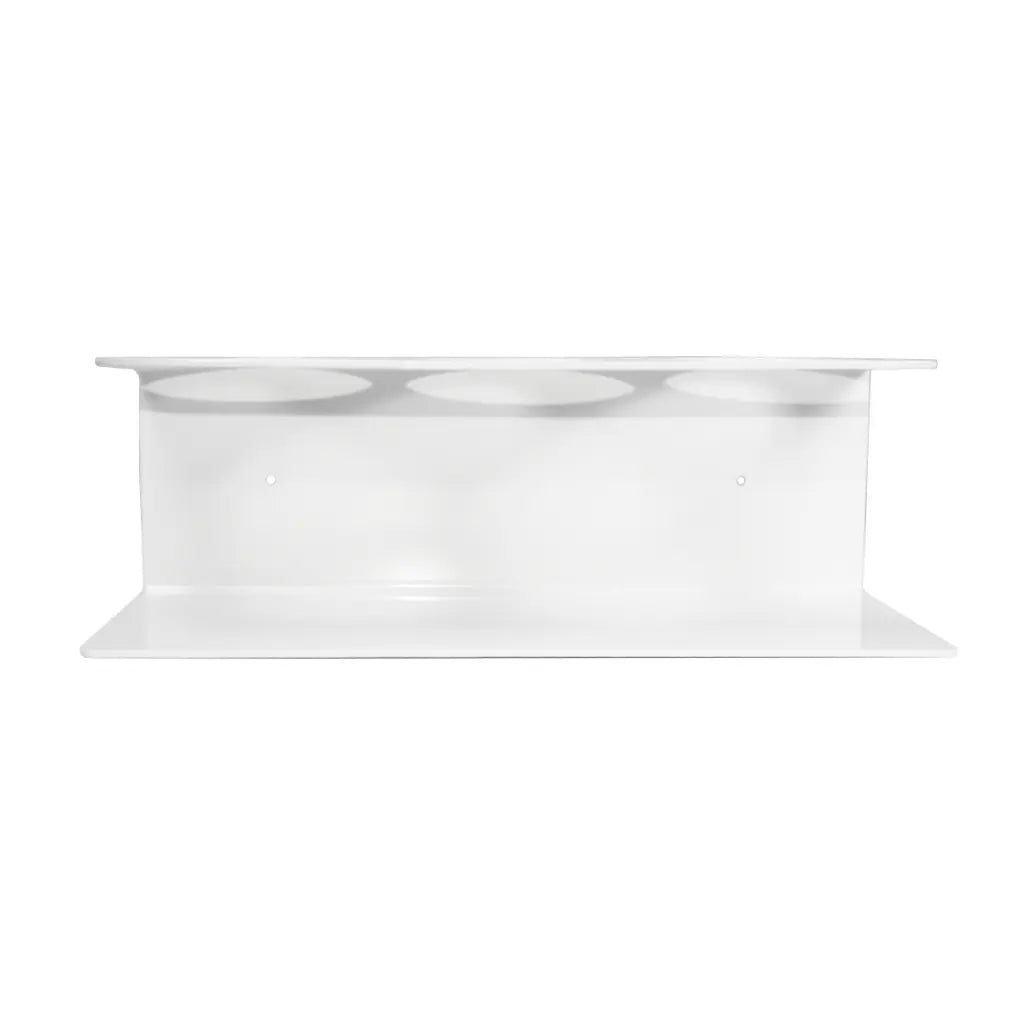

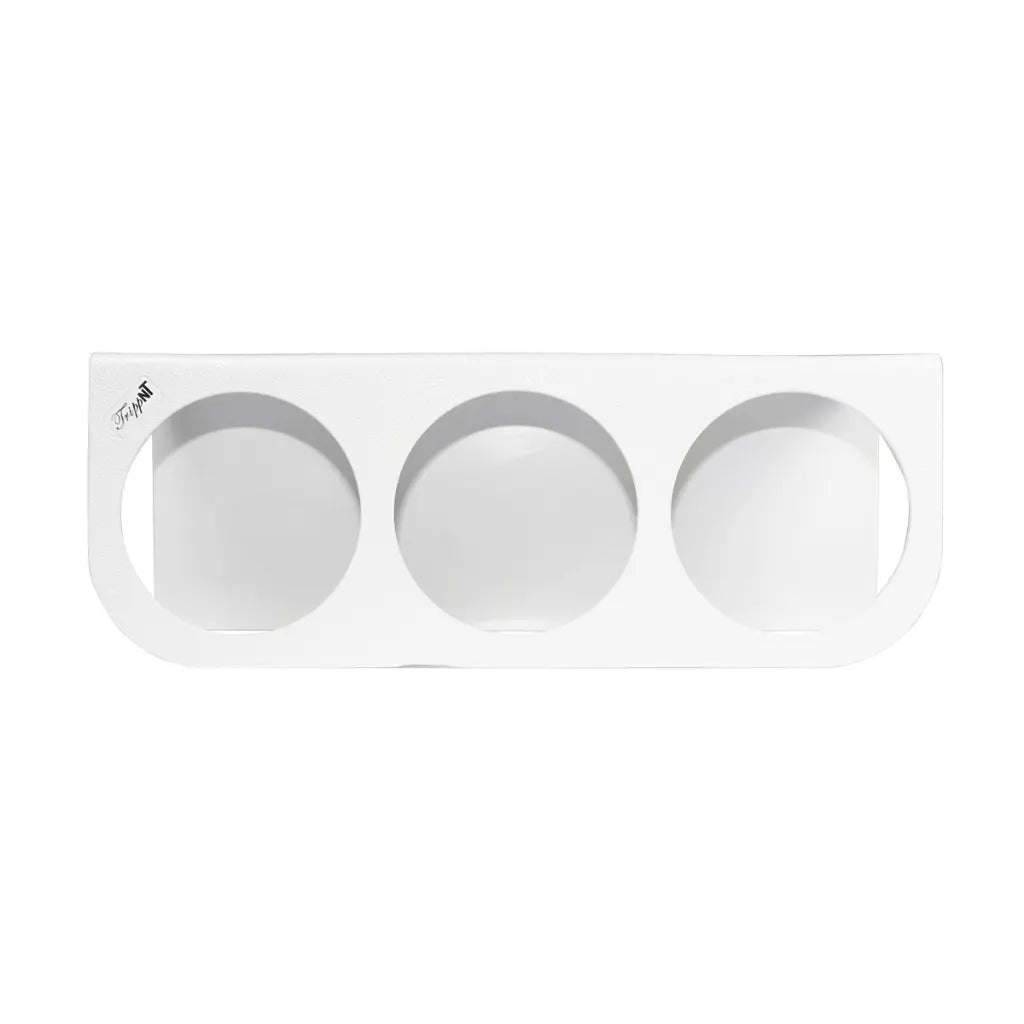

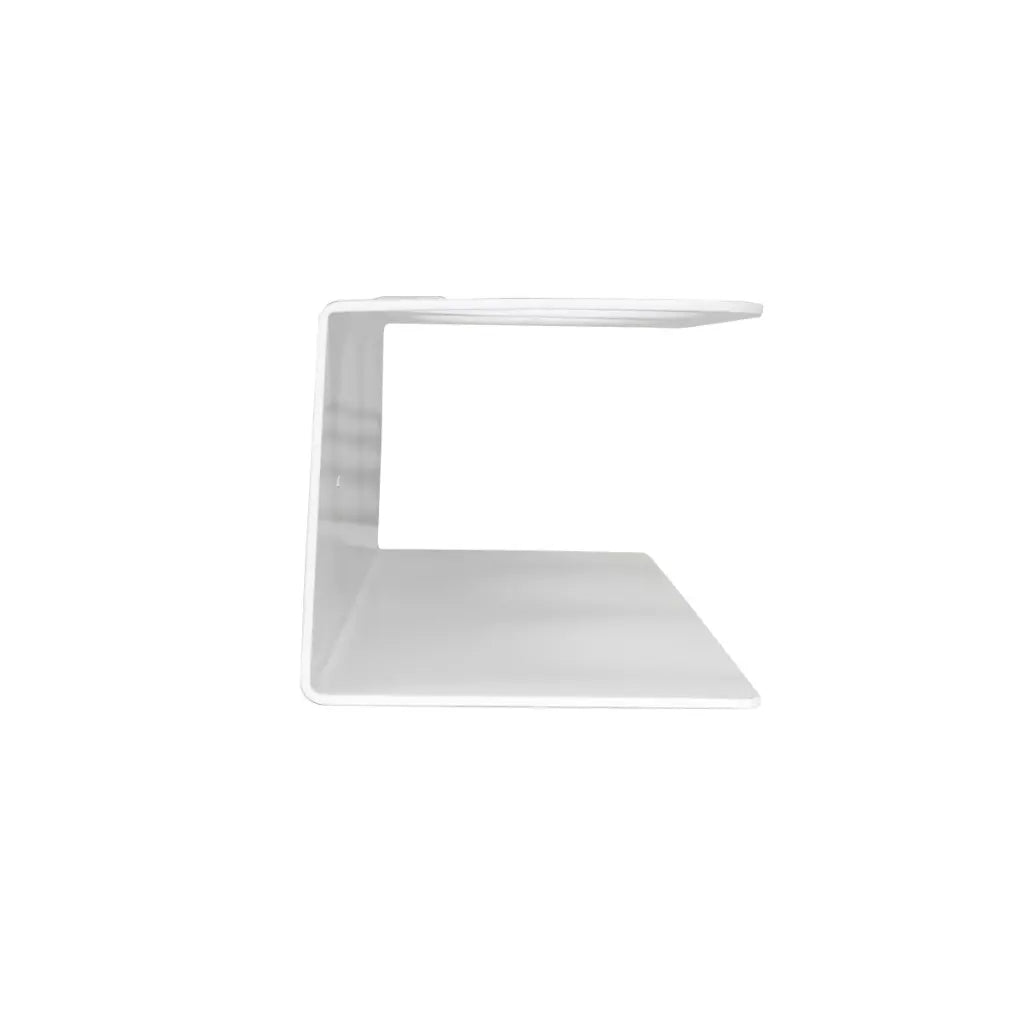

The TrippNT 50411 Triple ABS Bottle Holder 1000 mL is a three-position anti-tip bottle restraint engineered for laboratory benches, fume hood interiors, and wall-mounted supply stations where three 1-liter glass or plastic reagent bottles must be held upright and stable. Reagent bottles at the 1-liter scale are inherently top-heavy as the solvent depletes — a 1000 mL Pyrex or Nalgene bottle in the bottom third of its fill is significantly more prone to tipping than a full bottle — and the TrippNT collar geometry engages the bottle body below the shoulder, keeping the center of mass inside the base footprint even at low fill volumes. Three 3¾″ diameter circle-cut collar slots on a flat ⅛″ white ABS rail each accept a standard 1-liter round-body bottle. Keyhole slots on the rear accept standard #6 or #8 wall fasteners; the flat base allows benchtop use without mounting. At 13¼″ W x 4¼″ H x 4⅞″ D, the unit holds three bottles in a row in a compact footprint that fits inside a 48″ fume hood rear zone.

The 1000 mL ABS Bottle Holder family scales to Single (50080), Double (50085), Triple (50411), and Quadruple (50189) for installations requiring 1, 2, 3, or 4 positions. The 500 mL family uses the same geometry with a narrower collar diameter. Ships fully assembled. Backed by TrippNT’s 100% Lifetime Guarantee.

Technical Specifications

Laboratory and Clinical Applications

The 50411 is deployed across regulated and research environments requiring three-position 1-liter bottle anti-tip restraint, including HPLC and LC-MS mobile phase solvent bottle staging on analytical benches, organic chemistry fume hood solvent collection bottle staging, pharmaceutical GMP reagent and buffer bottle staging at analyst benches, biotechnology R&D buffer and media bottle organization, BSL-2 microbiology liquid reagent staging, environmental analytical chemistry reagent bottle organization, industrial QC solvent and standard bottle staging, academic chemistry teaching lab solvent organization, forensic chemistry reagent bottle staging, food-and-beverage QC standard and calibrant bottle staging, USP 797 sterile compounding buffer bottle staging, and any position where depleting 1-liter bottles must remain upright at all fill levels during active use and storage between uses.

Product Documentation

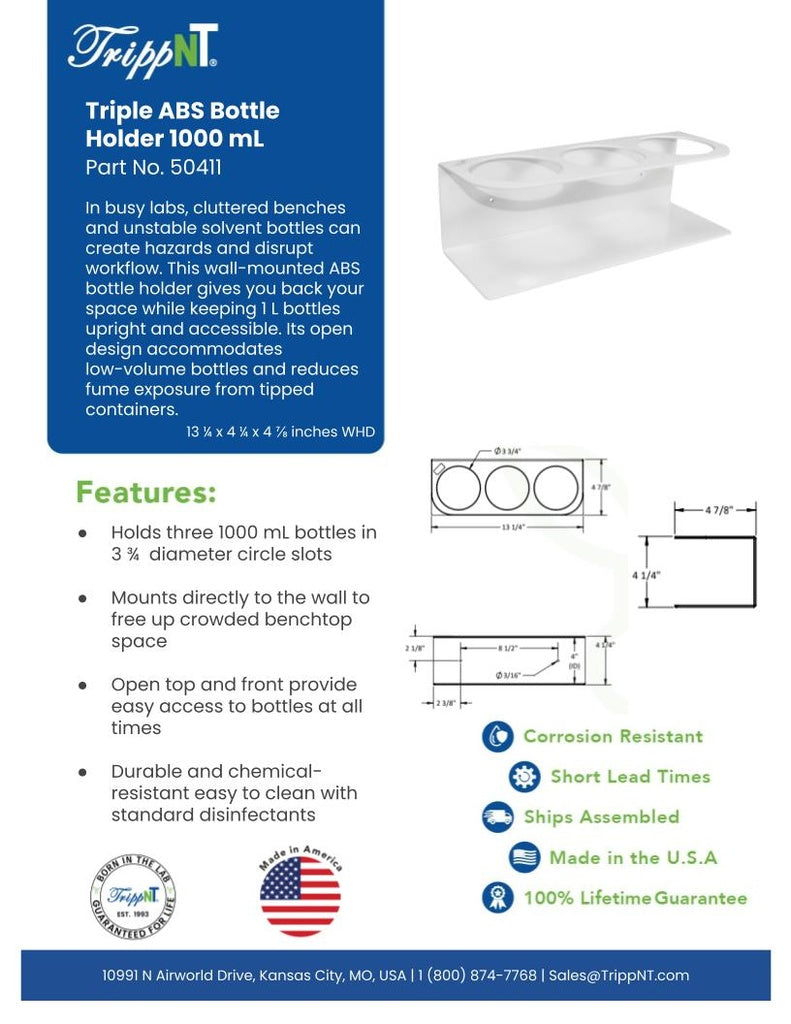

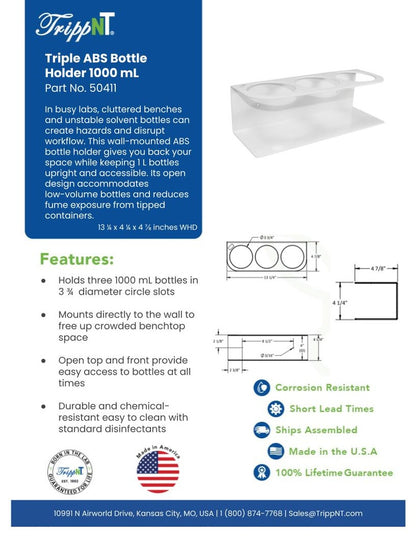

• Sales Sheet — 50411 Triple ABS Bottle Holder 1000 mL (PDF)

Made in the U.S.A. & Lifetime Guarantee

Proudly manufactured in the United States by TrippNT. This bottle holder is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your laboratory. Institutional pricing and bulk discounts are available for universities, hospital systems, and government agencies.

Frequently Asked Questions

What 1000 mL bottle brands and formats fit the 3.75-inch collar slots — will Nalgene wide-mouth HDPE, Pyrex borosilicate, and Thermo Fisher Nunc bottles all fit?

The 3¾″ collar slots are sized for the standard body diameter of most 1000 mL laboratory reagent bottles. Standard round-body borosilicate glass bottles (Pyrex/Corning, DWK Duran, Schott) measure approximately 90–100 mm (3.5–3.9″) in body diameter and drop into the collar with slight clearance. Standard Nalgene HDPE wide-mouth 1000 mL bottles (body OD approximately 95 mm / 3.75″) fit precisely. Thermo Nunc 1000 mL cell culture bottles and most standard PP and PETG 1000 mL laboratory bottles at comparable body diameters also fit. Square-body 1-liter bottles (Nalgene square HDPE, Thermo square polypropylene) and wide-square-format media bottles typically do not fit in circle-cut collar slots; verify body geometry before specifying.

How does the Triple 50411 compare to using three individual Single 50080 holders — when is the single-piece triple the better procurement choice?

Three Single 50080 holders require three separate keyhole installation points, three sets of hardware, three individual mounting heights to align, and three separate purchase line items. The Triple 50411 installs on one set of keyholes at a single height, aligns all three bottle positions on one level automatically, and is purchased as a single unit. For permanent three-bottle configurations, the 50411 is simpler to install, maintains level alignment inherently, and costs less per position. The 50080 is preferable only when the three bottles must be physically separated at different heights or positions on different wall surfaces.
