Technical Narrative

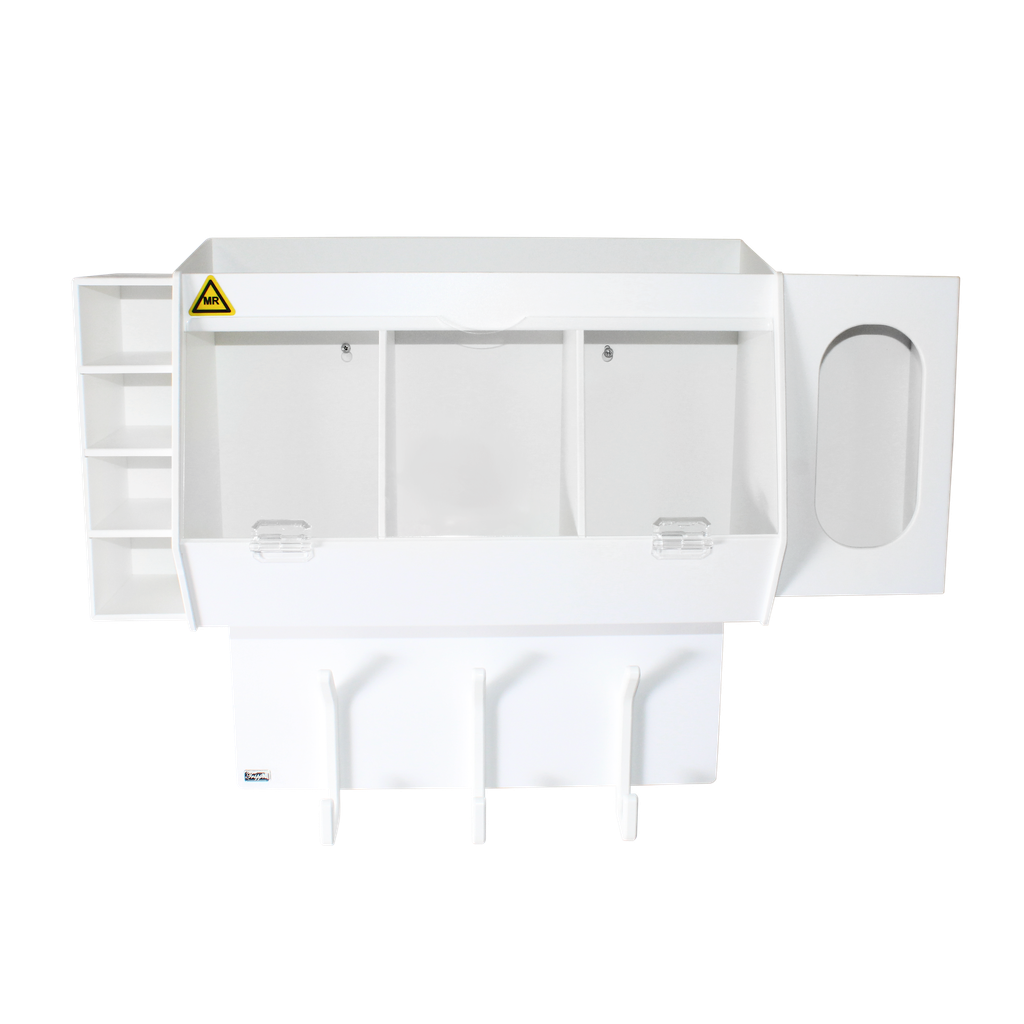

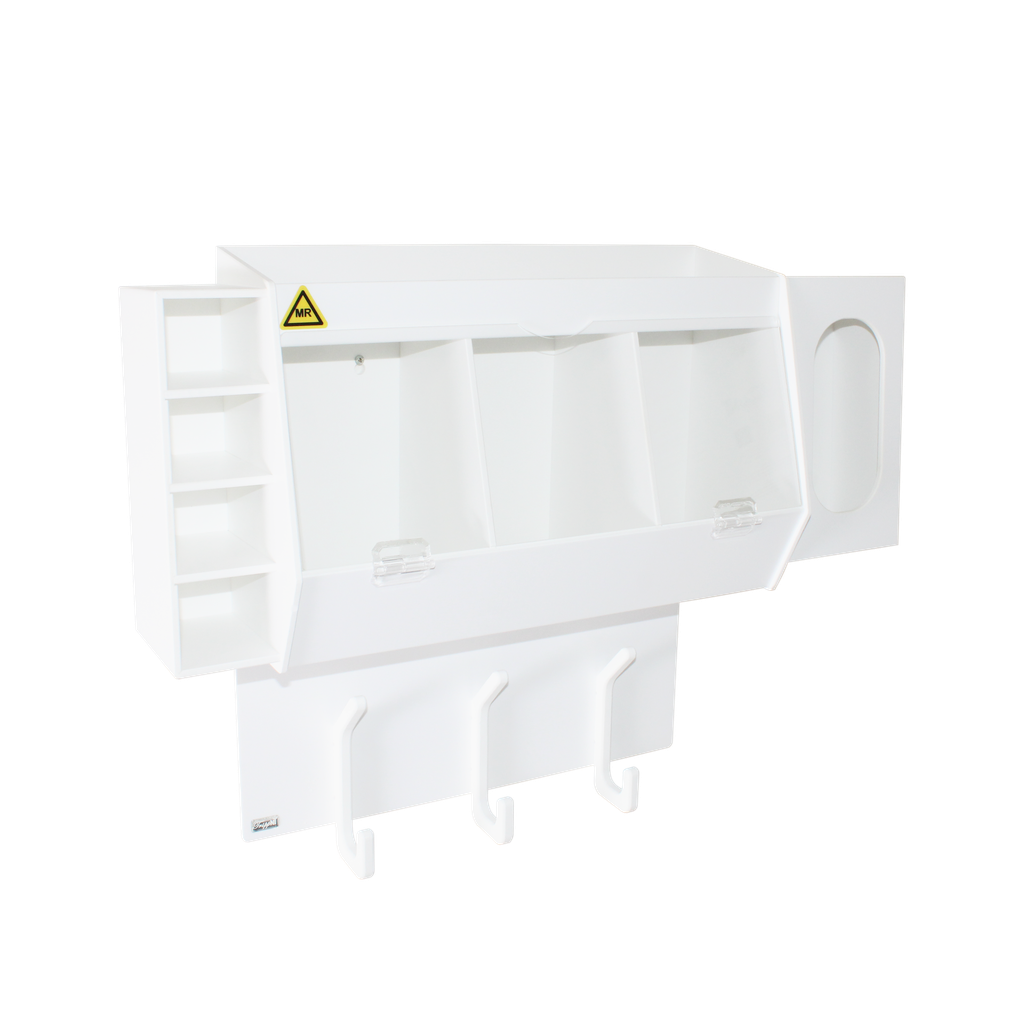

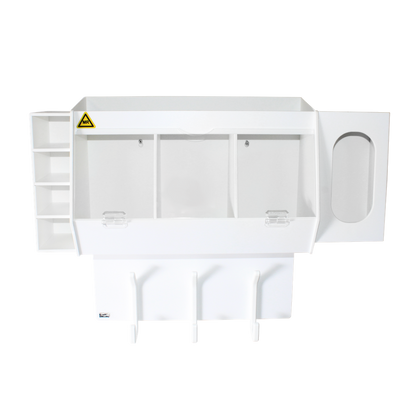

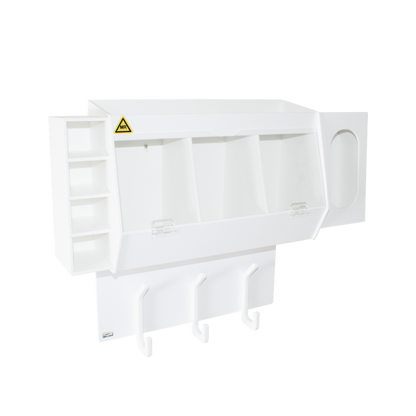

The TrippNT 53984 MRI Entry Changing Station is the MRI Zone II and III – compatible version of TrippNT’s Entry Changing Station — a wall-mounted all-in-one supply and PPE staging unit for MRI suite entry and exit points where the standard ferrous-hardware Lab Entry Changing Station (50193) cannot be used within the MRI safety zone. All mounting hardware included with the 53984 is non-ferrous and MRI-conditional, allowing the unit to be installed in Zone II or at the entry boundary to Zone III without introducing ferrous hardware into the zone perimeter. Three center bins with individual clear acrylic hinged doors protect stored supplies and gowns from dust and contamination while allowing visual inventory monitoring through the doors without opening them. A glove box holder provides a dedicated glove staging position at the entry point. The compact 26¾″ W x 20¾″ H x 7⅜″ D footprint fits the typical width of MRI suite entry wall spaces between doorframes and console windows.
Constructed from ½″ HDPE, ¼″ white PVC, and ⅛″ clear acrylic throughout, with no ferrous fasteners in the MRI-conditional configuration. Ships fully assembled. Backed by TrippNT’s 100% Lifetime Guarantee.
Technical Specifications
| Specification | Value |
|---|---|
| MRI Classification | MRI-Conditional — non-ferrous mounting hardware throughout |
| Material | ½″ HDPE, ¼″ White PVC, ⅛″ Clear Acrylic |
| Color/Finish | White/Clear |
| Center Bins | 3 bins with individual clear acrylic hinged doors |
| Total Compartments | 4 (3 binned + 1 glove box holder position) |
| Mounting Hardware | Non-ferrous MRI-conditional (included) |

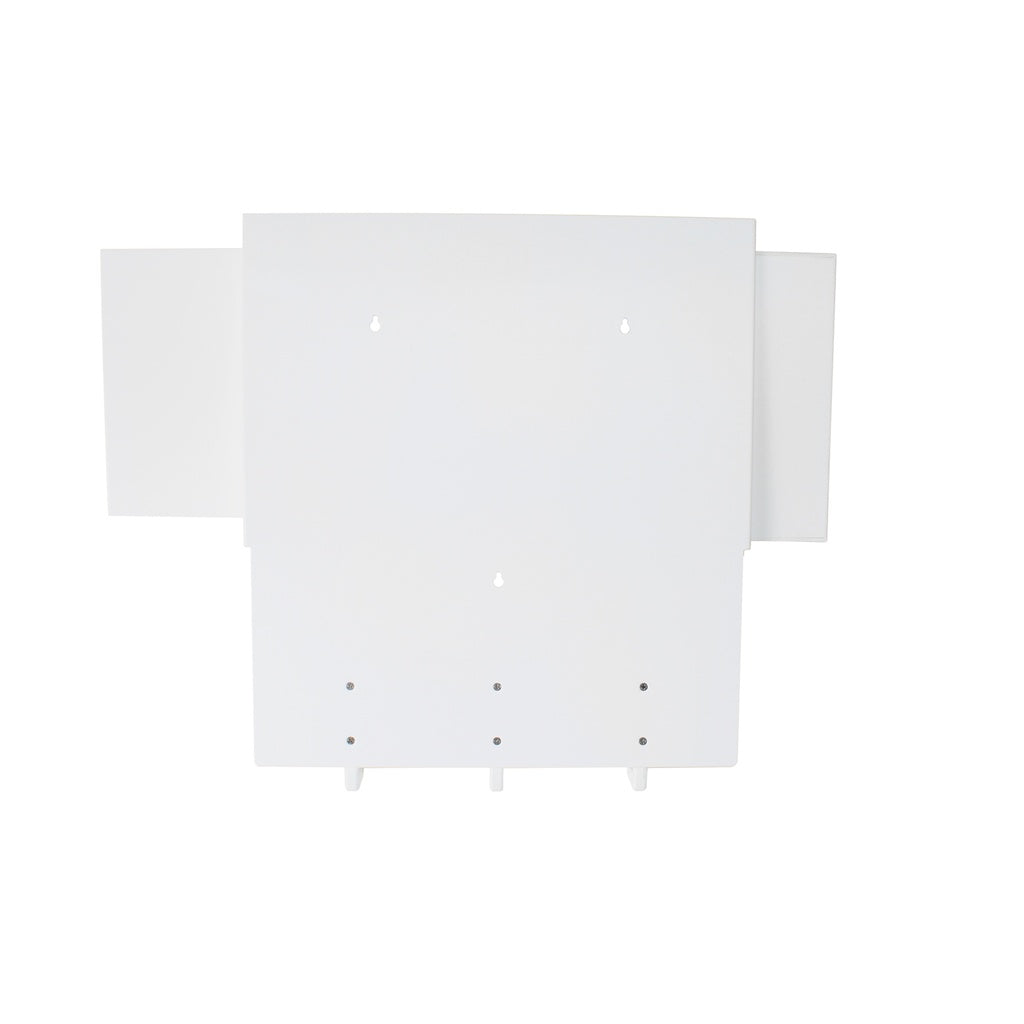

| Mount Type | Wall mount — keyhole with included non-ferrous hardware |
| Product Dimensions (W x H x D) | 26¾″ x 20¾″ x 7⅜″ |
| Product Weight | 5.85 lb |
| Shipping Carton (L x W x H) | 27″ x 13″ x 23″ |
| Shipping Weight | 11 lb |
| UPC | 647168167383 |
| HTS Code | 3926.90 |
| Country of Origin | United States — Kansas City, MO |
Laboratory and Clinical Applications
The 53984 is deployed exclusively in MRI suite environments requiring a zone-compliant entry and exit PPE and supply staging station, including MRI Zone II to Zone III entry point PPE and gown staging, MRI control room adjacent supply and PPE organization, interventional MRI suite entry supply staging, hospital radiology department MRI suite entry PPE station, cardiac MRI suite entry gowning and supply organization, veterinary MRI suite entry PPE staging, university hospital research MRI zone entry supply management, and any MRI suite entry or transition zone position where a multi-bin supply and PPE wall station must be installed with MRI-conditional non-ferrous hardware to comply with facility MRI safety policy and zone-specific ferrous-exclusion requirements.
Product Documentation
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. This MRI entry changing station is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your facility. Contact TrippNT at 1-800-874-7768 for institutional pricing and MRI suite fleet configurations.
Frequently Asked Questions
How does the MRI Entry Changing Station 53984 differ from the standard Lab Entry Changing Station 50193 — what specifically makes it MRI-conditional?
The 53984 and 50193 share the same cabinet geometry, bin configuration, and PVC/acrylic construction. The critical MRI-conditional distinction is the mounting hardware: the standard 50193 uses conventional ferrous steel screws and anchors for wall installation; the 53984 includes non-ferrous mounting hardware throughout (non-ferrous screws, anchors, and keyhole hardware) to eliminate all ferrous components at the installation point. The cabinet body itself — HDPE, PVC, and acrylic — contains no ferrous material in either version. If your facility’s MRI safety officer requires formal confirmation of the non-ferrous hardware specification for Zone III installation approval, contact TrippNT at 1-800-874-7768 to request a component-level material certification.
What types of supplies and PPE should be staged in each of the three bins, and is the glove box holder standard or configurable?
Each of the three hinged-door bins is sized for standard MRI suite entry supplies: bin contents vary by facility protocol but typically include Zone III/IV-safe hearing protection (ear plugs), MRI-conditional patient call devices, safety information cards, and personal item storage pouches for patients removing ferrous items (keys, coins, jewelry) before Zone IV entry. The glove box holder is factory-installed in a fixed position on the unit and accepts a standard glove box. For facilities requiring a custom compartment configuration (more hooks, different bin sizes, additional glove positions), contact TrippNT’s custom manufacturing team at 1-800-874-7768.
