TrippNT LabFlow Storage Rack — 25-Level Welded Aluminum Cold Storage Rack with Locking Casters for Lab Refrigerators and Cold Rooms

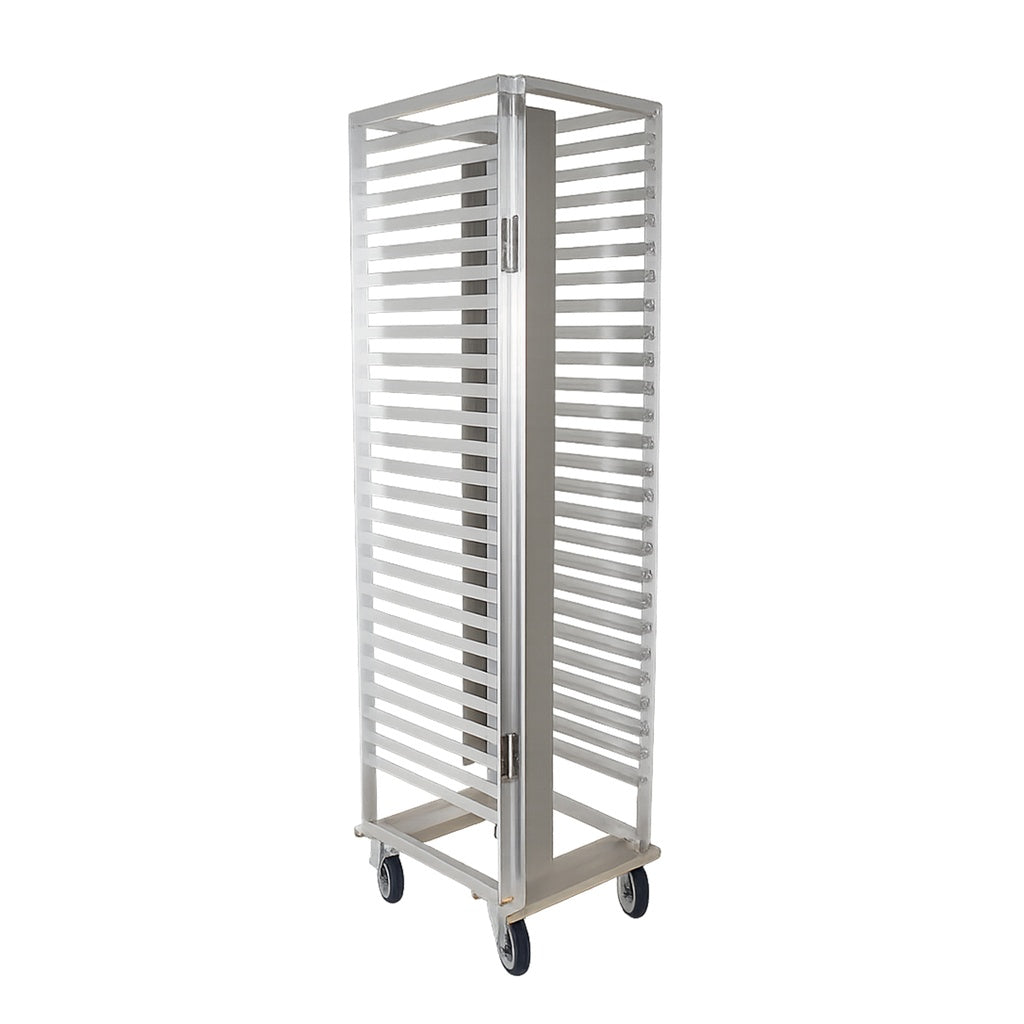

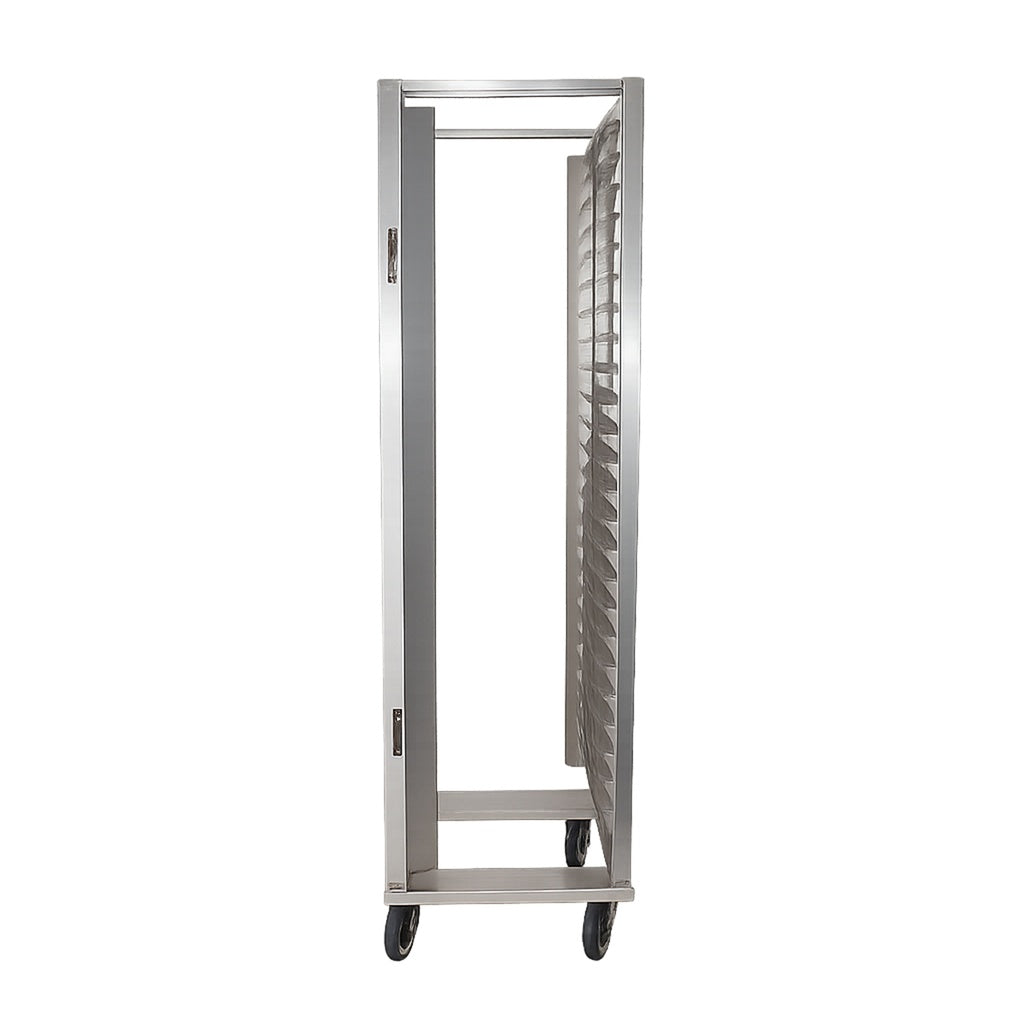

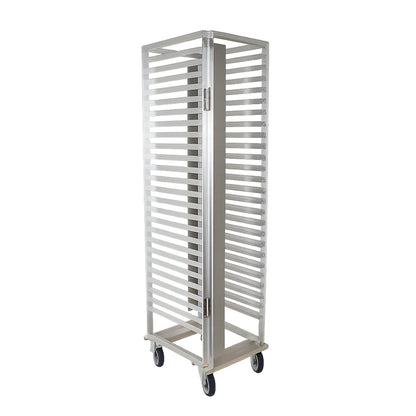

The TrippNT LabFlow Storage Rack (SKU 54092) is a 17¾″ wide, 69⅞″ tall welded and riveted aluminum rack with 25 rail levels and locking casters, designed to transform lab refrigerators, walk-in cold rooms, and ambient storage areas into high-density, organized, spill-contained supply stations. The rack accepts LabFlow Trays in 2.5″, 4″, and 6″ depths in both polycarbonate and polypropylene — 25 rail levels allows mixing tray depths within the same rack to maximize vertical space usage based on actual supply sizes. Manual front and back gate locks secure trays in position during transport or repositioning.
Welded and riveted aluminum construction resists corrosion at 4°C and below, will not rust or warp in cold storage conditions, and is rated for long-term cold room use. Low-profile locking casters allow smooth movement for cleaning, access, and reconfiguration. The 69⅞″ height allows the rack to use full refrigerator interior height without custom fitting. Sold without trays. For pre-configured rack + tray bundles see 54108 (6″ PP), 54109 (4″ PP), 54110 (6″ PC), 54111 (4″ PC). Ships fully assembled. Ships on pallet.
Technical Specifications
| Specification | Detail |
|---|---|
| Material | Welded and riveted aluminum |
| Color | Aluminum (natural) |
| Rail Levels | 25 |
| Tray Compatibility | All LabFlow Trays (2.5″, 4″, 6″ PC and PP) |
| Gate Locks | Manual front and back (secure trays during transport) |
| Trays Included | None — sold separately |
| Cold Storage Rated | Yes — rated to 4°C and below, no rust or warping |

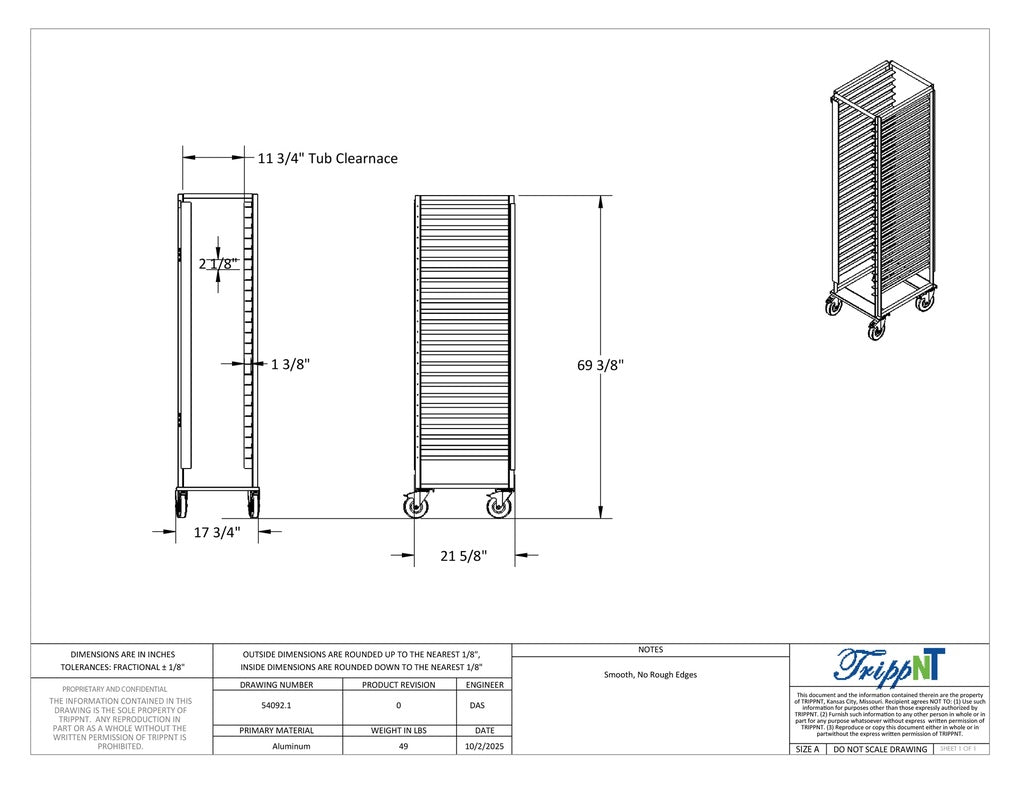

| Product Dimensions (W × H × D) | 17¾″ × 69⅞″ × 21⅝″ |
| Product Weight | 45.35 lb (rack only, no trays) |
| Shipping | 30″ × 30″ × 75″ — Ships on pallet |
| UPC | 783970094599 |
| HTS Code | 9403.20.0000 |
| Country of Origin | United States (Kansas City, MO) |

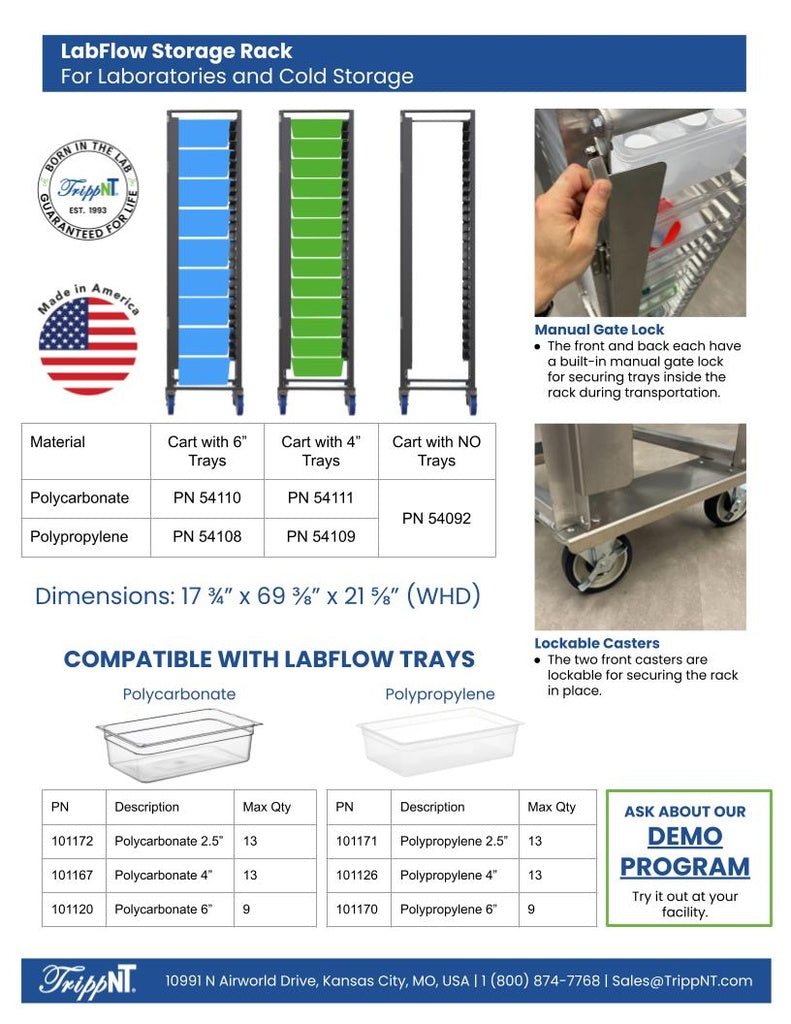

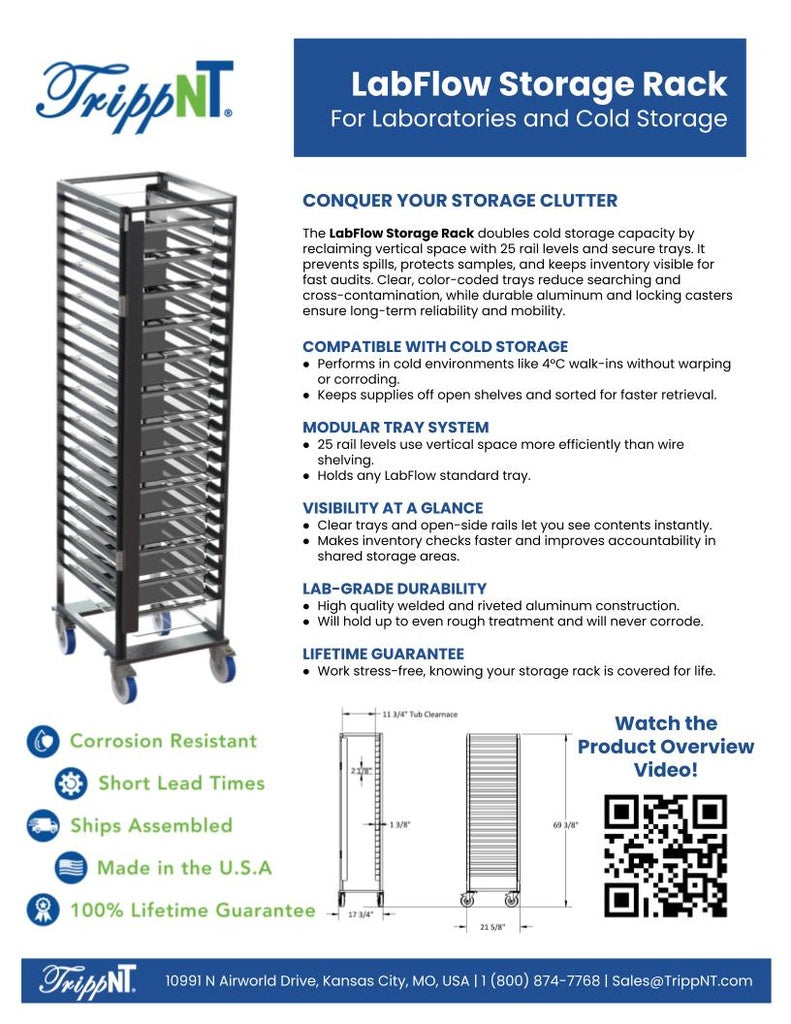

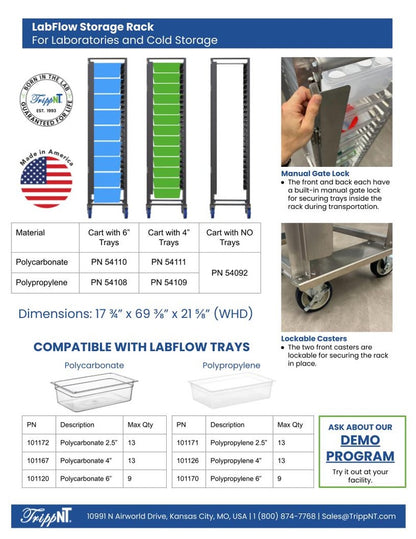

Product Documentation
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. Backed by a 100% Lifetime Guarantee.
Frequently Asked Questions
How does this rack compare to wire shelving inside a refrigerator?
Wire shelving allows bottles and samples to tip, roll, and fall between wires. The LabFlow rack with trays contains each sample set in a defined tray position, preventing tipping and spills, and allowing tray-by-tray extraction without disturbing neighboring samples. TrippNT estimates the tray-based 25-level configuration often doubles usable cold storage capacity vs wire shelving by using vertical space more efficiently with shallower tray levels per position.
Will this rack fit inside a standard lab refrigerator?
At 17¾″ W × 21⅝″ D, the rack fits inside most full-size lab refrigerators (typically 24″–30″ W interior). The 69⅞″ height is designed for walk-in cold rooms and extra-tall refrigerators; for standard upright lab refrigerators, measure interior height before ordering. Many installations place two racks side-by-side in a walk-in cold room.
