TrippNT Free Standing Biohazard Shield — Clear Acrylic Snap-In HDPE Stand Cough and Sneeze Guard for Lab and Clinical Bench Dividers

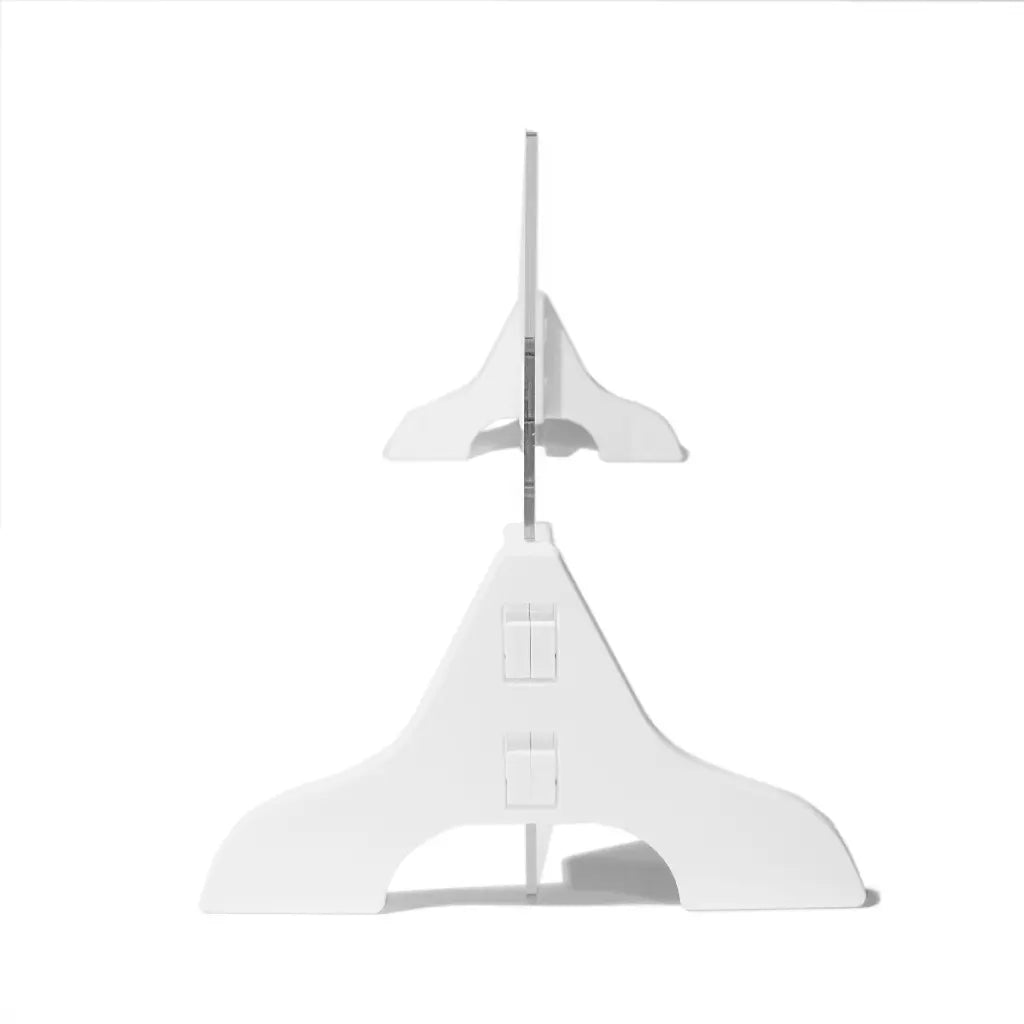

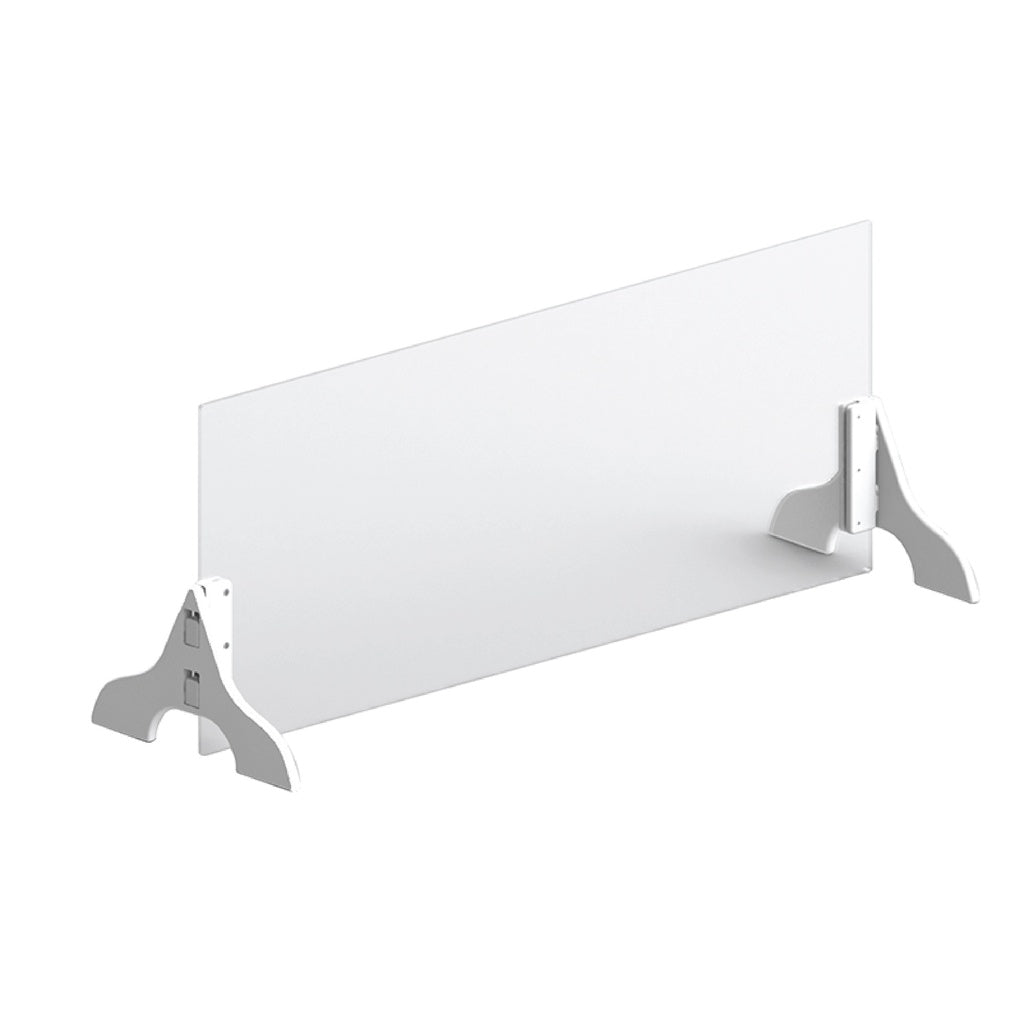

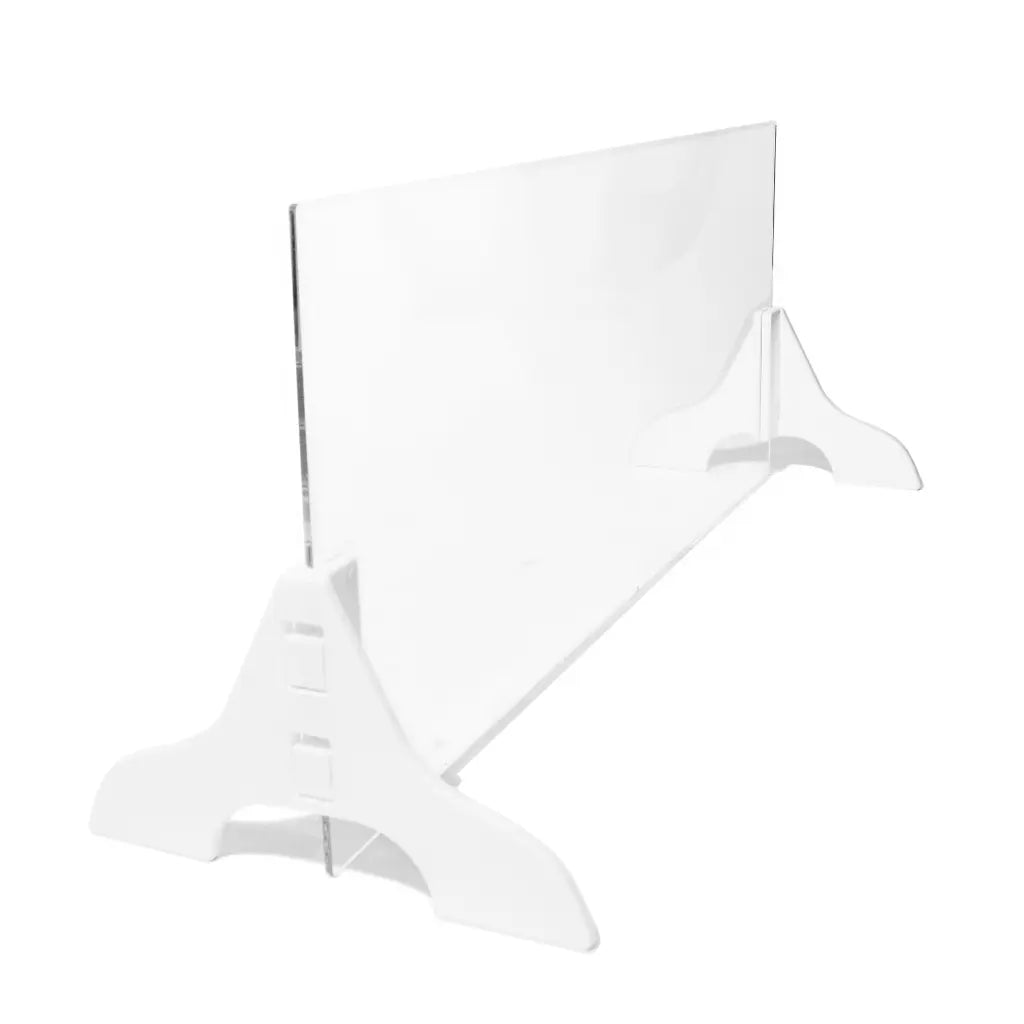

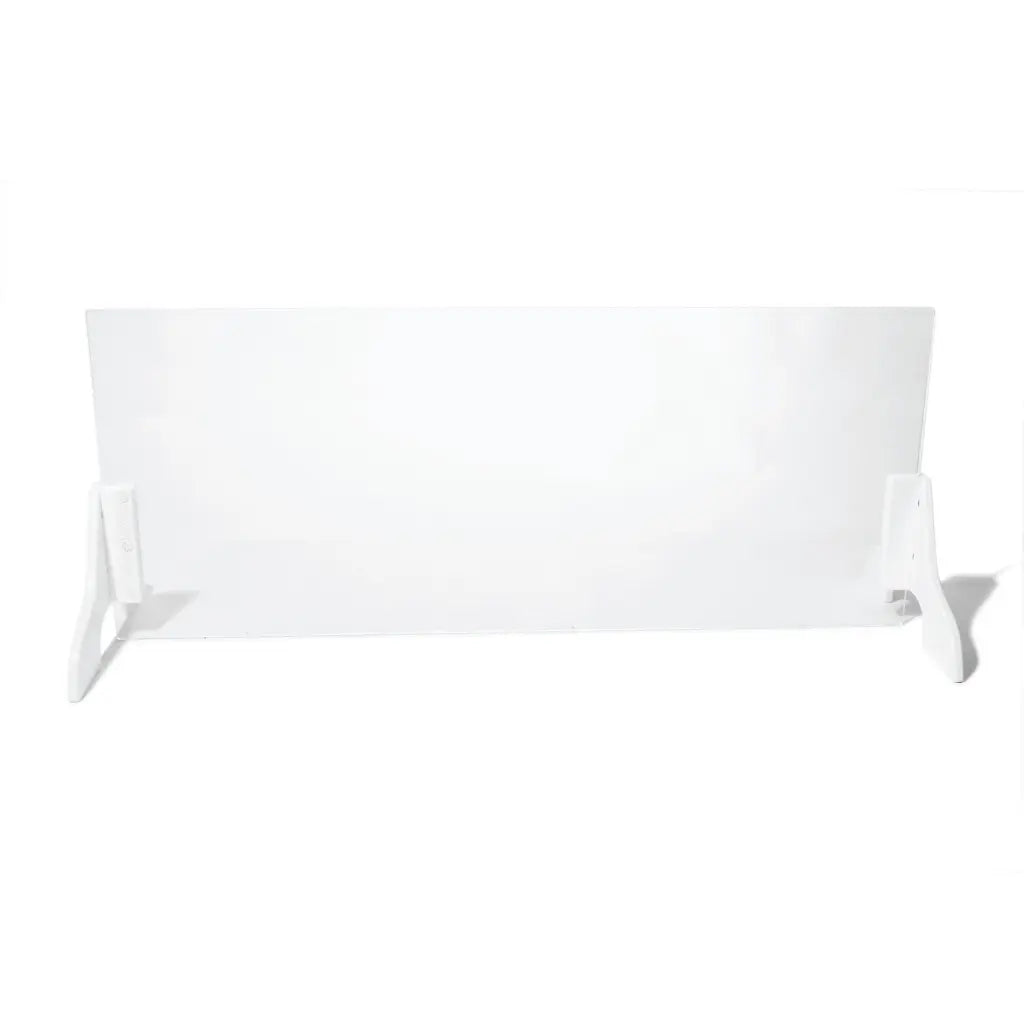

The TrippNT Free Standing Biohazard Shield (SKU 53408) is a 40-inch wide clear acrylic barrier panel mounted on a snap-in white HDPE stand — a freestanding cough and sneeze guard designed for laboratory bench and clinical counter positions where an aerosol barrier between personnel or between a worker and a patient provides protection from respiratory droplets, cough spray, and biohazard splash events. At 40″ W × 16″ H × 13⅜″ D, the shield provides a broad horizontal coverage zone at face-level height, spanning the width of most single-person bench workstations and covering the primary aerosol transmission path from a standard seated or standing operator position. The 3/16-inch clear acrylic panel is mounted in a 1/2-inch HDPE snap-in stand that assembles without tools and lies flat for storage and shipping — the shield ships in its flat-pack configuration and snaps together in seconds at the installation point.
The acrylic panel surface is compatible with isopropyl alcohol (IPA) wipe-down for rapid between-use disinfection — a TrippNT-confirmed disinfection protocol for this product. The HDPE stand base is stable on standard bench surfaces without adhesive or fastening. Also used as a reception desk and checkout counter sneeze guard, pharmacy dispensing window barrier, patient registration desk guard, and shared equipment workstation barrier in clinical and laboratory settings. Ships fully assembled (flat-packed).
Technical Specifications
| Specification | Detail |
|---|---|
| Material (Panel) | 3/16″ Clear Acrylic |
| Material (Stand) | 1/2″ White HDPE (snap-in, tool-free assembly) |
| Color / Finish | Clear panel, white stand |
| Stand Type | Freestanding snap-in (no fasteners, no adhesive) |
| Disinfection | IPA-compatible (isopropyl alcohol wipe-down) |
| Storage / Shipping | Ships and stores flat |

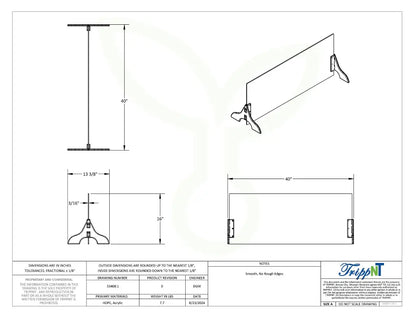

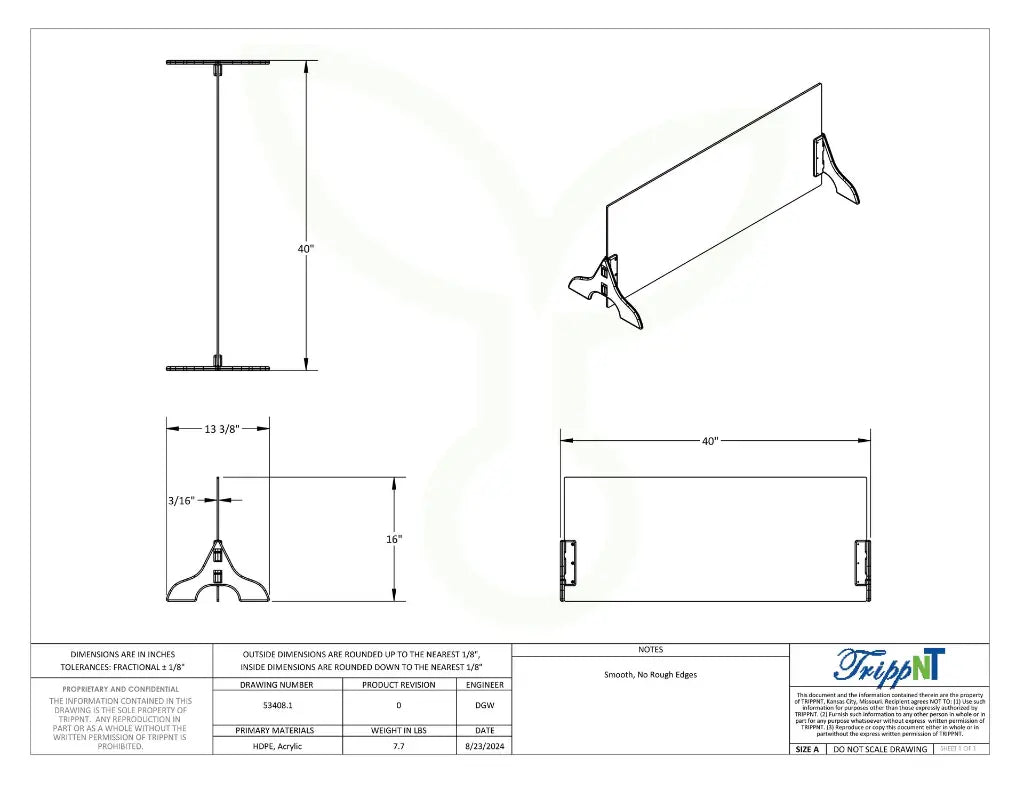

| Product Dimensions (W × H × D) | 40″ × 16″ × 13⅜″ |
| Product Weight | 7.70 lb |
| Shipping Carton (L × W × H) | 23″ × 26″ × 42″ |
| Shipping Weight | 12 lb (Ground) |
| UPC | 785249461699 |
| HTS Code | 3926.9 |
| Country of Origin | United States (Kansas City, MO) |
Laboratory and Clinical Applications
The 53408 is specified for aerosol and splash barrier use in: clinical laboratory specimen reception windows (barrier between patient and phlebotomist or laboratory staff), pharmacy dispensing counters (barrier between pharmacist and patient during consultation or pickup), hospital registration and admissions desks, urgent care and outpatient clinic registration areas, dental operatory front desk, laboratory bench worker-to-worker barriers in open-plan shared labs, shared instrument console positions where multiple analysts work side-by-side, biosafety level 1 and 2 open bench positions requiring supplemental aerosol separation, food production quality control bench positions, and industrial and manufacturing production line quality inspection positions requiring personnel separation barriers. The 40-inch width covers the standard single-workstation bench span; for longer bench runs requiring multiple shields, units can be placed end-to-end. The flat-pack storage profile makes the 53408 practical for facilities that deploy shields during high-risk events and store them when not in use.
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. Backed by a 100% Lifetime Guarantee.
Frequently Asked Questions
What is the effective height coverage of the 53408 shield in use?
The 53408 panel is 16 inches tall and the snap-in HDPE stand raises the panel base approximately 2–3 inches above the bench surface, putting the top of the acrylic panel at approximately 18–19 inches above the bench top. For standard lab benches (36 inches above floor), this places the top of the shield at approximately 54–55 inches above floor — roughly mid-chest height on a standing adult. The shield is optimized for face-level protection when the operator is seated (eye height approximately 48–52 inches above floor) or leaning forward over the bench in a working posture. For standing-height full-face coverage, a taller barrier format is required.
Can multiple 53408 shields be connected end-to-end for longer bench runs?
The 53408 HDPE base stands independently and is not designed with interlocking connectors for end-to-end coupling. Multiple units can be placed side-by-side on a bench with their bases abutting, creating a continuous 80-inch or longer barrier line with a small gap at each base junction. For applications requiring a fully gapless barrier, the HDPE stand bases can be temporarily secured to the bench surface with double-faced tape (not included). Contact TrippNT’s custom manufacturing team for longer single-panel configurations or interlocking base options if required.
