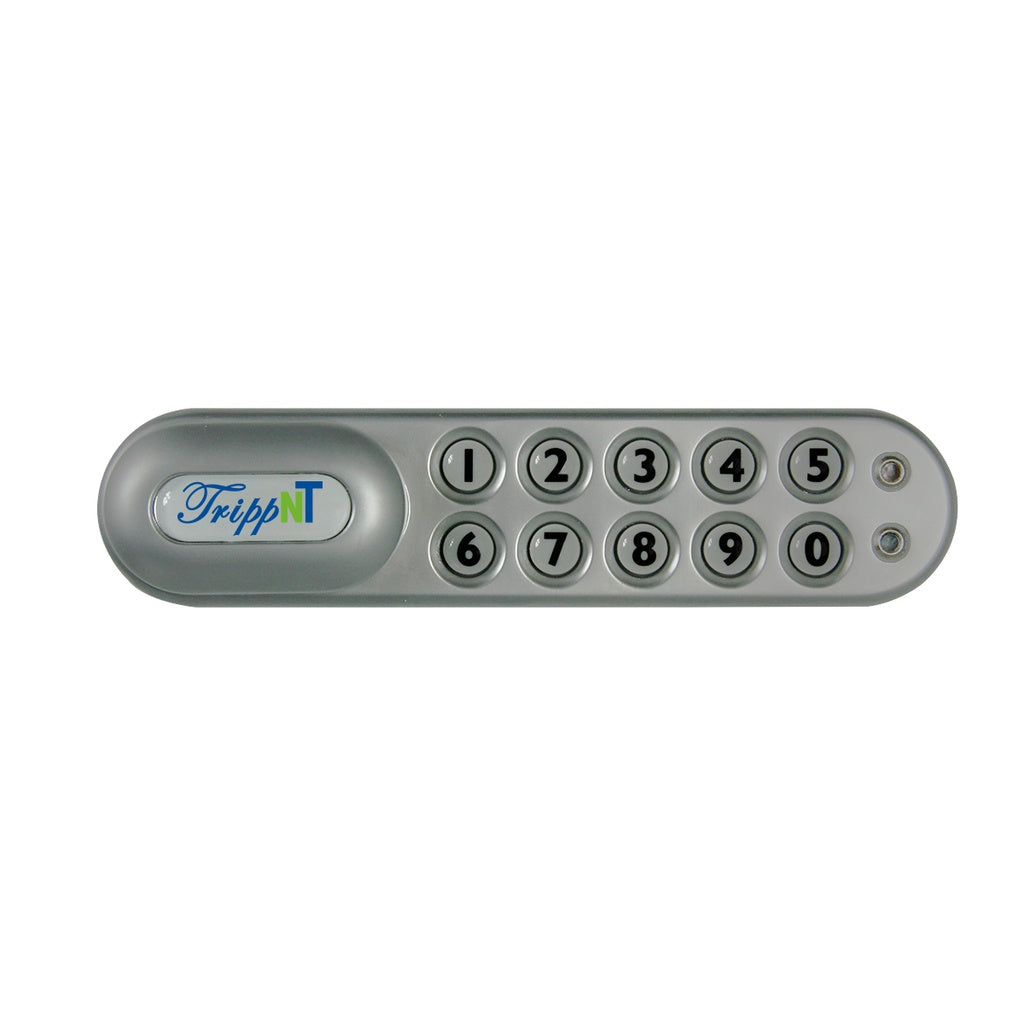

TrippNT Electronic Key Lock — Pushbutton Keyless 4-Digit PIN Lock for TrippNT Hinged Door Carts
The TrippNT Electronic Key Lock (SKU 52967) is a battery-powered, pushbutton keyless lock for TrippNT hinged door carts, replacing the standard key cylinder with a 4-digit PIN pad for code-based access control. The Electronic Lock fits directly into the standard lock cutout on Element, Compact, Core 6-Drawer, and Core Hinged Door carts — no additional drilling or modification required. PIN codes are set using the included instructions. Batteries included. The silver gloss pushbutton finish is hygienic, easy to wipe clean, and resistant to repeated actuation without mechanical wear associated with key cylinders.
The keyless PIN format is specified for shared cart environments where multiple authorized staff need access without distributing physical keys: OR teams, nursing units, laboratory stations, and any supply program where key management (distribution, replacement, tracking) adds administrative burden. Changing the PIN on access-control events (staff changes, security incidents) requires no locksmith or hardware replacement — reset the PIN code following the instructions. Sold as a standalone replacement/upgrade item; must be used with a compatible TrippNT cart. Ships fully assembled.
Technical Specifications
| Specification | Detail |
|---|---|
| Type | Electronic pushbutton PIN lock |
| PIN Code | 4-digit, user-programmable |
| Finish | Silver gloss |
| Power | Battery (included) |
| Compatible Carts | Element, Compact, Core 6-Drawer, Core Hinged Door (TrippNT) |

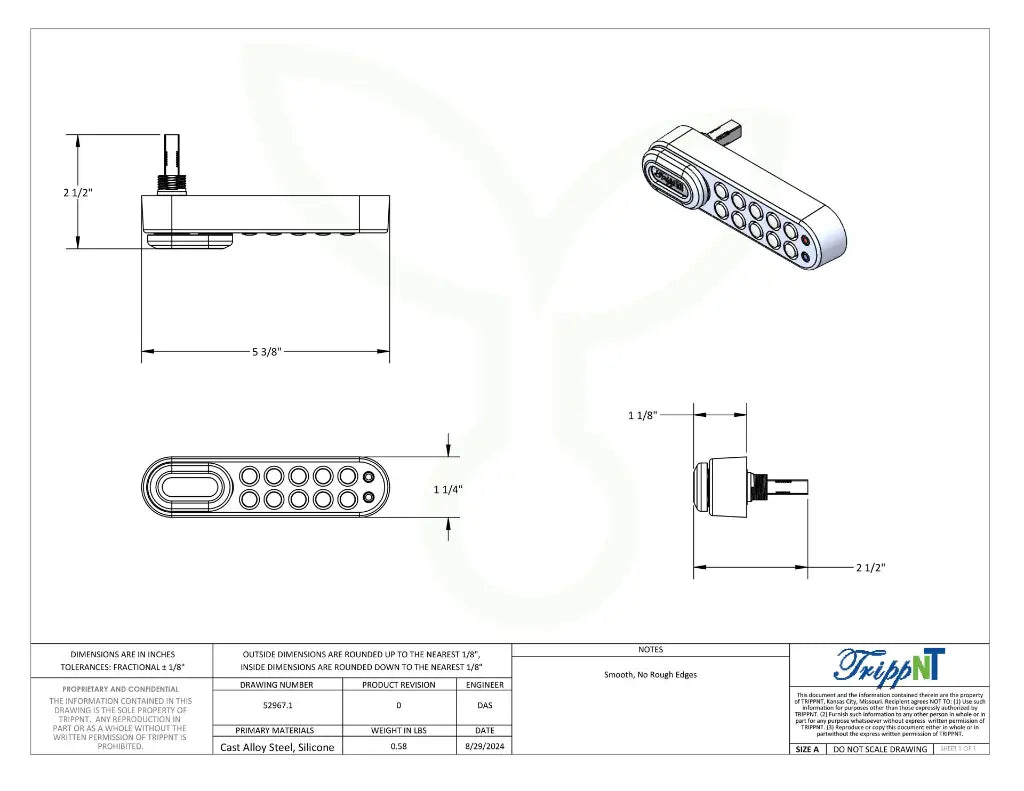

| Item Dimensions (W × H × D) | 5⅜″ × 1¼″ × 1⅞″ |
| Item Weight | 1 lb |
| Shipping (L × W × H) | 9″ × 6″ × 1″ |
| Shipping Weight | 1 lb (Ground) |
| UPC | 762983795471 |
| HTS Code | 8301.7 |
| Country of Origin | United States (Kansas City, MO) |
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. Backed by a 100% Lifetime Guarantee.
Frequently Asked Questions
Can this replace the standard D20 key lock on any TrippNT hinged door cart?
The Electronic Lock fits the standard lock cutout on Element, Compact, Core 6-Drawer, and Core Hinged Door product lines. It is not compatible with tambour door carts, the Narrow Locking Cart, or carts that use a different lock mounting format. If unsure whether your cart model is compatible, contact TrippNT before ordering.
What happens if the battery dies?
The Electronic Lock ships with batteries included and provides a low-battery warning before full discharge. Refer to the included electronic manual for battery replacement instructions. The battery type and replacement procedure are documented in the instructions shipped with the lock.
