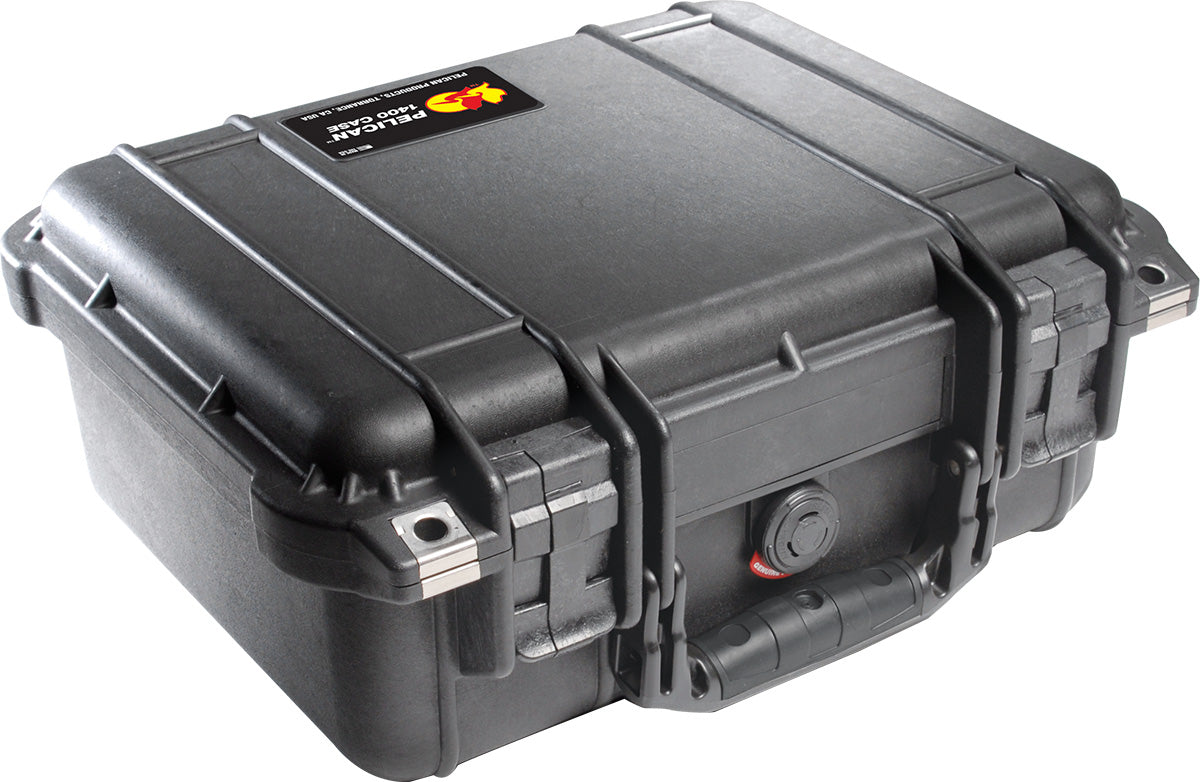

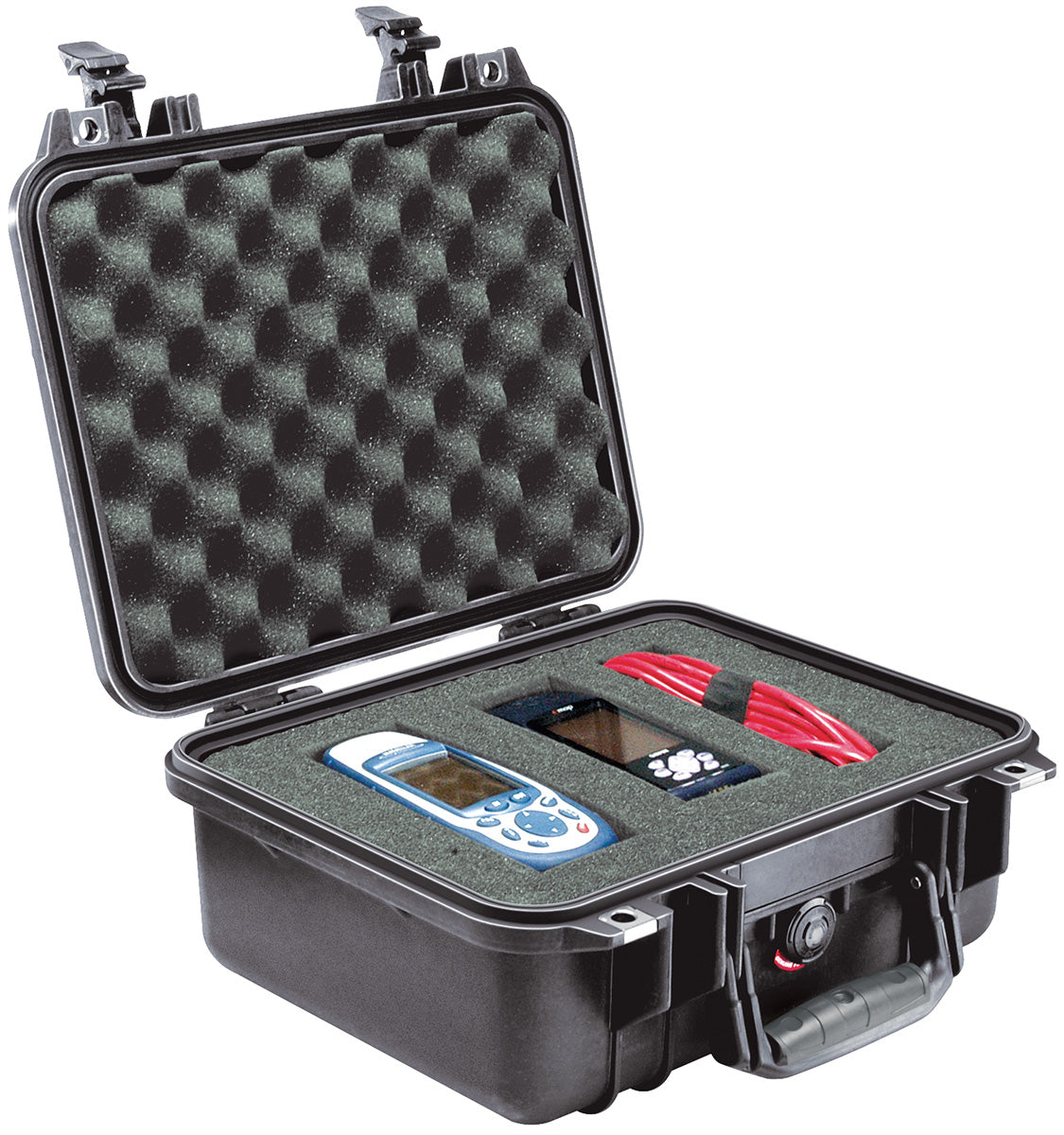

The Pelican 1400 Protector Case gives 11.81 × 8.87 × 5.18 in of interior at 3.97 lb empty, in the original HPX resin shell with double-throw latches. With Pick n’ Pluck foam plucked to shape that leaves room for an instrument up to 8.8 × 5.9 × 3.2 in. It is watertight, crushproof and dustproof to IP67, sealed on a gasketed O-ring, and carries an automatic pressure equalisation valve so it still opens after a flight or a cold room.
Specification
| Specification | Value |
|---|---|
| Interior (L × W × D) | 11.81 × 8.87 × 5.18 in |
| Exterior (L × W × D) | 13.37 × 11.62 × 6 in |
| Lid / bottom depth | 1.18 in / 4 in |
| Weight with foam | 4.41 lb |
| Weight, no foam | 3.97 lb |
| Ingress rating | IP67 — watertight and dust-tight |
| Watertight warranty | 3.3 ft (1 m) for 30 minutes, correctly closed with an undamaged O-ring |
| Temperature range | −40°F to 190°F (−40°C to 87°C) |
| Pressure equalisation | Automatic purge valve — opens normally after a flight or a cold room |
| Warranty | Pelican limited lifetime warranty on the injection-molded case |
Interior options
The interior is a separate decision from the shell and changes both the price and the empty weight. Select it in the Interior option above.
| Interior | What arrives in the case |
|---|---|

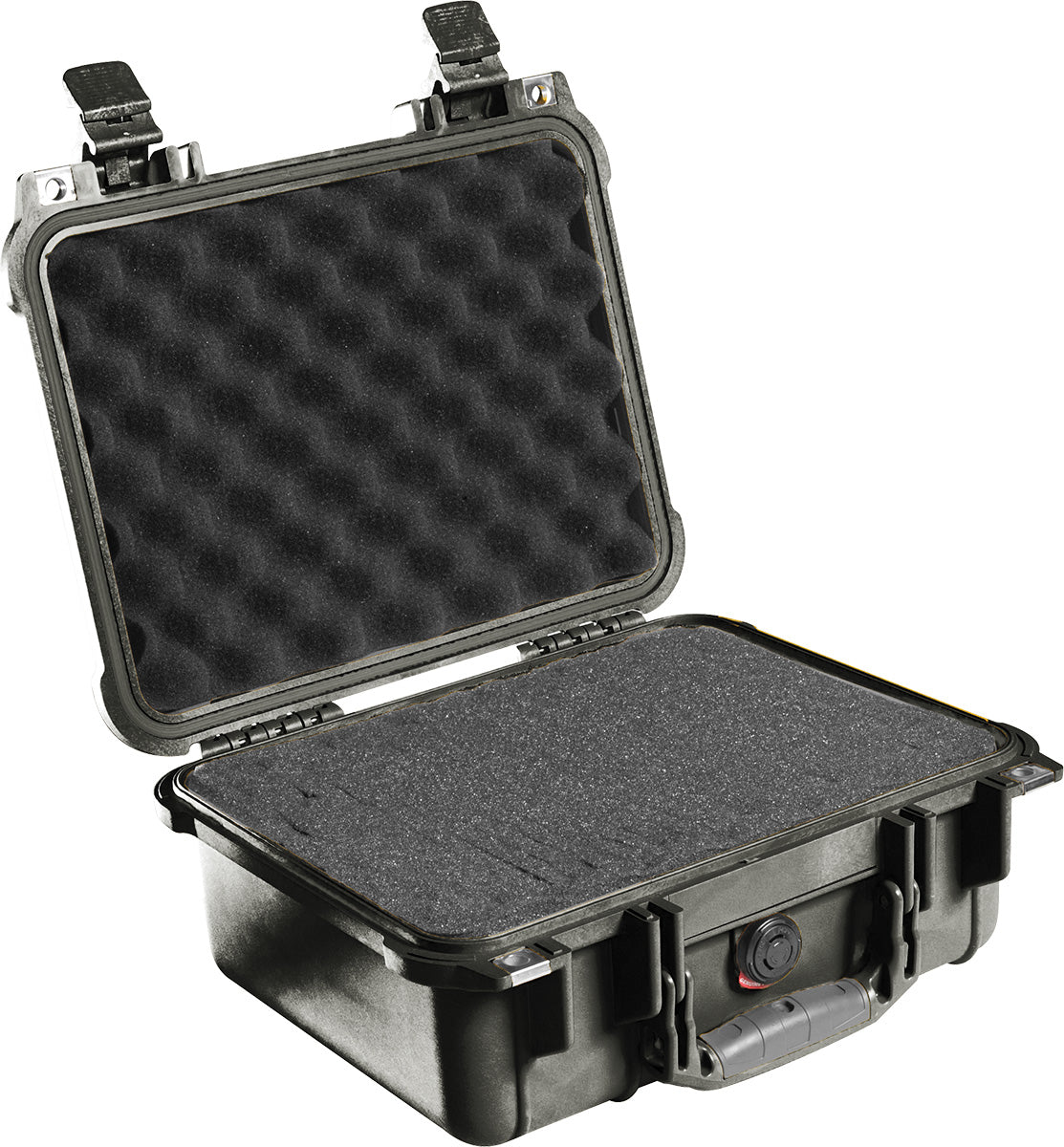

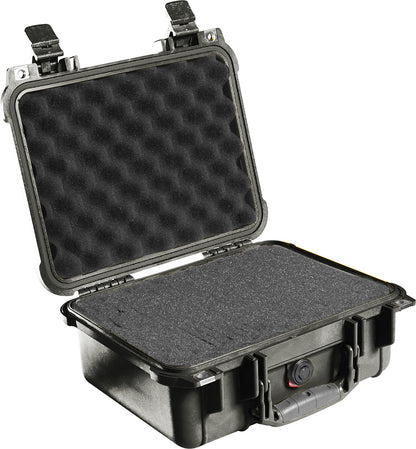

| With Foam | Layered Pick n’ Pluck and solid foam — pluck to the outline of the instrument for a shock-isolating fit. |
| No Foam | Empty shell — lighter and lower cost. Correct when a custom insert is already in hand. |
Pelican part numbers in this listing
Every colour and interior combination is a separate Pelican part number with its own barcode. Reorder against the exact number below.
| Pelican part number | Colour | Interior | UPC |
|---|---|---|---|
| 1400-001-110 | Black | No Foam | 019428012076 |
| 1400-000-110 | Black | With Foam | 019428015602 |
| 1400-001-190 | Desert Tan | No Foam | 019428055912 |
| 1400-000-190 | Desert Tan | With Foam | 019428055905 |
| 1400-001-130 | OD Green | No Foam | 019428055943 |
| 1400-000-130 | OD Green | With Foam | 019428055936 |
| 1400-001-150 | Orange | No Foam | 019428012724 |
| 1400-000-150 | Orange | With Foam | 019428016357 |
| 1400-001-180 | Silver | No Foam | 019428013288 |
| 1400-000-180 | Silver | With Foam | 019428016883 |
| 1400-001-240 | Yellow | No Foam | 019428014124 |
| 1400-000-240 | Yellow | With Foam | 194280178422 |
