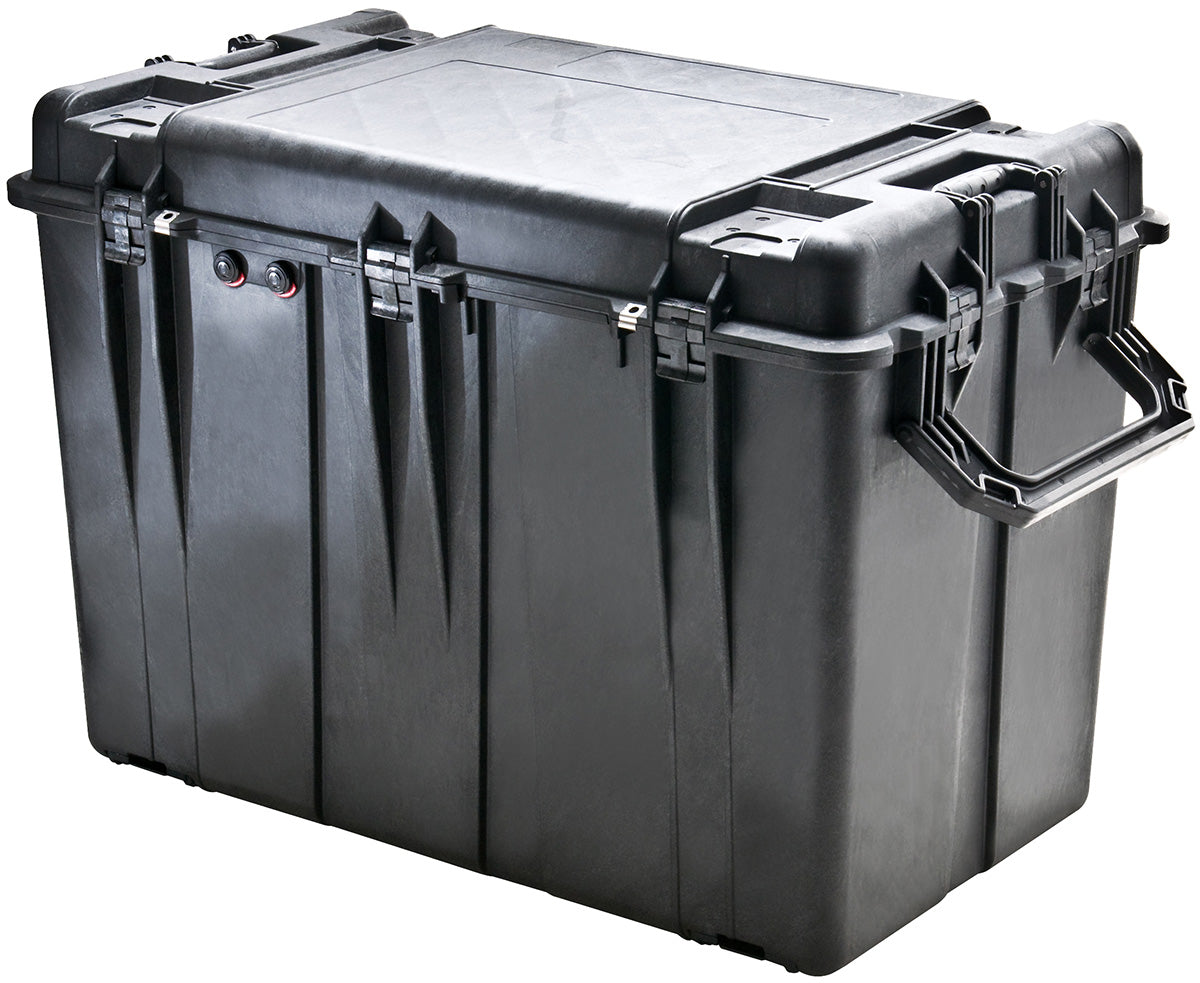

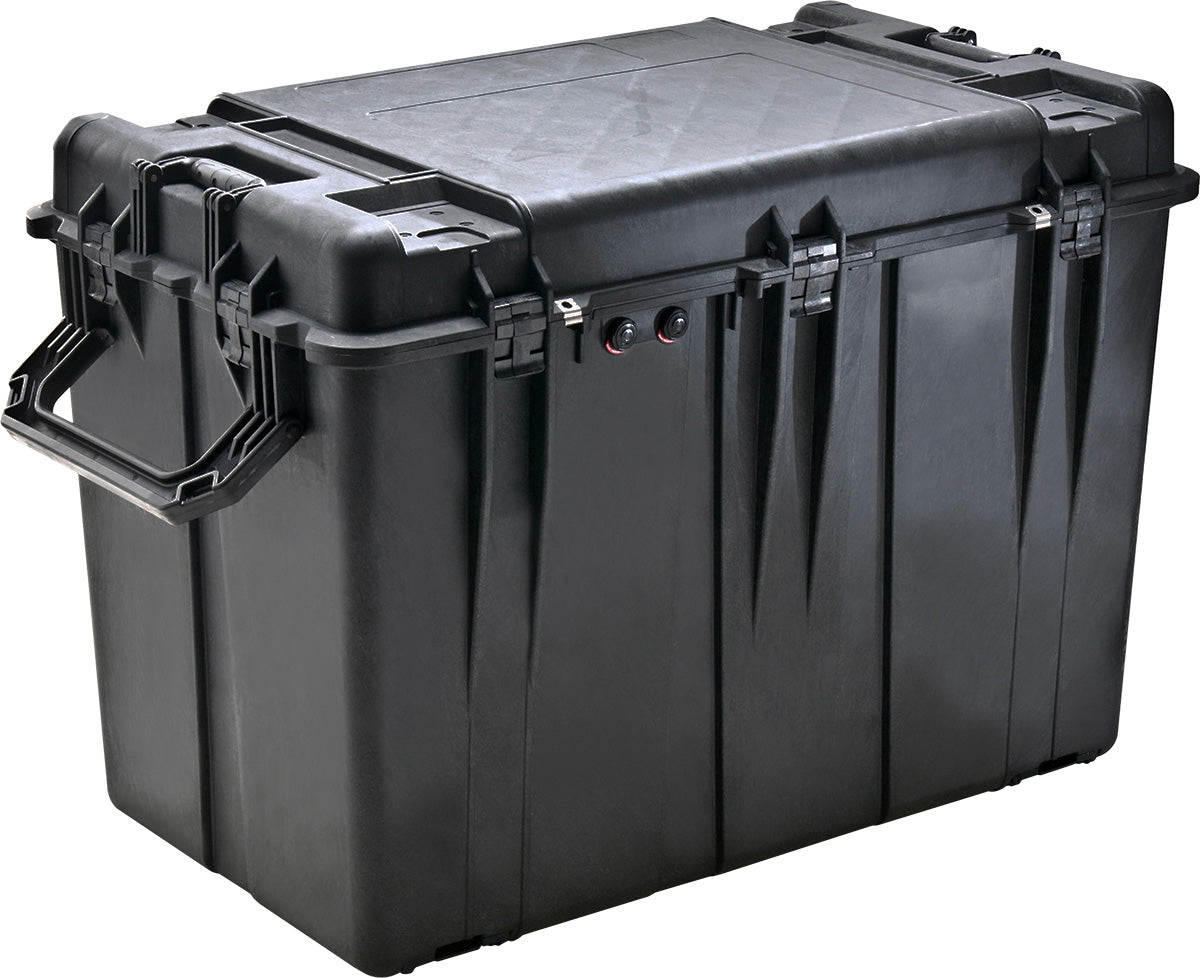

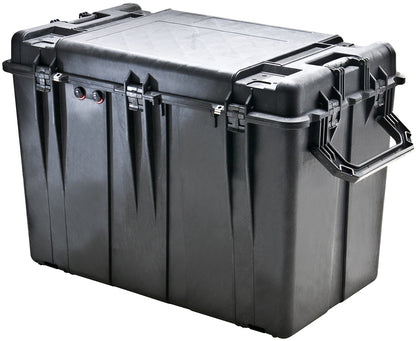

The Pelican 0500 Protector Case is a long case — 34.95 in of clear internal length for optical rails, tripods, antenna sections, long probes and site tooling that will not fit a conventional case. With Pick n’ Pluck foam plucked to shape that leaves room for an instrument up to 32.0 × 15.4 × 23.2 in. It is watertight, crushproof and dustproof to IP67, sealed on a gasketed O-ring, and carries an automatic pressure equalisation valve so it still opens after a flight or a cold room.
Specification
| Specification | Value |
|---|---|
| Interior (L × W × D) | 34.95 × 18.45 × 25.25 in |
| Exterior (L × W × D) | 39.95 × 23.45 × 28.65 in |
| Lid / bottom depth | 2.25 in / 23 in |
| Weight with foam | 58.6 lb |
| Weight, no foam | 50 lb |
| Ingress rating | IP67 — watertight and dust-tight |
| Watertight warranty | 3.3 ft (1 m) for 30 minutes, correctly closed with an undamaged O-ring |
| Temperature range | −40°F to 190°F (−40°C to 87°C) |
| Pressure equalisation | Automatic purge valve — opens normally after a flight or a cold room |
| Warranty | Pelican limited lifetime warranty on the injection-molded case |
Interior options
The interior is a separate decision from the shell and changes both the price and the empty weight. Select it in the Interior option above.
| Interior | What arrives in the case |
|---|---|
| With Foam | Layered Pick n’ Pluck and solid foam — pluck to the outline of the instrument for a shock-isolating fit. |
| No Foam | Empty shell — lighter and lower cost. Correct when a custom insert is already in hand. |
Pelican part numbers in this listing
Every colour and interior combination is a separate Pelican part number with its own barcode. Reorder against the exact number below.
| Pelican part number | Colour | Interior | UPC |
|---|---|---|---|
| 0500-001-110 | Black | No Foam | 019428080877 |
| 0500-000-110 | Black | With Foam | 019428080327 |
