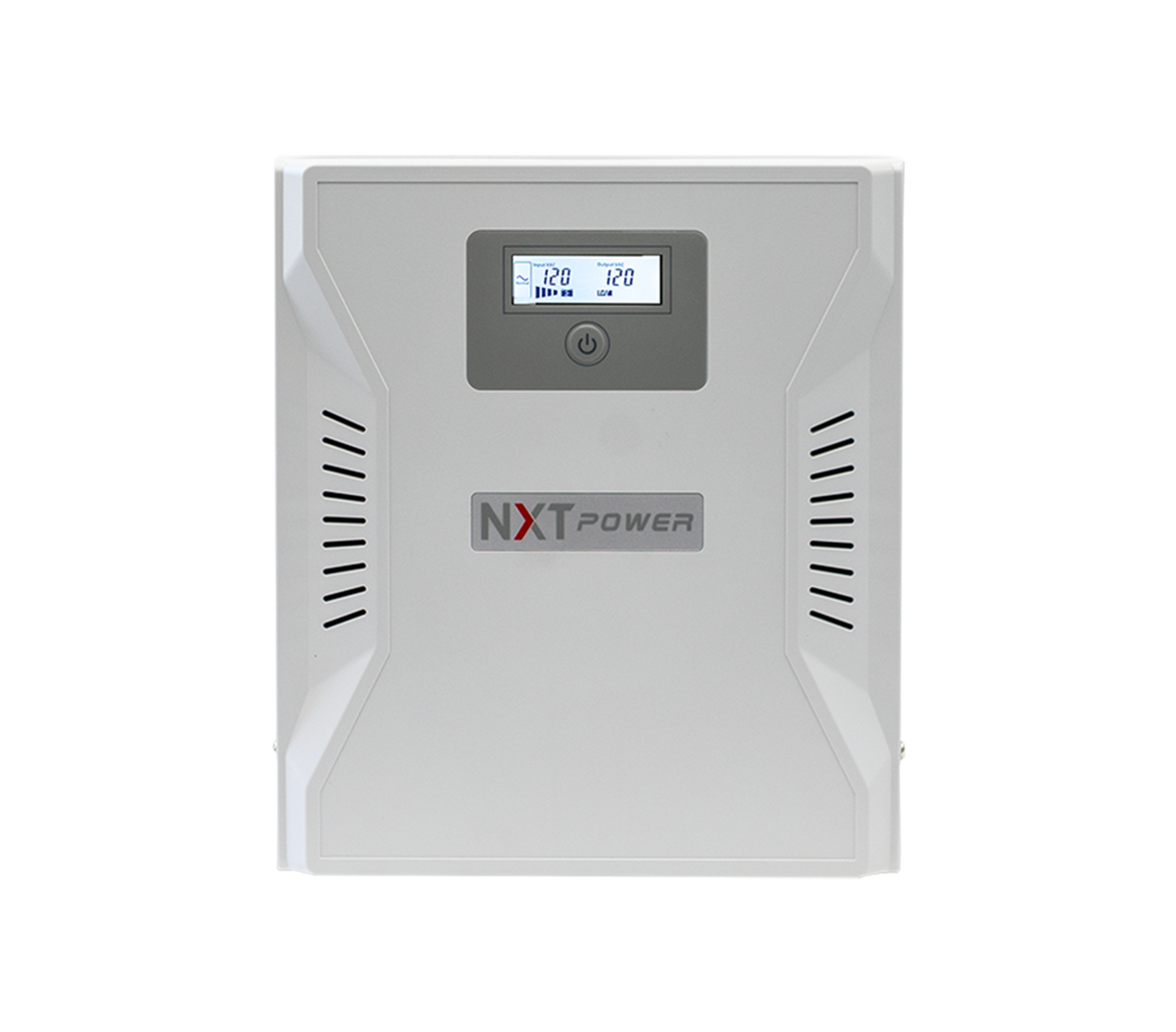

NXT Power Integrity PRO Standard UPS Overview
The NXT Power Integrity PRO Standard UPS (NPTU1100-L-N) provides 1100 VA / 990 W of isolated backup power for larger instrument stacks. Four internal batteries extend runtime while the isolation transformer and pure sine wave inverter keep output clean. Two programmable outlet groups let critical and secondary loads shut down on separate schedules.
Isolation performance matches the rest of the Standard line: common-mode noise under 0.5 V, normal-mode noise under 10 V. A detachable IEC 320 cord and 50/60 Hz auto-sensing input simplify deployment across sites. USB, RS-232, and an optional SNMP slot cover monitored shutdown and remote alerts.
Every NPTU1100-L-N carries UL1778 listing and NXT Power's three-year warranty on the chassis, electronics, and batteries. Typical transfer time stays under 6 ms, well inside most instrument power supplies' ride-through window.
Specifications
| Model | NPTU1100-L-N |
| Product Type | Line-interactive uninterruptible power supply (UPS) |
| Output Capacity | 1100 VA / 990 W |
| Input Rated Current | 9.17 A |
| Topology | Line interactive, isolated, pure sine wave output |
| Input Voltage | 120 VAC (range 96–144 VAC), 50/60 Hz auto-sensing |
| Input Connection | IEC 320 C-14, detachable line cord |
| Output Voltage | 120 VAC, 60 Hz |
| Output Waveform | Pure sine wave |
| Output Configuration | AC outlets with two independently programmable outlet groups |
| Transfer Time | 2–6 ms typical (12 ms maximum) |
| Isolation Let-Through | <10 V normal mode, <0.5 V neutral-to-ground (ANSI/IEEE C62.41 Cat. A & B) |
| Communication | USB and RS-232; intelligent slot for optional SNMP adapter |
| Operating Temperature | 0 to 40 °C |
| Humidity | 0% to 95% RH, non-condensing |
| Audible Noise | <43 dB on line power (≤70% load); <60 dB on battery |
| Safety | UL1778 |
| Warranty | 3-year, chassis, electronics, and internal batteries |
| Battery | (4) 12 V / 7 Ah VRLA |
| Dimensions (D × W × H) | 20.7 × 8.7 × 10 in (525 × 220 × 254 mm) |
| Weight | Net 82.9 lb (37.6 kg); Shipping 88.8 lb (40.3 kg) |
Available Sizes and Configurations
| SKU | Description | Capacity |
| NPTU1100-L-N | Integrity PRO Standard UPS, 120 VAC 50/60 Hz | 1100 VA / 990 W |
Need a different capacity? The NPTU600-L-N and NPTU800-L-N cover 540 W and 720 W, while the NPTU1500-L-N scales up to 1296 W.
How to Choose the Right Isolated UPS
Sizing a Standard-line UPS for lab electronics comes down to more than outage runtime. Weigh these axes before you spec a unit:
- Capacity headroom — size above the combined load; the NPTU1100-L-N supports up to 990 W continuous.
- Isolation vs. standard backup — four internal batteries and isolation together protect multi-module instrument stacks that a standard backup can't clean or carry.
- Waveform — pure sine wave output avoids the stepped waveforms that disrupt sensitive detector power supplies.
- Shutdown & communication — USB, RS-232, and an optional SNMP slot support monitored, staged shutdown.
- Site power — confirm a 120 VAC 50/60 Hz circuit; the detachable IEC 320 cord simplifies service.
Laboratory Applications
Multi-module analytical systems draw enough current that the 1100 VA rating becomes the practical minimum. LC-MS front ends, multi-detector GC stacks, and paired balance-and-printer setups run within the 990 W envelope. Isolation keeps ground loops off shared-bench wiring.
Server racks supporting instrument data pipelines and networked LIMS terminals draw similarly steady current. Programmable outlet groups keep acquisition hardware live while auxiliary displays or printers shed load first.
Related Products and Accessories
Explore the full NXT Power line for other capacities and configurations:
- NXT Power Integrity Series UPS — desktop, standard, rack-tower, and Max models.
- NPTU600-L-N and NPTU800-L-N — 540 W and 720 W options in the same isolated Standard chassis family.
- NPTU1500-L-N — the 1296 W model at the top of the Standard line.
Lab loads commonly paired with this capacity for conditioned power and outage ride-through:
- Laboratory Incubators — hold culture conditions steady through power disturbances.
- Freeze Dryers — protect multi-day lyophilization runs and vacuum integrity.
- Low-Temperature Freezers — conditioned power and ride-through for -40 to -25 °C storage.
- Analytical Balances & Moisture Analyzers — clean, stable power for precision weighing.
Product Documentation
Ordering
Each NPTU1100-L-N ships as a complete conditioned UPS with a detachable IEC 320 line cord and internal batteries installed. LabSupplies.com is an authorized NXT Power dealer, ships from US inventory, and provides direct manufacturer service and support. Contact us to confirm the right configuration for your instruments.
Frequently Asked Questions
What load can the NPTU1100-L-N support?
Up to 1100 VA / 990 W continuous, backed by four (4) 12 V / 7 Ah VRLA batteries.
Why four batteries instead of two?
The higher capacity rating needs more stored energy; four batteries deliver adequate runtime at the 990 W load level.
Can I stage shutdown across devices?
Yes, two programmable outlet groups allow independent sequencing.
What monitoring options exist?
USB and RS-232 are built in, with an intelligent slot for an optional SNMP adapter.
What's the warranty term?
Three years, covering the chassis, electronics, and internal batteries.
