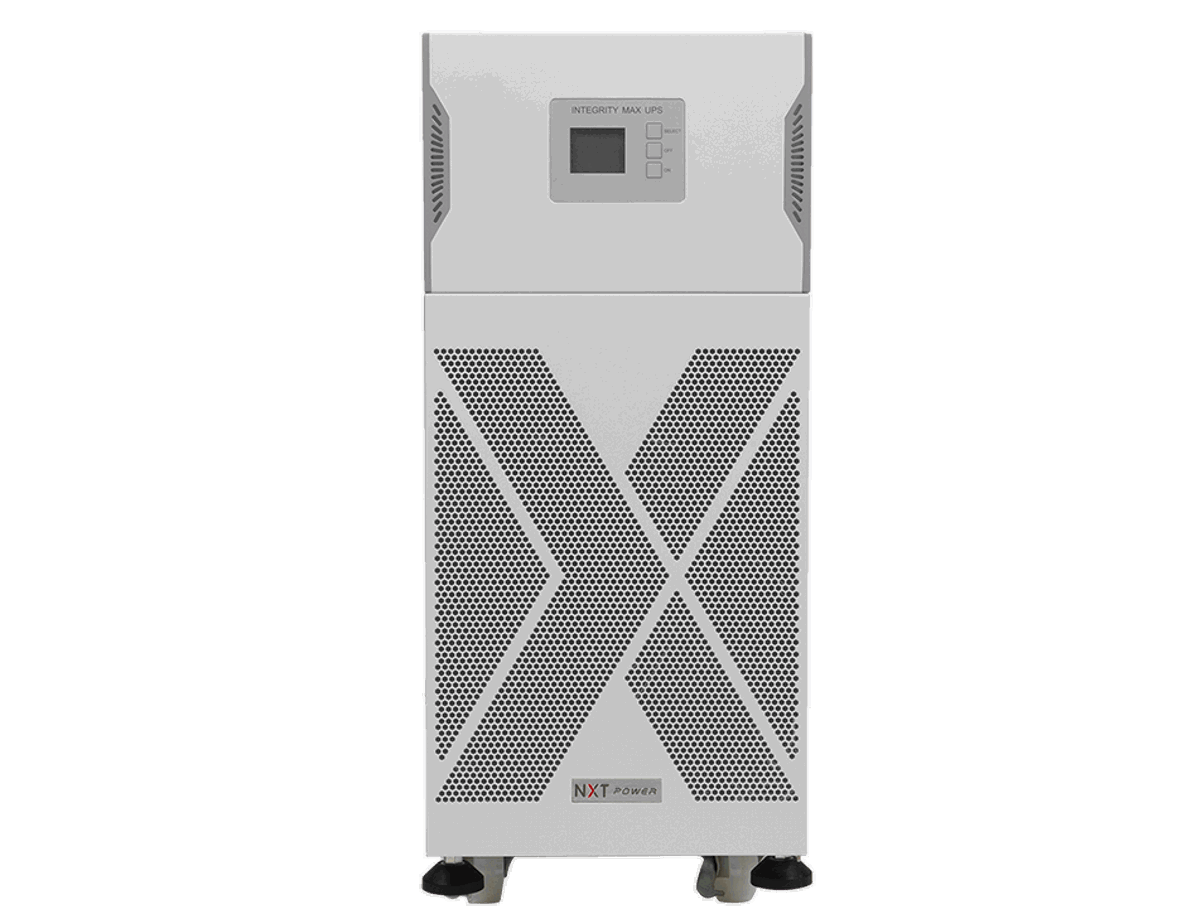

NXT Power Integrity Max UPS Overview
The NXT Power Integrity Max UPS (NPTU4200-HO-N) supplies 4200 VA / 4200 W of isolated, online double-conversion power for larger hardwired facility installs. This IGBT rectifier-inverter pair and internal isolation transformer regenerate output continuously. A manual bypass allows servicing without interrupting the connected load.
Input is hardwired at 208 VAC; output delivers a hardwired 240/208/120 VAC tap set sized by an electrician. There's no plug or outlet on this model. RS-232, USB, and DB-9 dry contacts handle local monitoring, with an internal SNMP adapter optional for network alerts.
UL1778 listing and a three-year NXT Power warranty cover components and internal batteries. The same 192 VDC, sixteen-battery bus delivers a short, clean ride-through at this higher power level.
Specifications
| Product Type | Online double-conversion uninterruptible power supply (UPS), hardwired |
| Model | NPTU4200-HO-N |
| Topology | Double-conversion true sine wave output, IGBT rectifier and inverter, internal isolation transformer, manual bypass |
| Output Capacity | 4200 VA / 4200 W |
| Input Voltage | 208 VAC nominal (200/208/220/230/240 VAC range, 176–275 VAC) |
| Input Connection | Hardwired (no plug); electrician-terminated |
| Input Rated Current | 26 A |
| Output Voltage | 240 / 208 / 120 VAC, hardwired multi-tap |
| Output Waveform | True sine wave |
| Voltage Regulation | ±1.0% of nominal (mains or battery) |
| Efficiency | AC-DC-AC ≥91.0%; DC-AC ≥88.0% |
| Manual Bypass | Included; transformer voltage regulation 3% |
| Battery | 12 V high-rate VRLA, flame retardant; Qty 16 (192 VDC nominal) |
| Backup Time | Approximately 8 minutes at rated load |
| Recharge Time | <8 hours to 90% |
| Communication | RS-232, USB, DB-9 dry contacts; internal SNMP adapter optional |
| Operating Temperature | 0 to 40 °C (storage −15 to 55 °C, transit −15 to 60 °C) |
| Humidity | 5% to 95%, non-condensing |
| Audible Noise | ≤55 dBA at 1 m from front |
| Heat Dissipation | 1417 BTU/hr |
| Dimensions (H × W × D) | 28.4 × 11.8 × 32.8 in |
| Weight | Unit 276 lb (125 kg); Shipping 342 lb (155 kg) |
| Safety / EMC | UL1778, cUL to CSA 22.2 No. 107.3, IEC 62040-1, FCC Part 15J Class A, RoHS |
| Surge Withstand | ANSI/IEEE C62.41 Cat. A & B (6000 V) |
| Warranty | 3-year, components and internal batteries |
Available Sizes and Configurations
| SKU | Description | Capacity |
| NPTU4200-HO-N | Integrity Max UPS, hardwired, 208 VAC in / 240-208-120 VAC out | 4200 VA / 4200 W |
Need a different capacity? The NPTU2200-HO-N covers 2200 W, while the NPTU6000-HO-N and NPTU10.0-HO-N scale up to 5400 W and 9000 W.
How to Choose the Right Hardwired Facility UPS
Sizing a hardwired Max UPS is a facility decision, not a plug-in one. Weigh these axes before you spec a unit:
- Capacity headroom — size above the combined facility load; the NPTU4200-HO-N supports up to 4200 W continuous.
- Isolation vs. standard backup — continuous double-conversion output stays isolated and regenerated at all times, with a manual bypass for service.
- Waveform — true sine wave output suits facility instrument and IT loads that reject stepped waveforms.
- Shutdown & communication — RS-232, USB, DB-9 dry contacts, and an optional SNMP adapter support monitored, networked shutdown.
- Site power — confirm 208 VAC hardwired facility distribution sized for 26 A; an electrician must terminate the connection.
Laboratory Applications
Larger equipment rooms and multi-rack instrument suites that exceed the NPTU2200-HO-N's capacity fit the NPTU4200-HO-N's 4200 W rating. Consolidated imaging, diagnostic, and IT infrastructure running on a shared hardwired feed benefits from continuously isolated, regenerated power. Manual bypass keeps that infrastructure live during scheduled maintenance.
Facilities with dedicated 208 VAC distribution built for heavier equipment loads are the intended fit. No wall outlet or portable cord is involved at this capacity tier, and a licensed electrician must terminate the hardwired connection.
Related Products and Accessories
Explore the full NXT Power line for other capacities and configurations:
- NXT Power Integrity Series UPS — desktop, standard, rack-tower, and Max models.
- NPTU2200-HO-N — the 2200 W entry point in the same hardwired Max chassis family.
- NPTU6000-HO-N and NPTU10.0-HO-N — 5400 W and 9000 W models for the largest facility loads.
Facility-scale, sample-critical loads this hardwired UPS class conditions and bridges through outages:
- Ultra-Low Temperature Freezers — shield -80 °C sample storage from surges, sags, and brief outages.
- Low-Temperature Freezers — conditioned power and ride-through for -40 to -25 °C storage.
- Freeze Dryers — protect multi-day lyophilization runs and vacuum integrity.
Product Documentation
Ordering
Each NPTU4200-HO-N ships as a hardwired double-conversion UPS with internal batteries installed; a licensed electrician terminates the input and output connections. LabSupplies.com is an authorized NXT Power dealer, ships from US inventory, and provides direct manufacturer service and support. Contact us to confirm the right configuration for your facility.
Frequently Asked Questions
Does the NPTU4200-HO-N plug into a wall outlet?
No. It's a hardwired unit; a licensed electrician terminates both the 208 VAC input and the 240/208/120 VAC output.
What load can it support?
Up to 4200 VA / 4200 W continuous, powered from sixteen internal 12 V VRLA batteries.
What does the manual bypass do?
It routes power around the UPS electronics during service, keeping the connected load powered without interruption.
Does it support remote monitoring?
RS-232, USB, and DB-9 dry contacts are standard, with an internal SNMP adapter available as an option.
How long is the warranty?
Three years, covering components and the internal batteries from the date of shipment.
