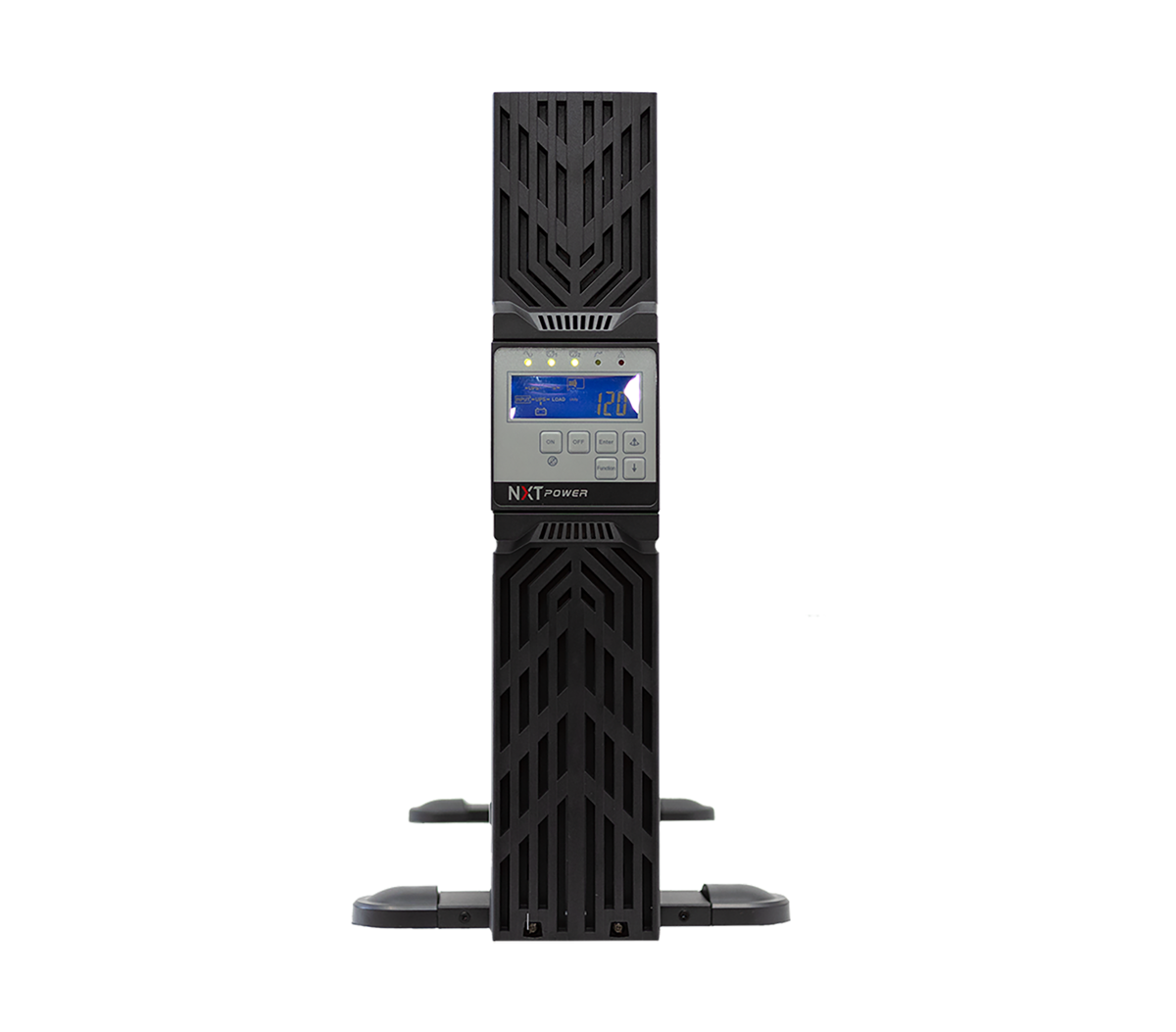

NXT Power Integrity Max R/T UPS Overview
The NXT Power Integrity Max R/T UPS (NPTU1100-OR-N) supplies 1100 VA / 990 W of isolated, online double-conversion power from the same 2U rack-tower chassis as its siblings. Continuous double-conversion regenerates output power at all times, giving connected rack gear a zero-gap transfer during mains events. An internal isolation transformer strips common-mode noise before it reaches the rack.
Six NEMA 5-15R outlets cover standard rack equipment, and input defaults to 120 VAC with a 100 VAC option available. RS-232 and USB handle local monitoring, while an internal SNMP slot supports network alerts. Rack ears and tower feet ship in the box for either mounting style.
UL1778 listing and a three-year NXT Power warranty cover components and internal batteries on every unit. Three internal VRLA batteries form the 36 VDC bus, tuned for a short, clean ride-through rather than extended standby time.
Specifications
| Product Type | Online double-conversion uninterruptible power supply (UPS) |
| Model | NPTU1100-OR-N |
| Topology | Double-conversion, true sine wave output, internal isolation transformer |
| Output Capacity | 1100 VA / 990 W (916/824 W @100VAC) |
| Input Voltage | 120 VAC factory default (100 VAC selectable), 90–150 VAC range above 75% load, 50/60 Hz auto-detect |
| Input Connection | NEMA 5-15P, fixed 6 ft line cord |
| Input Rated Current | 11.0 A |
| Output Receptacles | (6) NEMA 5-15R |
| Output Waveform | True sine wave |
| Voltage Regulation | ±2.0% of nominal (mains or battery) |
| Efficiency | AC-DC-AC ≥84.0%; DC-AC ≥82.0% |
| Battery | 12 V high-rate VRLA, flame retardant; Qty 3 (36 VDC nominal) |
| Backup Time | Approximately 5 minutes at rated load |
| Recharge Time | <8 hours to 90% |
| Communication | RS-232, USB, DB-9 dry contacts; internal SNMP adapter optional |
| Operating Temperature | 0 to 40 °C (storage −15 to 55 °C, transit −15 to 60 °C) |
| Humidity | 5% to 95%, non-condensing |
| Audible Noise | ≤50 dBA at 1 m from front |
| Heat Dissipation | 643 BTU/hr |
| Dimensions (H × W × D) | 3.46 × 17.32 × 27.68 in (88 × 440 × 703 mm), 2U rack-tower |
| Weight | Unit 63 lb (29 kg); Shipping 72 lb (33 kg) |
| Safety / EMC | UL1778, cUL to CSA 22.2 No. 107.3, FCC Part 15J Class A, RoHS |
| Surge Withstand | ANSI/IEEE C62.41 Cat. A & B (6000 V) |
| Warranty | 3-year, components and internal batteries |
Available Sizes and Configurations
| SKU | Description | Capacity |
| NPTU1100-OR-N | Integrity Max R/T UPS, 2U rack-tower, 120 VAC | 1100 VA / 990 W |
Need a different capacity? The NPTU800-OR-N covers 720 W, while the NPTU1500-OR-N scales up to 1290 W in the same 2U rack-tower chassis.
How to Choose the Right Isolated Rack Tower UPS
Sizing a rack-tower UPS comes down to rack load and how it's isolated, not just runtime. Weigh these axes before you spec a unit:
- Capacity headroom — size above the combined rack load; the NPTU1100-OR-N supports up to 990 W continuous.
- Isolation vs. standard backup — continuous double-conversion output stays isolated and regenerated at all times, not only after a transfer event.
- Waveform — true sine wave output suits networking and instrument power supplies that reject stepped waveforms.
- Shutdown & communication — RS-232, USB, and an optional SNMP slot support monitored shutdown across a rack.
- Site power — confirm a 120 VAC circuit and 2U of rack space; power connects via a fixed NEMA 5-15P cord.
Laboratory Applications
Busier rack-mounted instrument and IT loads fit the NPTU1100-OR-N's step up in capacity. Multi-port switches, small server clusters, and instrument controllers sharing a rack stay within its 990 W rating while output remains isolated and regenerated. Racks that combine networking and analytical gear are where ground-loop noise causes the most trouble, and double conversion blocks it continuously.
Diagnostic imaging racks and multi-instrument benches with a heavier combined draw suit the same profile. Continuous double conversion protects equipment that faults on even a brief switchover, a common failure mode with simpler line-interactive backups.
Related Products and Accessories
Explore the full NXT Power line for other capacities and configurations:
- NXT Power Integrity Series UPS — desktop, standard, rack-tower, and Max models.
- NPTU800-OR-N — the 720 W entry point in the same 2U rack-tower chassis.
- NPTU1500-OR-N — the 1290 W model at the top of the R/T line.
Rack-mounted data and monitoring systems this UPS protects:
- Multi-Channel Data Loggers — uninterrupted logging through outages.
- Swift Sensors Wireless Monitoring — keep monitoring gateways online during a power event.
- Laboratory Incubators — hold culture conditions steady through power disturbances.
Product Documentation
Ordering
Each NPTU1100-OR-N ships as a complete rack-tower UPS with rack ears, tower feet, and internal batteries installed. LabSupplies.com is an authorized NXT Power dealer, ships from US inventory, and provides direct manufacturer service and support. Contact us to confirm the right configuration for your rack.
Frequently Asked Questions
What load can the NPTU1100-OR-N support?
Up to 1100 VA / 990 W continuous, powered from three internal 12 V VRLA batteries.
How does double conversion differ from a standard rack UPS?
Output is continuously regenerated from an isolated DC bus rather than switched during an outage, so there's no transfer gap.
Does it mount in a standard rack?
Yes, it ships 2U with rack ears and tower feet included for either mounting style.
Does it support remote monitoring?
RS-232 and USB ports are standard, with an internal SNMP adapter available as an option.
How long is the warranty?
Three years, covering components and the internal batteries from the date of shipment.
