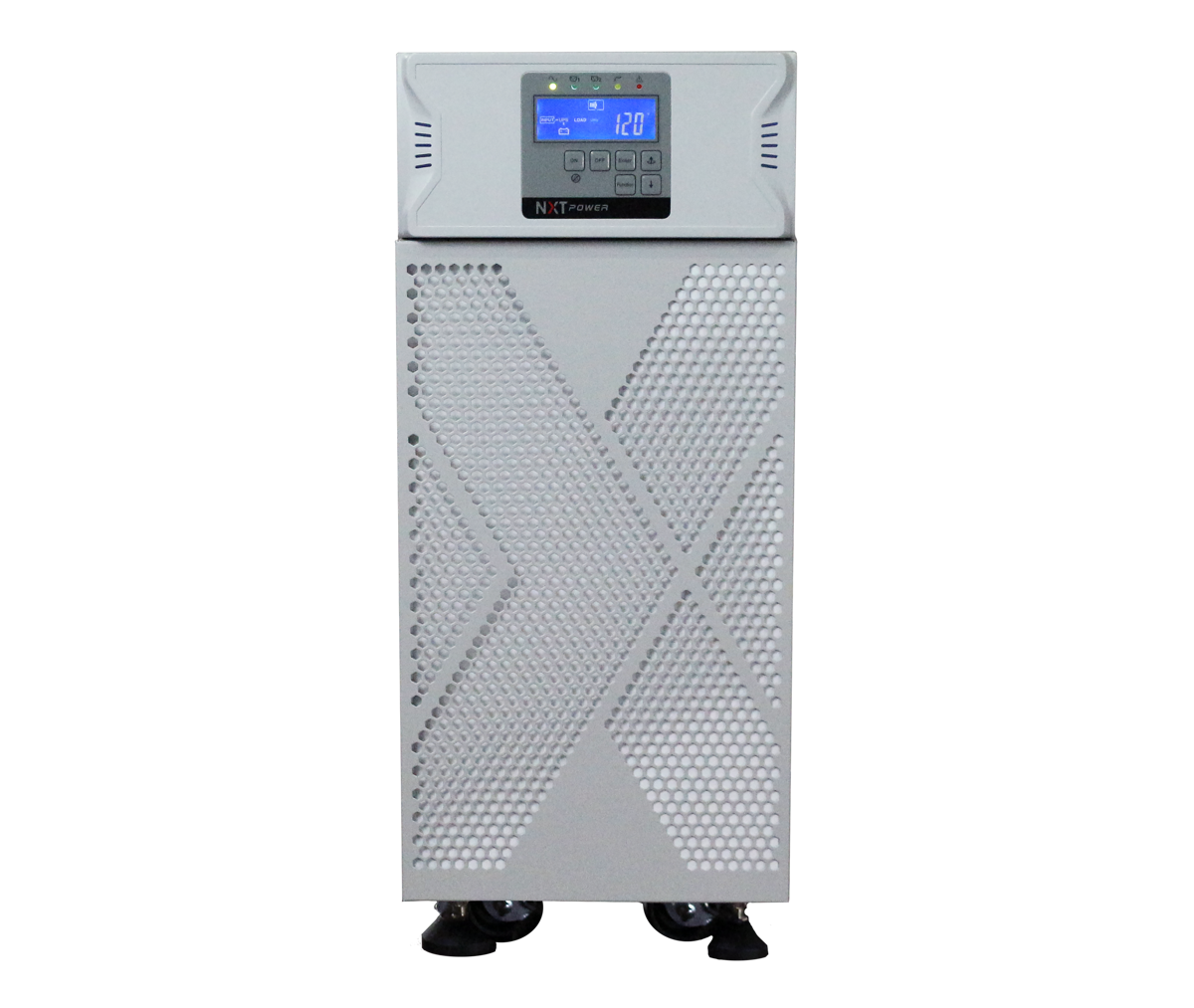

NXT Power Integrity Max LT UPS Overview
The NXT Power Integrity Max LT UPS (NPTU3000-O-N) supplies 2700 VA / 2430 W of isolated, online double-conversion power. It's the largest 120 VAC model in the Max LT line. This continuous double-conversion topology regenerates output from an isolated DC bus, eliminating transfer gaps during mains events.
A fixed NEMA L5-30P cord draws from a dedicated 120 VAC circuit, and output splits across one L5-30R plus six NEMA 5-20R receptacles. RS-232, USB, and an optional internal SNMP adapter cover local and networked monitoring.
UL1778 listing and NXT Power's three-year warranty cover components and internal batteries. AC-DC-AC efficiency reaches 84%, keeping continuous-duty heat output manageable in a dedicated equipment room.
Specifications
| Product Type | Online double-conversion uninterruptible power supply (UPS) |
| Model | NPTU3000-O-N |
| Topology | Double-conversion, true sine wave output, internal isolation transformer |
| Output Capacity | 2700 VA / 2430 W |
| Input Voltage | 120 VAC (100 VAC optional, derated), 90–150 VAC range above 75% load, 50/60 Hz auto-detect |
| Input Connection | NEMA L5-30P, fixed 6 ft line cord |
| Input Rated Current | 24.0 A |
| Output Receptacles | (1) NEMA L5-30R and (6) NEMA 5-20R |
| Output Waveform | True sine wave |
| Voltage Regulation | ±2.0% of nominal (mains or battery) |
| Efficiency | AC-DC-AC ≥84.0%; DC-AC ≥80.0% |
| Battery | 12 V high-rate VRLA, flame retardant; Qty 6 (72 VDC nominal) |
| Backup Time | Approximately 3 minutes at rated load |
| Recharge Time | <8 hours to 90% |
| Communication | RS-232, USB; internal SNMP adapter optional |
| Operating Temperature | 0 to 40 °C (storage/transit −10 to 50 °C) |
| Humidity | 5% to 95%, non-condensing |
| Audible Noise | ≤55 dBA at 1 m from front |
| Heat Dissipation | 1660 BTU/hr |
| Dimensions (H × W × D) | 22.0 × 8.9 × 22.8 in (560 × 227 × 580 mm) |
| Weight | Unit 132 lb (60 kg); Shipping 145 lb (66 kg) |
| Safety / EMC | UL1778, cUL to CSA 22.2 No. 107.3, FCC Part 15J Class A, RoHS |
| Warranty | 3-year, components and internal batteries |
Available Sizes and Configurations
| SKU | Description | Capacity |
| NPTU3000-O-N | Integrity Max LT UPS, tower, 120 VAC | 2700 VA / 2430 W |
Need a smaller footprint? The NPTU2000-O-N covers 1728 W on a standard NEMA 5-20 circuit. For 208/240 VAC facilities, see the NPTU3000-O-NS.
How to Choose the Right Isolated Max LT UPS
Sizing a Max LT UPS comes down to facility load and available circuits. Weigh these axes before you spec a unit:
- Capacity headroom — size above the combined load; the NPTU3000-O-N supports up to 2430 W continuous.
- Isolation vs. standard backup — continuous double-conversion output stays isolated and regenerated at all times, unlike backups that only switch after a transfer event.
- Waveform — true sine wave output suits instrument and IT power supplies that reject stepped waveforms.
- Shutdown & communication — RS-232, USB, and an optional SNMP adapter support monitored, networked shutdown.
- Site power — confirm a dedicated 120 VAC circuit with a NEMA L5-30 receptacle.
Laboratory Applications
The heaviest single-circuit instrument loads in the Max LT line fit the NPTU3000-O-N's 2430 W rating. Preparative LC systems, multi-detector GC-MS stacks, and equipment rooms consolidating several racks onto one feed all run on continuously isolated, regenerated power. A dedicated L5-30 circuit keeps this unit separate from lighter general-purpose loads.
IT infrastructure sized for a full instrument suite draws comparable steady current. Continuous double conversion removes the brief switchover gap that a simpler backup would still expose that infrastructure to.
Related Products and Accessories
Explore the full NXT Power line for other capacities and configurations:
- NXT Power Integrity Series UPS — desktop, standard, rack-tower, and Max models.
- NPTU2000-O-N — the 1728 W entry point on a standard NEMA 5-20 circuit.
- NPTU3000-O-NS — the same 2430 W rating configured for 208/240 VAC facility power.
Higher-draw, sample-critical equipment this UPS class conditions and bridges through outages:
- Ultra-Low Temperature Freezers — shield -80 °C sample storage from surges, sags, and brief outages.
- Freeze Dryers — protect multi-day lyophilization runs and vacuum integrity.
- Laboratory Incubators — hold culture conditions steady through power disturbances.
- Low-Temperature Freezers — conditioned power and ride-through for -40 to -25 °C storage.
Product Documentation
Ordering
Each NPTU3000-O-N ships as a complete double-conversion UPS with a fixed line cord and internal batteries installed. LabSupplies.com is an authorized NXT Power dealer, ships from US inventory, and provides direct manufacturer service and support. Contact us to confirm the right configuration for your equipment room.
Frequently Asked Questions
What load can the NPTU3000-O-N support?
Up to 2700 VA / 2430 W continuous, powered from six internal 12 V VRLA batteries.
What input connection does it need?
A fixed NEMA L5-30P cord on a dedicated 120 VAC circuit rated for 24.0 A.
What outlets does it provide?
One NEMA L5-30R and six NEMA 5-20R receptacles.
Does it support remote monitoring?
RS-232 and USB ports are standard, with an internal SNMP adapter available as an option.
How long is the warranty?
Three years, covering components and the internal batteries from the date of shipment.
