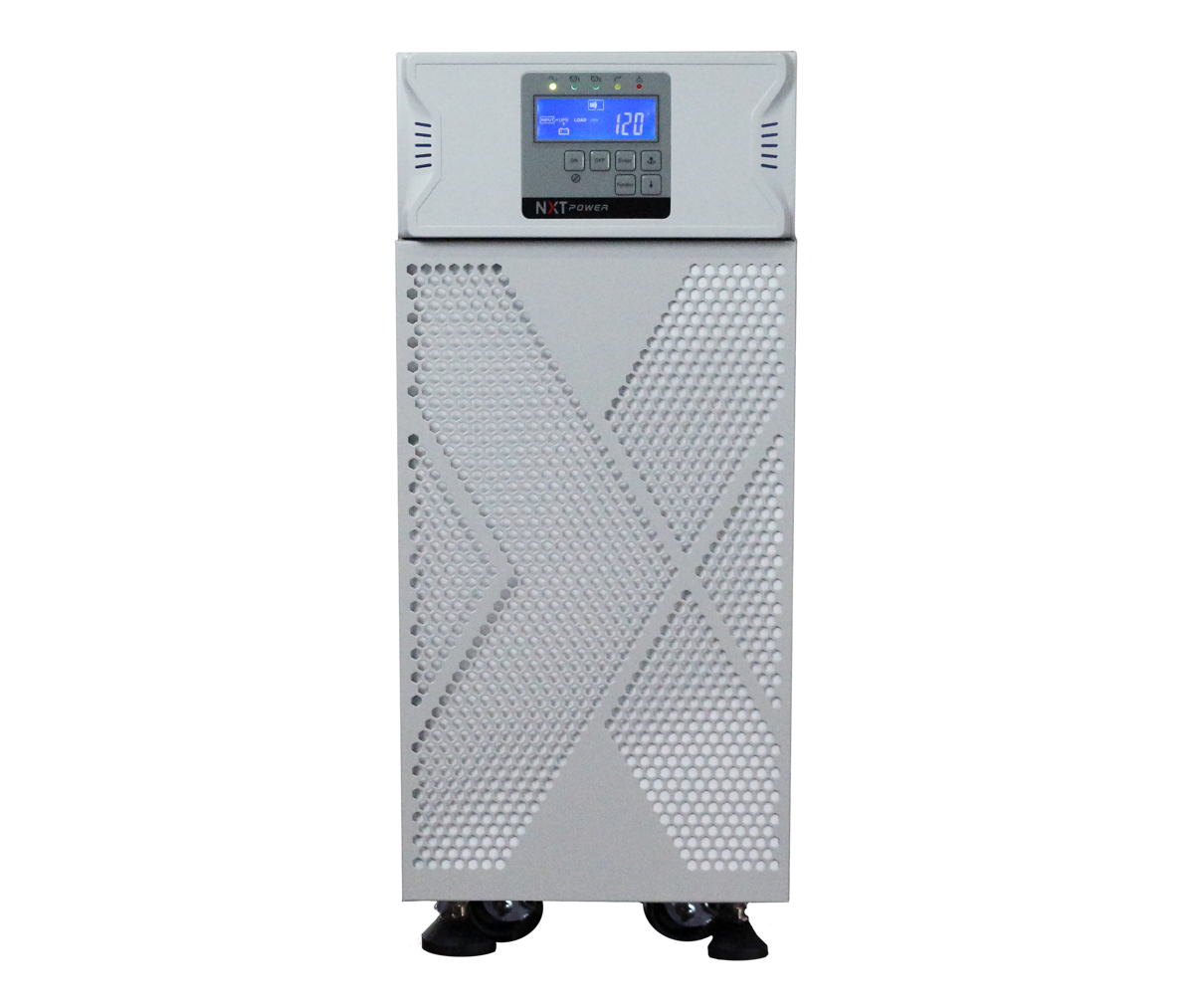

NXT Power Integrity Max LT UPS Overview
The NXT Power Integrity Max LT UPS (NPTU2000-O-N) delivers 1920 VA / 1728 W of isolated, online double-conversion power for equipment that outgrows a rack-tower unit. Continuous double conversion regenerates output from an isolated DC bus, so connected systems see zero transfer gap during a mains event. Six internal batteries form a 72 VDC bus sized for a clean, dependable ride-through.
A fixed NEMA 5-20P cord draws from a standard 120 VAC circuit, and output splits across one L5-30R plus six NEMA 5-20R receptacles. Where site power requires it, a 100 VAC configuration is also available. RS-232, USB, and an optional internal SNMP adapter cover local and networked monitoring.
UL1778 listing and NXT Power's three-year warranty cover components and internal batteries. Efficiency reaches 84% AC-DC-AC, keeping heat output manageable in an equipment room running continuously.
Specifications
| Product Type | Online double-conversion uninterruptible power supply (UPS) |
| Model | NPTU2000-O-N |
| Topology | Double-conversion, true sine wave output, internal isolation transformer |
| Output Capacity | 1920 VA / 1728 W |
| Input Voltage | 120 VAC (100 VAC optional, derated), 90–150 VAC range above 75% load, 50/60 Hz auto-detect |
| Input Connection | NEMA 5-20P, fixed 6 ft line cord |
| Input Rated Current | 16.0 A |
| Output Receptacles | (1) NEMA L5-30R and (6) NEMA 5-20R |
| Output Waveform | True sine wave |
| Voltage Regulation | ±2.0% of nominal (mains or battery) |
| Efficiency | AC-DC-AC ≥84.0%; DC-AC ≥80.0% |
| Battery | 12 V high-rate VRLA, flame retardant; Qty 6 (72 VDC nominal) |
| Backup Time | Approximately 4 minutes at rated load |
| Recharge Time | <8 hours to 90% |
| Communication | RS-232, USB; internal SNMP adapter optional |
| Operating Temperature | 0 to 40 °C (storage/transit −10 to 50 °C) |
| Humidity | 5% to 95%, non-condensing |
| Audible Noise | ≤55 dBA at 1 m from front |
| Heat Dissipation | 1110 BTU/hr |
| Dimensions (H × W × D) | 22.0 × 8.9 × 22.8 in (560 × 227 × 580 mm) |
| Weight | Unit 132 lb (60 kg); Shipping 145 lb (66 kg) |
| Safety / EMC | UL1778, cUL to CSA 22.2 No. 107.3, FCC Part 15J Class A, RoHS |
| Warranty | 3-year, components and internal batteries |
Available Sizes and Configurations
| SKU | Description | Capacity |
| NPTU2000-O-N | Integrity Max LT UPS, tower, 120 VAC | 1920 VA / 1728 W |
Need more headroom? The NPTU3000-O-N steps up to 2430 W on a dedicated 120 VAC circuit, and the NPTU3000-O-NS covers 208/240 VAC facilities.
How to Choose the Right Isolated Max LT UPS
Sizing a Max LT UPS comes down to facility load and available circuits. Weigh these axes before you spec a unit:
- Capacity headroom — size above the combined load; the NPTU2000-O-N supports up to 1728 W continuous.
- Isolation vs. standard backup — continuous double-conversion output stays isolated and regenerated at all times, not only after a transfer event.
- Waveform — true sine wave output suits instrument and IT power supplies that reject stepped waveforms.
- Shutdown & communication — RS-232, USB, and an optional SNMP adapter support monitored, networked shutdown.
- Site power — confirm a 120 VAC circuit and NEMA 5-20 receptacle; a 100 VAC configuration is available where needed.
Laboratory Applications
Larger analytical systems that a desktop or rack-tower unit can't carry fit the NPTU2000-O-N's 1728 W rating. GC-MS and LC-MS front ends, along with multi-instrument benches drawing steady combined current, run on continuously isolated, regenerated power. Equipment rooms consolidating several instrument racks see the same benefit at a shared point of use.
IT infrastructure supporting instrument data pipelines, including small server clusters and network cores, draws similarly steady load at this capacity. Continuous double conversion protects that infrastructure from the brief switchover gaps that simpler backups can't fully eliminate.
Related Products and Accessories
Explore the full NXT Power line for other capacities and configurations:
- NXT Power Integrity Series UPS — desktop, standard, rack-tower, and Max models.
- NPTU3000-O-N — steps up to 2430 W on a dedicated NEMA L5-30 circuit.
- NPTU3000-O-NS — the 208/240 VAC configuration for facilities without standard 120 VAC distribution.
Higher-draw, sample-critical equipment this UPS class conditions and bridges through outages:
- Ultra-Low Temperature Freezers — shield -80 °C sample storage from surges, sags, and brief outages.
- Freeze Dryers — protect multi-day lyophilization runs and vacuum integrity.
- Laboratory Incubators — hold culture conditions steady through power disturbances.
- Low-Temperature Freezers — conditioned power and ride-through for -40 to -25 °C storage.
Product Documentation
Ordering
Each NPTU2000-O-N ships as a complete double-conversion UPS with a fixed line cord and internal batteries installed. LabSupplies.com is an authorized NXT Power dealer, ships from US inventory, and provides direct manufacturer service and support. Contact us to confirm the right configuration for your equipment room.
Frequently Asked Questions
What load can the NPTU2000-O-N support?
Up to 1920 VA / 1728 W continuous, powered from six internal 12 V VRLA batteries.
How does double conversion differ from a standard UPS?
Output is continuously regenerated from an isolated DC bus rather than switched during an outage, so there's no transfer gap.
What outlets does it provide?
One NEMA L5-30R and six NEMA 5-20R receptacles, fed from a fixed NEMA 5-20P input cord.
Does it support remote monitoring?
RS-232 and USB ports are standard, with an internal SNMP adapter available as an option.
How long is the warranty?
Three years, covering components and the internal batteries from the date of shipment.
