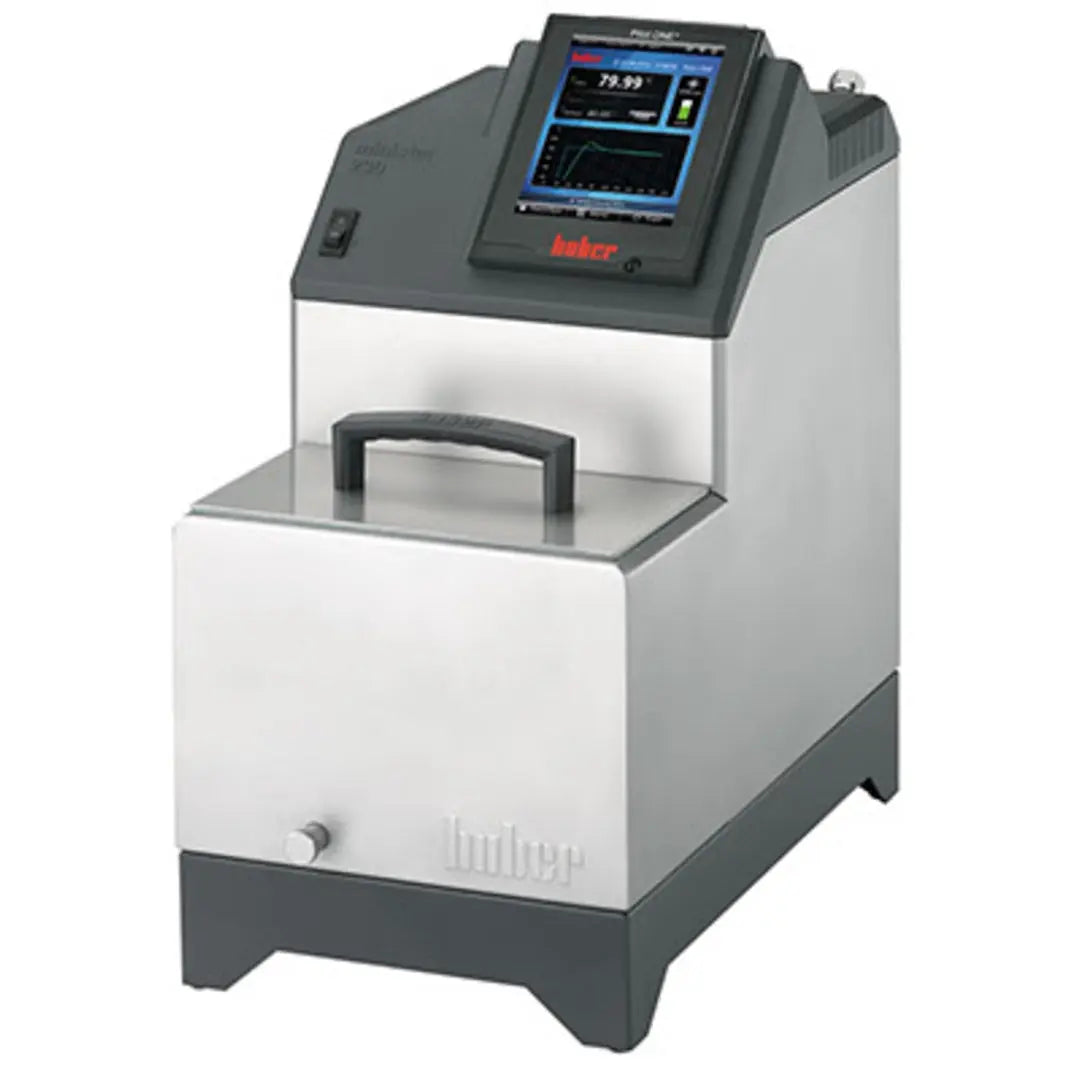

Ministat 230 Chiller – Compact Cooling Bath Circulator

The Ministat 230 chiller delivers precise, reliable temperature control for laboratory applications and industrial processes, with a working range from -40°C to 200°C. This Ministat 230 chiller uses advanced Pilot ONE controller technology, providing a 5.7" touchscreen and comfortable menu navigation. Its small footprint allows easy placement in tight spaces such as fume cupboards or crowded benches.

Technical Specifications

• Temperature range: -40°C to 200°C

• Temperature stability: ±0.02 °C

• Heating capacity: 1.5 kW

• Cooling capacity (at 20°C): 0.42 kW

• Powerful pressure and suction pump: up to 22 l/min, 0.7 bar

• Bath volume: 3.5 liters

• Pilot ONE controller with touchscreen

• Overtemperature and low-level protection

• USB, Ethernet, and RS232 connectivity

• Safety class III/FL, protection class IP20

• Air-cooled, natural refrigerant R290

Key Features Display

This chiller supports both external and bath applications, offering flexible use for photometers, refractometers, mini-plants, and reactors. The digitally adjustable pump and safe operation features help safeguard glassware and sensitive instruments. Additionally, connections for Pt100 sensors and digital interfaces allow easy integration into lab data management systems, streamlining workflow transitions and task organization.

Ministat 230 Chiller Applications

Designed to meet the needs of research labs, quality control departments, and pilot plants, the Ministat 230 chiller is ideal when space and precision matter. Rapid heating and cooling help minimize downtime, while the ergonomic controller ensures efficient daily operations.
