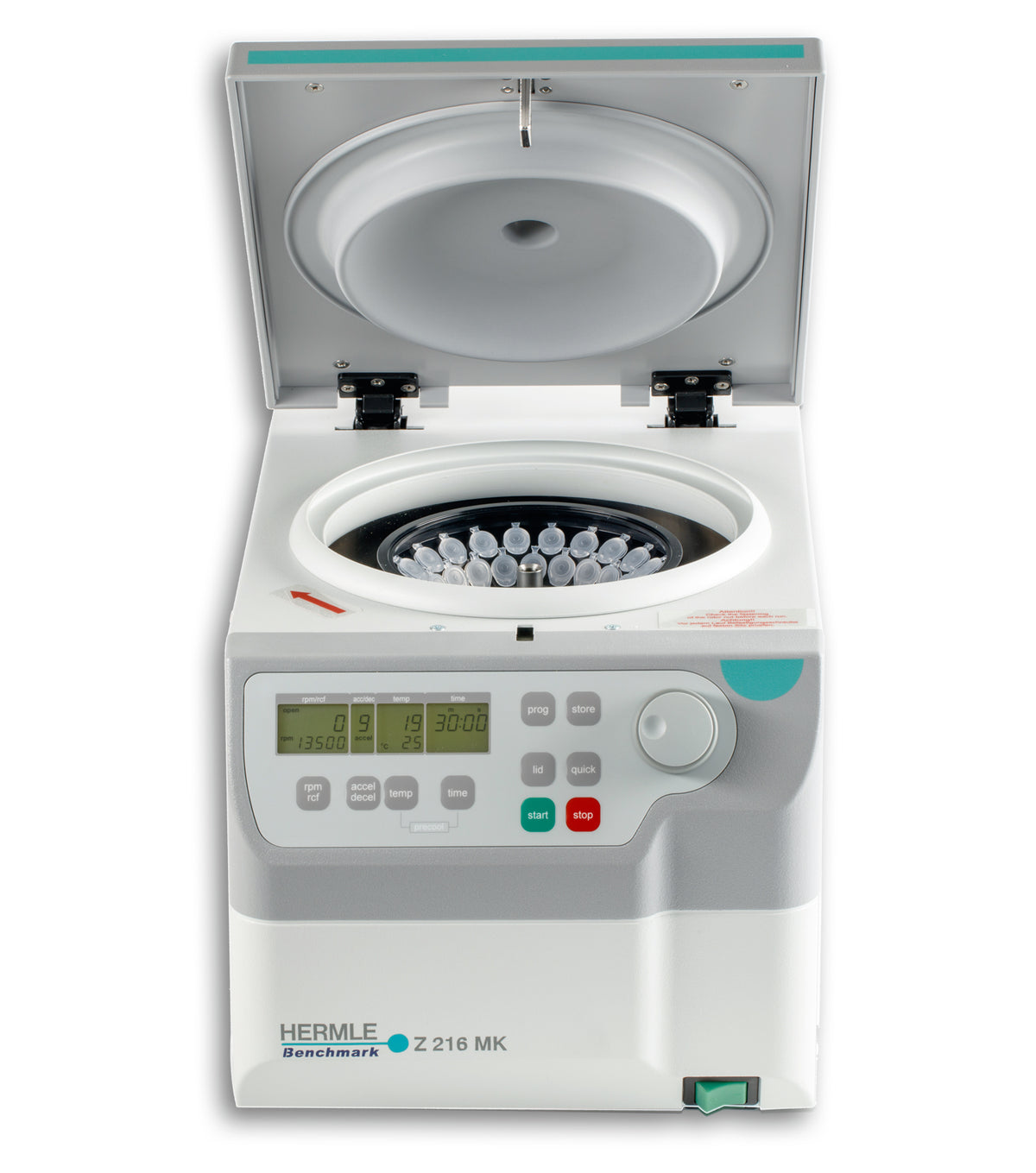

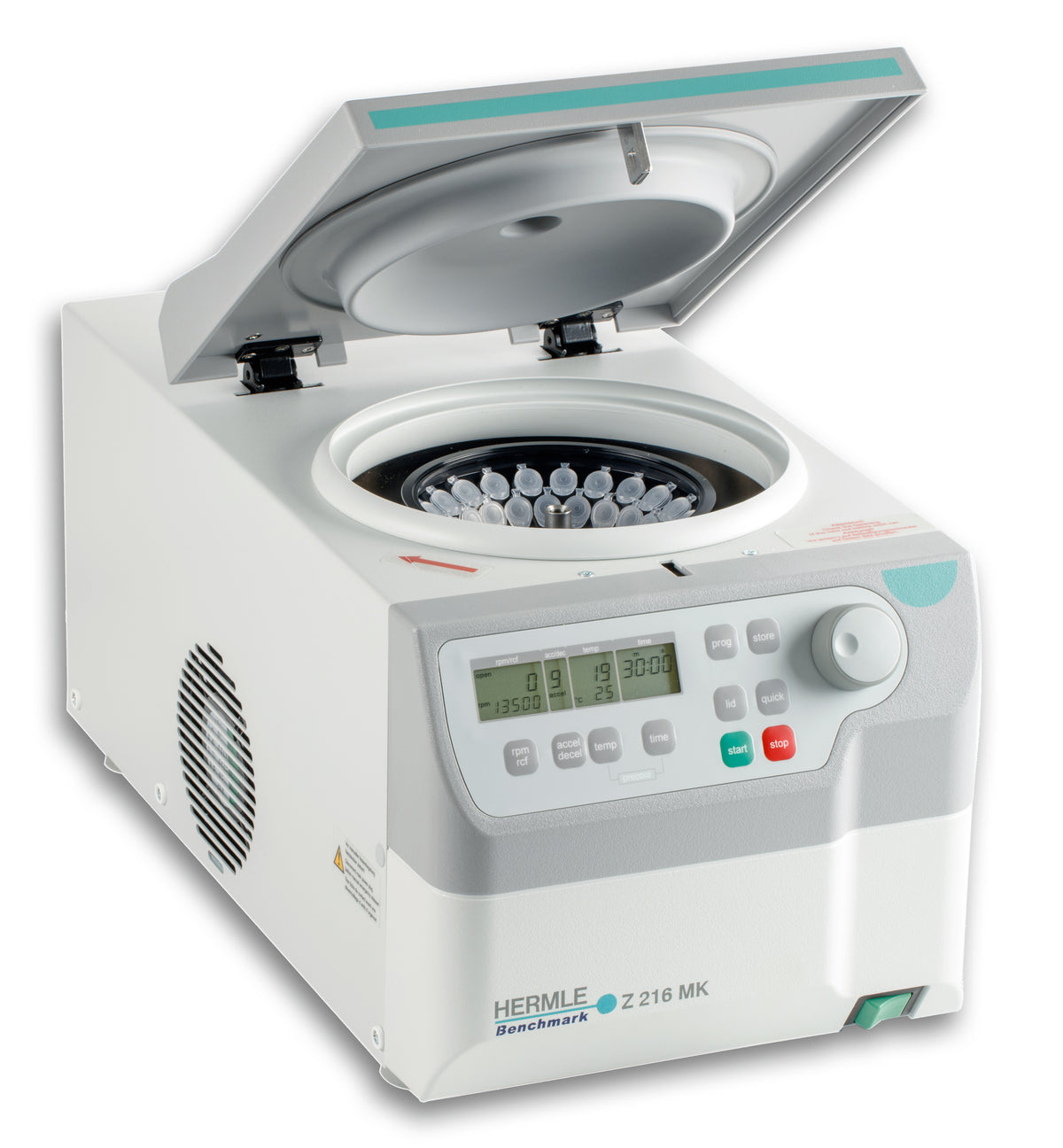

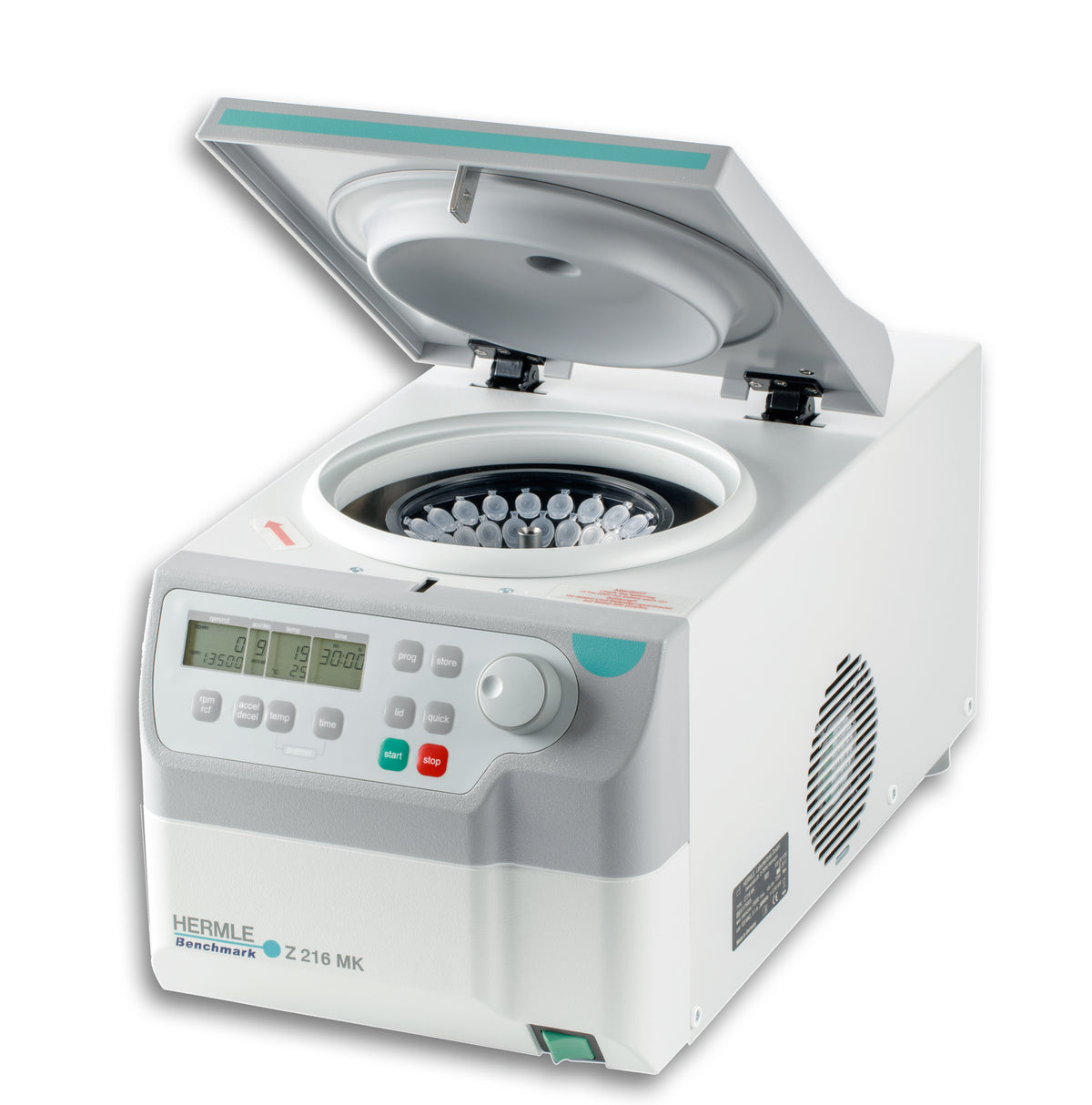

The Hermle Z216-MK adds refrigeration to the Z216 platform, holding samples anywhere from −20 °C to 40 °C while spinning at up to 15,000 rpm and 21,631 × g. The chamber cools from room temperature to 4 °C in less than 10 minutes. Nine rotor options accept tubes from 0.2 mL to 5 mL, up to 44 × 1.5/2.0 mL per run. It measures 11 × 21.6 × 11.4 in and weighs 77 lb (35 kg).
Key features
- Temperature range −20 °C to 40 °C
- Cools from room temperature to 4 °C in under 10 min
- 9 rotor options for 0.2–5 mL tubes; up to 44 × 1.5/2.0 mL
- 200–15,000 rpm with 21,631 × g at full speed
- Continuous mode or timed runs as long as 99 h 59 min
- 11 × 21.6 × 11.4 in; 77 lb (35 kg)
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z216-MK / Z216-MK-E |
| Speed Range | 200–15,000 rpm |
| Max RCF | 21,631 × g |
| Max Capacity | 44 × 1.5/2.0 mL |
| Tube Sizes | 0.2–5 mL |
| Rotor Options | 9 |
| Temperature Range | −20 °C – 40 °C |
| Cool-Down | Room temperature to 4 °C in < 10 min |
| Dimensions | 11 × 21.6 × 11.4 in (27.9 × 54.9 × 29 cm) |
| Timer | Up to 99 h 59 min and continuous |
| Weight | 77 lb (35 kg) |
| Electrical | 120 V, 60 Hz (Z216-MK); 230 V (Z216-MK-E) |
Ordering information
| Catalog number | Power |
|---|---|
| Z216-MK | 120V, US plug |
| Z216-MK-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part | Max speed in this model |
|---|---|---|
| Z216-1205 | Hermle 12 × 5 mL Rotor Z216-1205 | 14,500 rpm / 19,978 × g |
| Z216-1220H | Hermle 12 × HLA/1.5/2.0 mL Swing-Out Rotor Z216-1220H | |

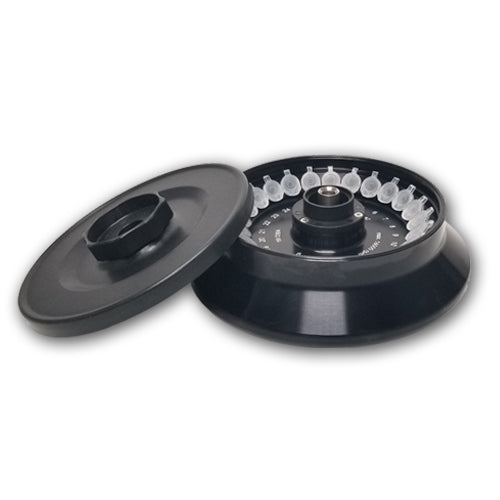

| Z216-2420 | Hermle 24 × 1.5/2.0 mL Hermetically Sealed Rotor Z216-2420 | 15,000 rpm / 21,379 × g |

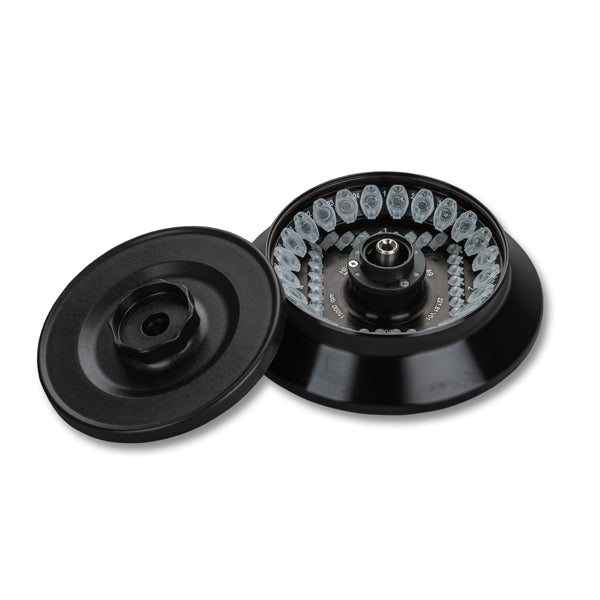

| Z216-2420S | Hermle COMBI-Rotor 24 × 1.5/2.0 mL + 4 PCR Strips Z216-2420S | 15,000 rpm / 21,631 × g |
| Z216-24HEM | Hermle 24-Place Hematocrit Rotor Z216-24HEM | 12,000 rpm / 14,970 × g |

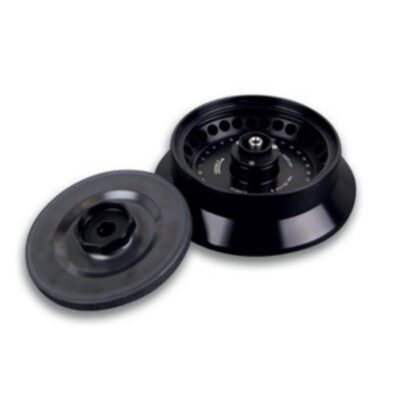

| Z216-3020H | Hermle 30 × 1.5/2.0 mL Rotor Z216-3020H | 13,500 rpm / 19,151 × g |
| Z216-3202 | Hermle 4 × PCR Rotor, Hermetically Sealed Z216-3202 | 15,000 rpm / 15,343 × g |
| Z216-4420 | Hermle 44 × 1.5/2.0 mL Rotor Z216-4420 | 15,000 rpm / 21,379 × g |
| Z216-05-C10 | Hermle 1.0 mL Cryotube Adapter for 5 mL Tube Rotor Z216-05-C10 | |
| Z216-05-C18 | Hermle 1.8 mL Cryotube Adapter for 5 mL Tube Rotor Z216-05-C18 | |
| Z216-24SC | Hermle 24 × 2.0 mL Spin Column Kit Z216-24SC | 13,500 rpm / 17,317 × g |
