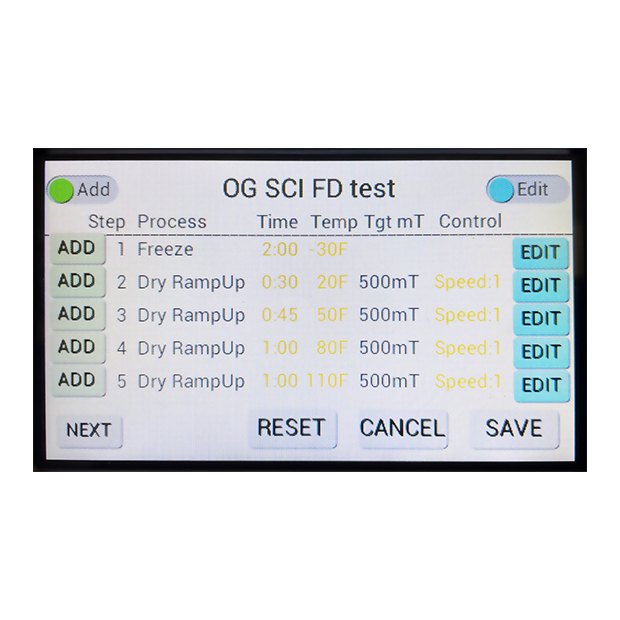

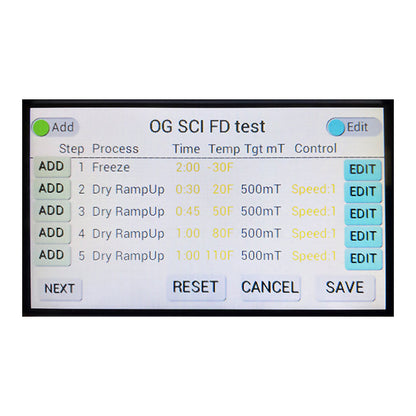

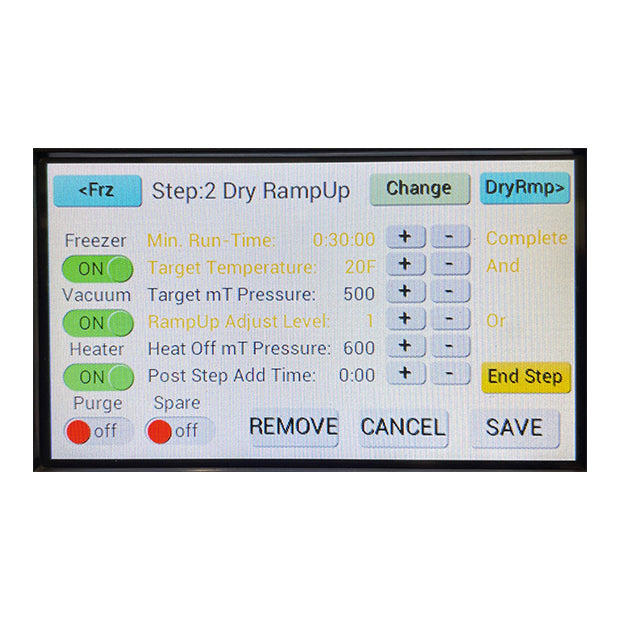

The Harvest Right Scientific is the programmable member of the family: a benchtop lyophilizer whose freeze and dry cycles are written as recipes on a 4.3 in full-color touch screen. Each recipe can carry up to 10 thermal-treatment steps and 12 drying steps, so you set how fast the material freezes, the final freeze temperature, how long it holds there, and up to five shelf temperatures during the dry. The unit logs pressure and temperature through the whole cycle and shows both in real time.
Key features
- Recipe customization with up to 10 thermal-treatment and 12 drying steps

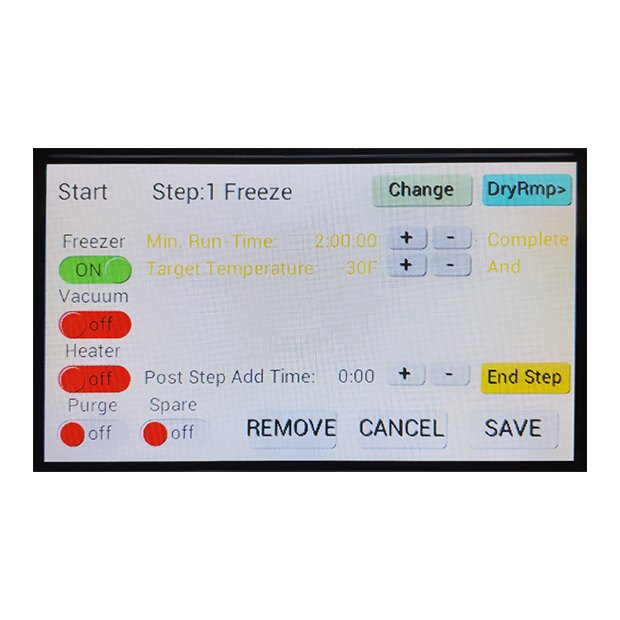

- Control of the freeze rate, the final freeze temperature and the hold time before drying starts
- Up to five shelf temperatures during the dry cycle, for drying in stages
- Shelf heaters can control the sublimation rate during primary drying
- Pressure and temperature logged for the full cycle and displayed in real time
- Multiple saved profiles that can switch the condenser and vacuum pump on and off with the temperature and time steps
- Stainless steel collector and drying chamber; purge valve included
Specifications by size
| Medium | Large | X-Large | |
|---|---|---|---|
| Part number | HRFDMSC | HRFDLSC | HRFDXLSC |

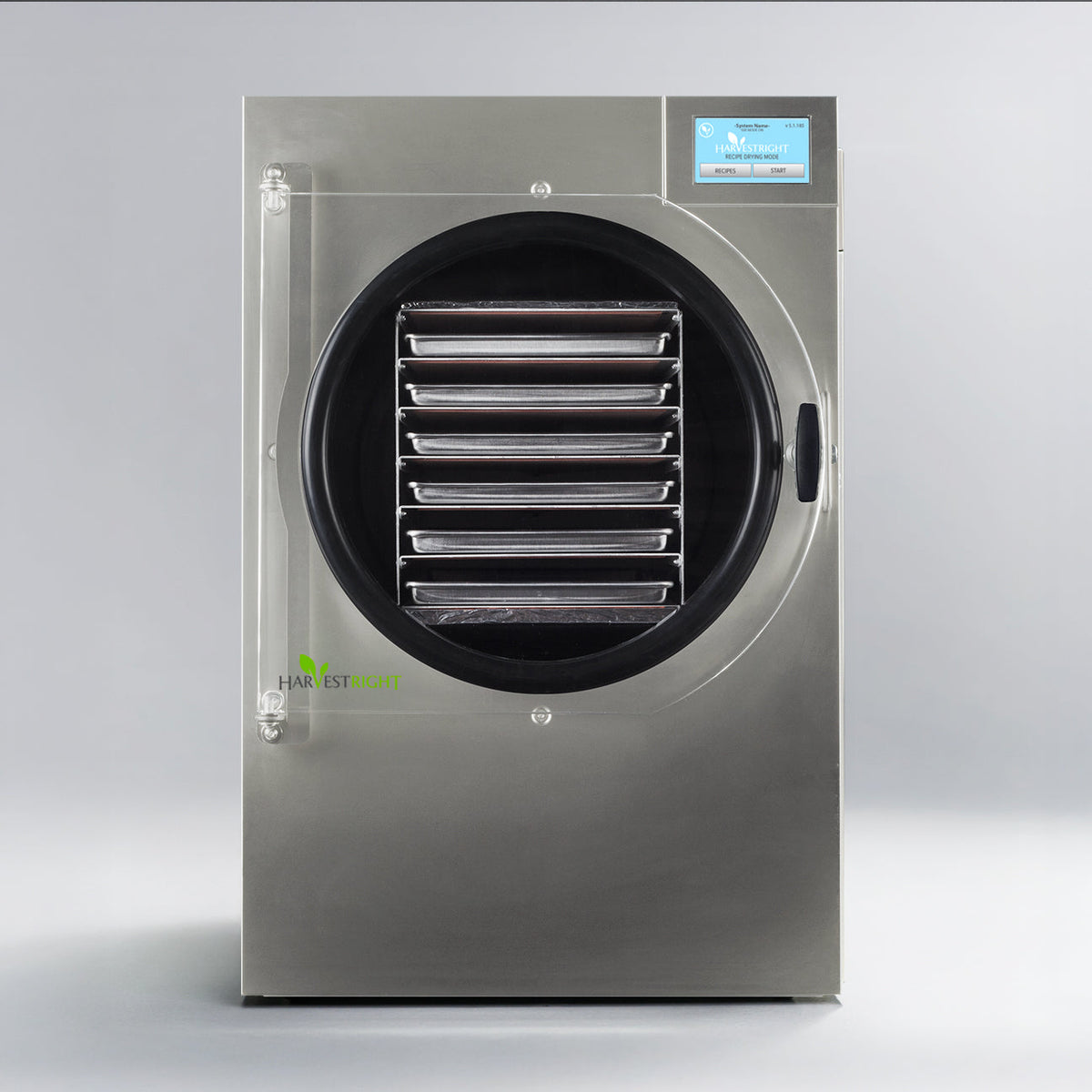

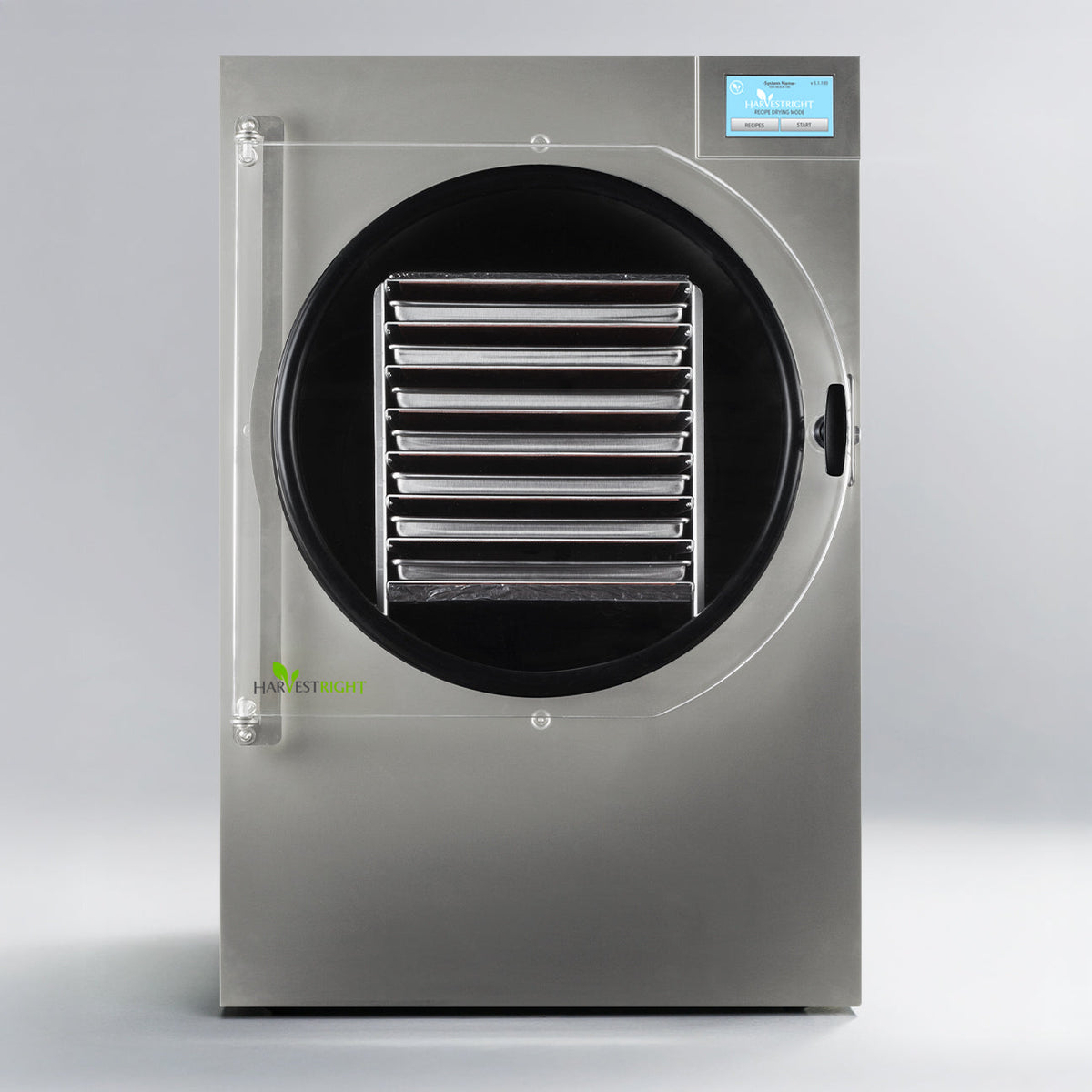

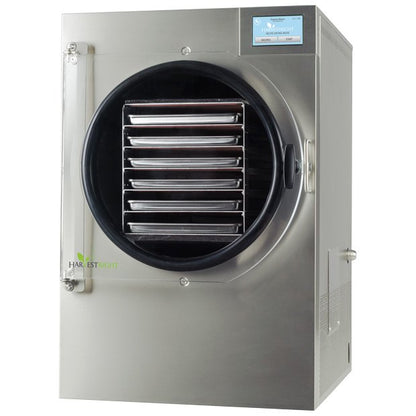

| Trays | 5 | 6 | 7 |
| Ice holding capacity | 1.5 gal (5.7 L) | 2.7 gal (10.2 L) | 6.6 gal (25 L) |

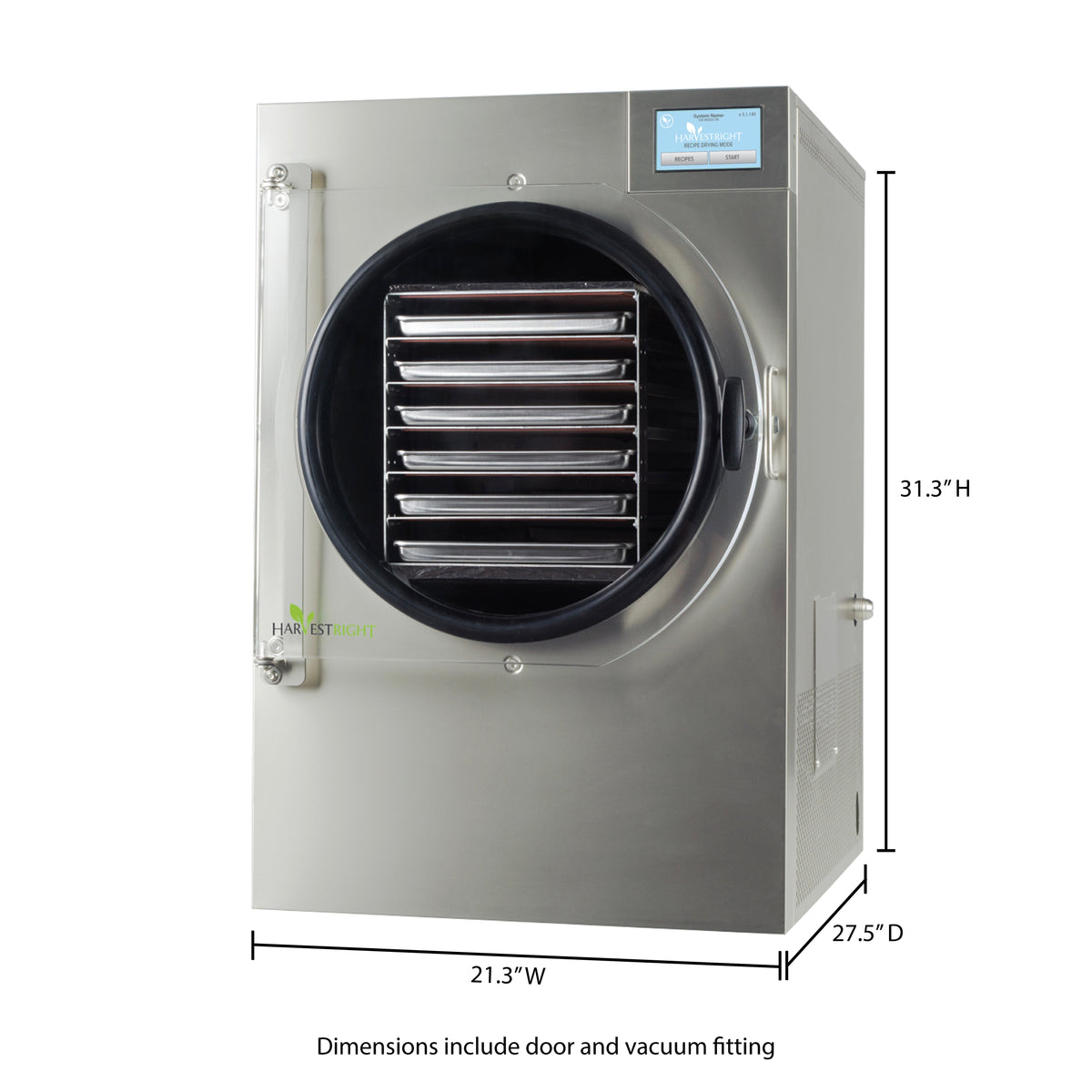

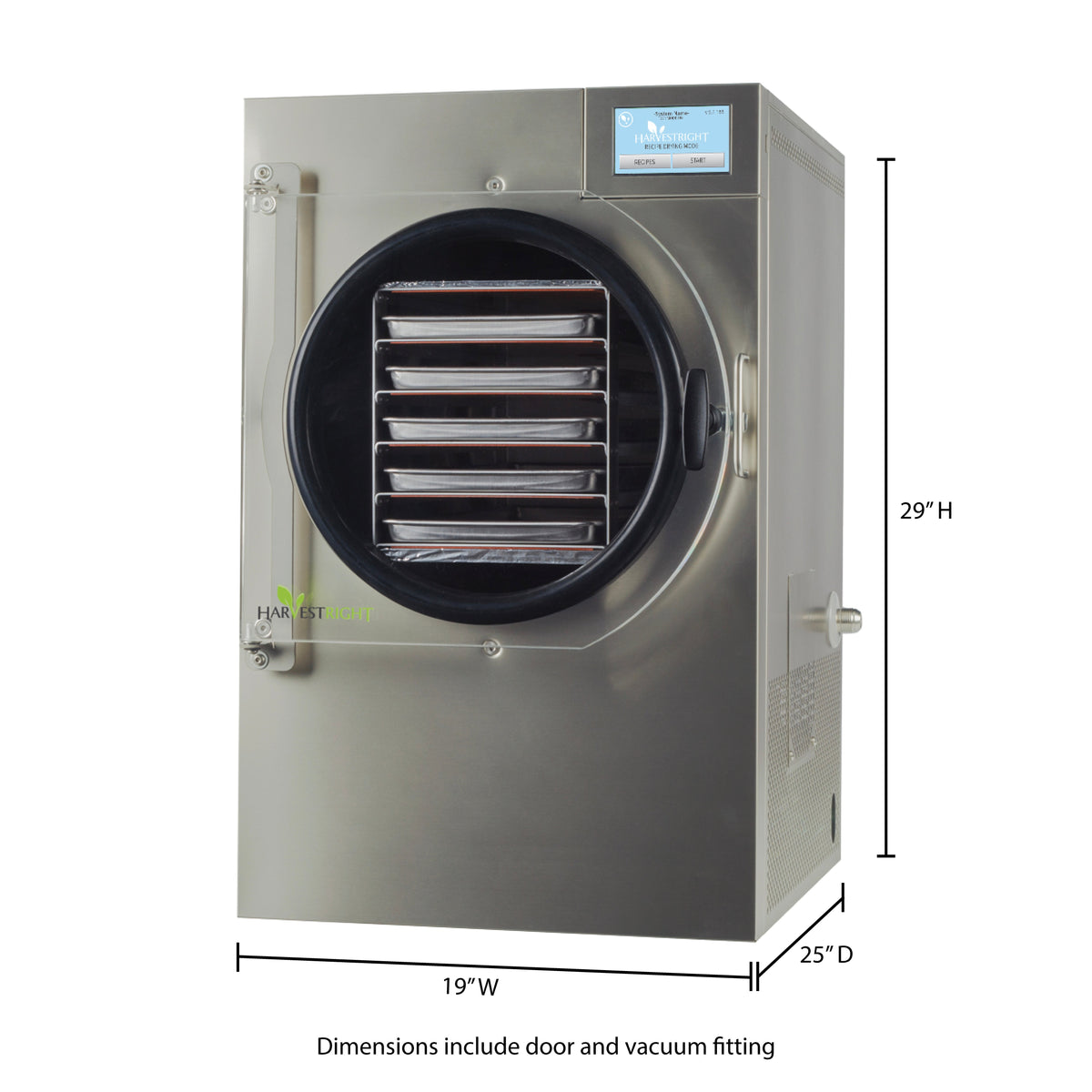

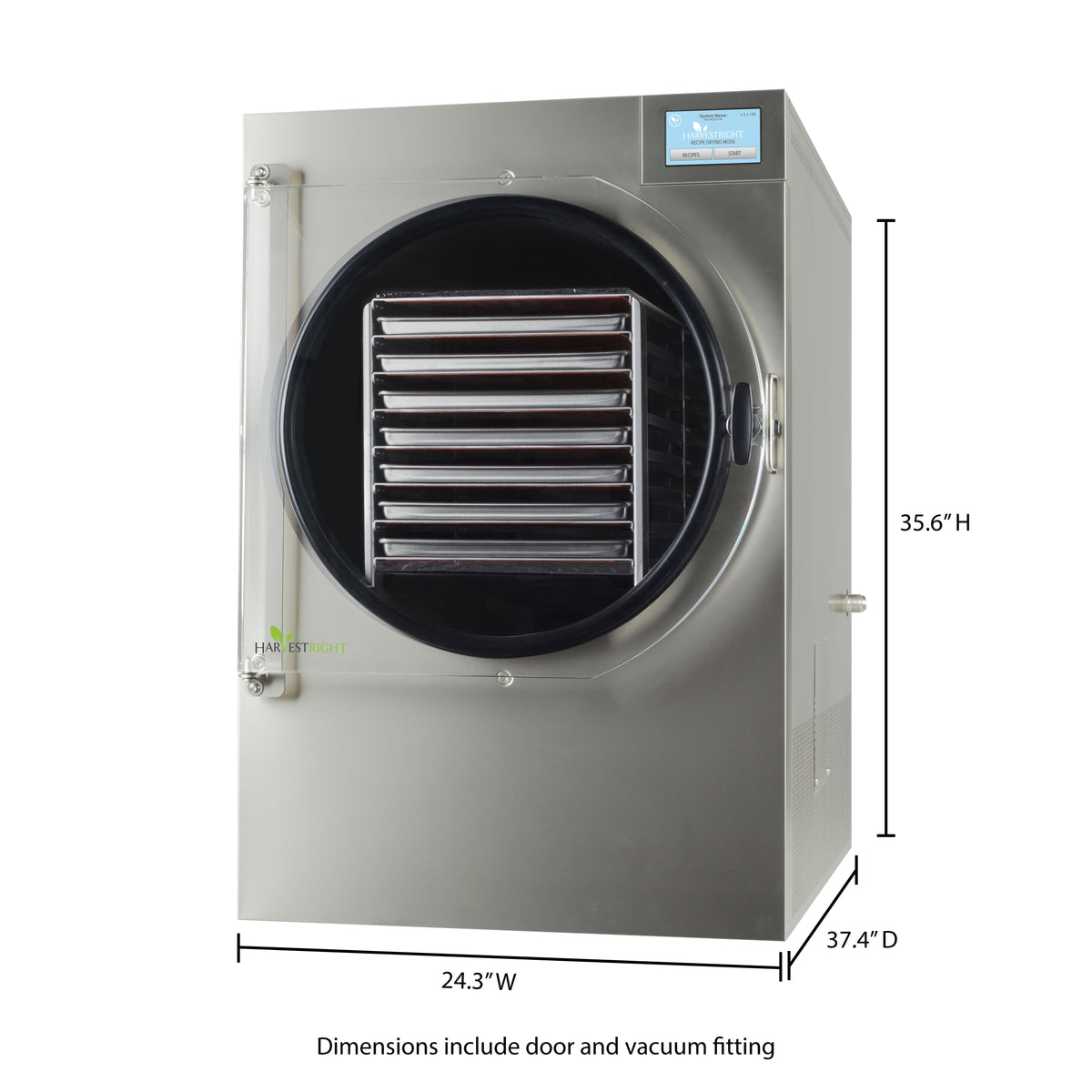

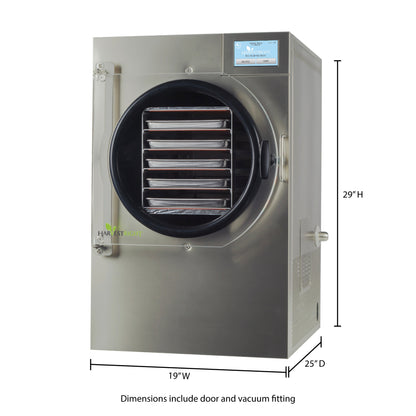

| Exterior dimensions | 19" W × 25" D × 29" H | 21.3" W × 27.5" D × 31.3" H | 24.3" W × 37.4" D × 35.6" H |
| Weight | 127 lb | 150 lb | 265 lb |
Specifications
| Style | Benchtop / table top |
|---|---|
| Controls | 4.3" full-color touch screen; manual or automated operation |
| Collector and chamber | Stainless steel |
| Purge valve | Included |
| Power | 115 V AC, 15 A |

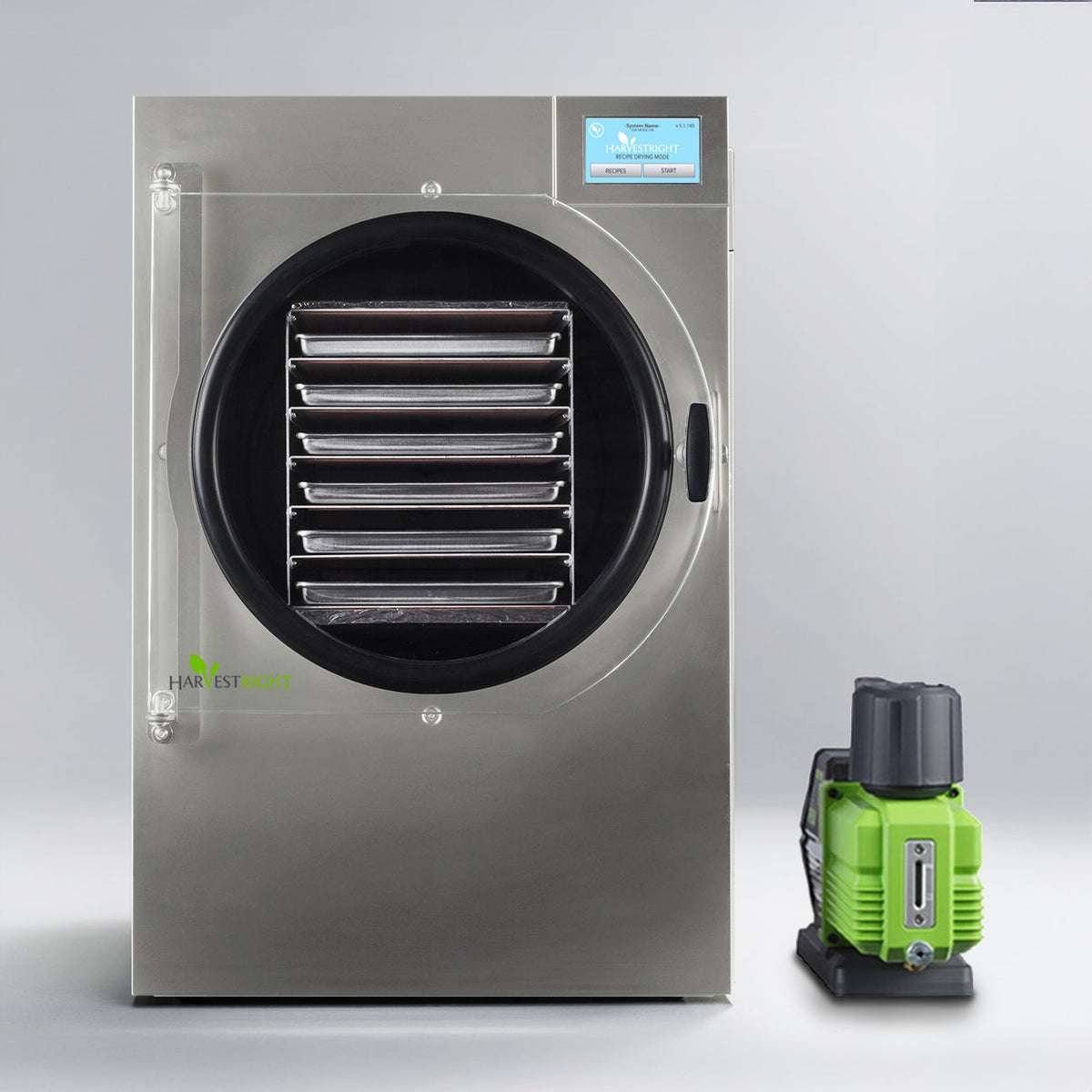

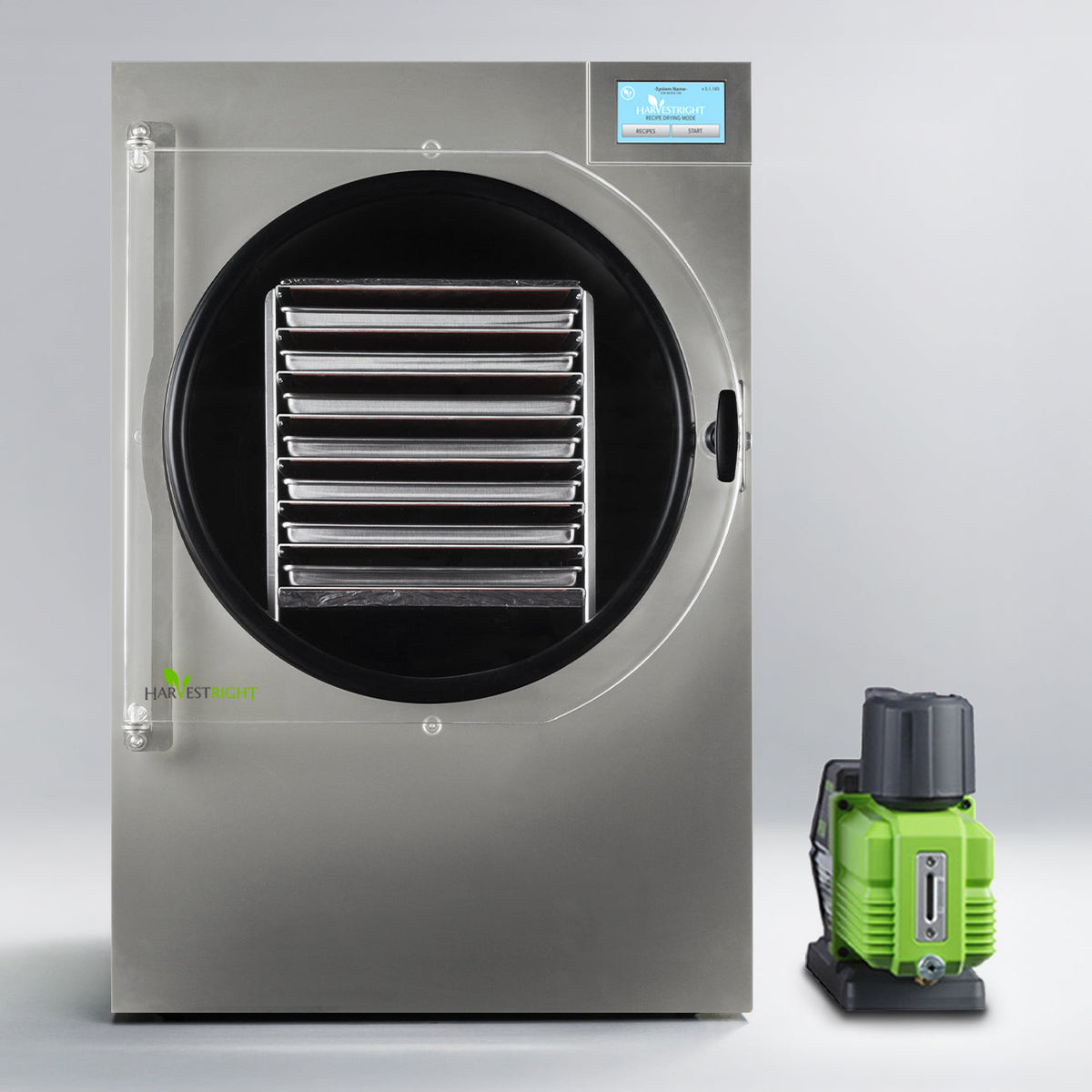

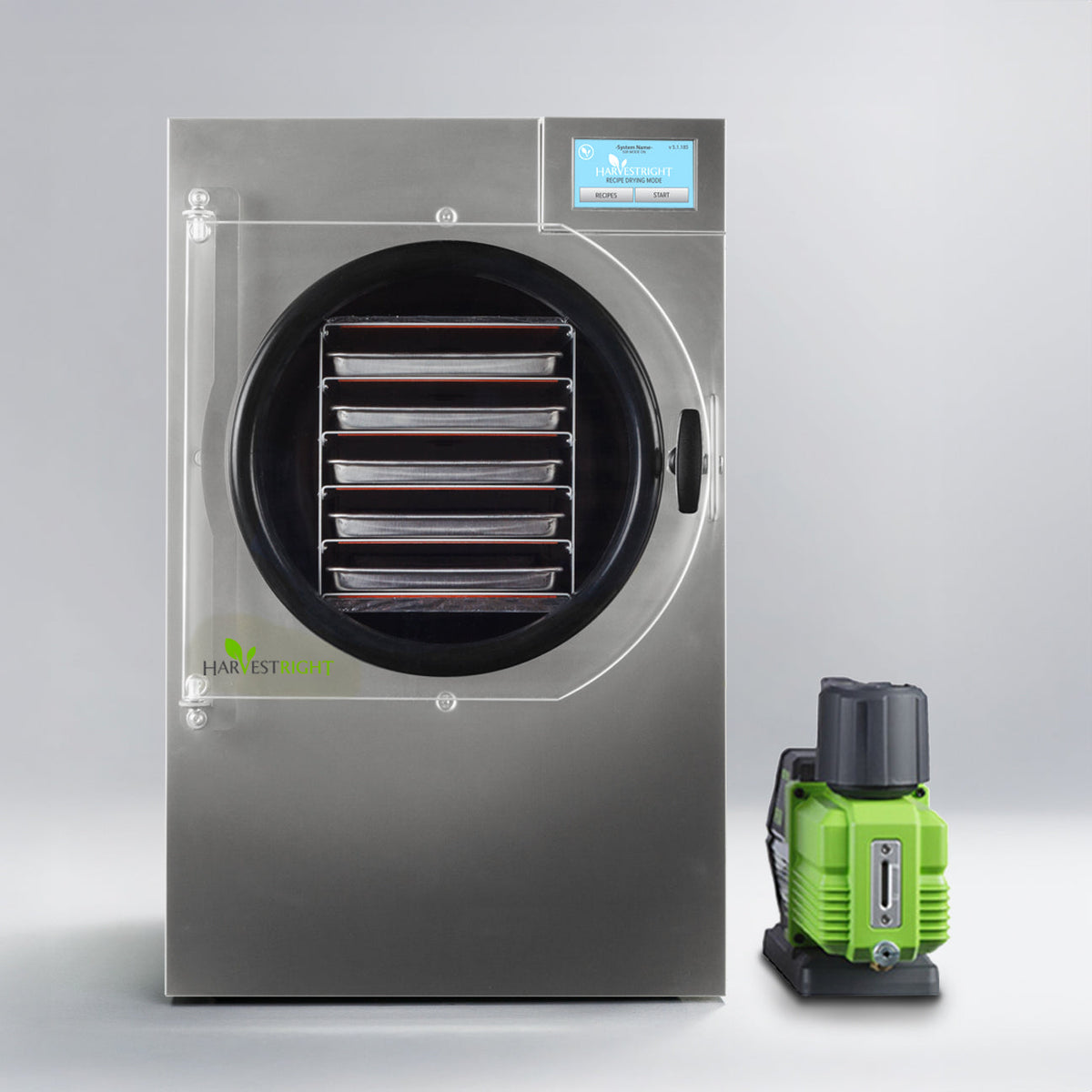

| Vacuum pump | Premier industrial vacuum pump included |
| Warranty | 3-year limited |
Ordering information
| Size | Part number | UPC |
|---|---|---|

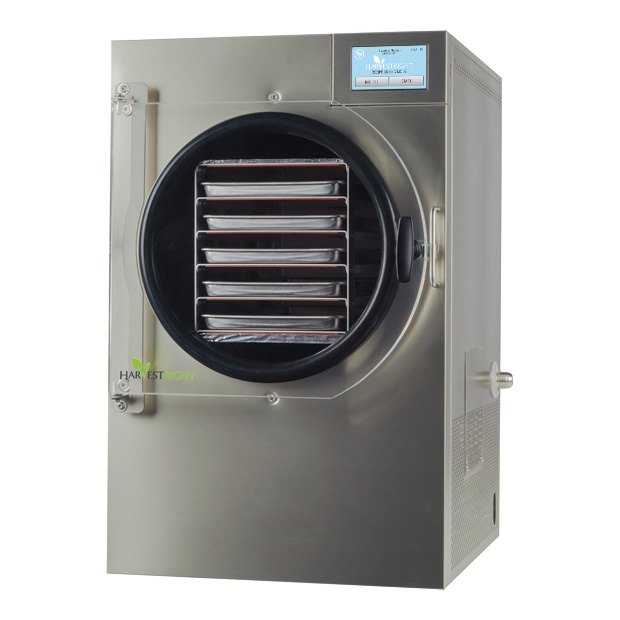

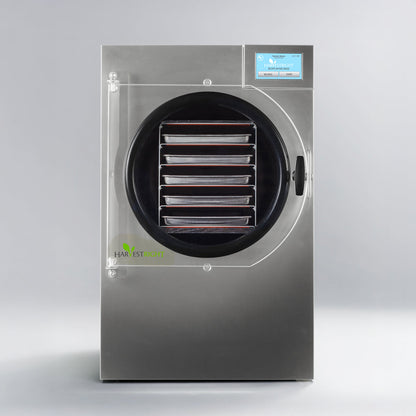

| Medium (5 trays) | HRFDMSC | 854877008278 |

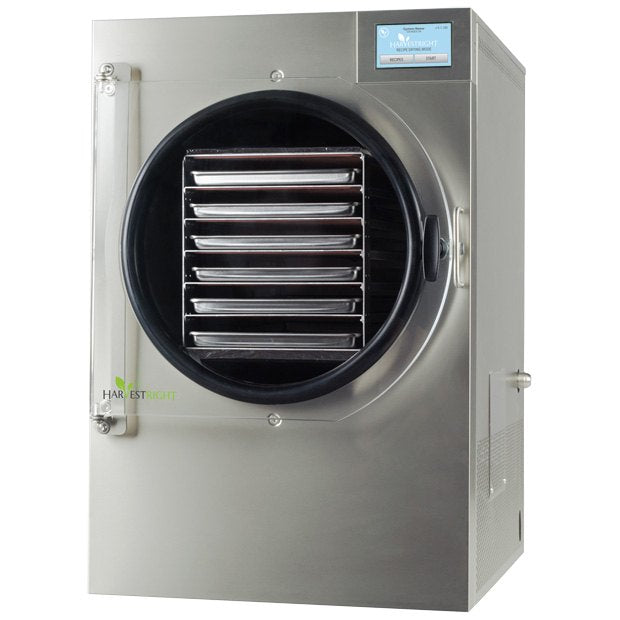

| Large (6 trays) | HRFDLSC | 854877008276 |

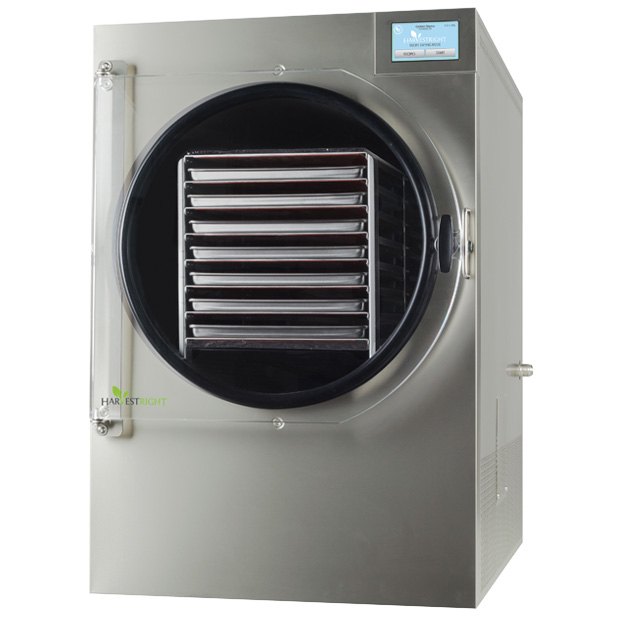

| X-Large (7 trays) | HRFDXLSC | 854877008283 |
Questions about the Harvest Right Scientific Freeze Dryer
How many steps can a Harvest Right Scientific freeze dryer recipe hold?
Up to 10 thermal-treatment steps and 12 drying steps, including up to five shelf temperatures during the dry cycle.
How much ice does each Scientific size hold?
Medium HRFDMSC: 1.5 gal (5.7 L); Large HRFDLSC: 2.7 gal (10.2 L); X-Large HRFDXLSC: 6.6 gal (25 L).
Does the Scientific freeze dryer record cycle data?
Yes. It logs pressure and temperature through every part of the freeze-dry cycle and displays both in real time.
