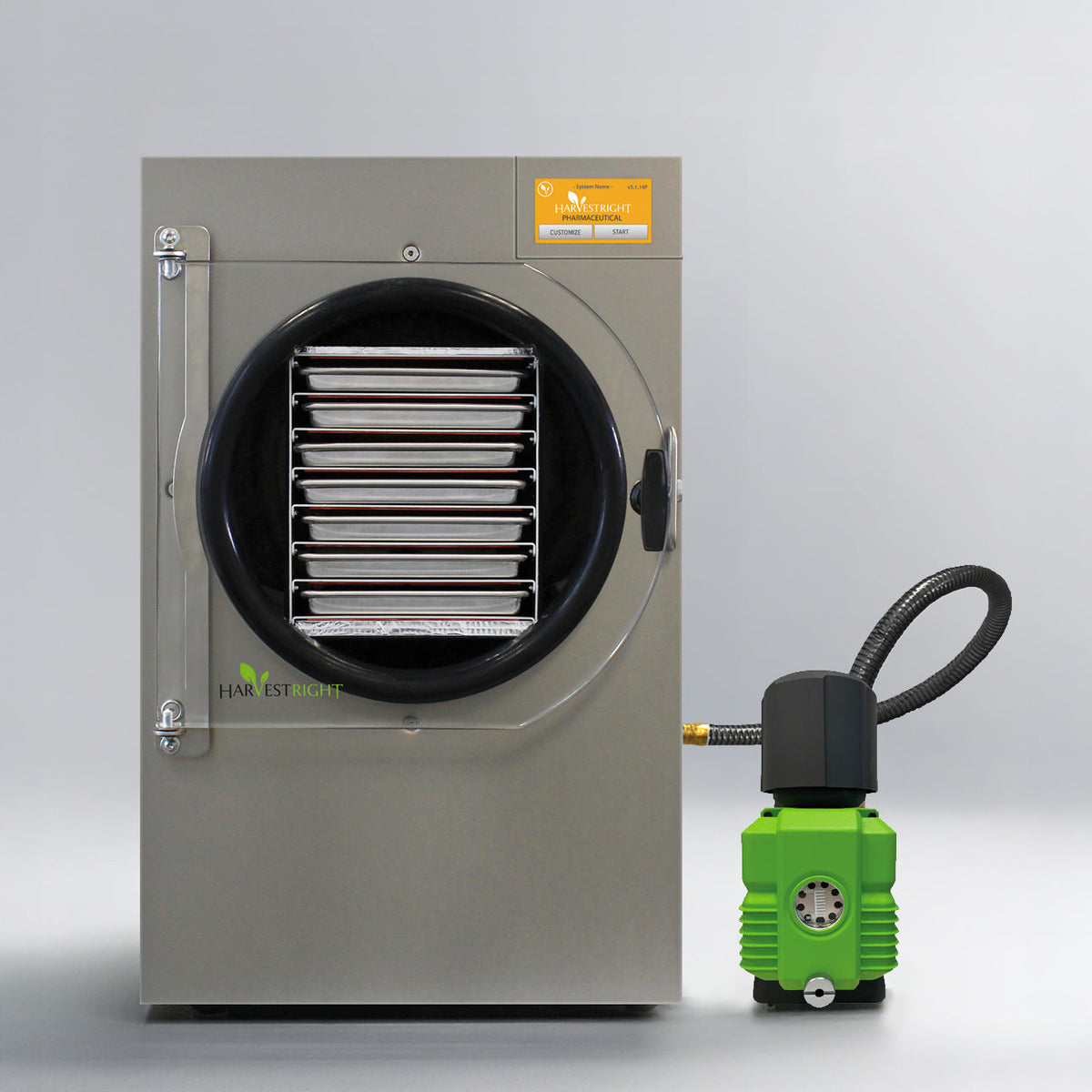

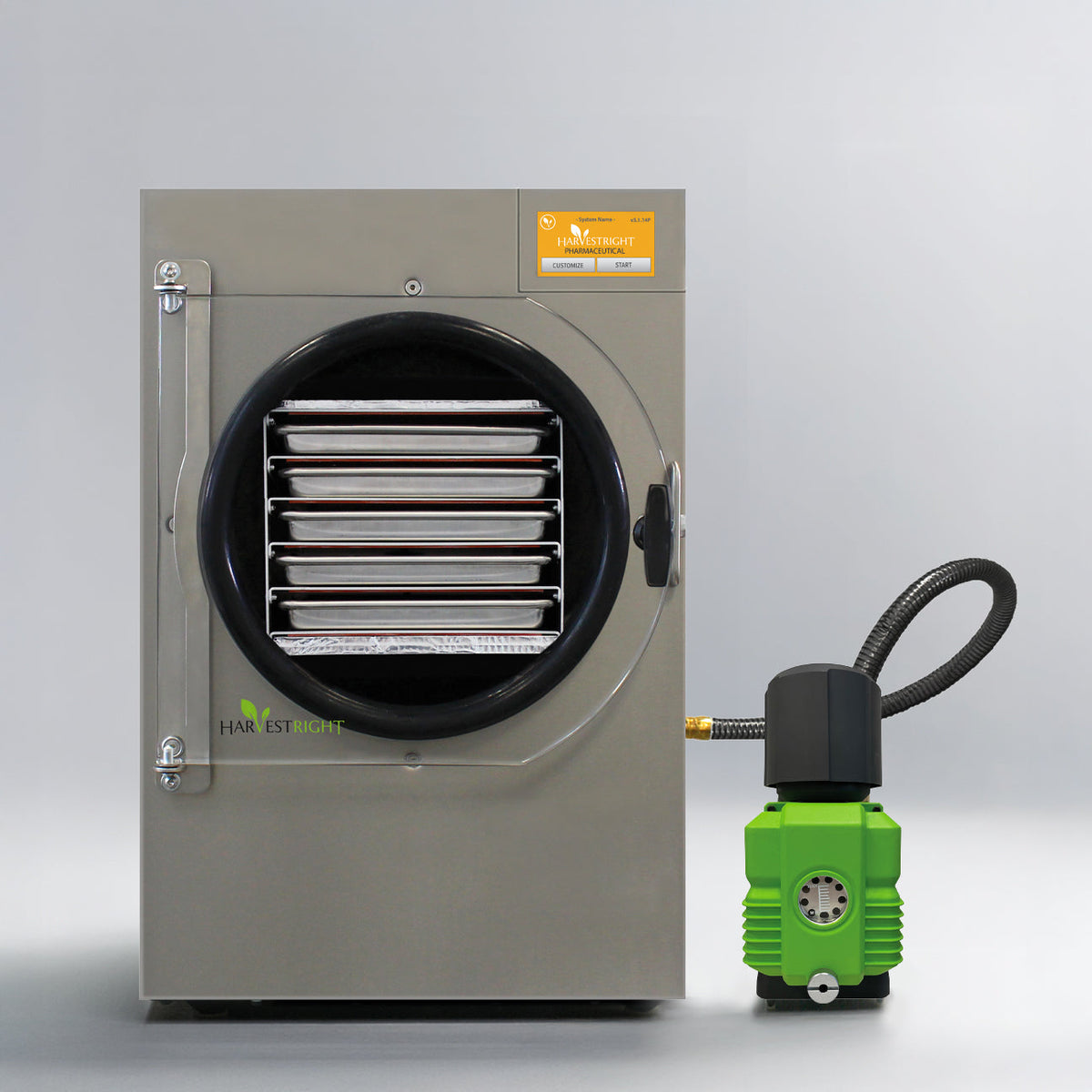

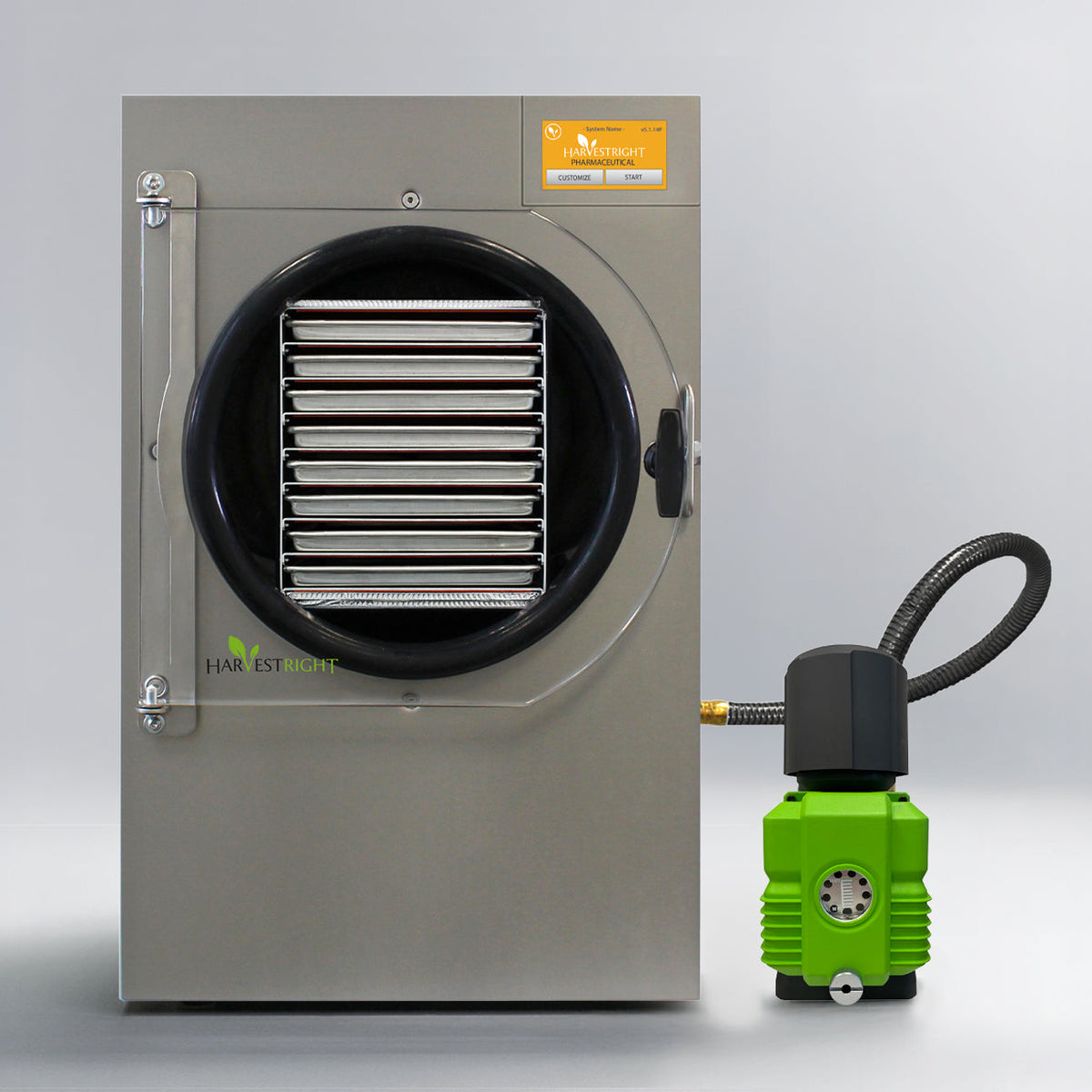

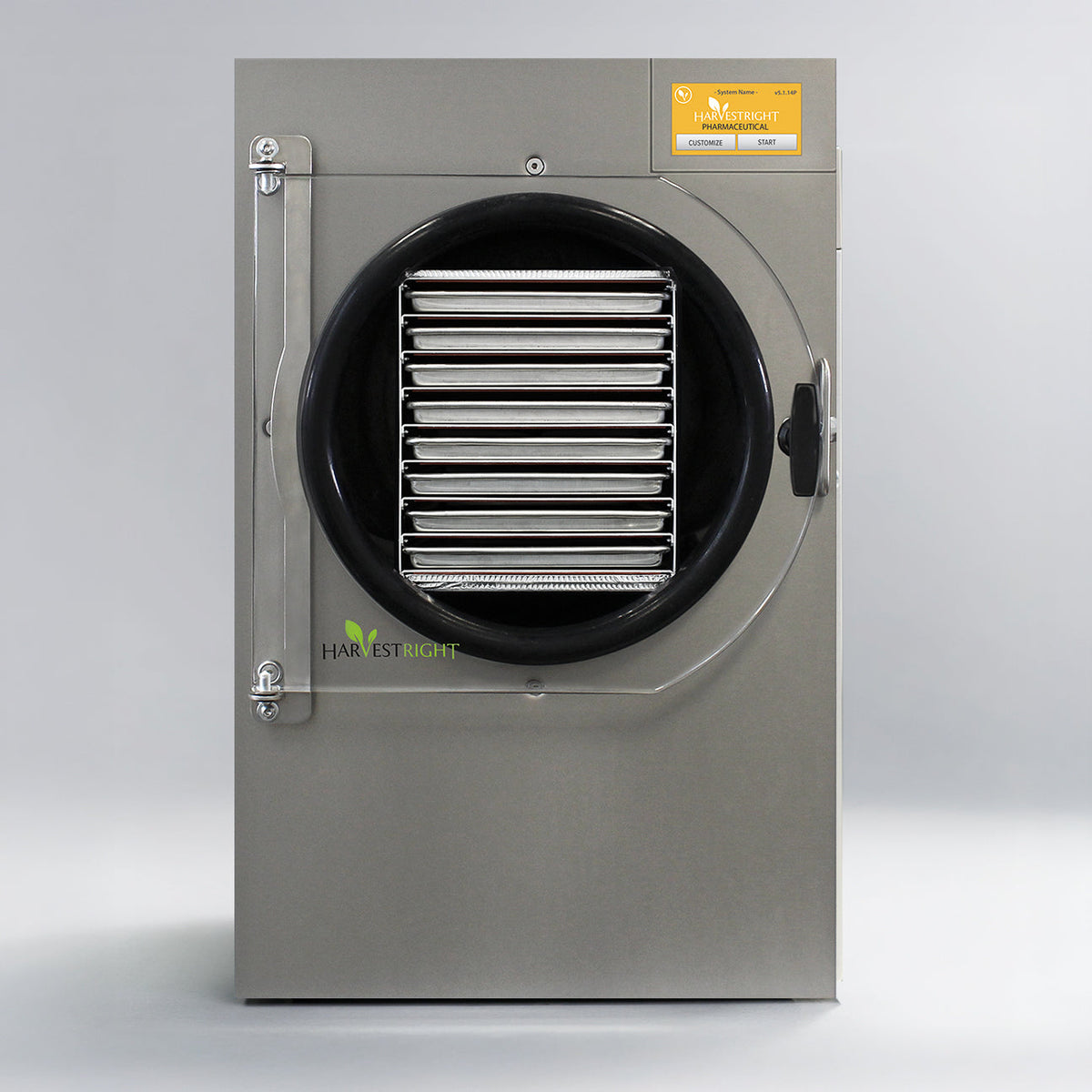

Harvest Right's pharmaceutical freeze dryers are built for herbs, oils, medicines, remedies and compounds where potency, color and shape need to survive drying. The controller manages the freeze and dry cycles automatically, holding the vacuum pressure and drying temperature for the material in the chamber. Shelving holds more, thinner trays than the home models — 5, 7 or 8 depending on size — and each unit ships with a Premier vacuum pump.
Specifications by size
| Small | Medium | Large | |
|---|---|---|---|
| Part number | HRFDSPH | HRFDMPH | HRFDLPH |
| Trays | 5 | 7 | 8 |
| Tray space | 3.75 sq ft | 6.5 sq ft | 10.25 sq ft |
| Ice capacity | 3 L | 4 L | 6 L |
| Overall dimensions | 16.5" W × 18.5" D × 25" H | 18" W × 21.25" D × 28.5" H | 20.25" W × 23.75" D × 30.75" H |
| Weight | — | 133 lb | 161 lb |
| Power | 110 V outlet | 110 V outlet | 110 V NEMA 5-20 outlet on a dedicated 20 A circuit |
Ordering information
| Size | Part number | UPC |
|---|---|---|

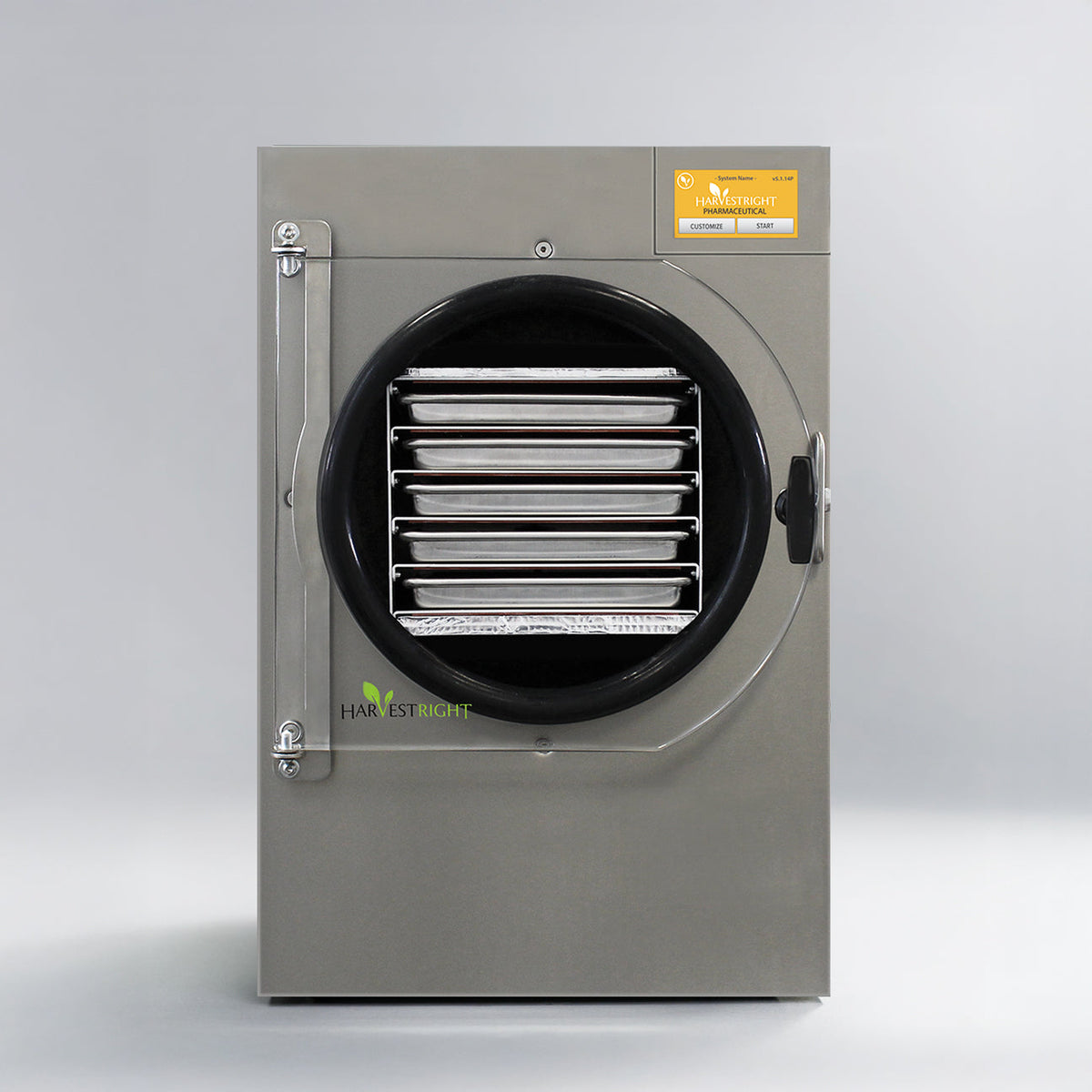

| Small (5 trays) | HRFDSPH | 854877008221 |

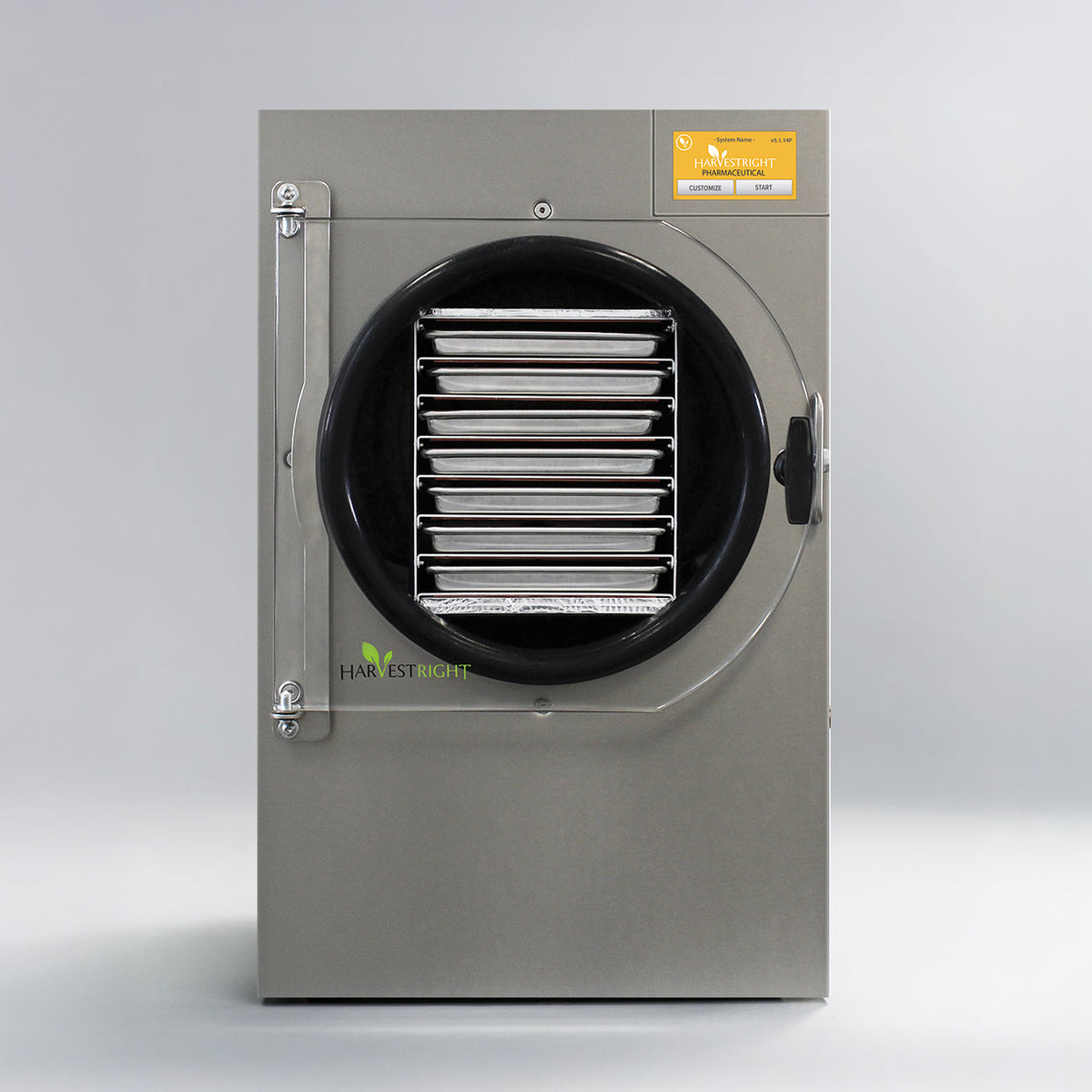

| Medium (7 trays) | HRFDMPH | 854877008238 |
| Large (8 trays) | HRFDLPH | 854877008245 |
Questions about the Harvest Right Pharmaceutical Freeze Dryer
How much tray space does each Harvest Right pharmaceutical freeze dryer have?
Small HRFDSPH: 3.75 sq ft on 5 trays; Medium HRFDMPH: 6.5 sq ft on 7 trays; Large HRFDLPH: 10.25 sq ft on 8 trays.
Which pharmaceutical freeze dryer needs a dedicated circuit?
The Large (HRFDLPH) needs a 110 V NEMA 5-20 outlet on a dedicated 20 A circuit; the Small and Medium use a 110 V outlet.
What materials is the pharmaceutical freeze dryer intended for?
Herbs, oils, medicines, remedies, pharmaceuticals and compounds — organic material whose potency, color, shape and nutrition need to be preserved.
