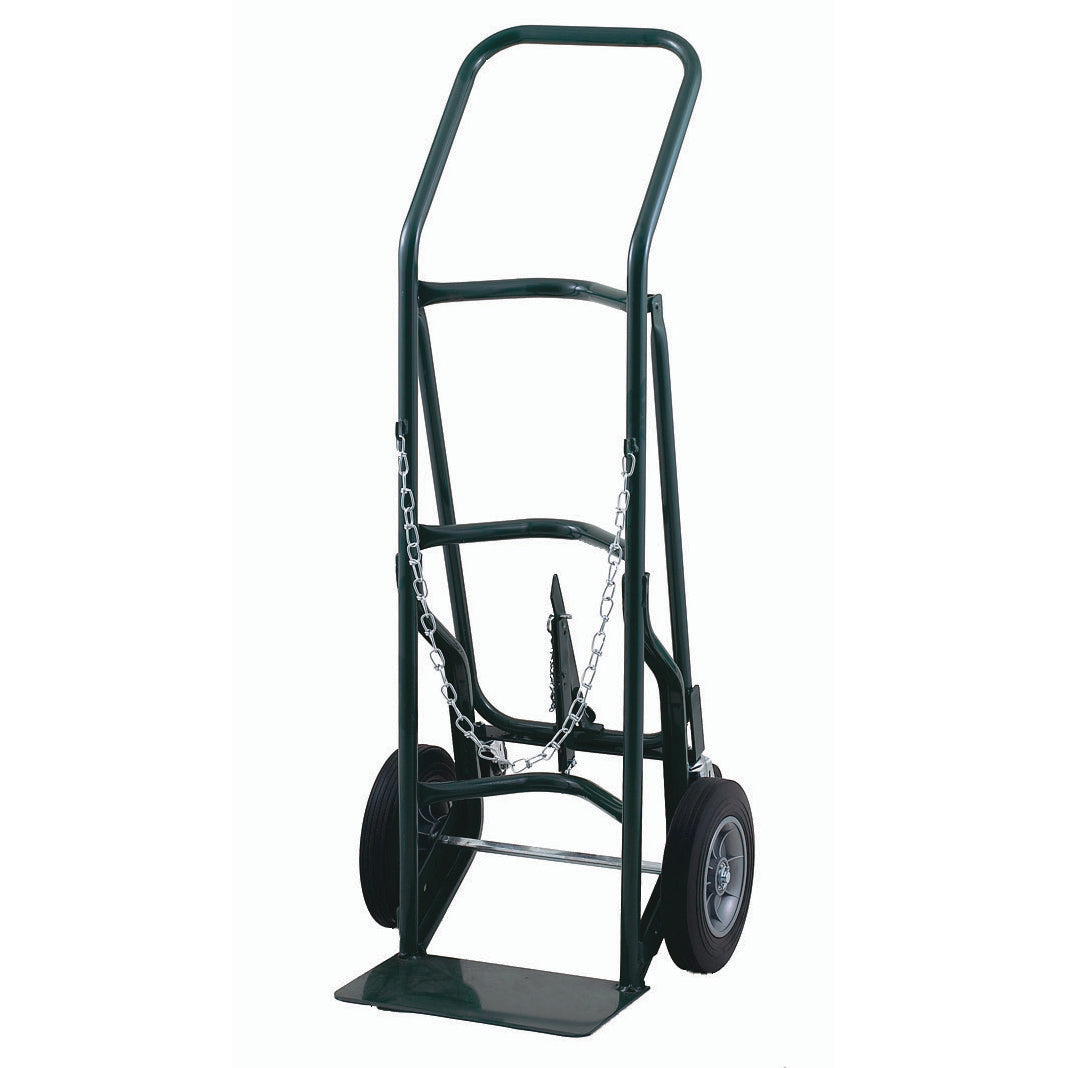

Harper Trucks Cylinder Truck 701BC86-40

Harper Trucks 701BC86-40. It is built for a 9.25" diameter cylinder, a base plate for moving boxes and crated loads. Designed to hold up to 9.25" diameter cylinders. Base plate allows for moving boxes. Equipped with 27" tall bracket chain. Equpped with retractable rear casters that lock into place. 48" tall x 21" wide.

Choosing the Right Truck

A cylinder truck is sized to the cylinder diameter it cradles, not to a generic load rating — a chain or bracket built for a 9.25" industrial gas cylinder will not securely hold a narrower medical or beverage cylinder, and the reverse leaves a large cylinder loose in an undersized cradle. Match the truck to the cylinder you actually move, then choose the handle: a continuous (looped) handle keeps both hands at one height for steering on the move, while dual handle bars with separate grips give more control tilting a heavy cylinder back onto the wheels from a standing start.

Specifications
