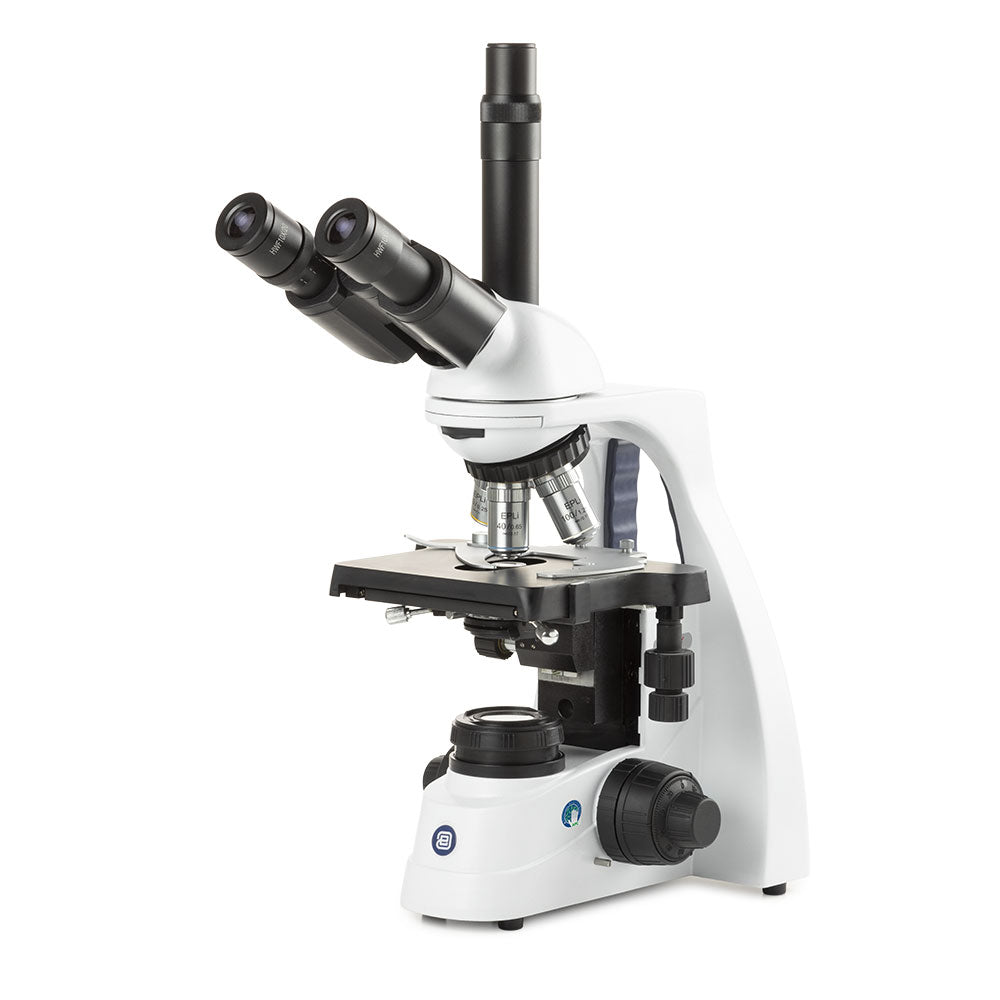

bScope Trinocular Microscope with E-plan EPLi 4/10/40/100x Infinity Optics — 1/Unit
The bScope trinocular microscope pairs HWF 10x/20mm eyepieces with a quintuple nosepiece carrying E-plan EPLi 4x, 10x, S40x, and S100x oil infinity-corrected objectives, delivering sharp brightfield imaging for clinical hematology, histology section review, and microbiology smear examination. A dedicated photoport supports documentation and teaching workflows.
Technical Specifications
| Product Type | Trinocular compound microscope (bScope) |
|---|---|
| Volume/Size (range) | 4x to 100x objective magnification; HWF 10x/20mm eyepieces |
| Material | Anodized metal frame, infinity-corrected glass optics |
| Closure/Cap | N/A — trinocular head with eyepieces and photoport |
| Graduation | Mechanical stage with coaxial coarse/fine focus |
| Sterility | Non-sterile |
| Pack Size | 1 microscope per unit |
Available Options
| Option | SKU | Price |
|---|---|---|
| EBS-1153-EPLI | EBS-1153-EPLI | $1,226.60 |
| EBS-1153-EPLI-DC18 | EBS-1153-EPLI-DC18 | $2,306.10 |
| EBS-1153-EPLI-HDS | EBS-1153-EPLI-HDS | $2,350.00 |
Applications
- Clinical hematology and peripheral blood smear review under oil immersion
- Histology and cytology section examination across 4x–100x magnification
- Microbiology Gram-stain and wet-mount evaluation
- Urinalysis sediment microscopy in clinical labs
- Digital image capture and archiving via the dedicated photoport (camera/screen options)
- Teaching and demonstration in academic and training laboratories
Quality & Procurement
Supplied by labsupplies.com, an authorized Globe Scientific dealer shipping from US inventory. Each unit carries lot numbers to support traceability for CAP-, CLIA-, and ISO 15189-accredited laboratories. Institutional and grant-funded tiered pricing is available on request for departmental and multi-station orders.
Frequently Asked Questions
What objectives ship with the bScope EBS-1153-EPLI?
All three configurations include E-plan EPLi infinity-corrected objectives in 4x, 10x, S40x, and S100x oil on a quintuple nosepiece, paired with HWF 10x/20mm eyepieces.
Can I add a camera later if I buy the camera-ready model?
Yes. The EBS-1153-EPLI is camera-ready via its trinocular photoport, so the CMEX-18 Pro 18MP camera or HD-Mini screen can be fitted at a later date.
What is the difference between the DC18 and HDS bundles?

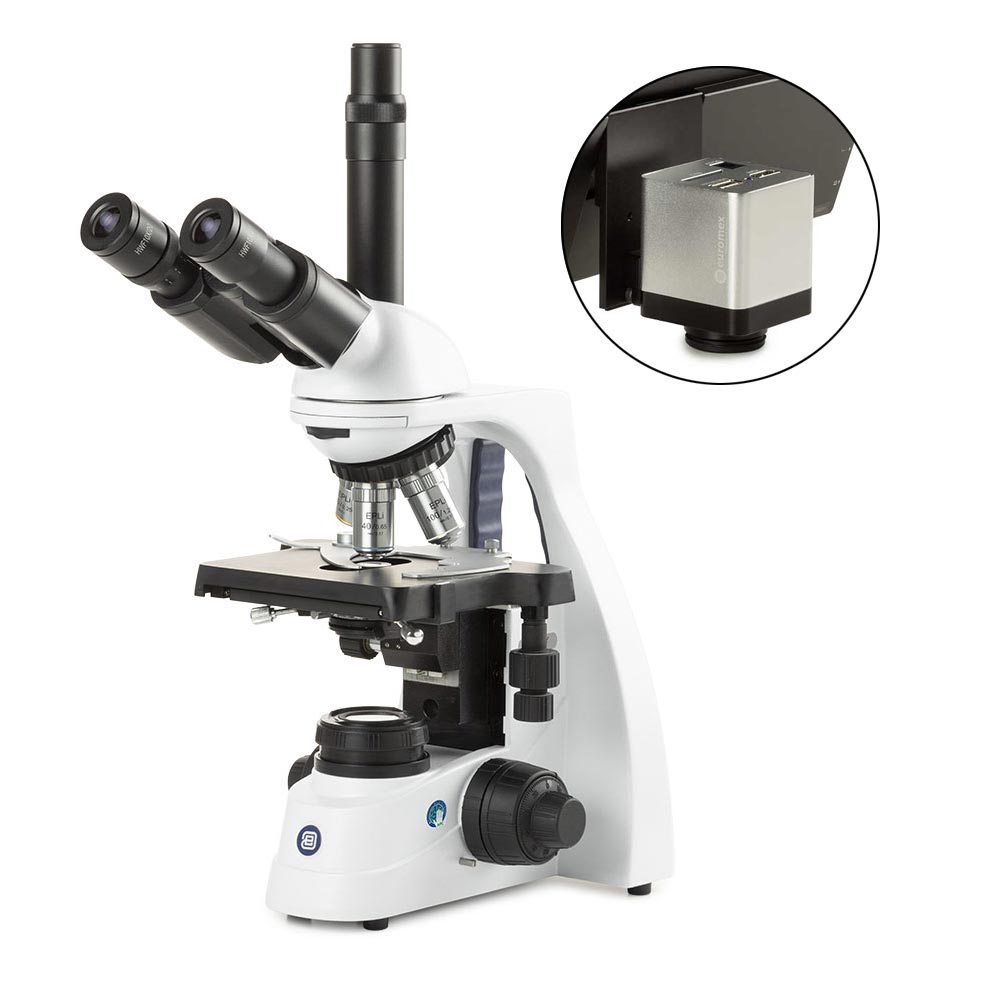

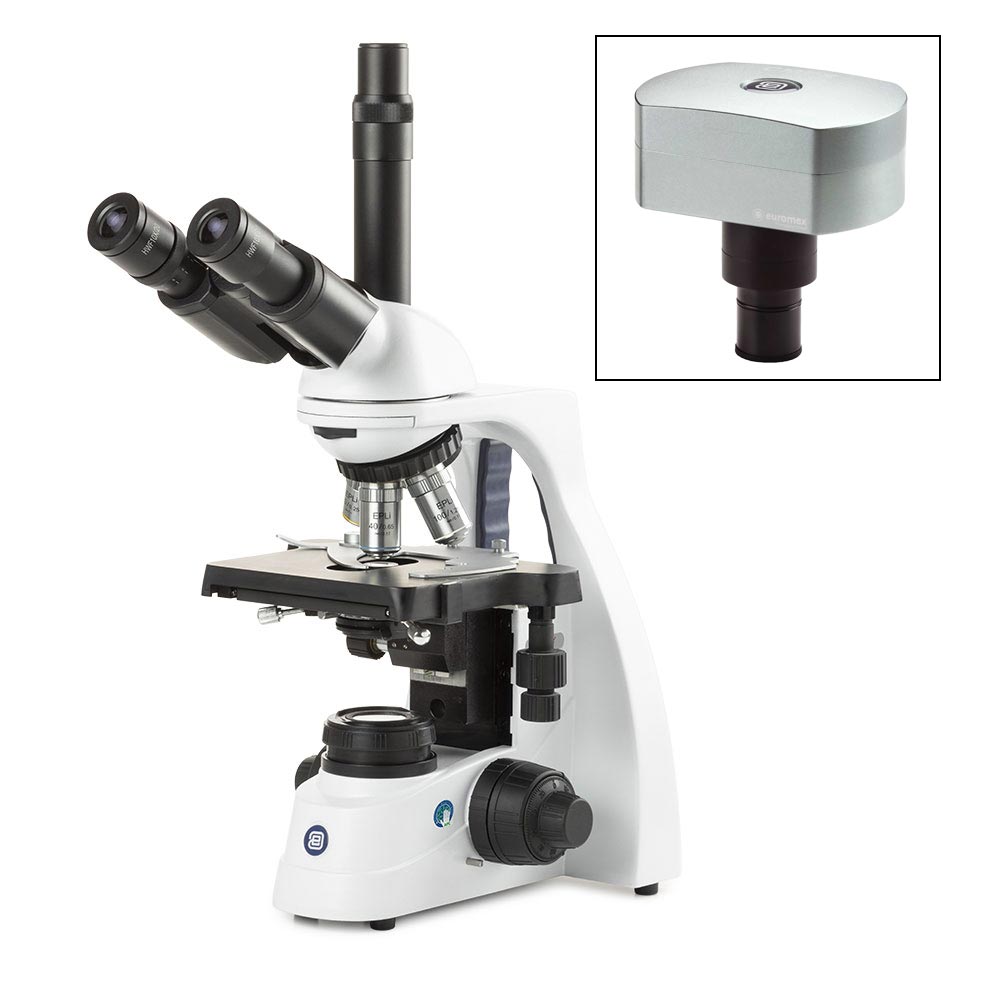

The DC18 bundle includes the CMEX-18 Pro 18MP camera for PC-based imaging, while the HDS bundle adds an HD-Mini standalone screen for camera-to-monitor viewing without a computer.
Is the S100x objective an oil immersion lens?
Yes. The S100x is a spring-loaded oil immersion objective intended for high-magnification work such as blood smears and bacterial morphology.
