Globe Scientific 23.2mm Photo Tube Adapter for Oxion Microscopes (EAE-5120-2)

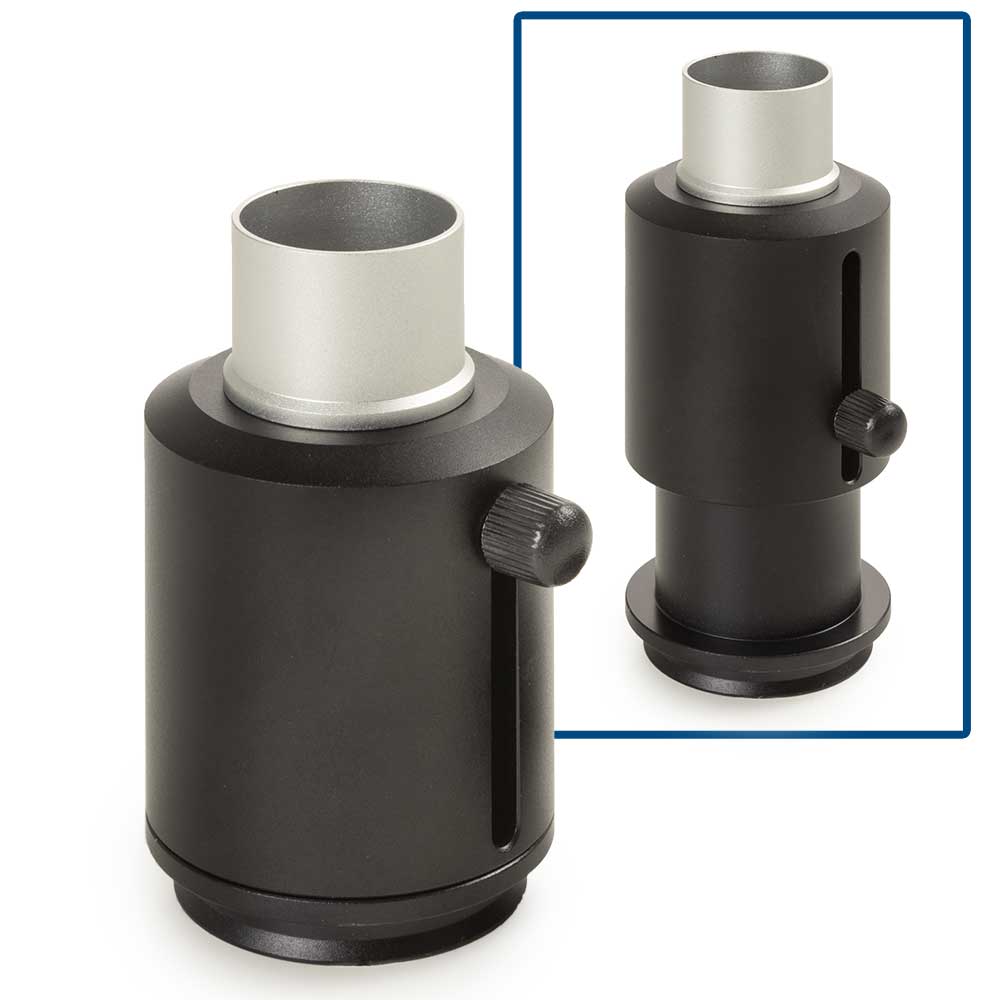

The Globe Scientific 23.2mm Photo Tube Adapter (EAE-5120-2) provides the standard 23.2mm trinocular tube interface required to mount the HD-Mini camera (EVC-3024-HDS) on Oxion upright (revision 2) and Oxion Inverso inverted microscopes. This adapter bridges the Oxion's proprietary photo port to the 23.2mm standard used by the HD-Mini system.

EAE-5120-2 vs. EOX-9850: Choosing the Right Oxion Adapter

Globe Scientific offers two camera adapters for Oxion microscopes, each designed for different cameras. The EAE-5120-2 (this adapter) provides a standard 23.2mm tube for the HD-Mini camera system (EVC-3024-HDS), which uses a C-mount lens with 23.2mm adapter included. The EOX-9850 is a photo port adapter with an integrated 0.5x reduction lens, designed for 1/2-inch sensor C-mount cameras like the CMEX Pro series (EDC-5000-PRO, EDC-10000-PRO, EDC-18000-PRO) and the Ultra HD 4K camera (EVC-3042). Choose based on which camera you are mounting on your Oxion microscope.

Compatibility

• Microscopes: Oxion upright (revision 2), Oxion Inverso (EOX-2053-PLPH, EOX-2053-PLPH-DC18)

• Camera: HD-Mini EVC-3024-HDS (primary intended use)

• Tube Diameter: Standard 23.2mm

Camera Adapter Overview

All Globe Scientific and Euromex cameras ship with a photo port C-mount adapter for direct connection to most trinocular microscopes. However, certain microscope models require model-specific adapters. The Oxion platform (revision 2) uses this EAE-5120-2 tube adapter or the EOX-9850 photo port adapter depending on the camera. The Delphi-X Inverso series requires a separate dedicated adapter beyond standard C-mount adapters. For standard 23.2mm trinocular microscopes (iScope, bScope, BioBlue, NexiusZoom, StereoBlue, Delphi-X Observer), no additional adapter is needed.

Installation and Connection

The EAE-5120-2 inserts into the Oxion microscope's trinocular tube slot. The HD-Mini camera's C-mount adapter (included with the camera) then threads into the top of this tube. No tools are required — the adapter slides in and secures with the microscope's built-in locking mechanism. Ensure the Oxion is revision 2 before ordering; earlier Oxion revisions may have different tube dimensions. If you are unsure of your Oxion's revision, contact Globe Scientific with your microscope's serial number for confirmation.

Why the Oxion Needs a Specific Adapter

Most Globe Scientific microscopes (iScope, bScope, BioBlue, NexiusZoom, StereoBlue, Delphi-X Observer) use the standard 23.2mm trinocular tube that accepts cameras directly. The Oxion platform uses a different photo port design that requires this adapter to convert to the 23.2mm standard. Without the EAE-5120-2 or EOX-9850, cameras cannot be mechanically attached to the Oxion trinocular port. This is the only additional purchase needed — the camera and microscope handle everything else.

Technical Specifications

• SKU: EAE-5120-2

• Type: 23.2mm photo tube adapter

• Compatibility: Oxion upright rev. 2, Oxion Inverso

• Primary Camera: EVC-3024-HDS HD-Mini

• Manufacturer: Globe Scientific (Euromex)
