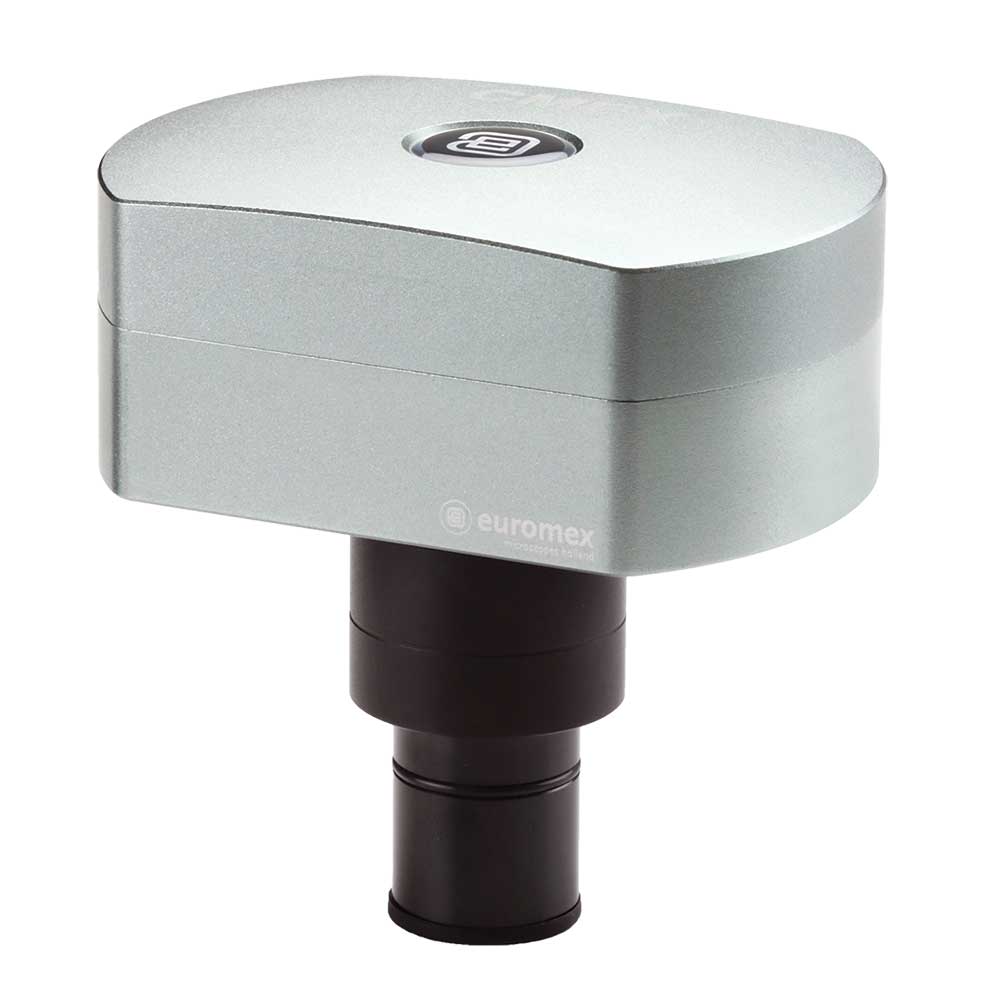

Globe Scientific CMEX-10 Pro 10MP USB-3 Microscope Camera (EDC-10000-PRO) — The Balanced Choice

The Globe Scientific CMEX-10 Pro 10MP Microscope Camera (EDC-10000-PRO) sits at the center of the CMEX Pro line, delivering 10 megapixels of resolution through a high-speed USB-3 interface with a 1/2.3-inch CMOS sensor, 12-bit grayscale conversion, and 24-bit color rendering. Bundled with ImageFocus Alpha capture and analysis software, the CMEX-10 Pro balances resolution against frame rate — capturing more detail than the 5MP model while maintaining faster live viewing than the 18MP model.

CMEX-5 Pro vs. CMEX-10 Pro vs. CMEX-18 Pro: Choosing the Right Resolution

All three CMEX Pro cameras share the same USB-3 interface, ImageFocus Alpha software, 12-bit ADC, and C-mount connection. They differ in sensor resolution, which affects both image detail and frame rate. The CMEX-5 Pro (EDC-5000-PRO) offers the fastest frame rates for smooth live viewing — best for demonstrations and real-time observation. The CMEX-18 Pro (EDC-18000-PRO) provides maximum 18MP resolution for publication-quality imaging and fine detail capture — best for research documentation. The CMEX-10 Pro (this model) balances both: enough resolution for detailed documentation and measurement, with faster live preview than the 18MP model. Choose the 10MP when you need a camera that handles both live observation and quality documentation without compromising significantly on either.

ImageFocus Alpha Software

ImageFocus Alpha provides live image viewing with real-time brightness/contrast/color adjustment, still image and video capture, calibrated measurements on live and captured images (length, area, angle, count), annotations and labels, image comparison and overlay functions, and export to standard image formats. Compatible with Windows 10 and 11 (32- and 64-bit). Minimum recommended system: 2GB RAM, 2.8GHz processor, 17-inch display.

Microscope Compatibility

The CMEX-10 Pro connects directly to any trinocular microscope with a C-mount or standard 23.2mm photo tube — all Globe Scientific iScope, bScope, BioBlue (trinocular models), NexiusZoom EVO, StereoBlue, and Delphi-X Observer microscopes. For Oxion microscopes, use the EOX-9850 photo port adapter. For Delphi-X Inverso microscopes, a dedicated adapter is required.

When 10MP Hits the Sweet Spot

For most laboratory documentation — clinical reports, teaching archives, quality control records, and routine research imaging — 10 megapixels provides more than enough detail. A 10MP image at 3648 x 2736 pixels prints at 300 DPI at over 12 x 9 inches — larger than any standard report format. The live preview streams faster than the 18MP model, making the CMEX-10 Pro more responsive during focusing and specimen scanning. The file sizes are manageable (roughly 30MB per RAW image versus 54MB for 18MP), putting less strain on storage and network resources in labs capturing thousands of images per year.

Measurement Precision at 10MP

ImageFocus Alpha's measurement tools operate at the pixel level — each measurement's precision is limited by pixel size relative to the specimen. At 10MP, the pixel density provides measurement precision suitable for most clinical and industrial microscopy measurements: cell dimensions, grain sizes, fiber diameters, coating thicknesses, and particle counts. For applications requiring sub-micron measurement precision at high magnification (semiconductor metrology, precision materials science), the 18MP CMEX-18 Pro provides smaller effective pixel size and therefore higher measurement resolution. For standard laboratory measurements, the 10MP sensor's precision exceeds the requirements.

Technical Specifications

• SKU: EDC-10000-PRO

• Resolution: 10MP

• Sensor: 1/2.3-inch CMOS

• Interface: USB 3.0 (USB 2.0 compatible)

• ADC: 12-bit grayscale, 24-bit color

• Signal/Noise: Low

• Software: ImageFocus Alpha included

• Mount: C-mount

• Manufacturer: Globe Scientific (Euromex)

Higher resolution: CMEX-18 Pro (EDC-18000-PRO, 18MP). Faster frame rate: CMEX-5 Pro (EDC-5000-PRO, 5MP). Standalone with screen: HD-Mini (EVC-3024-HDS, 2MP). Maximum resolution: Ultra HD 4K (EVC-3042, 8.3MP 4K).
