Chiller, CS 50 -20 °C to +85 °C

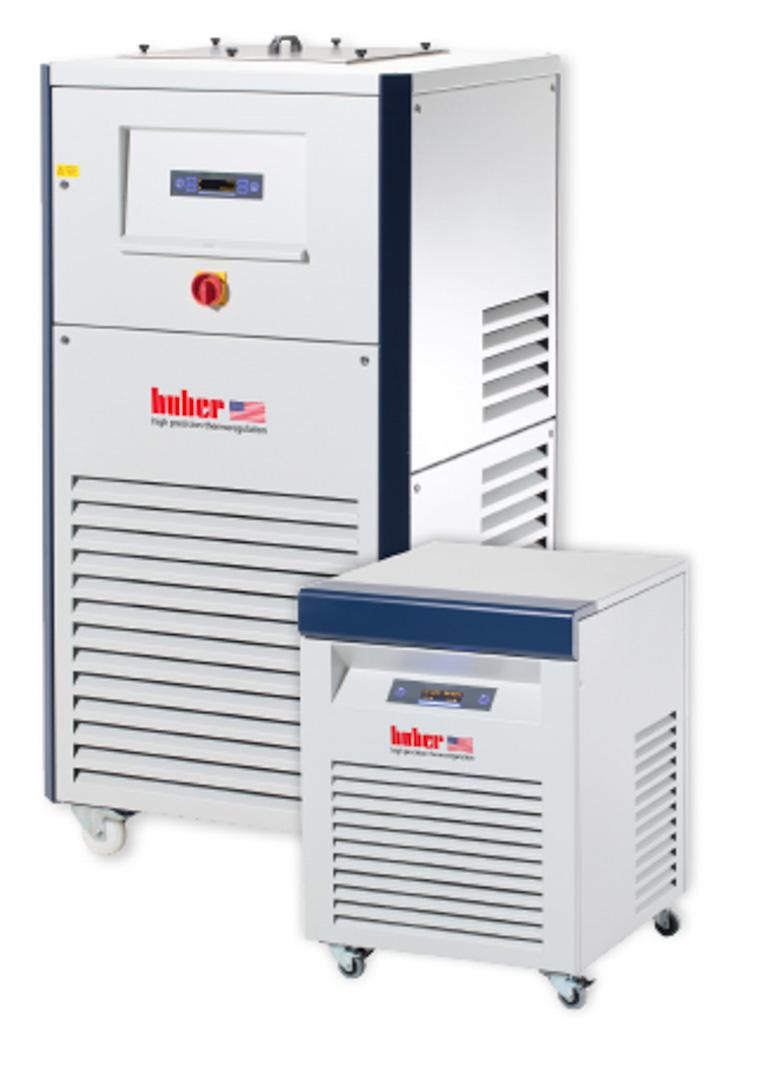

Huber CS 50 Chiller

• Product Overview: Compact and highly affordable recirculating cooler combining cool and smart technology in one unit

• Temperature Performance:

• Operating range: -20°C to +15°C
• Temperature stability: ±1.5K at -10°C set point
• Internal Pt100 temperature sensor

• Cooling Power at Various Temperatures:

• 8.0 kW at +15°C
• 5.0 kW at +10°C
• 4.2 kW at ±0°C
• 3.5 kW at -10°C
• 2.0 kW at -20°C

• User Interface:

• Color LED touchscreen display for intuitive operation
• Digital interface (without additional safety features)

• Refrigeration System:

• Air-cooled refrigeration machine
• CFC- and HCFC-free operation
• R449A refrigerant (4.0 kg quantity)
• Environmentally friendly cooling technology

• Pump System:

• Maximum delivery: 83 L/min
• Maximum delivery pressure: 3.7 bar
• G 3/4" male pump connection

• Bath Specifications:

• Minimum bath volume: 100L
• Maximum bath volume: 110L

• Physical & Electrical Specifications:

• Dimensions: 680 x 730 x 1520 mm (W x D x H)
• Net weight: 242 kg
• Sound pressure level: 63 dB(A) ±4 dB(A)
• Protection class: IP20
• Safety classification: Class I / NFL

• Power Requirements:

• 208V 3~ (19.5A max current, 3x 35A fuse) or 460V 3~ (9.0A max current, 3x 20A fuse)
• 60Hz frequency
• Operating temperature: +5°C to +32°C ambient

• Cost Benefits:

• Reduces water consumption and operating costs
• Quick return on investment through water savings
• Low purchase price for professional-grade performance

• Laboratory Applications: Ideal for cooling vacuum pumps, rotary evaporators, electron microscopy, AAS devices, ICP devices, extraction, and distillation equipment

• Availability: Typically ships in 7-10 days •
