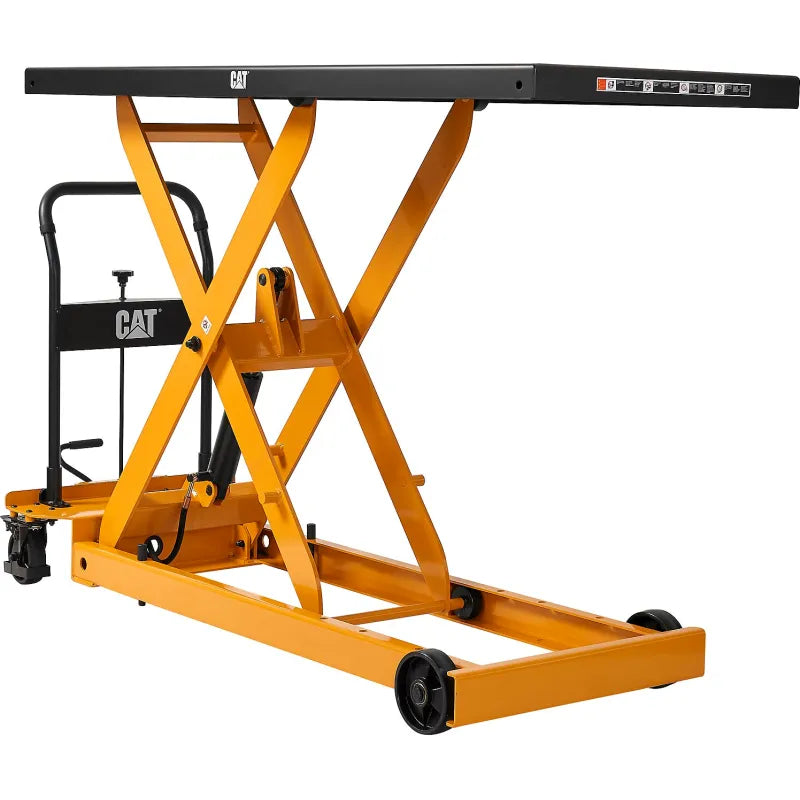

Cat® Long Deck Mobile Scissor Lift Table, 80"×30" Platform, 3000 lb Cap., 53" Raised Height

Cat® Long Deck Mobile Scissor Lift Table Features

Engineered for facilities handling long-format materials that overhang or become unstable on standard-length lift table platforms, the Cat® scissor lift table (WB641686) provides an 80 by 30 inch platform that raises to 53 inches at 3,000-pound capacity. Where a standard 39-to-48-inch platform leaves lumber, pipe, doors, or sheet goods cantilevered and off-balance, the Cat® WB641686 long deck keeps elongated loads fully supported across their length at any working height. A foot-operated hydraulic pump with direct control height adjustment provides smooth, precise lift with no external power source required.

Within the Cat® mobile scissor lift table family, the WB641686 occupies the maximum-platform-length position: 80-inch deck, 3,000-pound capacity, 53-inch raised height. Heavy gauge steel channel frame, chip-resistant powder-coat, and Cat®'s 5-year standard warranty back continuous use in warehouse and manufacturing environments. ANSI MH29.1-2020 compliance provides the safety certification many facility programs require.

Technical Specifications

Applications

To safely lift and position elongated materials at working height without load overhang instability, the Cat® WB641686 is deployed in lumber yards and building material distribution centers for staging 8-to-12-foot boards and panels, HVAC and plumbing supply operations for handling copper pipe, conduit, and duct sections, door and window assembly facilities for positioning frames and glazing units, countertop fabrication shops for lifting stone slabs and laminate sheets, and construction site logistics where long materials move between storage, staging, and installation zones.

Cat® Long Deck Scissor Lift Table Comparison

Academic and Institutional Pricing

LabSupplies.com offers tiered quantity pricing for academic and research institutions. As an authorized dealer, we ship directly from USA inventory.

Frequently Asked Questions

What types of loads require the Cat® WB641686 long deck platform?

The Cat® WB641686's 80-by-30-inch platform is designed for loads that would overhang and become unstable on standard 39-to-48-inch platforms. Typical applications include lumber, steel pipe, conduit, electrical cable reels, door and window assemblies, countertops and stone slabs, sheet goods, and long extrusions or profiles. Distribution centers use the long deck for items stored horizontally that can't be palletized in standard footprints — the 80-inch length accommodates most residential and light-commercial construction materials in a single lift position.

How does the Cat® WB641686 compare to the standard Cat® WB641688?

Both the WB641686 and WB641688 are 3,000-pound Cat® mobile scissor lift tables, sharing the same heavy gauge steel channel frame, ANSI MH29.1-2020 compliance, 5-year warranty, and polyurethane caster system. Platform geometry is the key difference: the WB641686 provides an 80-by-30-inch long deck configuration that raises to 53 inches, suited for elongated loads that need length but not extreme width. The WB641688 provides a 39-7/10-by-22-4/5-inch compact platform that raises to 35 inches, suited for dense, heavy unit loads in tighter spaces.

Does the Cat® WB641686 require power or a compressed air supply?

No. The Cat® WB641686 operates entirely on a foot-operated hydraulic pump — no electrical outlet, no battery, and no compressed air supply required. Direct control height adjustment lets the operator precisely position the platform at any height within the 53-inch range by controlling the hydraulic pump rate. Lowering is controlled by the hydraulic release. This zero-utility dependency means the Cat® WB641686 can be deployed at any location on a facility floor without infrastructure access.

What does ANSI MH29.1-2020 compliance mean for this lift table?

ANSI MH29.1-2020 is the American National Standard for Safety Requirements for Stationary and Mobile Material Handling Equipment Lift Tables, established by the Material Handling Industry of America. Compliance means the Cat® WB641686 has been designed and tested to meet established engineering standards covering hydraulic system integrity, overload protection, stability under load, and control system safety for its rated 3,000-pound capacity. For facilities with safety procurement requirements, OSHA compliance programs, or insurance documentation needs, ANSI MH29.1-2020 certification provides the standardized safety credential.

Cat® Mobile Scissor Lift Table Family

The WB641686 long deck model is Cat®'s maximum-platform-length option in the mobile scissor lift table family. For compact-footprint high-capacity applications, the WB641688 provides 3,000 pounds at a 39-7/10-by-22-4/5-inch platform and 35-inch raised height. For high-reach applications with lighter loads, the WB641687 double scissor reaches 59 inches at 1,500-pound capacity on the same compact platform dimensions. All Cat® mobile scissor lift table models at LabSupplies.com ship in one business day from USA inventory and carry the Cat® 5-year standard warranty.
