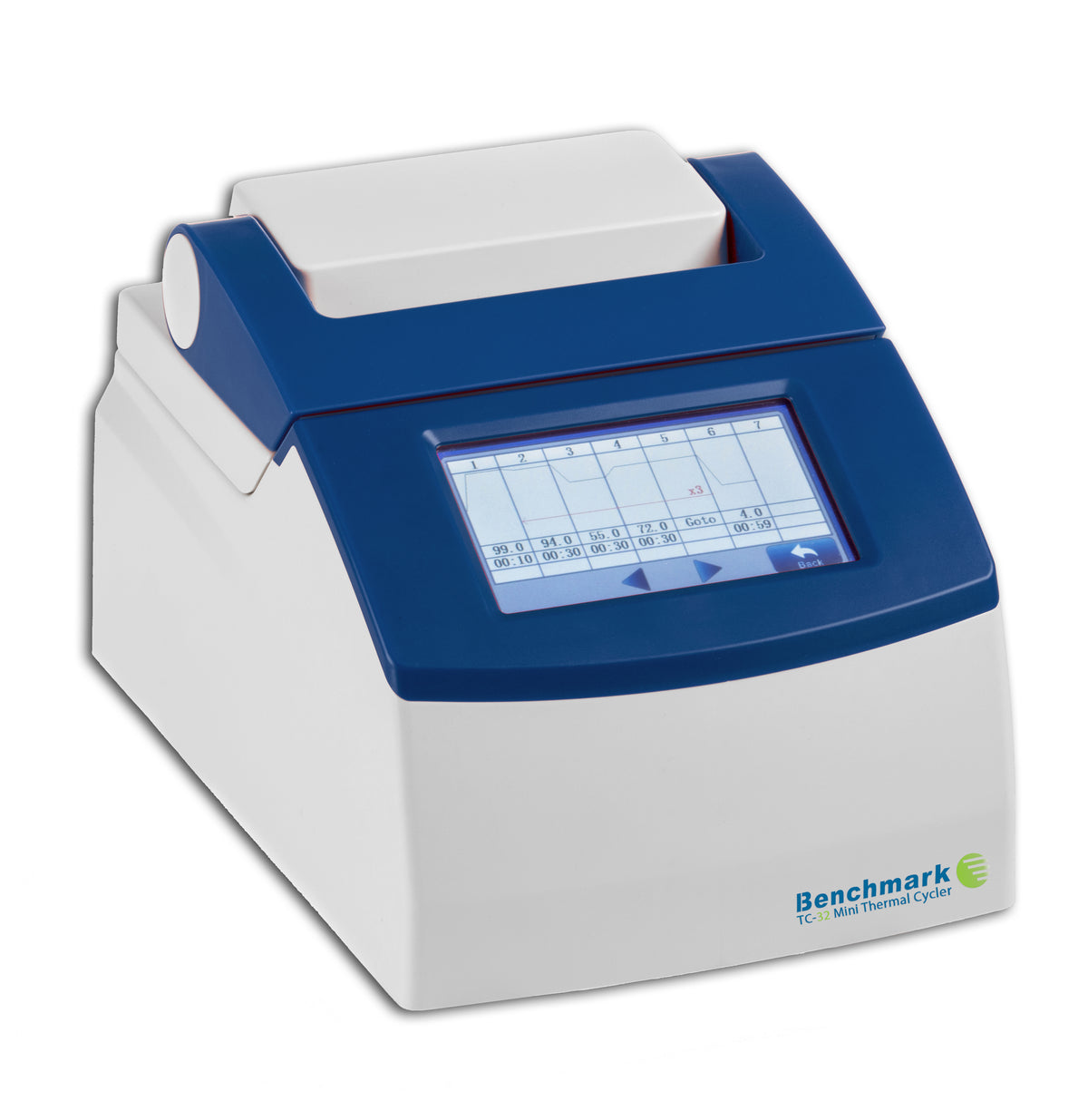

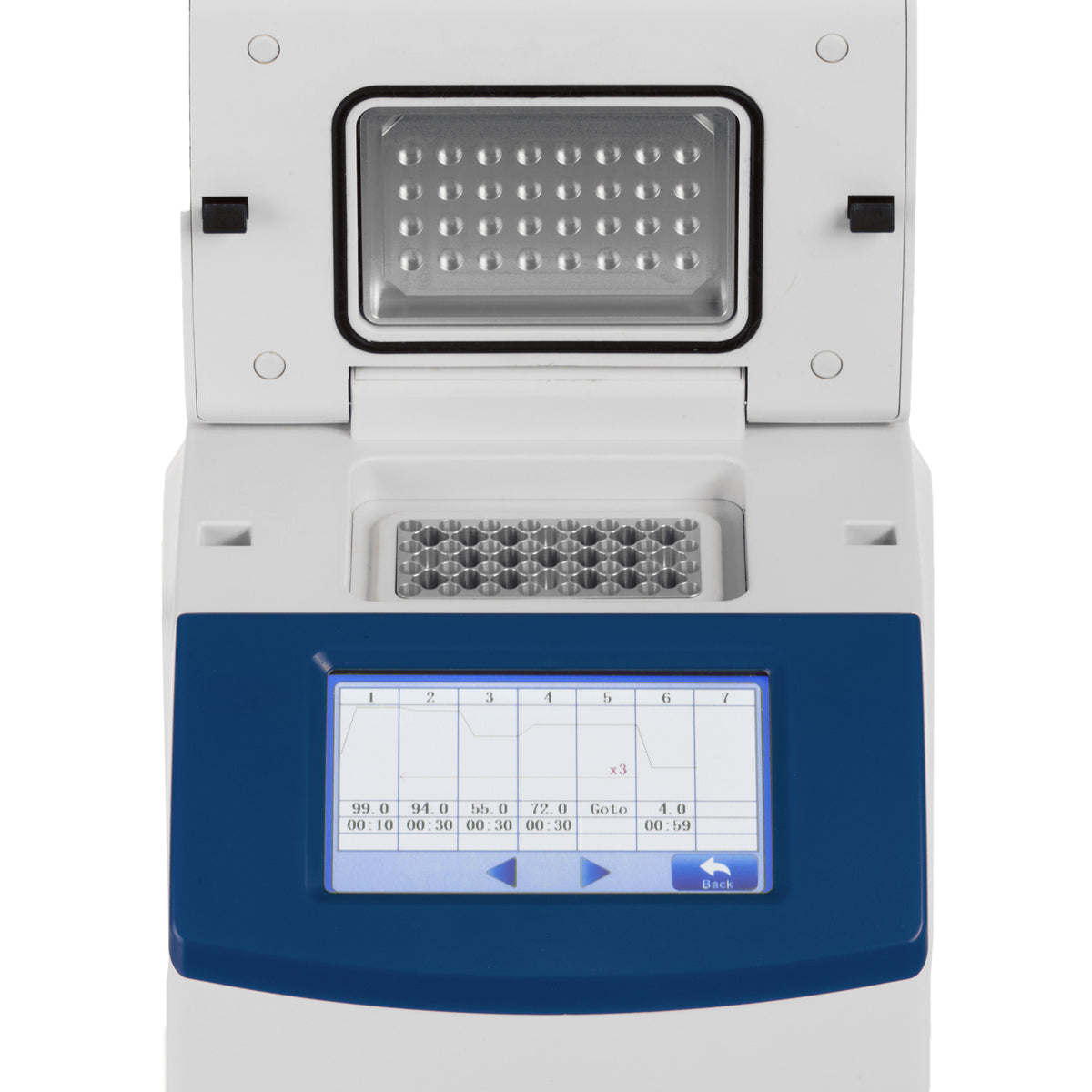

The TC-32 Mini T5005-3205 is a lower-throughput thermal cycler with a 32-well block in a 4 × 8 layout, accepting 32 individual 0.2 mL tubes or four 8-tube 0.2 mL strips. Block control runs 0°C to 99°C with ±0.25°C accuracy and uniformity, heating at up to 5°C per second and cooling at up to 4°C per second. A spring-loaded, self-adjusting heated lid (30°C to 112°C) prevents evaporation without knobs or levers. Memory holds over 100 typical programs, and samples can be held at 4°C after a run.
Key features
- 4 × 8 well layout takes 0.2 mL tubes or 8-tube strips
- Heating up to 5°C/s, cooling up to 4°C/s
- Self-adjusting heated lid, 30–112°C
- Stores over 100 typical programs with time/temperature increments
- Universal 100–240V power; 7.2 × 9.2 × 6.2 in, 6.4 lb
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | T5005-3205 / T5005-3205-E |
| Capacity | 32 × 0.2 mL tubes or 4 × 8-tube 0.2 mL strips |
| Temperature Range | 0–99 °C |
| Temperature Control Mode | Simulated sample or block |
| Temperature Accuracy | ±0.25 °C |
| Temperature Uniformity | ±0.25 °C |
| Max Ramp Rate | Heating 5 °C/s; cooling 4 °C/s |
| Heated Lid Temperature | 30–112 °C (user adjustable) |
| Program Memory | Over 100 programs |
| Electrical | 100–240 V, 50–60 Hz |
| Dimensions | 7.2 × 9.2 × 6.2 in (18.2 × 23.2 × 15.7 cm) |
| Weight | 6.4 lb (2.9 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| T5005-3205 | 100–240V, US plug |
| T5005-3205-E | 100–240V, European plug |
