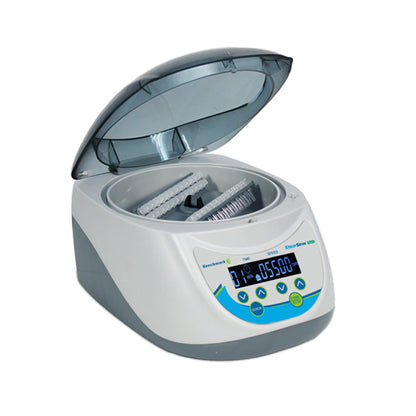

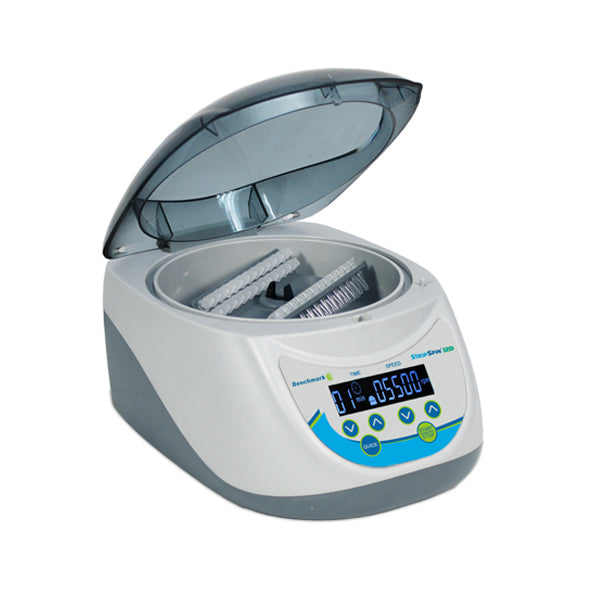

The StripSpin 12D is a digital mini centrifuge whose rotor is designed around 12-position PCR strips. It holds 4 strips or 48 individual 0.2 mL tubes and spins at up to 5,500 rpm, producing 1,690 × g. Speed can be set and read in rpm or rcf, the timer runs to 99 minutes, and a safety interlock stops the rotor if the lid is opened mid-run. The housing is 7.6 × 9 × 4.72 in and weighs 4.4 lb, and the unit carries a 2 year warranty.
Key features

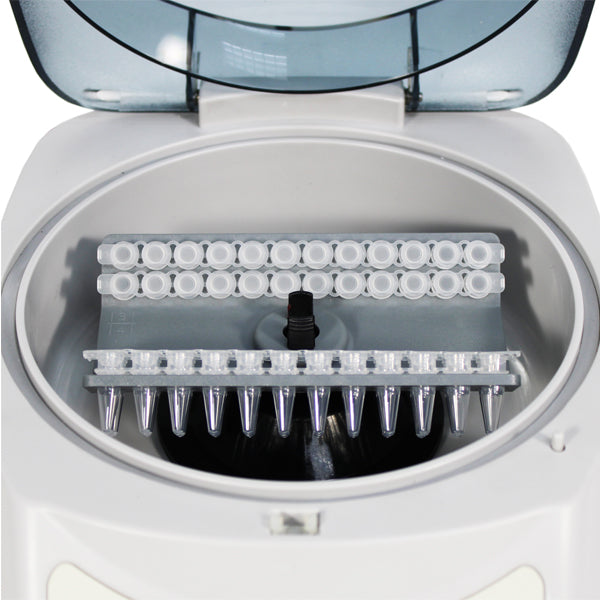

- Rotor sized for 12-position PCR strips
- Capacity: 4 × 12-position strips or 48 × 0.2 mL tubes
- Digital speed control to 5,500 rpm (1,690 × g)
- Timer up to 99 minutes; lid interlock stops the run
- 100–240V universal input, 45 W; 4.4 lb
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C2248 / C2248-E |
| Max Speed | 5,500 rpm |
| Max RCF | 1,690 × g |
| Capacity | 4 × 12-position PCR strips; 48 × 0.2 mL |
| Timer | Up to 99 min |
| Speed Display | rpm or rcf |
| Safety | Lid interlock stops rotor if lid is opened |
| Dimensions | 7.6 × 9 × 4.72 in (19.4 × 23 × 12 cm) |
| Weight | 4.4 lb (2 kg) |
| Electrical | 100–240 V universal, 50–60 Hz, 45 W; US plug (C2248) or European 2-prong plug (C2248-E) |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C2248 | 100–240V, US plug |
| C2248-E | 100–240V, European plug |
