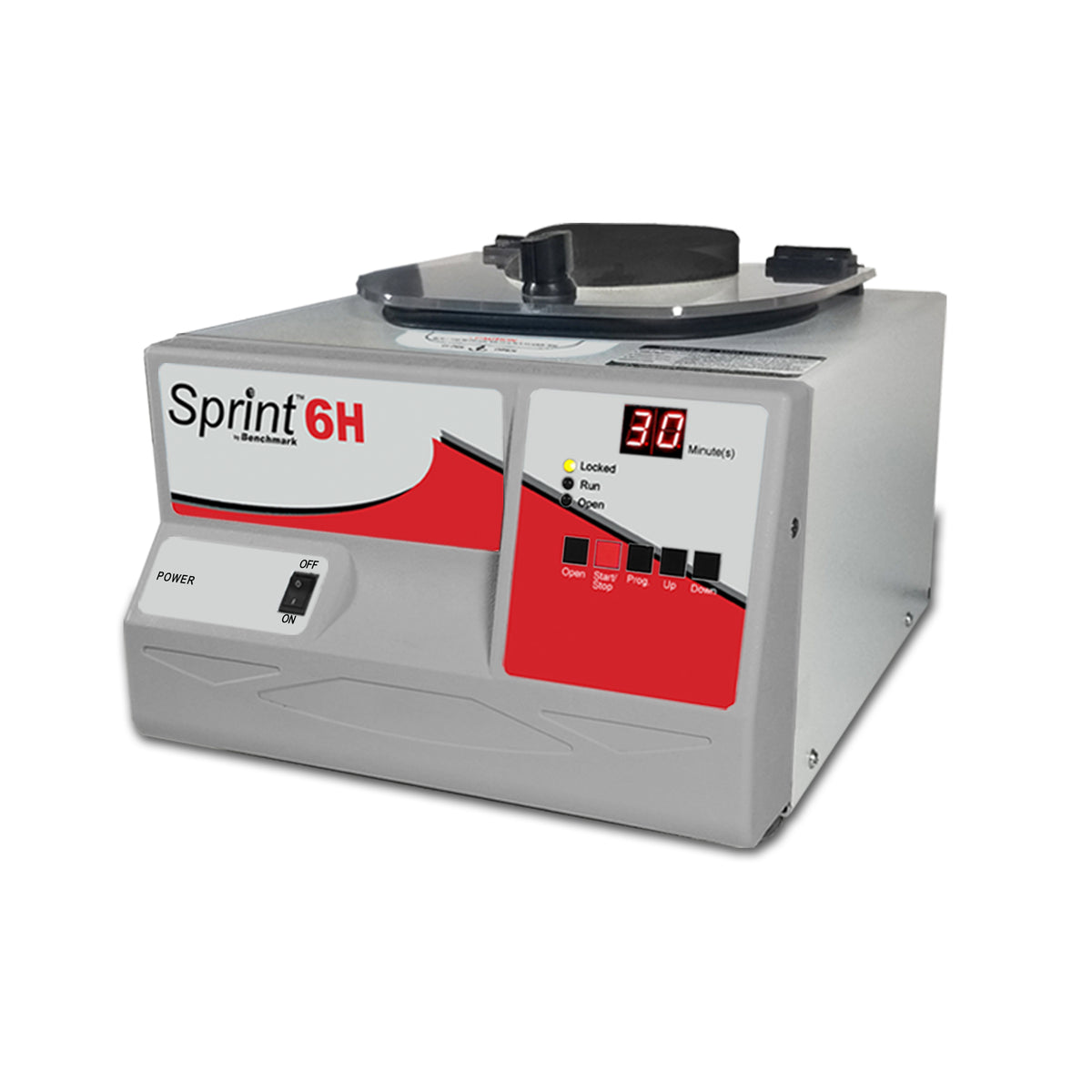

The Sprint 6H is a compact clinical centrifuge with a six-place swing-out rotor for blood, urine and cell separations. Tubes load upright and swing horizontal once the run starts, giving the flat-line separation preferred for downstream analysis. The rotor takes 10 mL (16 × 100 mm) tubes directly; 12 × 75 mm and 12 × 100 mm tubes need the optional C3100-ADP adapters. Operation is one step: set the timer, up to 99 minutes, press START, and the lid locks while the rotor accelerates to 3,400 rpm (1,600 × g).
Key features
- 6-place swing-out rotor for flat-line separations
- Runs at 3,400 rpm, 1,600 × g
- Holds 6 × 10 mL (16 × 100 mm) blood collection tubes
- Timer up to 99 minutes with a large LED display
- Safety lid lock releases only after the rotor stops
- UL listed; 12 × 16 × 10.5 in, 21 lb
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C5000-6H / C5000-6H-E |
| Speed | 3,400 rpm |
| Max RCF | 1,600 × g |
| Rotor | 6-place swing-out (horizontal) |
| Capacity | 6 × 10 mL (16 × 100 mm); 12 × 75 and 12 × 100 mm tubes with optional adapters |
| Timer | Up to 99 min |
| Dimensions | 12 × 16 × 10.5 in (30.5 × 40.6 × 26.7 cm) |
| Weight | 21 lb (9.5 kg) |
| Electrical | 115 V, US plug (C5000-6H); 230 V, European plug (C5000-6H-E); 50–60 Hz; 100 W |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C5000-6H | 115V, US plug |
| C5000-6H-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part |
|---|---|
| C5000-ADP | Benchmark Scientific 5–7 mL Tube Adapter Pack C5000-ADP |
