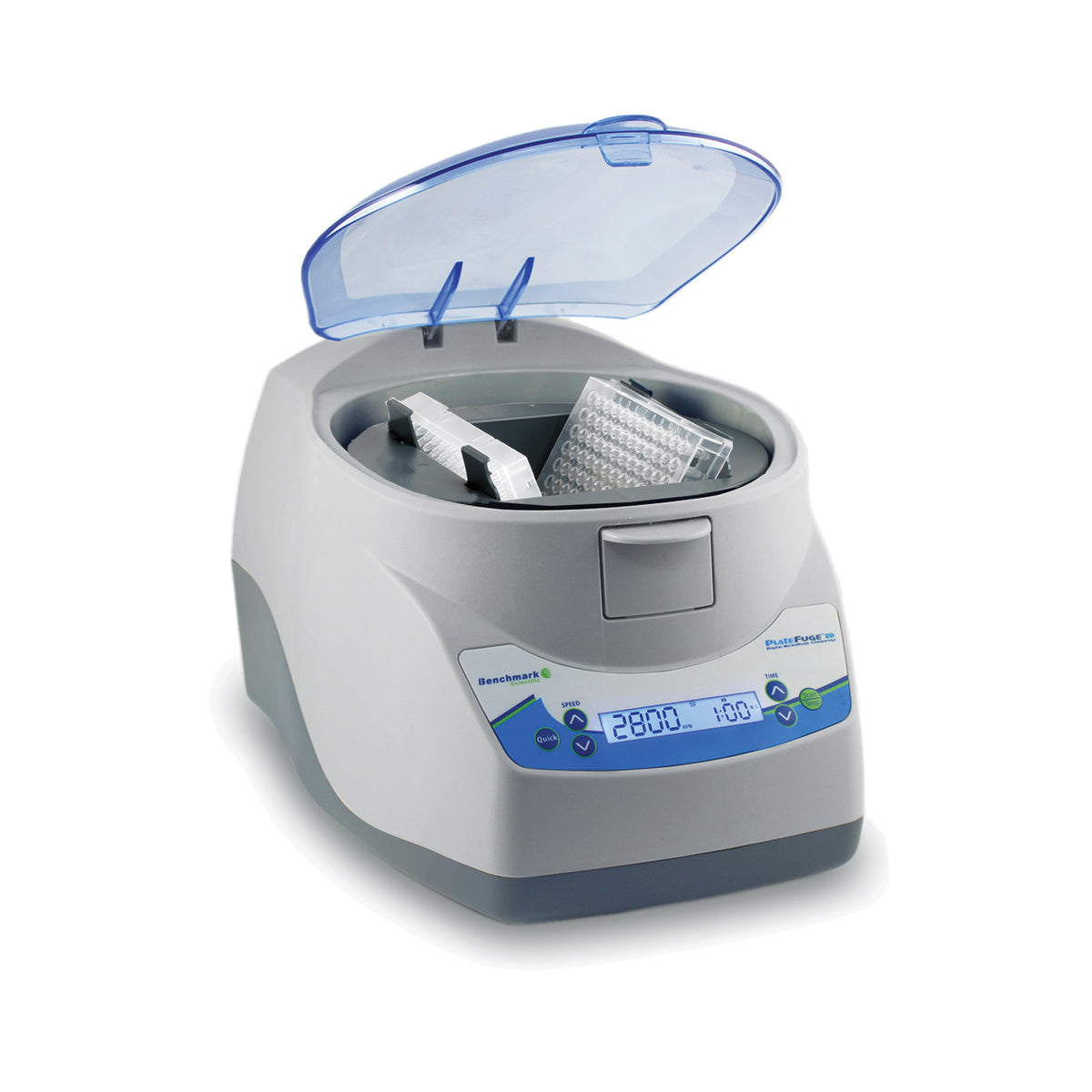

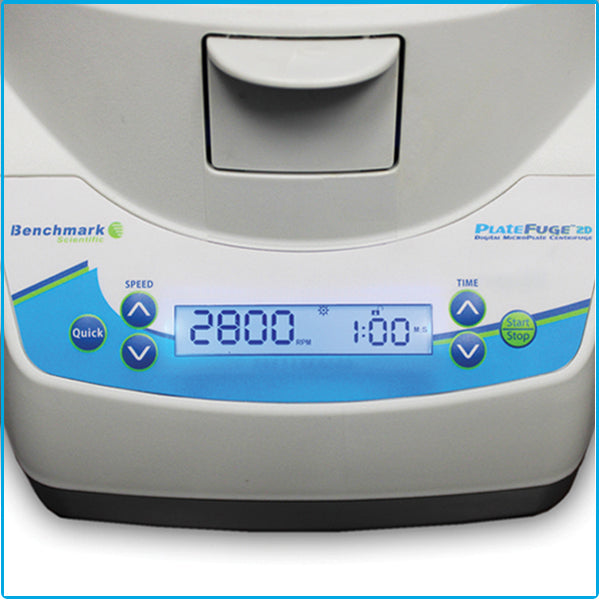

The PlateFuge 2D brings a digital control panel to Benchmark's PlateFuge format, with programmable speed and run time for two PCR plates. Speed adjusts from 500 to 2,800 rpm, reaching 728 × g, and the timer covers 0–59 seconds, 1–99 minutes or continuous operation. The swing-out rotor prevents spillage, so plates can run without a seal. It takes skirted, semi-skirted and non-skirted PCR plates plus most microtiter plates, sits on a 9 × 12 in footprint and weighs 7 lb.
Key features
- Adjustable 500–2,800 rpm, max 728 × g
- Timer 0–59 s, 1–99 min, or continuous

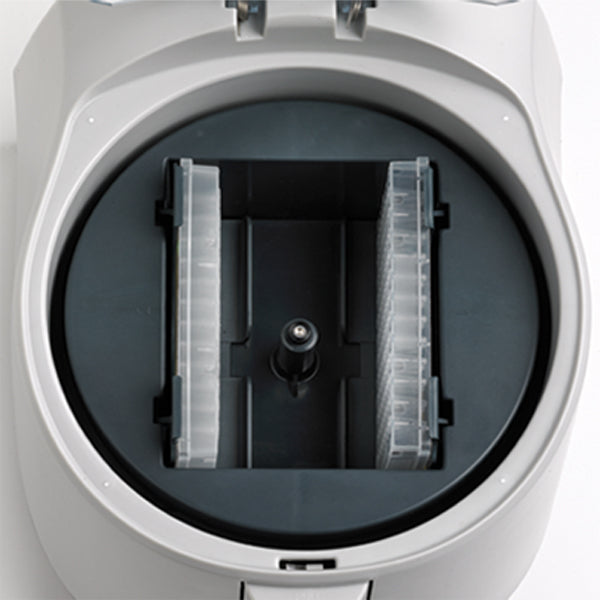

- Swing-out rotor; no plate seal required
- Holds 2 PCR plates: skirted, semi-skirted or non-skirted
- 9 × 12 × 8.5 in, 7 lb (3 kg)
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C2006 / C2006-E |
| Speed Range | 500–2,800 rpm |
| Max RCF | 728 × g |
| Timer | 0–59 sec; 1–99 min; continuous |
| Capacity | 2 PCR plates |
| Rotor | Swing-out |
| Dimensions | 9 × 12 × 8.5 in |
| Weight | 7 lb (3 kg) |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C2006 | 115V, US plug |
| C2006-E | 230V, European plug |
