H5000 blocks set the MultiTherm shaker's format. Tube blocks cover 96 × 0.2 mL (or one PCR plate), 54 × 0.5 mL, 35 × 1.5 mL, 35 × 2.0 mL, 24 × 12 mm, 12 × 15 mL and 6 × 50 mL, plus a 15 × 0.5 / 20 × 1.5 mL combination and a 5 mL tube block. Plate blocks take one microplate or deep-well plate; H5000-1232 holds 24 HPLC vials (12 × 32 mm). H5000-WB is an open 4 × 2.6 × 1 in chamber.
Key features
- 96 × 0.2 mL tubes or one PCR plate (H5000-02)
- 35 × 1.5 mL or 35 × 2.0 mL; 54 × 0.5 mL
- 12 × 15 mL and 6 × 50 mL tube blocks
- Microplate and deep-well microplate blocks
- Open chamber 4 × 2.6 × 1 in for liquids or beads (H5000-WB)
- Custom-drilled block for tubes or vials up to 40 mm tall
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Tube Size | 0.2 mL to 50 mL |
Ordering information
| Catalog number | Block |
|---|---|

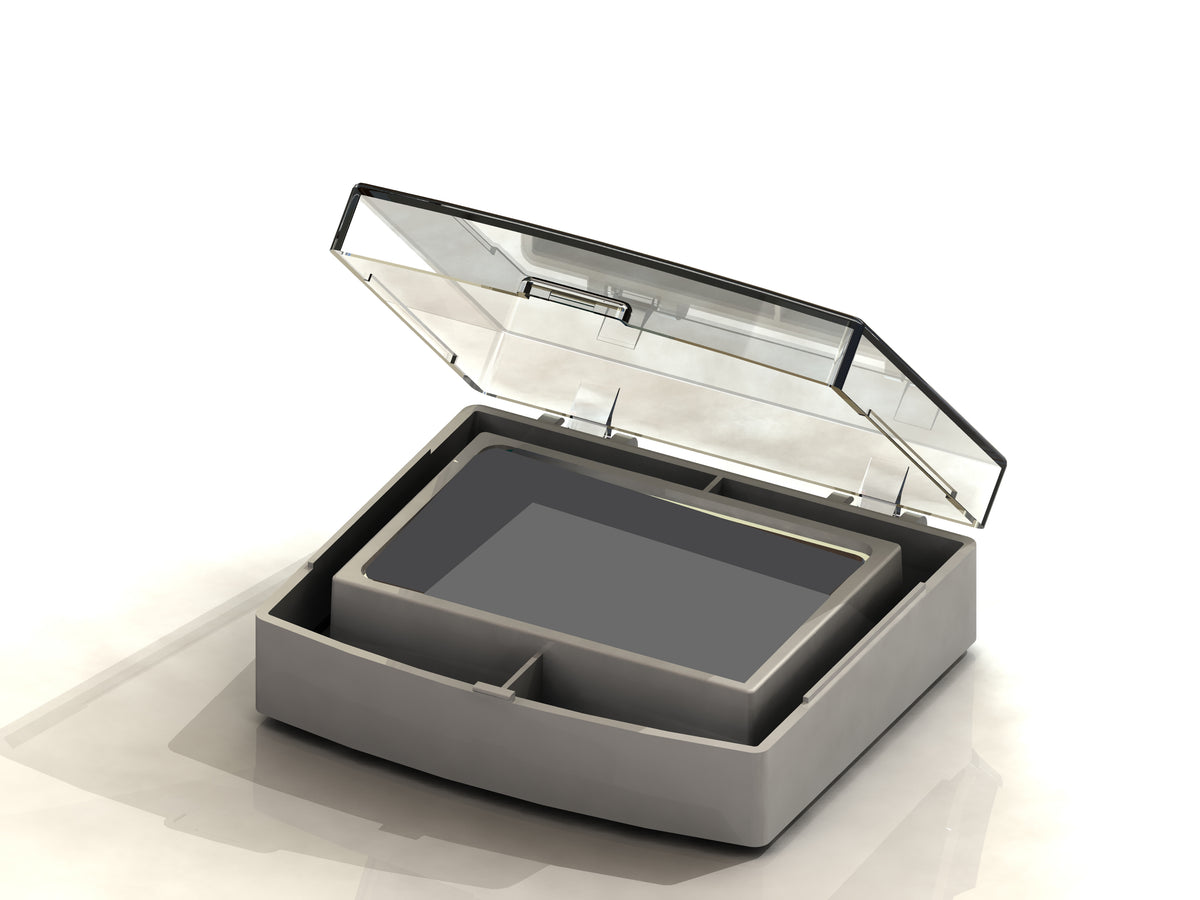

| H5000-WB | Multipurpose for liquids, beads, etc. Chamber dimensions: 4 × 2.6 × 1" |
| H5000-5MT | For 5 mL centrifuge tubes |

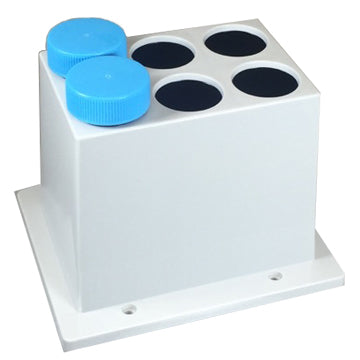

| H5000-500 | 6 × 50 mL |

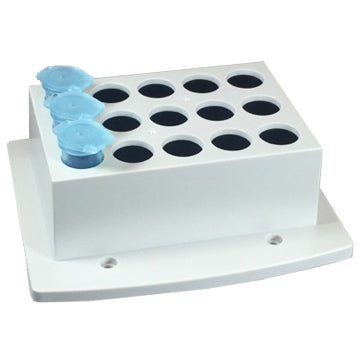

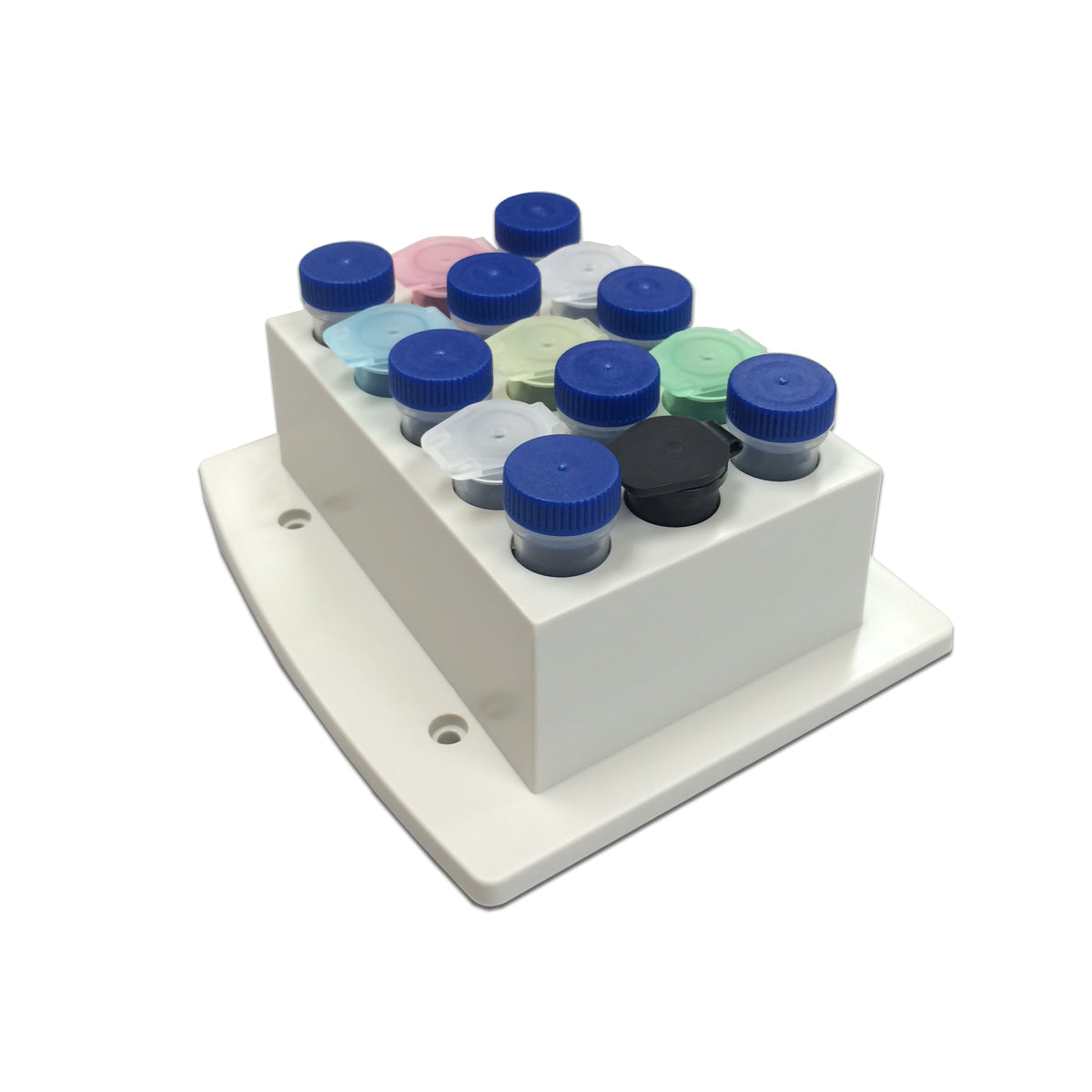

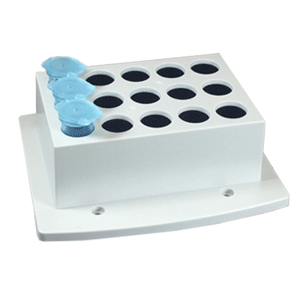

| H5000-150 | 12 × 15 mL |
| H5000-CMB | Combination 15 × 0.5 and 20 × 1.5 mL |
| H5000-12 | 24 × 12 mm |
| H5000-1232 | 24 × 2 mL HPLC/Autosampler Vials (12 × 32 mm) |
| H5000-15 | 35 × 1.5 mL |
| H5000-20 | 35 × 2.0 mL |
| H5000-CU | Custom drilled, for tubes/vials up to 40 mm tall |
| H5000-05 | 54 × 0.5 mL |
| H5000-02 | 96 × 0.2 mL or one PCR plate |
| H5000-DWMP | For one Deep Well Micro Plate |
| H5000-MP | For one Micro Plate |
