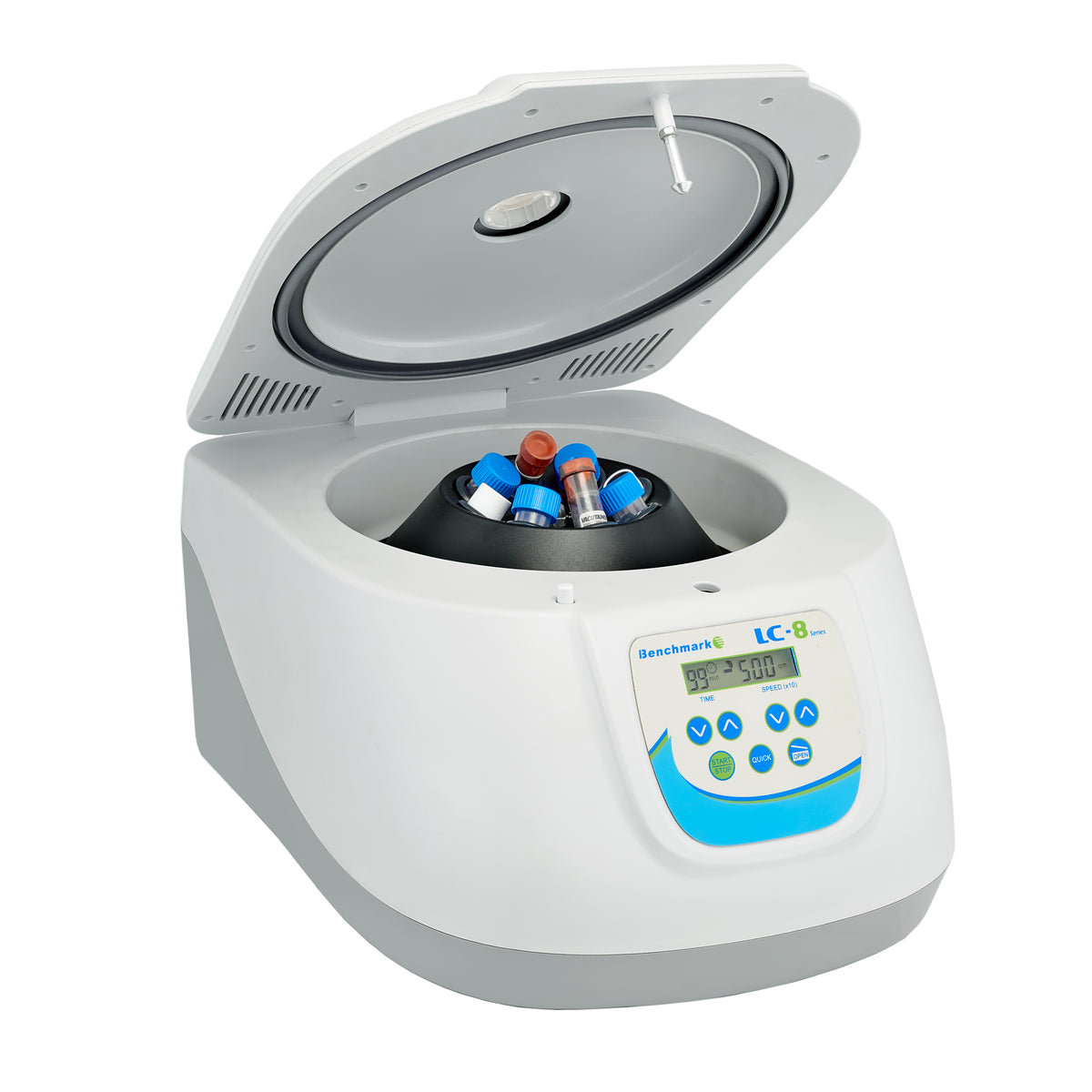

The LC-8 (C3100) is a compact benchtop centrifuge for clinical and research labs, supplied with an eight-place rotor that takes 10 mL and 15 mL conical or round-bottom tubes directly. Optional adapters accept common blood collection and culture tubes, and the rotor lifts out for cleaning. Speed is set from 400 to 3,500 rpm (1,500 × g) in 100 rpm or 100 rcf steps, with 9 second acceleration and 25 second deceleration. The lid locks until the rotor stops, and imbalance detection halts the run automatically if vibration is sensed.
Key features
- 400–3,500 rpm, max 1,500 × g

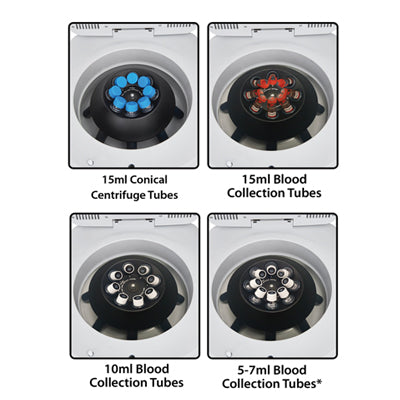

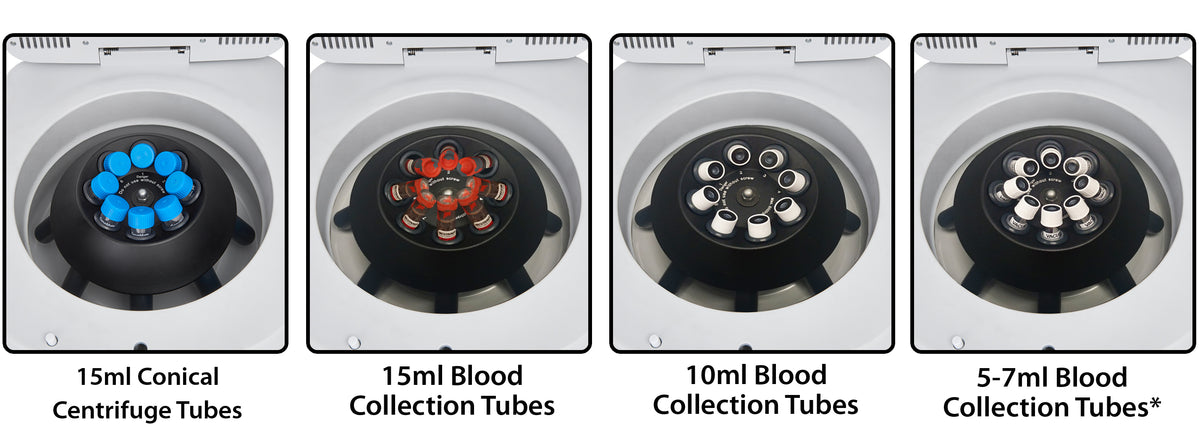

- 8-place rotor for 10 mL and 15 mL tubes; removable for cleaning
- Timer 20 s to 99 min or continuous; momentary mode
- Lid lock and automatic imbalance shutdown
- Accelerates in 9 s, decelerates in 25 s; levels adjustable
- 11.6 × 14.4 × 8.3 in, 15 lb; 150 W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C3100 / C3100-E |
| Speed Range | 400–3,500 rpm |
| Max RCF | 1,500 × g |
| Acceleration / Deceleration | 9 sec / 25 sec |
| Capacity | 8 × 15 mL (accepts 10 and 15 mL tubes) |
| Speed Increment | 100 rpm or 100 × g |
| Timer | 20 sec–99 min, or continuous |
| Momentary Spin | Yes |
| Safety | Lid lock; imbalance detection |
| Dimensions | 11.6 × 14.4 × 8.3 in (29.5 × 36.5 × 21 cm) |
| Weight | 15 lb (6.8 kg) |
| Electrical | 120 V, US plug (C3100); 230 V, European plug (C3100-E); 50–60 Hz; 150 W |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C3100 | 120V, US plug |
| C3100-E | 230V, European plug |
