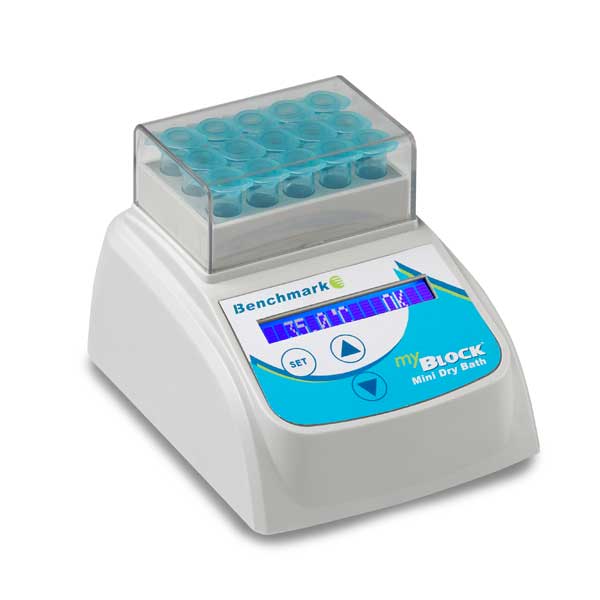

The myBlock Mini BSH200 is a single-block digital dry bath less than 4.3 inches wide. It heats from 5°C above ambient to 100°C, set in 0.1°C steps and held to ±0.5°C, reaching 100°C from room temperature in under 20 minutes. Blocks for tubes from 0.2 to 50 mL are sold separately, and an optional 12V adapter takes it into the field.
Key features
- Ambient +5 to 100°C, set in 0.1°C steps
- ±0.5°C accuracy and uniformity
- 20 to 100°C in under 20 minutes
- Interchangeable blocks for 0.2 to 50 mL tubes (sold separately)
- Under 4.3 in wide
- Universal 100–240V; optional 12V adapter
Specifications
| Manufacturer | Benchmark Scientific |
|---|---|
| Part number | BSH200 / BSH200-E |
| Temperature range | Ambient +5 to 100°C |
| Accuracy | ±0.5°C |
| Uniformity | ±0.5°C |
| Setting increment | 0.1°C |
| Ramp time, 20 to 100°C | Under 20 min |
| Block size | 1.85 × 2.8 × 1.25 in (4.7 × 7.1 × 3.2 cm) |
| Blocks | Sold separately |
| Dimensions | 4 × 6 × 4.5 in (10.5 × 15 × 11.5 cm) |
| Weight | 2 lb (1 kg) |
| Electrical | 100–240V, 50/60 Hz, 50 W |
| Warranty | 2 years |
Ordering information
| Part number | Power |
|---|---|
| BSH200 | 100–240V, US plug |
| BSH200-E | 100–240V, European plug |
