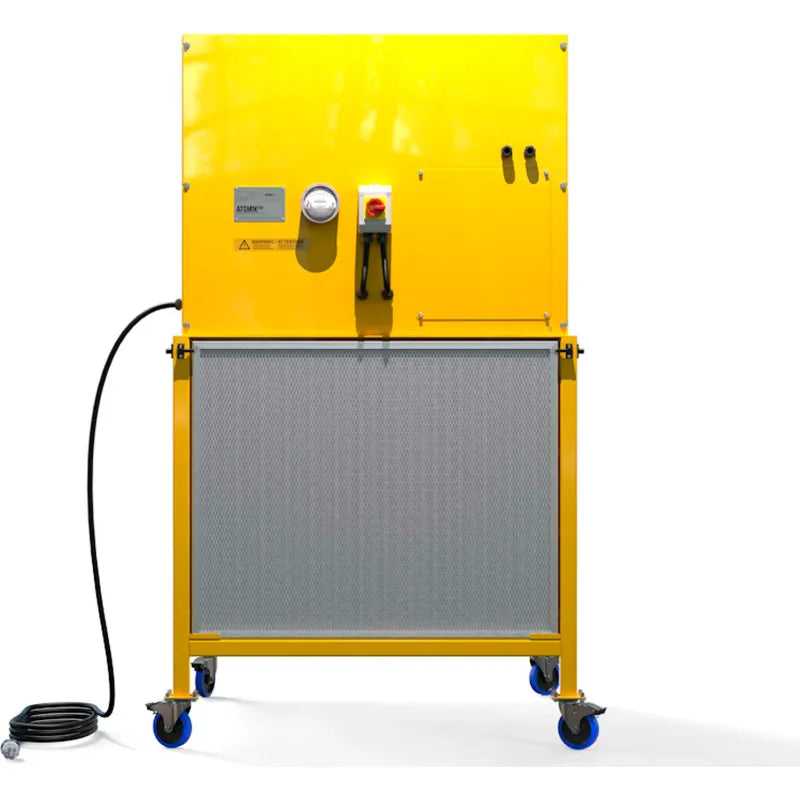

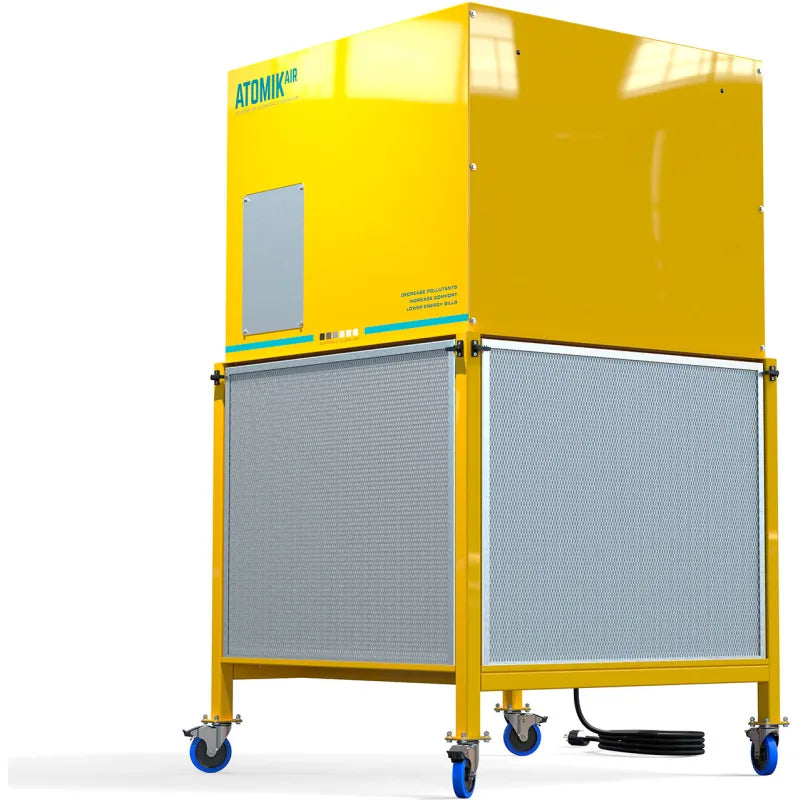

Ideal Warehouse AtomikAir 60-8201 480V Industrial Air Filtration, 1M CFH (40,000 sq ft, with Filters)

Industrial Air Filtration System Features

Engineered for manufacturing facilities, distribution centers, and warehouses running 480V 3-phase electrical service, the Ideal Warehouse Innovations AtomikAir 60-8201 is a commercial-grade industrial air filtration system processing one million cubic feet of air per hour. A single unit maintains air quality for spaces up to 40,000 square feet at typical 25-foot warehouse ceilings, capturing suspended particles, allergens, and pollutants down to 0.3 microns through five included MERV 13 washable filters. Drawing only 4.8 amps on 480V service, the unit is EPA-registered as a pesticide device for reducing transmission of bacteria, viruses, and mold.

For facilities managers weighing air quality against operating cost, the 60-8201 delivers the same destratification effect as the 240V 60-8200 model on a 480V infrastructure — circulating warm ceiling air to ground level and reducing heating costs by 20 to 40 percent in winter. The 480V configuration matches the most common industrial panel voltage in US manufacturing, eliminating the need for a step-down transformer required with some 240V equipment. Washable MERV 13 filters avoid the recurring expense and waste of disposable filter replacement.

Technical Specifications

Warehouse and Industrial Applications

To improve air quality and temperature stability in large-volume industrial spaces, the 60-8201 is deployed in distribution centers, automotive assembly plants, food processing facilities, pharmaceutical warehouses, and loading dock zones. In refrigerated environments, the unit's powerful circulation captures mold spores that cause produce spoilage, extending shelf life. During high-door-cycle periods at loading docks — where air quality and temperature stability fluctuate most — the unit's continuous 1-million-CFH throughput maintains consistent ambient conditions throughout the facility.

Industrial Air Filtration Comparison: Why Choose AtomikAir?

Academic and Institutional Pricing

LabSupplies.com offers tiered quantity pricing for academic and research institutions. As an authorized dealer, we ship directly from USA inventory.

Frequently Asked Questions

What is the difference between the AtomikAir 60-8201 and 60-8200?

The 60-8201 and 60-8200 are identical in filtration, throughput, coverage, and mechanical design. Only the electrical configuration differs: the 60-8201 requires 480V 3-phase service drawing 4.8 amps, while the 60-8200 runs on 240V 3-phase drawing 9.4 amps. Because 480V is the most common industrial service in US manufacturing and warehousing, the 60-8201 is the preferred choice for facilities with 480V distribution panels already in place.

What size warehouse does the AtomikAir 60-8201 cover?

A single 60-8201 maintains air quality for up to 40,000 square feet assuming a 25-foot warehouse ceiling height. Its 1,000,000 cubic foot per hour throughput provides rapid air turnover even during high-traffic or high-door-cycle periods. For spaces exceeding 40,000 square feet, multiple units can be deployed to maintain consistent air quality across the entire floor.

How often do the MERV 13 filters need to be serviced?

Per the manufacturer, the AtomikAir's 5 MERV 13 filters require service approximately once per year when operating continuously 24 hours a day, 7 days a week. Unlike disposable filter systems, these filters are washable and reusable — they are removed, hosed clean, and reinstalled. Both the replacement filter SKU (60-8280) and this included-filter bundle are available for ongoing maintenance.

Can the 60-8250 Air Stream Director Hood be added to the 60-8201?

Yes. The optional 60-8250 Air Stream Director Hood attaches to the top of any AtomikAir unit, including the 60-8201. When fitted, the hood redirects the vertical discharge airflow horizontally at ground level, creating a cooling breeze effect in warmer months while maintaining full MERV 13 filtration and destratification benefits year-round.

Accessories and Voltage Variants

The 60-8201 accepts the optional 60-8250 Air Stream Director Hood for horizontal airflow redirection during summer months. Replacement MERV 13 washable filters are available as SKU 60-8280 (single filter) or the standard two-pack. For facilities with 240V 3-phase service, the identical 60-8200 provides the same throughput and coverage. The 60-8202 serves 575V 3-phase environments. All three voltage variants are compatible with the 60-8250 hood and 60-8280 filter.
