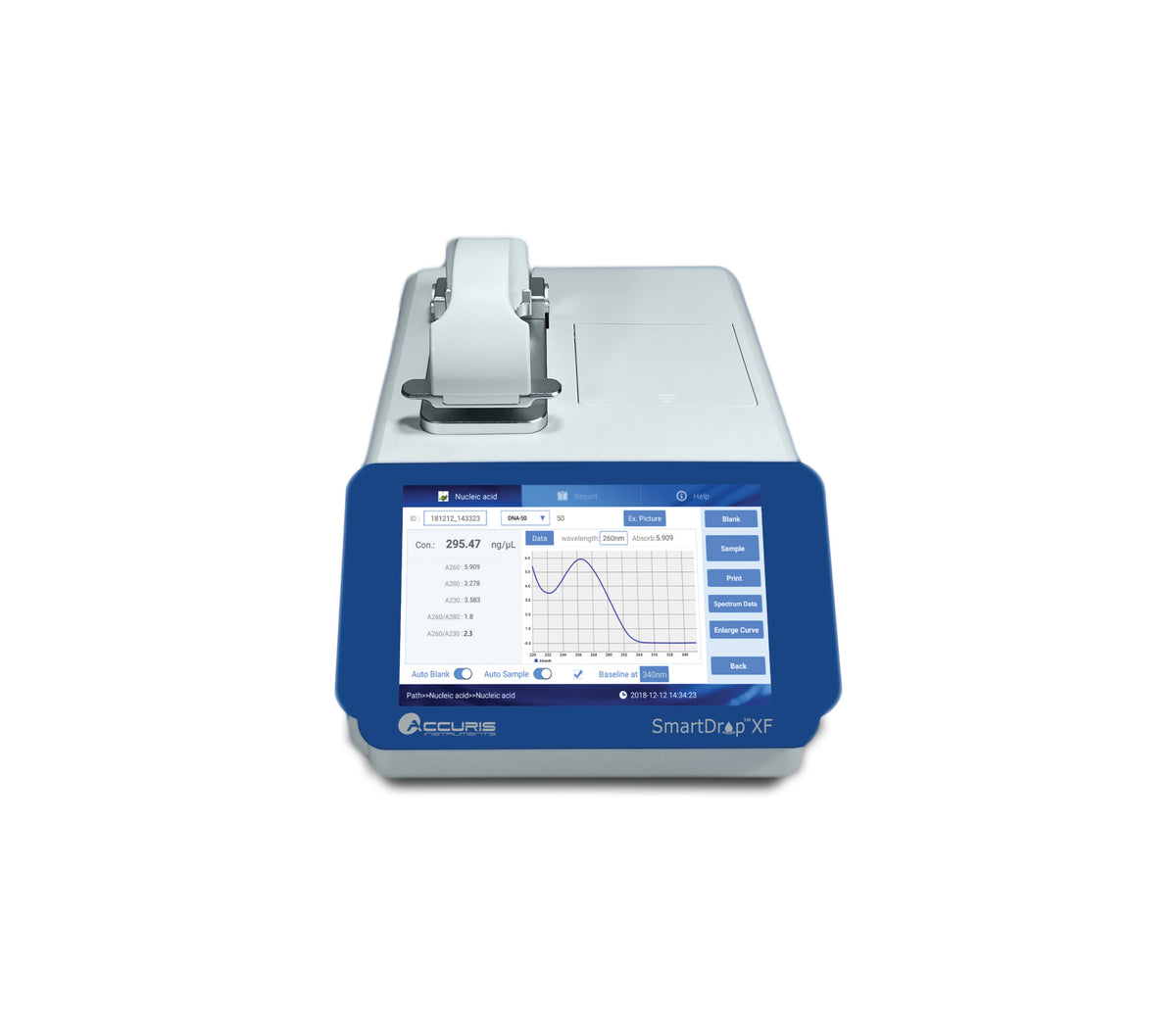

The SmartDrop XF NS1020 pairs a full-spectrum 200–800 nm absorbance spectrophotometer with a blue-excitation fluorometer for low-concentration DNA work. Path lengths of 0.05, 0.2 and 1.0 mm extend the absorbance range to 0.04–300 A (10 mm equivalent), reading dsDNA up to 15,000 ng/µL and BSA up to 360 mg/mL from 0.5–2.0 µL samples. The fluorometer excites at 460 ± 20 nm, collects 525–570 nm emission and detects dsDNA down to 0.5 pg/µL. A 7-inch touch screen runs the instrument without a PC.
Key features
- Absorbance 200–800 nm in 1 nm steps, xenon flash lamp
- Path lengths 0.05, 0.2 and 1.0 mm; range 0.04–300 A
- dsDNA up to 15,000 ng/µL and BSA up to 360 mg/mL by absorbance
- Fluorometer: 460 ± 20 nm excitation, 525–570 nm emission
- Fluorescence sensitivity to 0.5 pg/µL dsDNA
- 7-inch touch screen, USB export, results in under 6 seconds
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | NS1020 / NS1020-E |
| Display | 7 in touch screen |
| Sample Volume | 0.5–2.0 µL |
| Path Length | 0.05 mm, 0.2 mm, 1.0 mm |
| Light Source | Xenon flash lamp |
| Detector | 2,048-element linear silicon CCD array |
| Wavelength Range | 200–800 nm (1 nm steps) |
| Absorbance Range | 0.04–300 A (10 mm equivalent) |
| Lower Limit of Detection | dsDNA: 2 ng/µL; BSA: 0.1 mg/mL |
| Upper Limit of Detection | dsDNA: 15,000 ng/µL; BSA: 360 mg/mL |
| Fluorescence Excitation / Emission | 460 ± 20 nm / 525–570 nm |
| Fluorescence Sensitivity | dsDNA: 0.5 pg/µL |
| Detection Time | < 6 seconds |
| Electrical | 24 V DC, 2 A; 25 W |
| Dimensions (W × D × H) | 8.2 × 12.6 × 7.3 in (20.8 × 32.0 × 18.6 cm) |
| Weight | 7.9 lb (3.6 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| NS1020 | 115V, US plug |
| NS1020-E | 230V, European plug |
Questions about the SmartDrop XF Nano Spectrophotometer and Fluorometer NS1020
What sample volume and detection range does the SmartDrop XF Nano Spectrophotometer and Fluorometer NS1020 work with?
The SmartDrop XF Nano Spectrophotometer and Fluorometer NS1020 uses 0.5–2.0 µL of sample, with a lower limit of detection of dsDNA: 2 ng/µL; BSA: 0.1 mg/mL and an absorbance range of 0.04–300 A (10 mm equivalent).
Is the SmartDrop XF Nano Spectrophotometer and Fluorometer NS1020 available with a European plug?
Yes. NS1020-E is the European-plug version of NS1020: NS1020 is 115V with a US plug and NS1020-E is 230V with a European plug.
