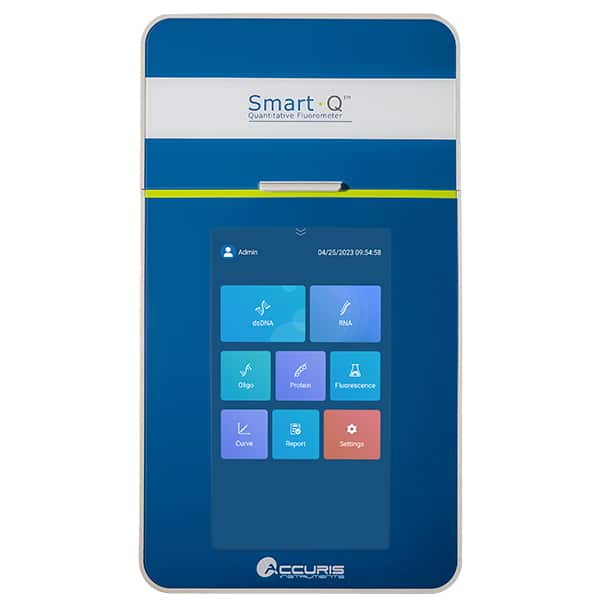

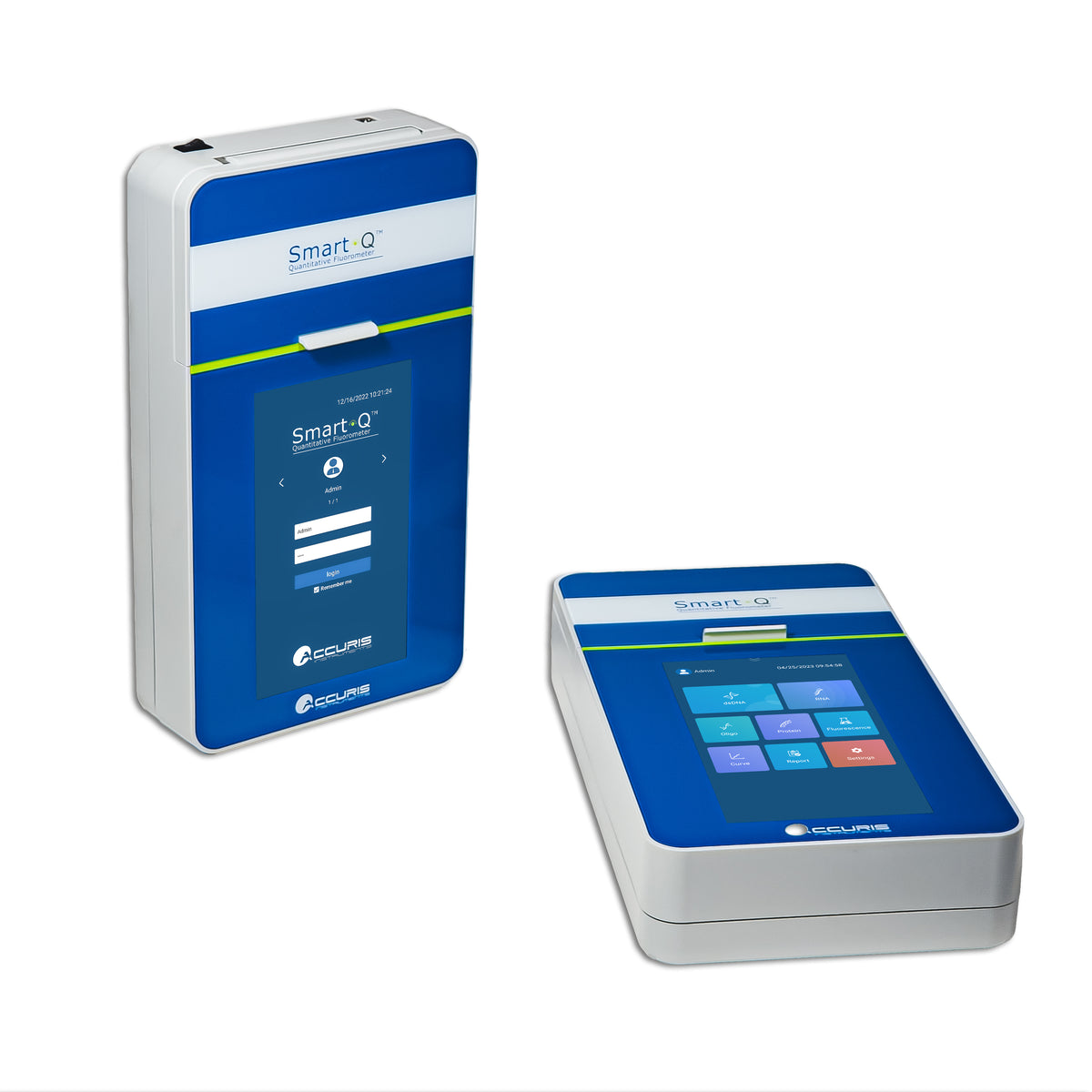

The Smart-Q 800 F1008 reads up to 8 samples at once, using 0.2 mL assay tubes either singly or as 8-tube strips. It quantifies DNA, RNA and protein through dye-based fluorescence assays from Accuris or other kit suppliers. Excitation comes from blue and red LEDs at 460 ± 20 nm and 625 ± 20 nm, with emission collected at 525–570 nm and 670–725 nm across a dynamic range of 4 orders of magnitude. Setup runs on a 7.0-inch touch screen with built-in reagent calculators.
Key features

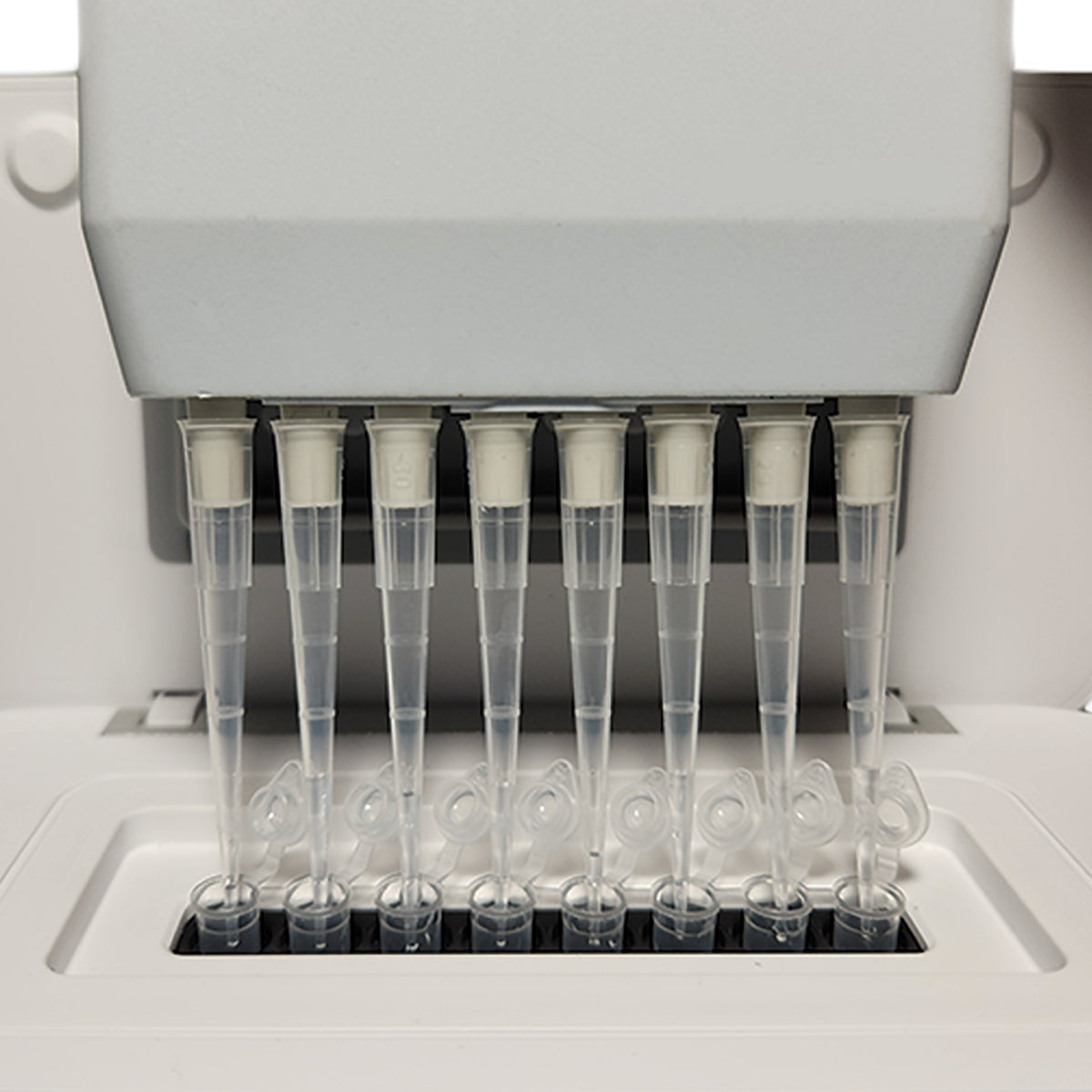

- Measures 8 samples per run in 0.2 mL tubes or 8-tube strips
- Dual LED excitation: blue 460 ± 20 nm, red 625 ± 20 nm
- Green 525–570 nm and red 670–725 nm emission detection
- Photodiode detectors, 4 orders of magnitude dynamic range
- Quantitation down to 0.1 pg/µL dsDNA
- 16.1 × 28.7 × 7.6 cm, 2.0 kg (4.4 lb)
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | F1008 / F1008-E |
| Capacity | 8 samples |
| Display | 7.0 in color touch screen |
| Dynamic Range | 4 orders of magnitude |
| Light Source | Blue and red LED |
| Excitation Wavelengths | Blue: 460 ± 20 nm; Red: 625 ± 20 nm |
| Emission Wavelengths | Green: 525–570 nm; Red: 670–725 nm |
| Detector | Photodiodes (300–1,000 nm) |
| Consumables | 0.2 mL assay tubes (single and 8-tube strip) |
| Read Time | < 6 seconds |
| Data Export | USB flash drive |
| Input Voltage | 24 V DC, 2 A |
| Dimensions (W × D × H) | 6.3 × 11.3 × 3.0 in (16.1 × 28.7 × 7.6 cm) |
| Weight | 4.4 lb (2.0 kg) |
Ordering information
| Catalog number | Power |
|---|---|
| F1008 | 115V, US plug |
| F1008-E | 230V, European plug |
