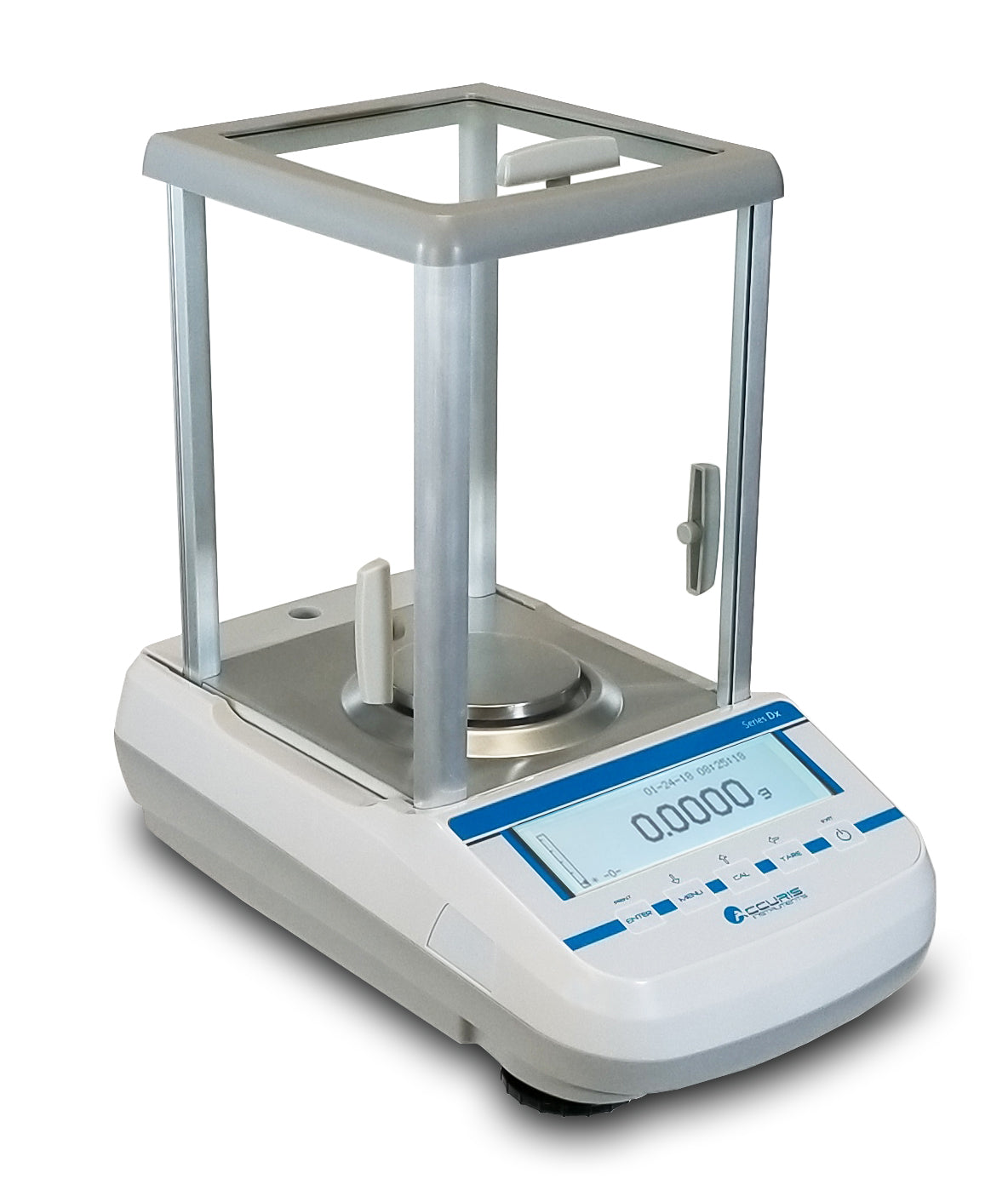

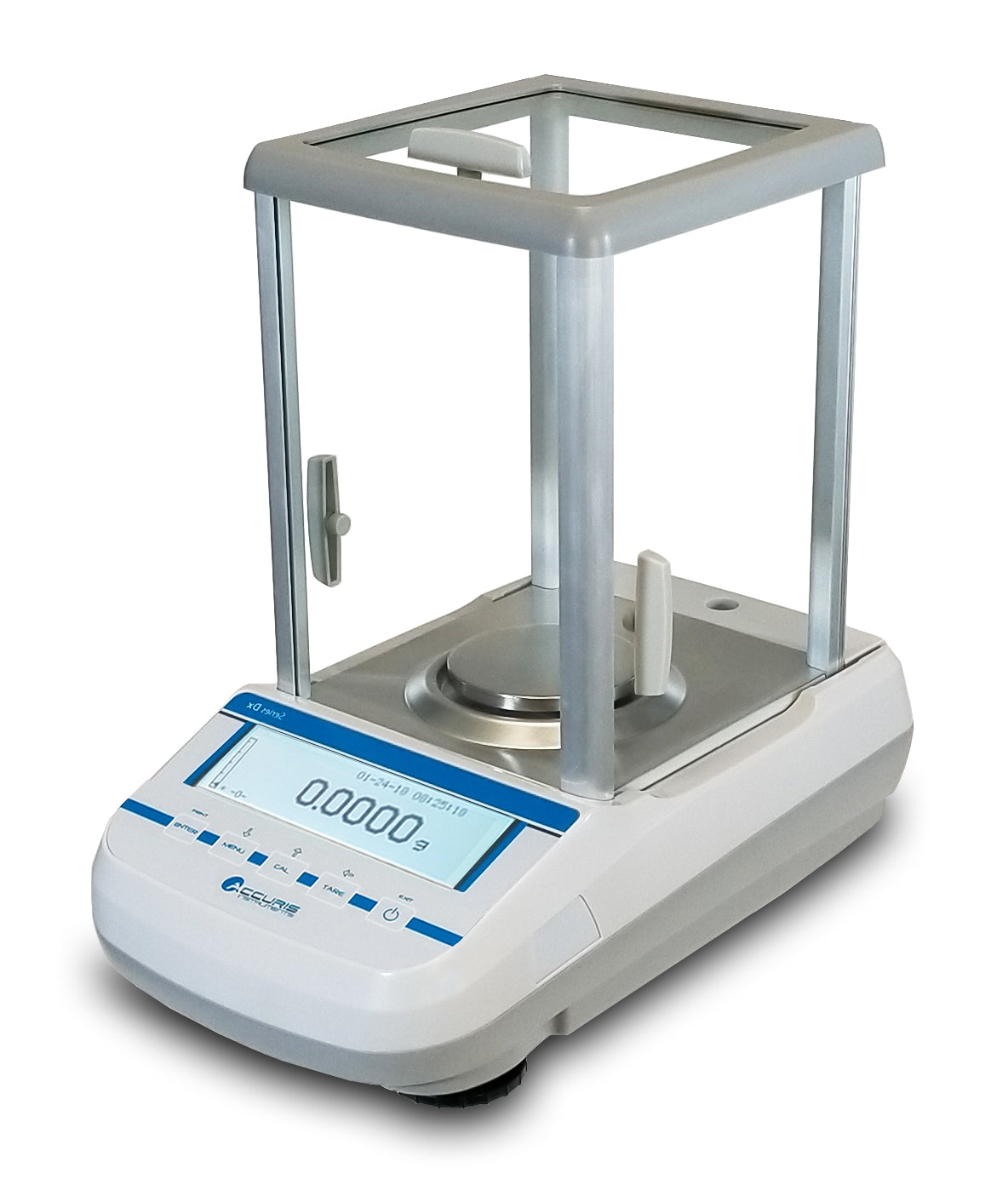

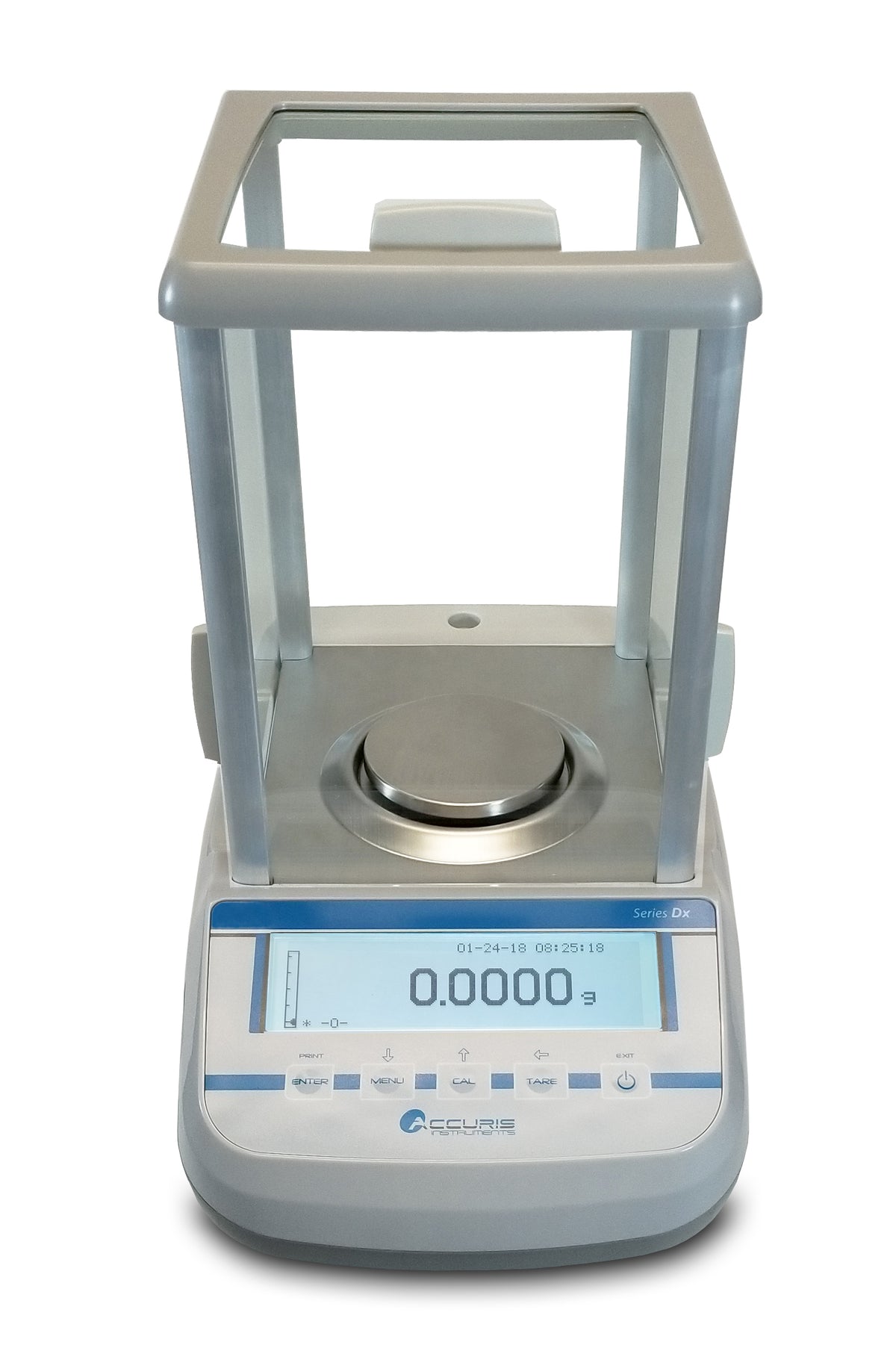

The W3101A-120 is the 120 g model in the Accuris Series Dx, reading to 0.0001 g with ±0.2 mg linearity and ±0.1 mg repeatability. An electromagnetic force restoration (EFR) weigh cell gives fast stabilization, and the Quick Cal system calibrates against an internal weight at the press of a key or on a timed schedule; external calibration is also supported. A glass draft shield encloses the 80 mm round pan. The backlit dot-matrix display runs menus for animal weighing, piece counting and percent weighing.
Key features
- Capacity 120 g, readability 0.0001 g (0.1 mg)
- Linearity ±0.2 mg; repeatability ±0.1 mg
- Internal Quick Cal on demand or at set intervals, plus external calibration
- 80 mm round pan inside a glass draft shield
- Graphical backlit dot-matrix LCD; waterproof front panel
- Units: g, mg, ct, oz, lb, dwt, ozt, gn and %
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3101A-120 |
| Capacity | 120 g |
| Readability | 0.0001 g (0.1 mg) |
| Linearity | ±0.2 mg |
| Repeatability | ±0.1 mg |
| Pan Size | 80 mm round |
| Draft Shield | Glass |
| Calibration | Internal (Quick-Cal) and external |
| Weighing Units | g, mg, carats, oz, lb, dwt, t oz, gn, % |
| Display | Backlit dot-matrix graphical LCD |
| Weigh Cell | Electromagnetic Force Restoration (EFR) |
| Weight | 13 lb (6 kg) |
| Warranty | 2 Years |
Questions about the Series Dx Analytical Balance W3101A-120
What are the capacity and readability of the Series Dx Analytical Balance W3101A-120?
The Series Dx Analytical Balance W3101A-120 weighs up to 120 g with 0.0001 g (0.1 mg) readability; calibration is internal (Quick-Cal) and external, and repeatability is ±0.1 mg.
