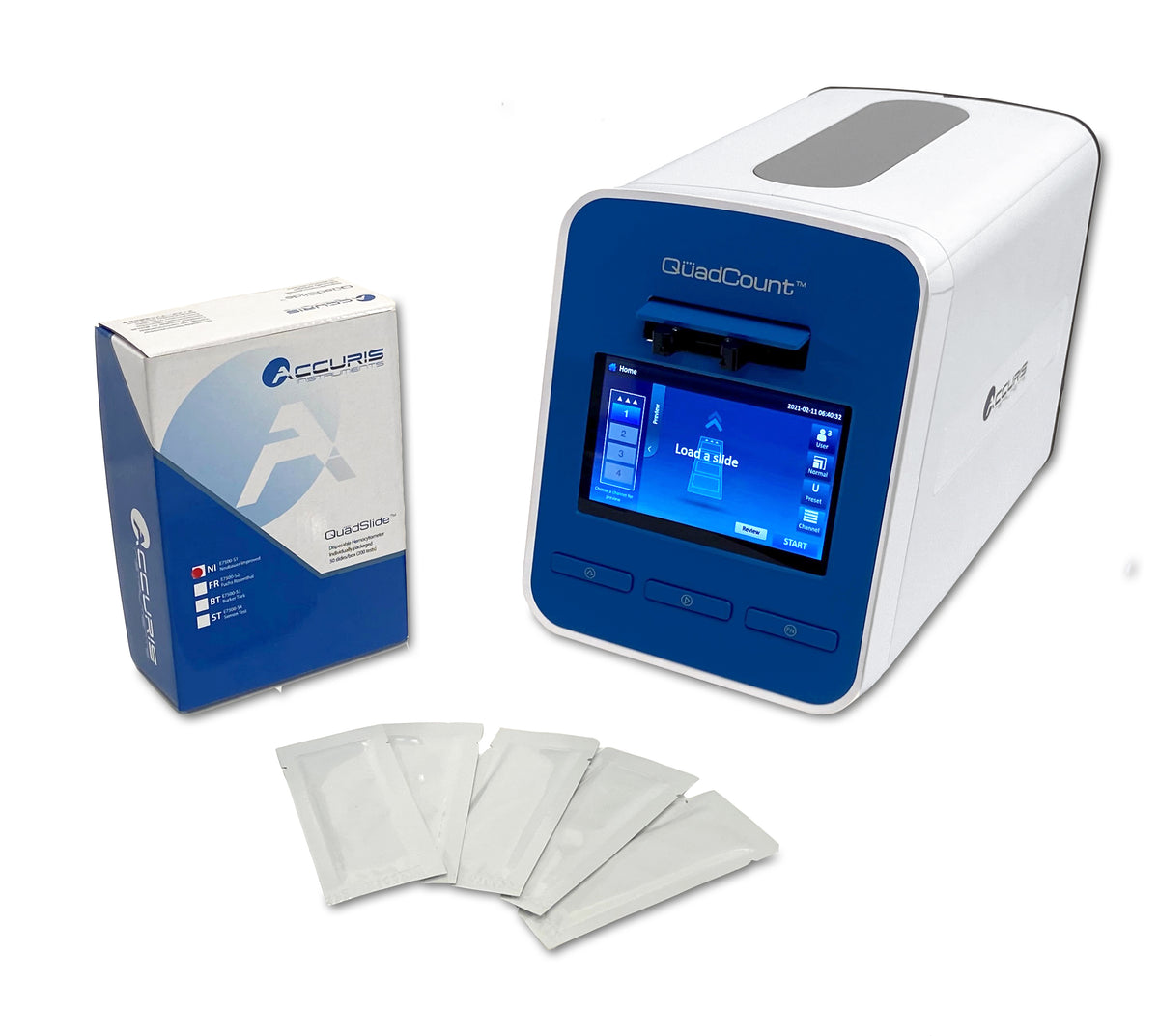

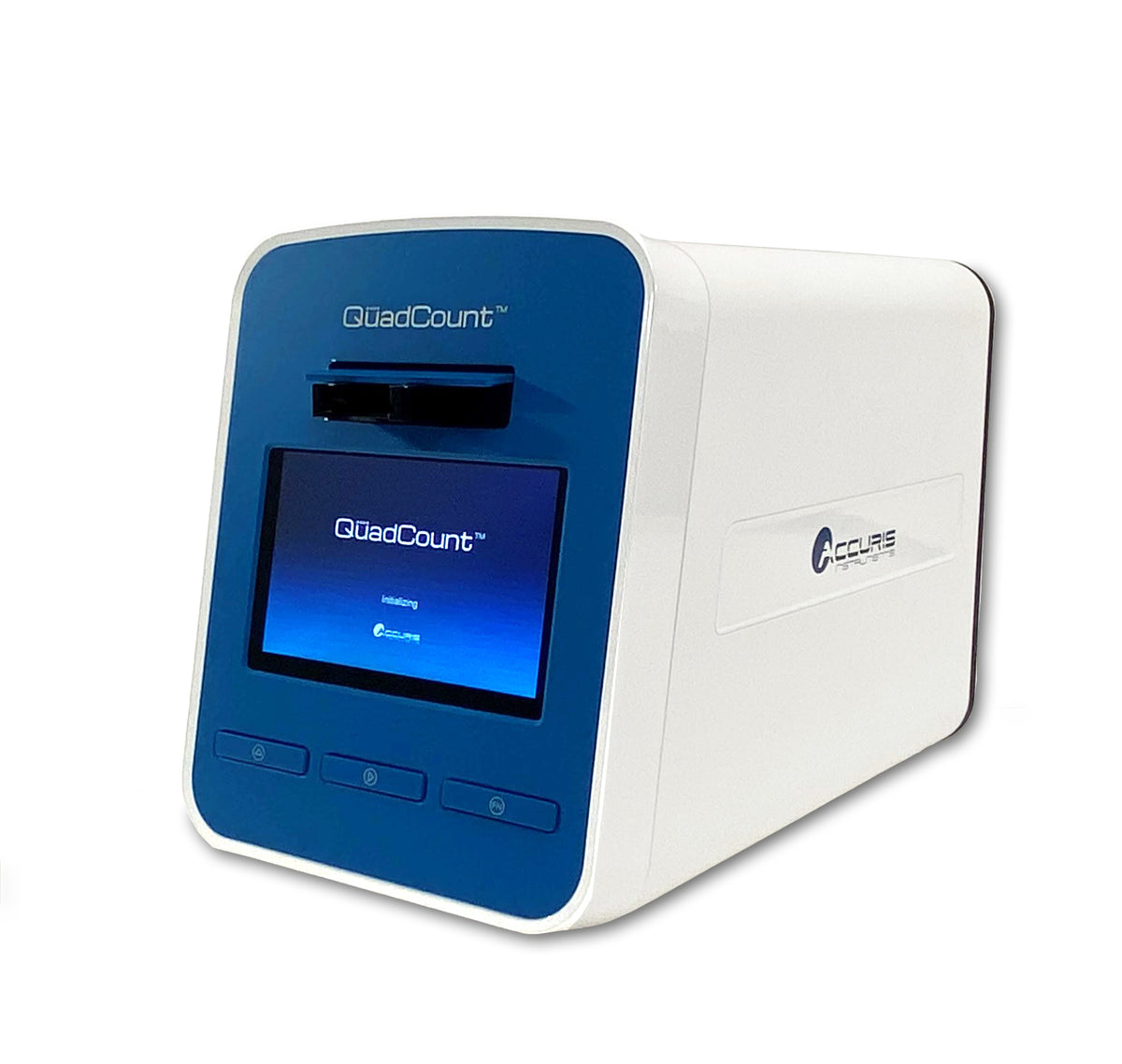

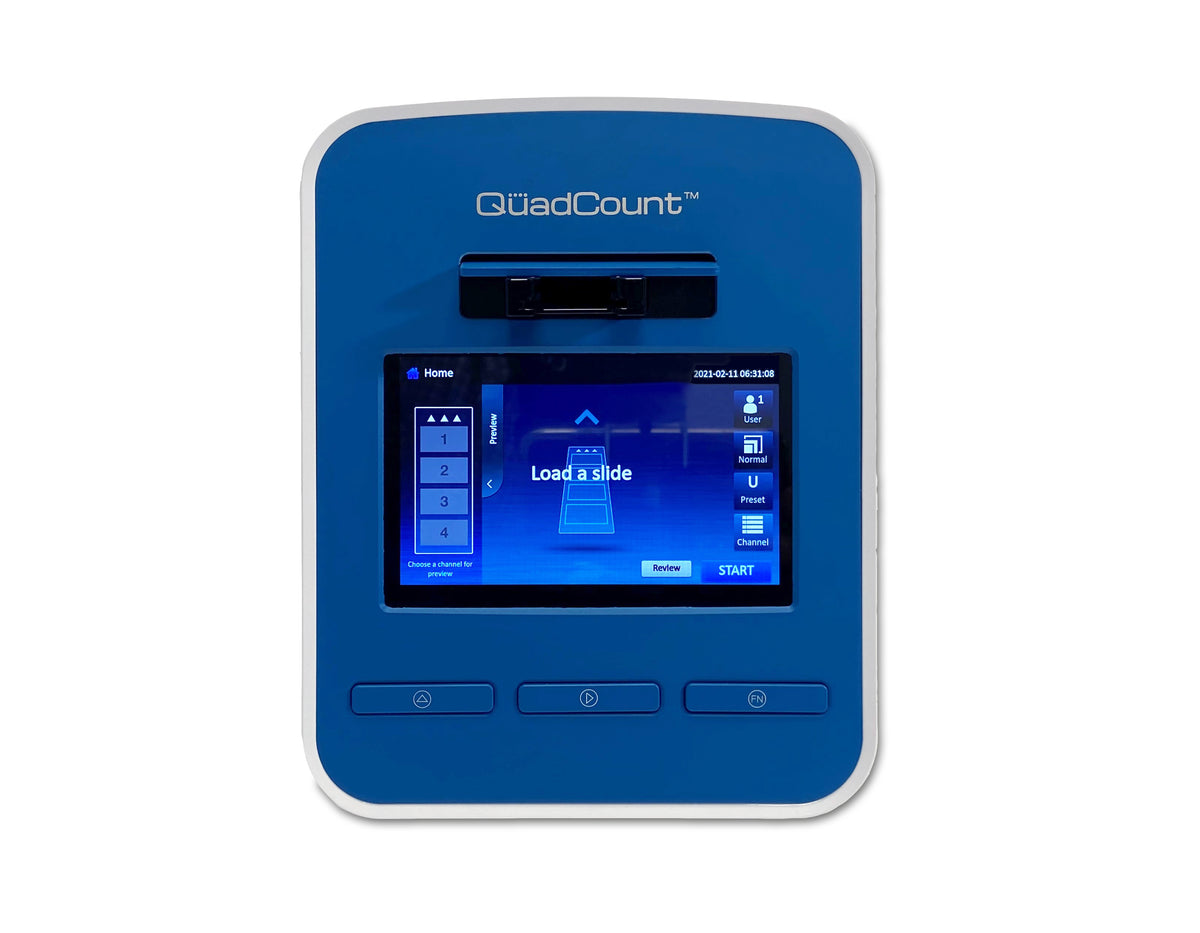

The QuadCount E7500 automates brightfield cell counting with a green LED light source, a 4x objective and a 5-megapixel CMOS sensor on a motorized XYZ stage that focuses automatically. Each disposable 4-chamber QuadSlide holds four 20 µL samples. Three modes trade speed against volume counted: Quick analyzes 0.15 µL in 20 seconds, Normal 0.9 µL in 30 seconds and Precise 3.6 µL across 24 image frames in 100 seconds. It counts cells from 5 to 60 µm and exports PDF reports to a USB drive.
Key features
- 4x objective and 5 MP CMOS sensor, 2592 × 1944 pixels
- Green LED illumination rated for 50,000 hours
- 4-chamber QuadSlide: four 20 µL samples per slide
- Quick, Normal and Precise modes: 20, 30 or 100 seconds
- Counts up to 3.6 µL across 24 image captures
- Cell size range 5–60 µm; PDF report to USB drive
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E7500 / E7500-E |
| Optics | 4× objective lens |
| Image Detection | 5 MP CMOS sensor |
| Pixel Resolution | 2592 × 1944 |
| Illumination | Green LED (50,000 hour life) |
| Consumable | QuadSlide, 4-chamber |
| Sample Volume | 20 µL (4 samples per QuadSlide) |
| Max Counting Volume | 3.6 µL (24 image captures) |
| Counting Modes | Quick (20 sec), Normal (30 sec), Precise (100 sec) |
| Cell Size Range | 5–60 µm |
| Data Output | USB drive (PDF report) |
| Dimensions | 6.4 × 11.5 × 8.5 in (16.3 × 29.3 × 21.6 cm) |
| Weight | 11 lb |
| Electrical | 115 V (E7500) or 230 V (E7500-E), 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E7500 | 115V, US plug |
| E7500-E | 230V, European plug |
