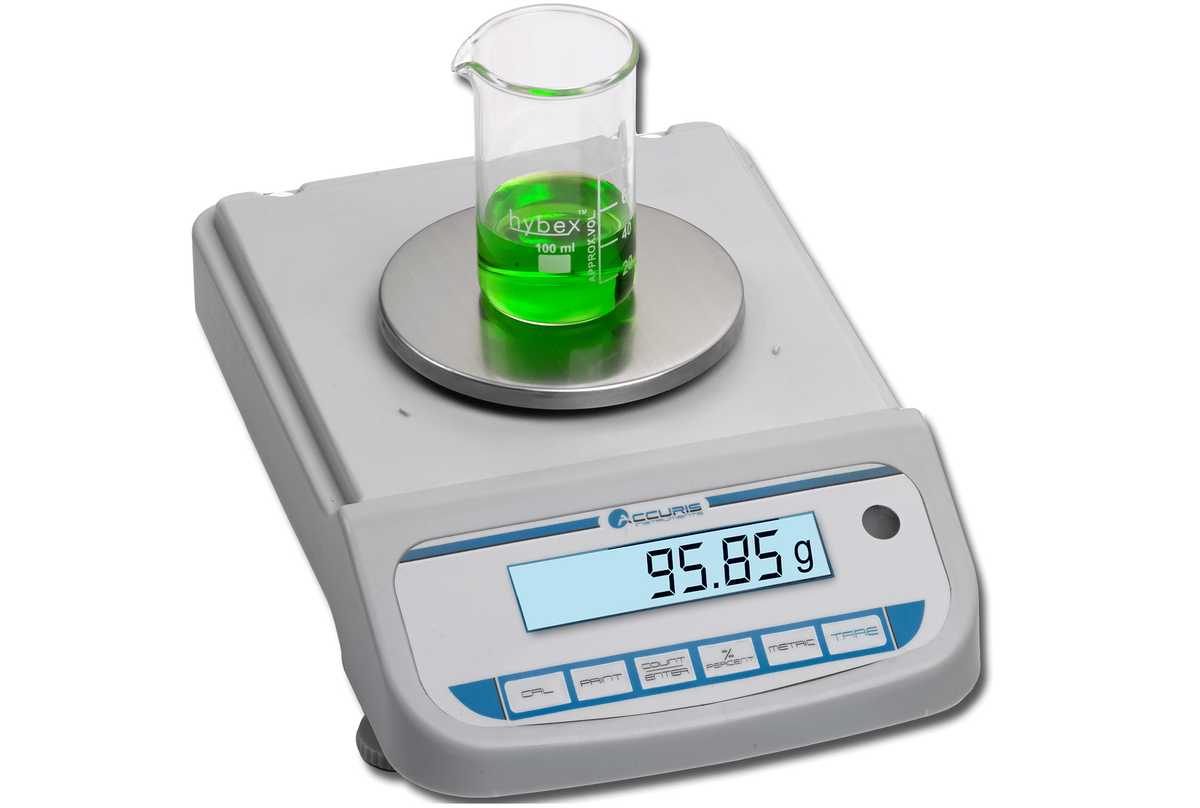

The W3300-500 is the highest-capacity Accuris compact balance that still reads to 0.01 g, handling up to 500 g with ±0.02 g linearity. It keeps the plastic draft shield ring and 4.5 in stainless steel pan of the lower-capacity models. Mass is sensed by gold-plated ceramic capacitors and shown on a backlit LCD. Programs cover piece counting and percent deviation in g, oz or ct. Calibration is external, and Accuris recommends the W1000-500 500 g weight. The housing is 18.8 × 28 × 8 cm.
Key features
- 500 g capacity at 0.01 g readability
- Linearity ±0.02 g
- Plastic draft shield ring; 4.5 in stainless steel pan
- Recommended calibration weight: W1000-500 (500 g)
- Piece counting and percent deviation modes
- RS232 data output
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3300-500 / W3300-500-E |
| Capacity | 500 g |
| Readability | 0.01 g |
| Linearity | ±0.02 g |
| Pan Diameter | 4.5 in (11.5 cm) |
| Draft Shield | Plastic draft shield ring |
| Calibration | External |
| Recommended Calibration Weight | 500 g |
| Weighing Units | g, oz, ct, pieces, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 7.5 × 11 × 3.1 in (18.8 × 28 × 8 cm) |
| Electrical | 115 V, US plug (W3300-500); 230 V, European plug (W3300-500-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3300-500 | 115V, US plug |
| W3300-500-E | 230V, European plug |
