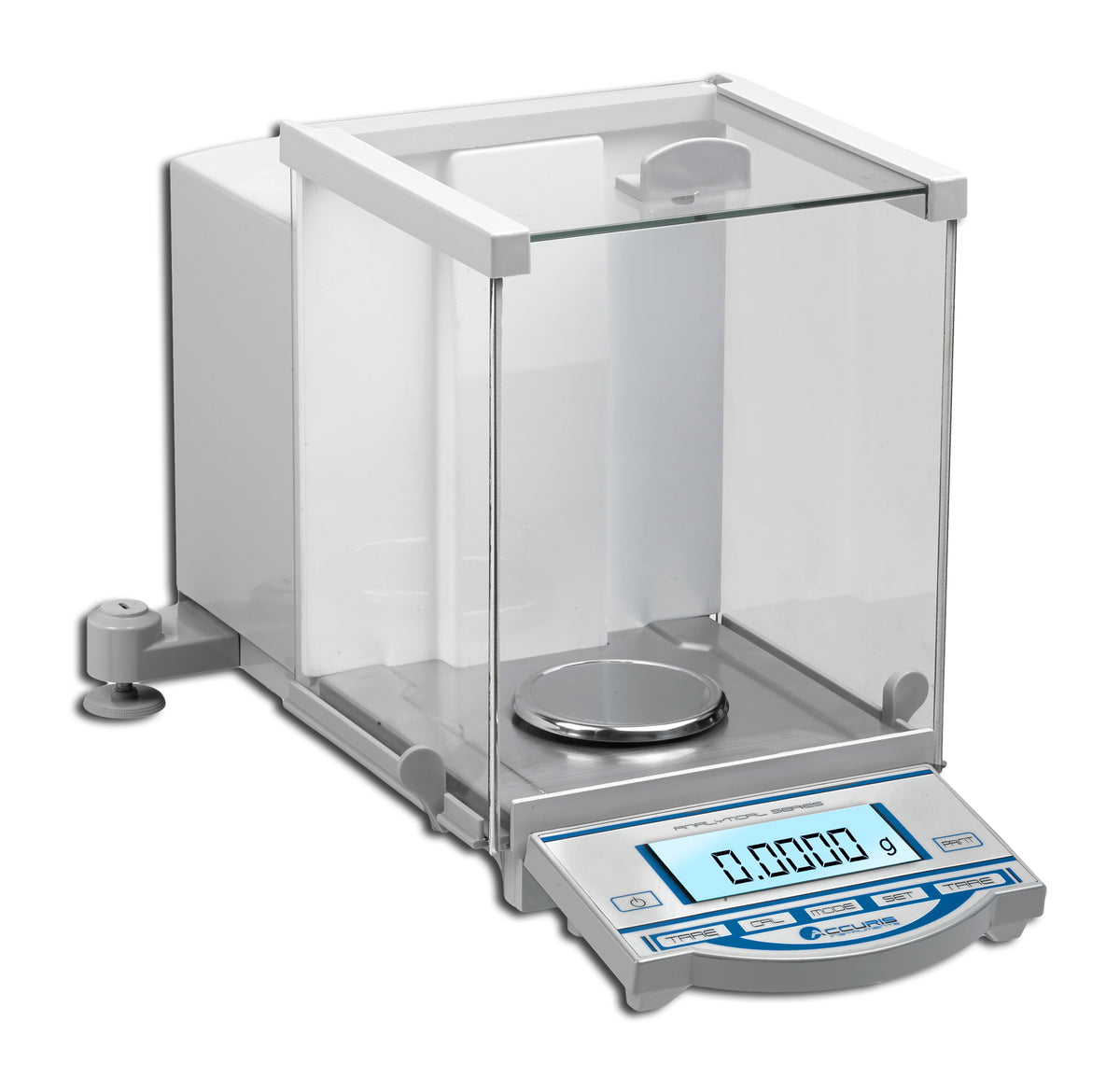

The W3100-210 extends the Accuris W3100 analytical line to 210 g while keeping 0.0001 g readability and ±0.2 mg linearity. It is calibrated externally with a standard weight. Electromagnetic sensing and precision mechanics let the balance tare and stabilize fast. Sliding glass doors on the sides and top give access to the weighing chamber, and laterally extending rear feet plus a leveling bubble keep it level. Modes include basic weighing, piece counting, percent deviation and check weighing for component inspection, with RS232 output.
Key features
- 210 g maximum, read to 0.0001 g (0.1 mg)
- ±0.2 mg linearity across the range
- External calibration with a standard weight
- Glass-enclosed weighing chamber with side and top sliding doors
- Check-weighing, counting and percent-deviation software
- RS232 output; 32 × 47 × 28 cm (12.5 × 18.5 × 11 in)
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3100-210 / W3100-210-E |
| Capacity | 210 g |
| Readability | 0.0001 g (0.1 mg) |
| Linearity | ±0.2 mg |
| Calibration | External |
| Draft Shield | Glass |
| Weighing Units | g, oz, lb, ct |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions (W × D × H) | 12.5 × 18.5 × 11 in (32 × 47 × 28 cm) |
| Electrical | 115 V, US plug (W3100-210); 230 V, European plug (W3100-210-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3100-210 | 115V, US plug |
| W3100-210-E | 230V, European plug |
