Surgical Instrument Cleaning Brushes: A Selection Guide
A surgical instrument cleaning brush is selected on three specifications, not on brand: bristle material, brush diameter, and overall length. Bristle material decides whether the brush cleans a serration or scratches a finish. Brush diameter has to exceed the inside diameter of the lumen you are cleaning, or the bristles never touch the wall. Length decides whether you can reach the far end of a channel at all. Get those three right and manual cleaning stops being the weak link ahead of high-level disinfection and sterilization.
Why the brush is the step you cannot substitute
Organic soil physically shields microorganisms and can neutralize disinfectant chemistry, so an instrument that is not clean cannot be reliably disinfected or sterilized — the principle that runs through the CDC guideline for disinfection and sterilization in healthcare facilities. Detergent chemistry does the dissolving, but it cannot generate mechanical action inside a box lock, a serrated jaw, or a 2 mm cannula. That is the brush's job, and no enzymatic detergent substitutes for it.
The three brush families
1. Handle brushes — general instrument surfaces

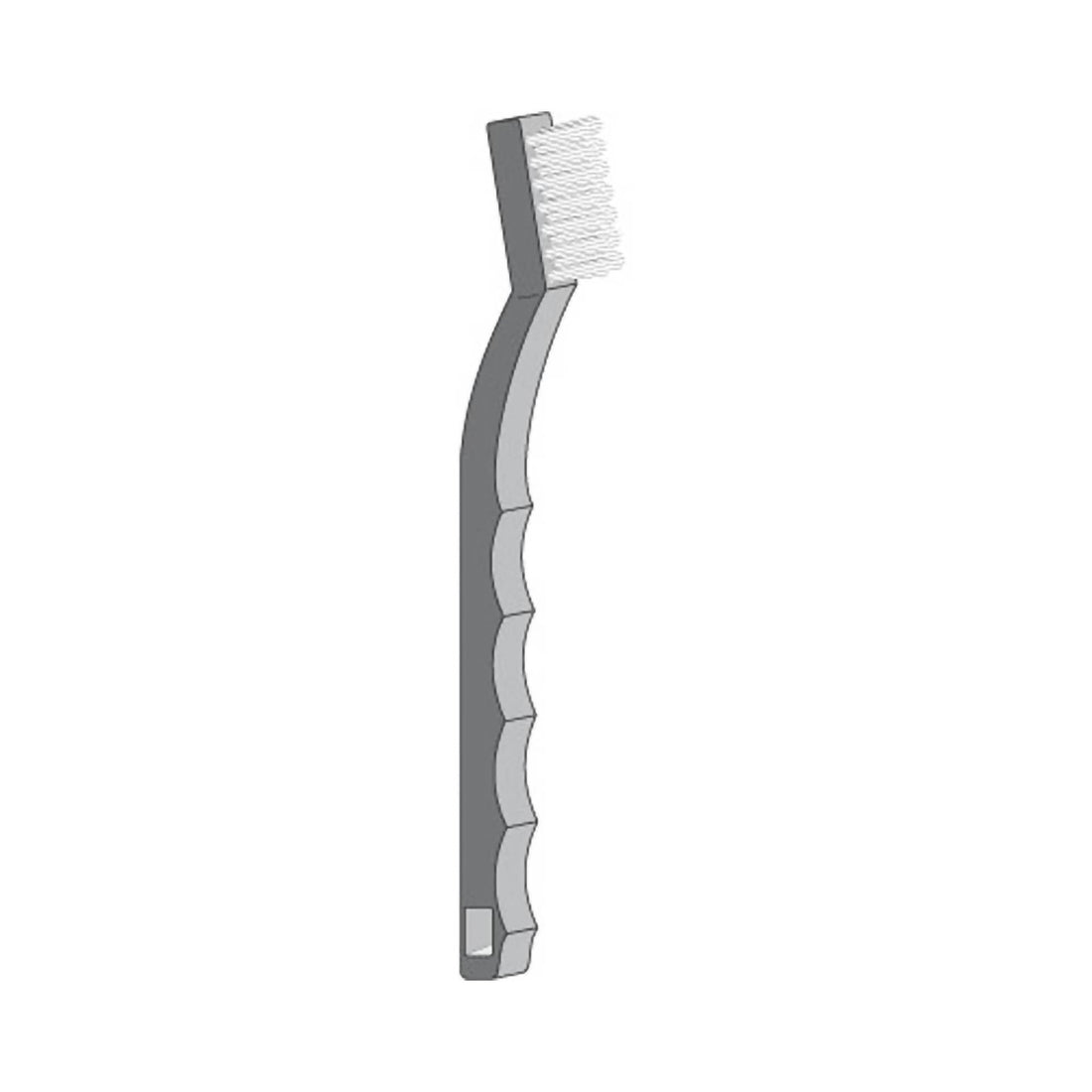

The workhorse of the decontamination sink. A rigid handle with bristles at one or both ends, sized for hand control against jaws, serrations, ratchets, and hinges. The Sklar instrument cleaning brush (McKesson #134410, MPN 10-1651) is 7 inches with nylon bristles on a plastic handle; the Miltex nylon-bristle brush (#192675, MPN 3-1000) is 7‑1/4 inches and autoclavable. Both are also stocked in three-packs — Sklar and Miltex — which is how most sinks buy them, since brushes are consumables rather than instruments.
2. Cannula and lumen brushes — narrow bores
A twisted stainless steel wire stem carrying nylon bristles, sized in French gauge or millimetres and long enough to pass all the way through. The Sklar cannula instrument cleaning brush (#471321, MPN 10-1350) is 6 Fr, 2 mm brush diameter, 12 inches long — the working size for suction tips, trocars, and small-bore cannulas. For suction tubing specifically, the Sklar 8-inch suction tube brush (#505598) is the shorter, wider counterpart.
3. Channel brushes — long flexible runs
For endoscope and scope-accessory channels, where the bore is metres of narrow flexible tubing rather than a short rigid bore. These brushes are 90 inches and up, on a flexible catheter rather than a wire stem. The Channel Master channel cleaning brush (#298226, MPN 000639) carries a 6.4 mm brush head on a 90‑1/2 inch length. The CB-X II instrument cleaning brush (#345349, MPN 60219) runs 94‑1/2 inches with a 6 mm bristle diameter on a 1.65 mm polypropylene catheter, and is supplied non-sterile and disposable.
Nylon or stainless steel bristles?
This is the decision that damages instruments when it goes wrong. Stainless steel bristles are more aggressive and reach into serrations, joints, and textured surfaces where residual bioburden survives a nylon brush. They are also capable of scoring a polished or anodized finish, and marring the passive layer on stainless instruments is what invites the corrosion you will later be trying to remove.
| Bristle | Use it on | Keep it away from |
|---|---|---|
| Nylon | General instrument surfaces, delicate and polished finishes, plastics, scopes, routine daily cleaning | Nothing — it is the safe default |
| Stainless steel | Heavy serrations, ratchets, box locks, textured grips, stubborn dried soil on robust stainless instruments | Polished, coated, anodized, or plastic surfaces; microsurgical and ophthalmic instruments |
Practical rule: stock nylon as the standard brush at every sink, and keep stainless steel as a deliberate second brush for the small number of robust instruments that need it. The Miltex stainless steel-bristle brush (#192676, MPN 3-1001) is the same 7‑1/4 inch format as its nylon counterpart, which makes it easy to run both without confusing the two — so label them. Our lab labeling guide covers markings that survive autoclave cycles and chemical exposure.
Size the brush to the lumen, not to the instrument
A brush only cleans where the bristles are compressed against the wall. If the brush diameter equals or is smaller than the lumen's inside diameter, it passes straight through and cleans nothing. Choose a brush whose bristle diameter is larger than the bore so the bristles deform against the wall along the entire pass, and choose a length that exits the far end — cleaning halfway down a channel and reversing simply relocates the soil.
Check the bristles after each instrument. A brush with splayed, flattened, or missing bristles no longer contacts the wall and should be discarded, which is exactly why brushes are bought by the pack and not the piece.
Reusable or single-use?
Reusable brushes have to be cleaned and reprocessed themselves at the end of each session, or they carry soil from one instrument to the next. Single-use channel brushes such as the CB-X II remove that step and the risk with it, at a higher cost per pass. Facilities running long flexible channels generally standardize on single-use for the channel and reusable for the handle brushes at the sink.
Specification comparison
| Brush | Type | Bristles | Length | Brush dia. | McKesson # | MPN |
|---|---|---|---|---|---|---|
| Sklar instrument brush | Handle | Nylon | 7 in | — | 134410 | 10-1651 |
| Miltex, nylon | Handle | Nylon | 7‑1/4 in | — | 192675 | 3-1000 |
| Miltex, stainless | Handle | Stainless steel | 7‑1/4 in | — | 192676 | 3-1001 |
| Sklar cannula brush | Cannula / lumen | Nylon on stainless wire | 12 in | 2 mm (6 Fr) | 471321 | 10-1350 |
| Sklar suction tube brush | Lumen | — | 8 in | — | 505598 | — |
| Channel Master | Channel | Nylon | 90‑1/2 in | 6.4 mm | 298226 | 000639 |
| CB-X II (disposable) | Channel | Nylon on 1.65 mm catheter | 94‑1/2 in | 6 mm | 345349 | 60219 |
Selecting the right brush
| What you are cleaning | Brush to reach for |
|---|---|
| Hemostats, forceps, scissors — jaws and box locks | 7-inch nylon handle brush |
| Heavy serrations and ratchets on robust stainless | 7‑1/4 inch stainless steel-bristle brush |
| Suction tips, trocars, small cannulas | 6 Fr / 2 mm cannula brush, 12 in |
| Suction tubing | 8-inch suction tube brush |
| Endoscope and scope-accessory channels | 90-inch-plus flexible channel brush |
| Channels where cross-contamination risk rules out reuse | Single-use disposable channel brush |
Shop the full range of McKesson instrument cleaning brushes — handle, cannula, and channel brushes shipped from US inventory as an authorized McKesson dealer.
Handling and PPE at the sink
Brushing contaminated instruments generates splash and aerosol. Work below the water line where the instrument design allows it, and follow OSHA bloodborne pathogens practice: fluid-resistant gown, gloves, and face protection. Our lab PPE requirements guide covers glove and face-shield selection for decontamination work.
Why buy from LabSupplies.com
As an authorized McKesson dealer we stock the brush brands reprocessing protocols actually name — Sklar, Miltex, Channel Master, CB-X, Healthmark, and Key Surgical — in singles and multi-packs, searchable by McKesson item number and manufacturer number, and shipped from US inventory.
Frequently asked questions
What size brush do I need for a lumen?
Choose a brush whose bristle diameter is larger than the lumen's inside diameter, so the bristles compress against the wall as the brush passes. A brush equal to or smaller than the bore passes through without contacting the surface and cleans nothing.
Can I use a stainless steel brush on surgical instruments?
On robust stainless instruments with heavy serrations, yes. Keep stainless bristles away from polished, coated, anodized, or plastic surfaces and from microsurgical and ophthalmic instruments, where they can score the finish and open the door to corrosion.
Are instrument cleaning brushes autoclavable?
Some are — the Miltex nylon-bristle brush is specified as autoclavable, for example. Autoclavability is a per-product specification, so check the individual listing rather than assuming it, and note that reprocessing a brush is a separate step from using it.
How often should a cleaning brush be replaced?
Replace a brush as soon as the bristles are splayed, flattened, or missing, because a deformed brush no longer contacts the lumen wall. Brushes are consumables; buying them in three-packs rather than singles is what keeps a worn brush from staying in service.
Do I need a separate brush for endoscope channels?
Yes. A 7-inch handle brush cannot reach through a flexible channel. Channel brushes run 90 inches and longer on a flexible catheter, and many facilities use single-use channel brushes to remove the risk of carrying soil between scopes.
Does brushing replace an enzymatic detergent?
No — they do different jobs. The detergent digests blood, protein, fat, and carbohydrate soil; the brush supplies the mechanical action inside geometry the chemistry cannot reach on its own. Both are required.
