Microscope Slides & Cover Glass: Thickness, Coatings & Applications
Microscope slides and cover glass are the cheapest items on the bench and the ones most likely to ruin an image. The two decisions that matter are cover glass thickness — which must match what your objective was corrected for — and slide surface treatment, which determines whether your section stays attached through staining.
Everything else is format and storage. Here is how to specify all of it.
Cover glass thickness is not optional
Objectives are computed for light passing through a specific thickness of glass. The overwhelming majority of objectives are corrected for 0.17 mm, which is the No. 1.5 designation. Use the wrong thickness and you introduce spherical aberration that no amount of refocusing removes — the image simply will not resolve to the objective's rated performance.
The standard thickness classes:
| No. | Thickness | Use |
|---|---|---|
| No. 1 | 0.13–0.17 mm | General purpose, low magnification |
| No. 1.5 | 0.16–0.19 mm | Standard for corrected objectives, oil immersion, fluorescence |
| No. 2 | 0.19–0.25 mm | Heavier sections, thick preparations |
The rule: if you are using a 40× or higher objective, an oil immersion lens, or doing any fluorescence work, use No. 1.5. At 4× and 10× the depth of field is forgiving enough that No. 1 is fine. Note that No. 1.5 has a tolerance range — for critical high-NA imaging, some labs specify selected No. 1.5H with a tighter tolerance.
Our cover glass is available in the standard square and rectangular formats.
Slide surface treatments
A plain glass slide holds a smear fine. It does not reliably hold a tissue section through aggressive staining, antigen retrieval, or in-situ protocols — sections lift and float off, and you lose the case.
- Plain — uncoated soda-lime or borosilicate. Fine for wet mounts, blood smears, and teaching
- Frosted end — a ground write-on band at one end. Should be the default for anything that needs identification, because pencil on frosted survives xylene and alcohol where a marker on plain glass does not
- Charged / positively charged — the glass carries a permanent positive surface charge that electrostatically binds negatively charged tissue. This is the standard for paraffin sections, IHC, and anything going through antigen retrieval
- Silane-coated — chemical adhesion layer, used where charged slides still lose sections

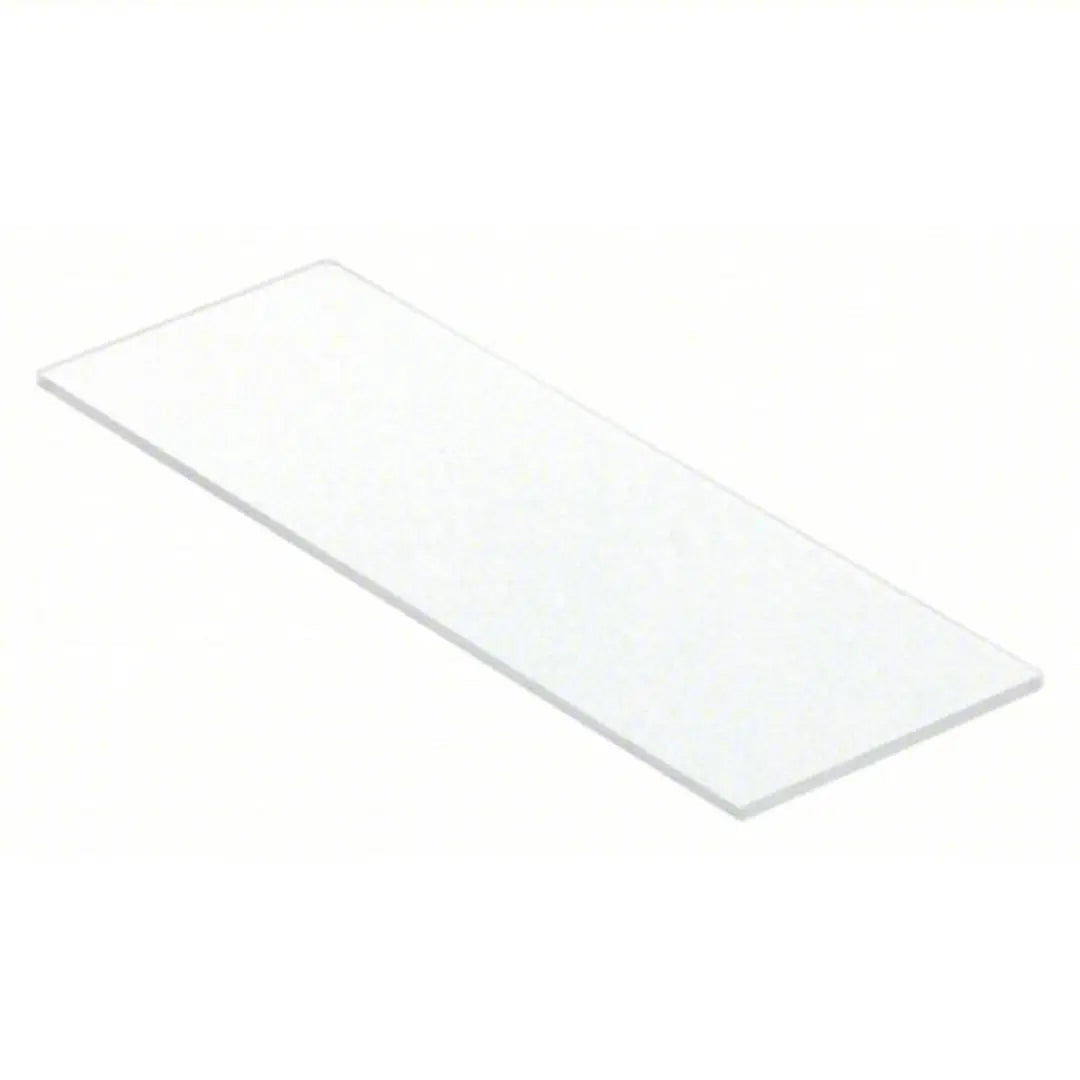

Standard slide format is 25 × 75 mm (1 × 3 inches) at roughly 1.0–1.2 mm thick. That dimension is what every rack, stainer, mailer, and storage box is built around, so deviating from it creates downstream problems. See our glass microscope slides.
Setting up a histology or cytology bench? Browse the full microscope slides and accessories collection to spec slides, cover glass, staining jars and storage together.
Staining, warming, and processing
A Coplin staining jar holds 5–10 slides vertically in a small reagent volume, which is the efficient way to run manual stains without wasting reagent. Screw-cap versions matter when the reagent is volatile.
Slide warmers drive off water and adhere sections to the slide before staining. Digital control is worth having — overheating damages antigenicity, so a digital slide warmer with a set point beats an uncontrolled hot plate. Higher-capacity bench slide warmers handle larger runs.
Labeling and retention
Slide identification has to survive xylene, alcohol, and years in storage. Pencil on a frosted end is the reliable manual method; for barcoded workflows, polyester laser labels are solvent-resistant in a way that paper labels are not.
Retention is a regulatory requirement, not a preference. Under the CLIA laboratory requirements at 42 CFR Part 493, stained slides must be retained for defined minimum periods that vary by specialty — cytology and histopathology carry the longest terms. That drives real storage volume, which is why slide boxes and file folders are infrastructure rather than an afterthought:
- Foam-lined ABS slide boxes in 25 and 100-place for routine archive
- Polycarbonate slide boxes rated to -80°C for frozen storage
- Hinged-lid slide file folders and cardboard file folders for filing systems
- Slide mailers for referral and consult shipping
Where slides carry infectious material, handling follows the CDC and NIH Biosafety in Microbiological and Biomedical Laboratories (BMBL) manual.
Related guides
- Essential Lab Equipment: Selection, Setup & Maintenance — the pillar guide this post sits under
- Slide Storage & Microscope Slide Accessories Guide — deeper detail on archive systems
- Best Lab Microscopes for Teaching, Clinical & Research
- Clinical Lab Supplies Checklist: Essentials for CLIA Labs
Frequently asked questions
What thickness cover glass should I use?
No. 1.5 (0.16–0.19 mm) for anything at 40× or above, oil immersion, or fluorescence, because that is what objectives are corrected for. No. 1 is acceptable at low magnification.
What happens if the cover glass is the wrong thickness?
You get spherical aberration. The image loses resolution and contrast in a way refocusing cannot correct, and the objective never reaches its rated performance.
Do I need charged slides?
Yes for paraffin sections, IHC and antigen retrieval, where plain glass will not hold the section. Smears and wet mounts do not need them.
What is the standard microscope slide size?
25 × 75 mm (1 × 3 inches), around 1.0–1.2 mm thick. Racks, stainers and storage are all built to this dimension.
How long must stained slides be retained?
CLIA sets minimum retention periods by specialty under 42 CFR Part 493, with cytology and histopathology carrying the longest terms. Check the requirement for your specialty and plan storage capacity accordingly.
Spec your slide workflow
Tell us your magnification range, stain protocol and retention requirement, and we will match slides, cover glass and storage. Shop microscope slides and accessories.
