Lab Stands & Support Systems: Clamps, Rings & Bases
Share
At LabSupplies.com, lab support systems are the infrastructure that makes everything else on the bench work safely and reproducibly. An overhead stirrer without a proper stand produces inconsistent shaft alignment and operator fatigue over long mixing runs. A heating setup without a lab jack forces the operator to physically reposition heavy vessels mid-experiment to adjust height. A bench without a chemically resistant work surface degrades under daily reagent exposure and becomes a contamination and compliance risk. This guide covers the three core lab support system categories we carry — overhead stirrer stands, lab jacks, and stainless steel lab tables — with selection criteria, load and height specifications, and application guidance for each.

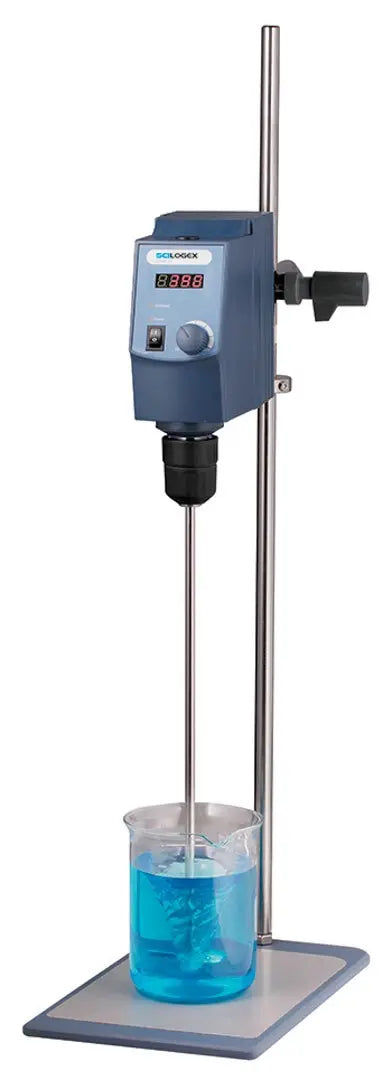

Overhead Stirrer Stands
An overhead stirrer stand is the mounting system that holds the overhead stirrer motor at a precise, stable height above the mixing vessel. Without a proper stand, an overhead stirrer cannot maintain the shaft alignment, depth, and centering that consistent mixing requires — particularly for viscous solutions, large-volume mixing, and extended unattended runs where the operator cannot manually stabilize the motor.
Overhead stirrer stands work by clamping the stirrer motor body to a vertical rod mounted on a weighted or bench-clamped base. The motor height is adjusted by sliding the clamp up or down the rod and locking it at the target position. The best stands include a fine-height-adjustment mechanism that allows small vertical movements without fully releasing the clamp — essential when raising or lowering the impeller into a vessel without disturbing the shaft angle.
Telescoping overhead stirrer stands:
Telescoping stands extend the rod height without requiring rod replacement, making them the most versatile format for labs that use a single stirrer across multiple vessel sizes. The telescoping section locks securely at any height within its range — confirm the locking mechanism holds under the torque load of the stirrer motor before running unattended.
Key overhead stirrer stand specifications:
| Specification | What It Determines | What to Look For |
|---|---|---|
| Rod height range | Maximum vessel height the stand can accommodate below the motor | Confirm height covers your tallest vessel plus the motor body clearance |
| Motor clamp compatibility | Whether the stand clamp fits the body diameter of your specific stirrer | Verify clamp jaw opening against the stirrer body diameter before ordering |
| Base weight and footprint | Stability under motor torque and vessel weight | Heavier cast iron or stainless steel bases for high-torque motors; wider base for tall rod heights |
| Rod diameter | Compatibility with clamps and accessories | 10 mm and 12.7 mm are the two standard diameters; confirm before adding accessories |
| Height adjustment mechanism | Ease and precision of motor repositioning during use | Fine-adjust rack-and-pinion preferred for precision work; knurled lock acceptable for general use |
When to use an overhead stirrer stand vs. a magnetic stirrer:
Overhead stirrer stands are required when the solution viscosity exceeds the torque limit of a magnetic stir bar — typically above 500–1,000 mPa·s — or when the vessel volume is large enough that a stir bar cannot turn over the full liquid volume. Overhead stirrers with proper stand support also handle slurries, polymer solutions, cell culture bioreactors, and mixing tasks where the impeller geometry must be precisely positioned at a specific depth. See our mixing and stirring equipment guide for full overhead stirrer vs. magnetic stirrer selection criteria.
Lab Jacks
A lab jack — also called a scissor jack or laboratory lifting platform — is a height-adjustable platform used to raise or lower vessels, heating mantles, hot plates, and equipment beneath a fixed overhead assembly without repositioning any clamps or connections above. It is one of the most used and most underappreciated pieces of equipment on the lab bench.
The core value of a lab jack is that it decouples vertical height adjustment from the overhead support assembly. In a distillation or heating setup, the overhead clamps holding the condenser or reflux column are fixed — moving them mid-experiment to adjust vessel height risks disturbing sealed connections, misaligning tubing, or introducing air into a closed system. A lab jack placed under the vessel allows the height to be adjusted smoothly and incrementally without touching anything above.
Lab jack selection criteria:
- Platform size — the platform must fully support the base of the vessel or equipment being raised; a vessel that overhangs the platform edge creates a tip hazard; standard sizes range from 10 × 10 cm to 20 × 20 cm
- Height range — minimum height (fully collapsed) and maximum height (fully extended) must match the gap between the bench surface and the bottom of the vessel in the clamped position; typical range is 5–20 cm
- Load rating — must exceed the combined weight of the vessel, its contents, and any heating apparatus placed on the platform; never estimate — check the rated capacity on the product specification sheet
- Adjustment mechanism — knob-drive scissor jacks allow smooth, one-hand incremental height adjustment; confirm the knob is accessible from the front of the bench without reaching over the vessel
- Material — aluminum lab jacks are standard for most bench applications; stainless steel jacks are available for corrosive, wet, or cleanroom environments where aluminum would corrode or contaminate
Anti-vibration lab jacks:
For sensitive analytical instruments, balances, or microscopes that require isolation from bench vibration, anti-vibration lab jacks incorporate a damping layer between the scissor platform and the top surface. These reduce transmitted vibration from the bench to the instrument and are the correct format for any measurement application where bench vibration affects result accuracy.
Common lab jack applications:
- Raising a heating mantle into contact with a flask at the start of a heating run — then lowering it rapidly if temperature control is needed
- Incrementally lowering a vessel away from an overhead stirrer impeller when switching vessel size or cleaning
- Positioning a flask under a buret or dispensing tube at the correct height for gravity-fill or gravity-drain operations
- Elevating a UV lamp, imaging system, or detector to the correct height over a sample without repositioning the sample
- Providing height-adjustable support under a balance or analytical instrument for bench leveling on uneven surfaces
Stainless Steel Lab Tables
A stainless steel lab table provides a chemically resistant, non-porous, easily decontaminated work surface that withstands daily exposure to acids, solvents, biological fluids, and the cleaning and disinfection agents used in regulated laboratory environments. Standard wood, laminate, and epoxy resin bench surfaces degrade over time under repeated chemical exposure — staining, swelling, cracking, and eventually becoming a contamination source. Stainless steel does not.
304 vs. 316 stainless steel:
The two grades relevant to laboratory use differ in their resistance to chloride-containing environments:
| Grade | Composition | Best For | Limitations |
|---|---|---|---|
| 304 stainless steel | 18% chromium, 8% nickel | General research, biological, chemical, and food science lab environments | Can pit in high-chloride environments with prolonged exposure |
| 316 stainless steel | 16% chromium, 10% nickel, 2% molybdenum | Pharmaceutical GMP, cleanroom, marine, and high-chloride environments | Higher cost; overkill for standard research lab use |
For most research, clinical, and QC lab environments, 304 stainless steel provides the correct balance of chemical resistance, durability, and cost. Pharmaceutical manufacturing floors, compounding pharmacies, and environments where hypochlorite (bleach) disinfection is used daily at high concentration should specify 316.
Surface finish:
Stainless steel lab tables are available in several surface finishes that affect cleanability and contamination risk:
- No. 4 brushed finish — the standard laboratory finish; directional grain that is easy to clean and hides minor scratches; appropriate for most lab applications
- No. 8 mirror polish — highest cleanability; non-directional surface with no grain for bacteria to collect in; required in pharmaceutical cleanrooms and sterile compounding environments
- Embossed or textured surface — provides slip resistance for instrument placement; appropriate for industrial and heavy-use environments
Load capacity and frame construction:
Stainless steel lab table load capacity is determined by the gauge of the tabletop material and the frame construction. Heavier-gauge tops (14 gauge or thicker) resist deflection under concentrated loads from instruments and equipment. Verify the distributed load rating (total weight over the full surface) and point load rating (concentrated weight at a single location) against the heaviest equipment that will be placed on the table. Under-specified tables deflect visibly under instrument loads, which affects leveling and measurement accuracy.
Where stainless steel lab tables are required:
- Pharmaceutical GMP environments — FDA 21 CFR Part 211 requires that surfaces in drug manufacturing areas be smooth, cleanable, and resistant to disinfectants; stainless steel satisfies all three requirements
- Cleanroom and ISO classified environments — non-porous surfaces that do not shed particles or absorb contaminants are required in all ISO cleanroom classifications
- Food science and nutraceutical labs — NSF/ANSI Standard 2 specifies stainless steel surfaces for food contact and food preparation environments
- Clinical and hospital labs — daily disinfection with bleach, quaternary ammonium, and alcohol solutions requires a surface that does not degrade under repeated disinfectant exposure
- Microbiology and BSL-2 labs — CDC/NIH Biosafety in Microbiological and Biomedical Laboratories (BMBL) recommends impervious, easily decontaminated bench surfaces for BSL-2 work
Selecting the Right Support System for Your Application
| Application | Primary Support Need | Product Category |
|---|---|---|
| Viscous solution mixing, polymer mixing, large-volume mixing | Stable motor mount at correct height with fine adjustment | Overhead stirrer stand |
| Heating mantle control, distillation height adjustment | Incremental vessel height adjustment without disturbing overhead assembly | Lab jack |
| Sensitive instrument isolation from bench vibration | Vibration-damped adjustable platform | Anti-vibration lab jack |
| GMP pharmaceutical, cleanroom, sterile compounding bench surface | Non-porous, disinfectant-resistant, auditable work surface | Stainless steel lab table (316) |
| General research, clinical, or QC lab bench surface | Chemically resistant, easy-clean work surface | Stainless steel lab table (304) |
| Food science, nutraceutical, or NSF-compliant environment | NSF-rated food-contact surface | Stainless steel lab table (304 or 316) |
Browse our full lab stands and support systems collection at LabSupplies.com — overhead stirrer stands, lab jacks, and stainless steel lab tables, stocked in the USA, ships fast.
See the mixing and stirring equipment guide for overhead stirrer selection, the vacuum filtration guide for filtration setup support requirements, the lab inventory management guide for equipment documentation in regulated environments, and the new lab setup guide for full bench and furniture planning.
Frequently Asked Questions
What is an overhead stirrer stand used for in the lab?
An overhead stirrer stand mounts the stirrer motor at a stable, adjustable height above the mixing vessel — keeping the shaft vertical, centered, and at the correct immersion depth. It is required for viscous solutions, large-volume mixing, slurries, and any application where a magnetic stir bar cannot generate the torque needed to turn over the full liquid volume. Telescoping models accommodate multiple vessel heights from a single stand.
What is a lab jack used for?
A lab jack is a height-adjustable scissor platform that raises or lowers a vessel beneath a fixed overhead assembly without disturbing clamps, tubing, or connections above. It is standard equipment in heating, distillation, and extraction setups where vessel height must be adjusted during the experiment. Select a jack with a platform size that fully supports the vessel base, a height range that spans the required gap, and a load rating that exceeds the full weight of the vessel and its contents.
What size lab jack do I need?
Match the platform size to the footprint of the vessel or equipment being raised — the base must be fully supported with no overhang. Confirm the height range covers the gap from bench surface to the bottom of the clamped vessel position. Verify the load rating exceeds the combined weight of the vessel, contents, and any heating apparatus on the platform. For most bench setups, a 15 × 15 cm platform with a 5–18 cm height range covers the majority of applications.
Why use a stainless steel lab table instead of a standard bench?
Stainless steel provides a non-porous, chemically resistant surface that resists acids, solvents, bleach, and biological fluids that permanently damage wood, laminate, and epoxy resin surfaces. It is easy to decontaminate, does not absorb spills, and is required in GMP pharmaceutical, cleanroom, food science, and clinical environments where surface hygiene is a regulatory requirement under FDA 21 CFR Part 211, ISO cleanroom standards, and CDC/NIH BMBL biosafety guidelines.
What grade of stainless steel is used for lab tables?
304 stainless steel is the standard grade for most research, clinical, and QC lab environments — chemically resistant, durable, and cost-effective. 316 stainless steel adds molybdenum for superior chloride and acid resistance and is specified for pharmaceutical GMP floors, compounding pharmacies, and environments where high-concentration bleach or chloride-containing disinfectants are used daily.
