ICP Nebulizers and Spray Chambers: Choosing for Your Sample Matrix
Your ICP nebulizer and spray chamber decide how much of a sample ever reaches the plasma — and for most sample introduction systems that fraction is only a few percent. At LabSupplies.com, the question we get asked most about ICP consumables is not which brand to buy but which geometry survives the matrix, because the wrong nebulizer does not read low; it drifts, blocks and takes a shift of analysis with it. The answer comes down to three things in order: what your matrix does to a narrow capillary, what argon flow and uptake rate your instrument is set up for, and which fitting style is on the torch box.
Start With the Matrix, Not the Sensitivity
Every nebulizer trades aerosol fineness against clog tolerance. A finer aerosol puts more analyte into the plasma and gives better detection limits; the fine internal passages that produce it are also the first thing a high-solids sample plugs.
- Concentric. Sample is drawn through a fine central capillary surrounded by the argon stream. The best sensitivity and the best short-term precision, and the default for clean, low-solids digests and drinking-water work. It is also the least forgiving.
- Crossflow. Sample and gas streams meet at right angles through wider bores. You give up sensitivity relative to a concentric and gain real tolerance for dissolved solids — the classic environmental-lab workhorse.
- V-groove and high-solids. The sample runs down an open groove and is sheared into aerosol at the gas orifice, so there is no fine capillary to block. This is the design for brines, slurries and heavy digestates.

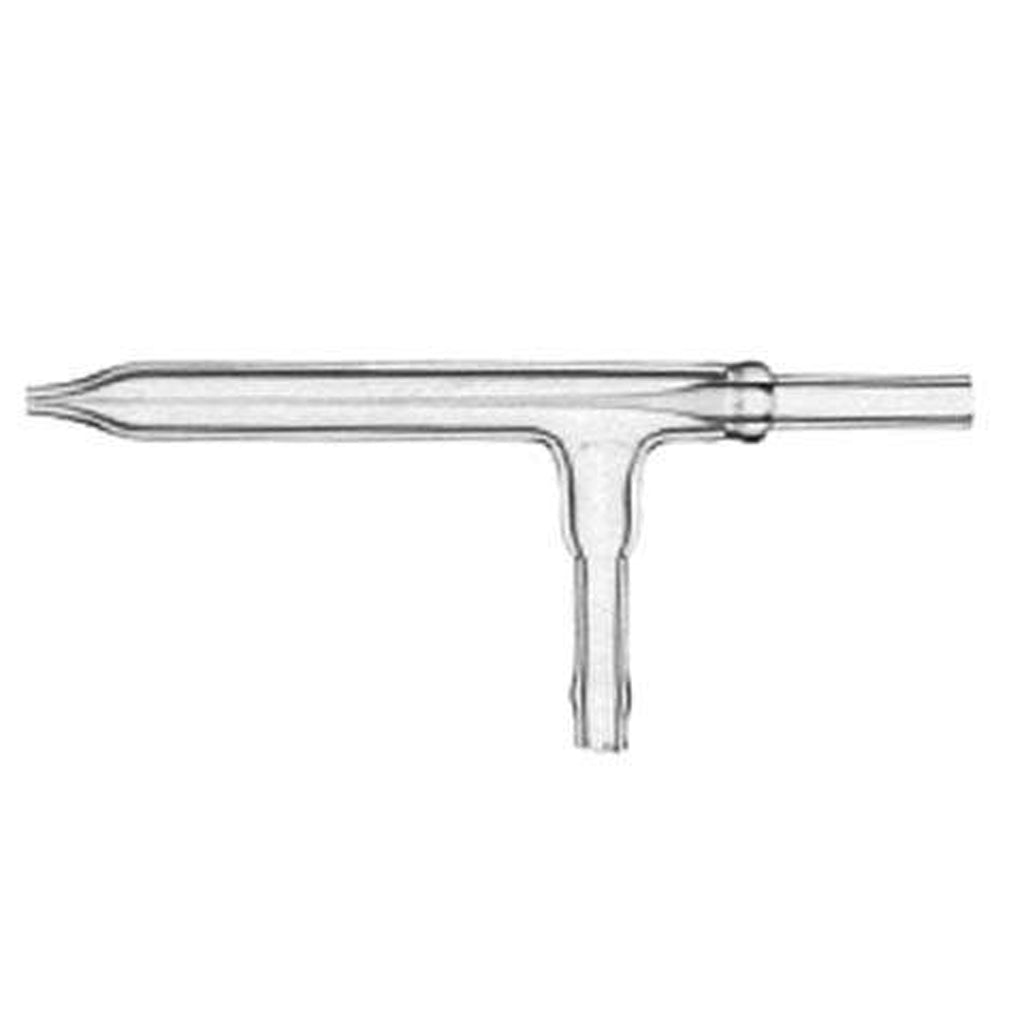

Alpha Resources covers all three families. Concentric bodies come as A-type, C-type and K-type — K-type at 0.7 lpm argon, 30 psi, 2 mL/min is a common ICP-OES fit — and a microflow version at 0.1–0.4 mL/min exists for volume-limited samples. On the tolerant end sit the high-solids crossflow, the high-flow crossflow, the Noordermeer V-groove MDSN and a high-solids V-groove rated 0.7 lpm at 35 psi.
Matching the Nebulizer to the Instrument
Three numbers on the listing have to agree with your method before the geometry matters at all.
| Specification | What it controls | What to check |
|---|---|---|
| Argon flow (0.7 or 1 lpm) | Aerosol formation and plasma load | The nebulizer gas flow your method already runs |
| Back pressure (30, 35 or 50 psi) | Whether the body suits your gas regulation | Instrument specification, not a preference |
| Uptake rate (0.1 to 3 mL/min) | Signal level and sample consumption | Peristaltic pump tubing and sample volume |
| Body material | Acid compatibility and blank level | Quartz is specified explicitly; avoid it for HF work |
| Fitting style | Whether it connects without an adapter | Plain, quick disconnect, or quick disconnect with argon connect |
The fitting is the detail that most often derails an order. The same nebulizer body is stocked plain, with a quick disconnect, and with a quick disconnect plus argon connect fitting. Ordering the wrong one costs a rebuild of the sample line, not just a return.
Choosing the Spray Chamber
The spray chamber discards the droplets too large to desolvate in the plasma. Its geometry sets your washout time, your tolerance for memory effects, and how much of the aerosol survives the trip.
| Chamber | Character | Best for |
|---|---|---|
| Cyclonic | Fast washout, high aerosol transport | Concentric nebulizers, routine aqueous work |
| Cyclonic, quartz | Same geometry, quartz construction | Matrices or blanks that demand quartz |
| Cyclonic with baffle | Extra droplet rejection | Heavier matrices and higher uptake rates |
| Sturman-Masters, jacketed | Double-pass with a cooling jacket | Organic solvents and high-solids introduction |
| Conical | Compact, low internal volume | Instruments specified for a conical chamber |
| ICP-MS chamber | Built for mass-spectrometer introduction | ICP-MS rather than ICP-OES |
Two practical notes. First, chamber and nebulizer are a pair — a fine concentric aerosol is wasted on a chamber that strips it, and a coarse V-groove aerosol overwhelms a chamber sized for fine droplets. Second, the drain and top-socket dimensions are part of the fit: an 8 mm top with a 4 mm drain and a 12/5 socket top are not interchangeable, and the listing states which is which.
Reading the OEM Cross-References
Many of these parts carry an OEM cross-reference in the listing title — Agilent Technologies, Thermo Fisher Scientific, JY Instruments and Analytik Jena numbers among them. If you already know the part number your instrument manual calls for, search that number directly rather than the description. Then confirm three things before ordering: the geometry, the argon flow and back-pressure rating, and the fitting style. A part number that matches on the first and misses on the third still will not connect.
Browse the full ICP nebulizers and spray chambers collection, or the wider Alpha Resources range for torches, cones, injectors and the torch-to-spray-chamber transfer tubes that go with them.
When to Replace Rather Than Clean
A concentric nebulizer that has been back-flushed repeatedly and still drifts is finished; the capillary bore has usually been altered by whatever was cleaning it. Signs it is time: rising and unstable internal-standard response, a washout that lengthens run over run, and a signal that recovers after a soak and degrades again within an hour. Labs running heavy matrices generally do better keeping a V-groove or crossflow body on the shelf for those sample sets than replacing concentric bodies at that rate.
Frequently Asked Questions
What is the difference between a concentric and a crossflow ICP nebulizer?
A concentric nebulizer draws sample through a fine internal capillary surrounded by the argon stream, producing a fine aerosol and the best sensitivity and short-term stability. A crossflow nebulizer meets the sample and gas streams at right angles through wider bores, which gives a coarser aerosol and less sensitivity but tolerates dissolved solids that would block a concentric capillary.
Which ICP nebulizer handles high dissolved solids?
V-groove and high-solids designs. In a V-groove nebulizer the sample runs down an open groove rather than through a narrow capillary, so brines, slurries and digestates with heavy total dissolved solids do not clog it. Alpha Resources supplies Noordermeer V-groove, high-solids V-groove and Aerosalt high-solids bodies for exactly this case, plus high-solids crossflow.
Do I need a quartz nebulizer or a standard one?
Quartz bodies are specified where the sample chemistry or blank requirement demands it, and they cost more than the standard body of the same geometry. They are not the choice for hydrofluoric acid work, which attacks quartz. Match the body material to your acid matrix before you match anything else.
Which spray chamber should I pair with a concentric nebulizer?
A cyclonic chamber is the usual pairing. It washes out quickly and passes a higher fraction of the fine aerosol, which suits the fine droplets a concentric nebulizer makes. Add a baffle for heavier matrices, and use a jacketed double-pass chamber such as the Sturman-Masters when you need to cool an organic solvent load.
Can I cross-reference an OEM nebulizer part number?
Yes. Many Alpha Resources sample introduction parts carry an OEM cross-reference in the listing title, covering Agilent, Thermo Fisher, JY Instruments and Analytik Jena part numbers. Search the OEM number directly and confirm the geometry, argon flow rating and fitting style match before ordering.
