VEE GEE Scientific Ultra-Precision Specific Gravity Hydrometer 0.0005 Subdivisions

Standard laboratory hydrometers read specific gravity to 0.001 — adequate for water, brine, and dilute solutions where concentration changes produce large density shifts. In acid manufacturing, electroplating, battery production, and concentrated industrial chemical processes, the same 0.001 resolution is insufficient: a 0.001 SG error corresponds to a meaningful concentration difference that can affect product quality or process chemistry. The VEE GEE Scientific 6602 Ultra-Precision Specific Gravity Hydrometer series resolves this with 0.0005 subdivisions — twice the resolution of standard instruments — in 0.07-unit ranges that concentrate all that precision where it is actually needed.

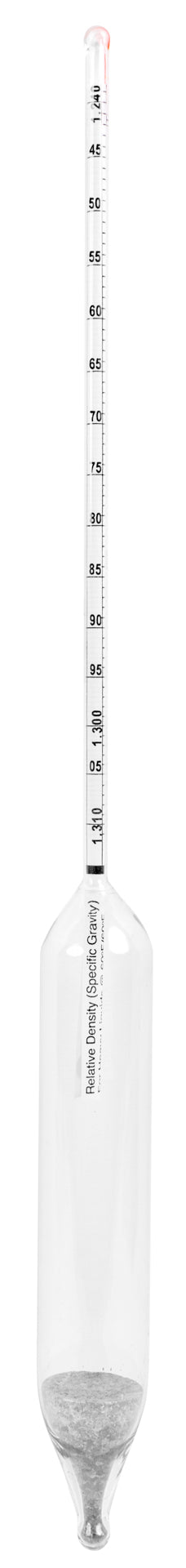

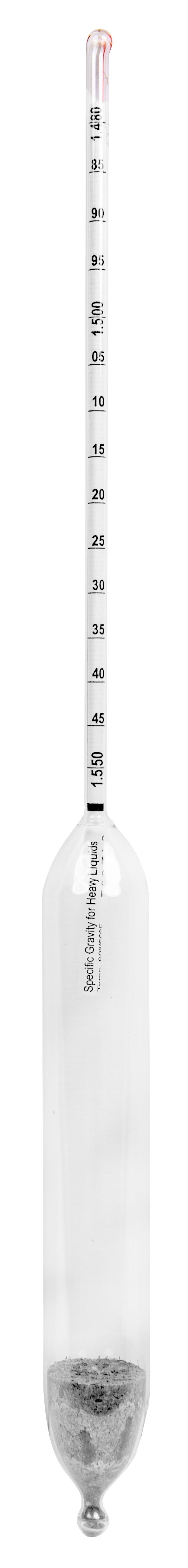

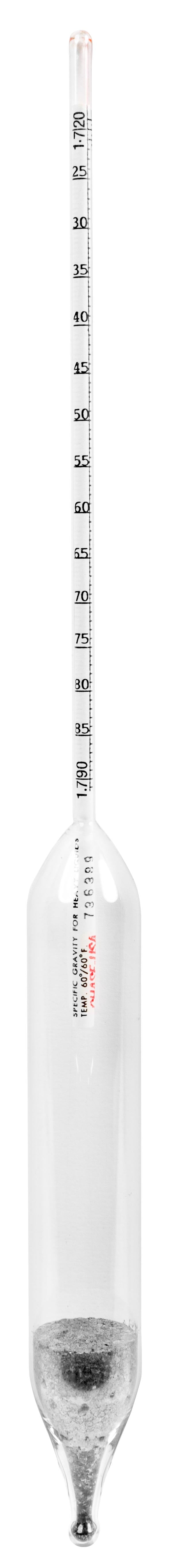

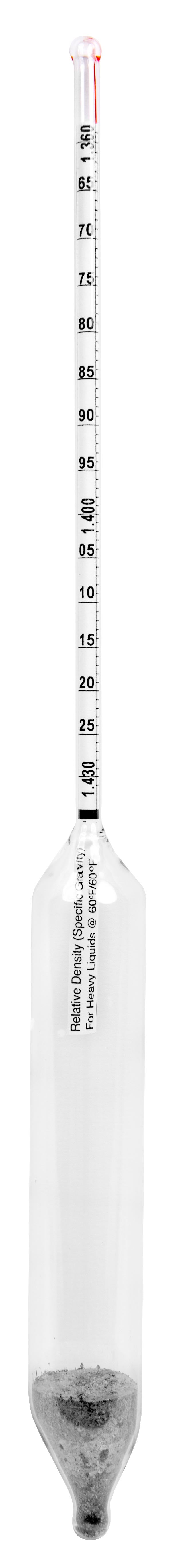

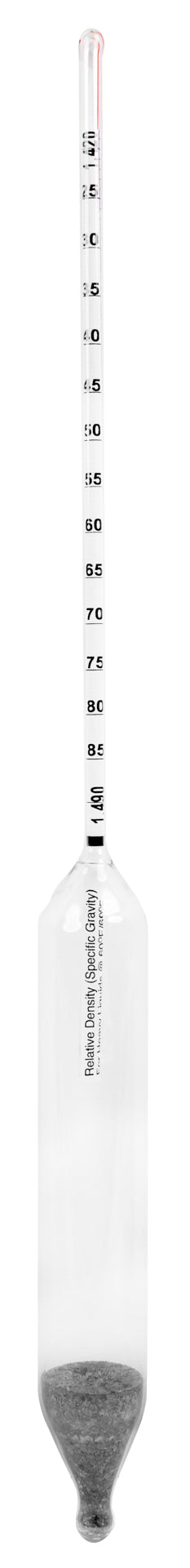

Each 6602 instrument is 330 mm in length — the extra length compared to standard 305 mm hydrometers physically spaces the 0.0005 graduation marks further apart, reducing parallax error and improving operator repeatability. Available in 5 overlapping ranges from SG 1.240 to 1.790 to cover the specific gravity zones encountered in sulfuric acid processing, electroplating baths, and related high-density liquid applications.

Features and Benefits

• Ultra-Fine 0.0005 Subdivision: The finest standard subdivision available in VEE GEE hydrometers — resolves specific gravity differences of 0.0005 within a tight 0.07-unit range, enabling precise process control in dense liquid applications.

• Narrow Measurement Range for High Resolution: A 0.07-unit range packed with 0.0005 graduations gives 140 resolvable divisions per instrument — far more readable than a wide-range hydrometer where each division represents a large value change.

• 13 in (330 mm) Length: Longer stem provides more column length for graduation spacing — graduations are physically further apart, reducing parallax reading error and improving repeatability between operators.

• Calibrated at 60°F: Reference temperature calibration to 60°F (15.6°C) — match your measurement conditions to the calibration temperature, or apply the standard correction factor for measurements at other temperatures.

• Glass Construction: Borosilicate glass float body resists chemical attack from the concentrated acid and alkaline solutions common in the high-SG applications these hydrometers cover.

• 1-Year Warranty: Standard VEE GEE Scientific instrument warranty covering manufacturing defects.

Specifications by Model

Laboratory Applications

• Sulfuric acid concentration monitoring in battery manufacturing and acid regeneration processes where precise SG-to-concentration conversion is required

• Electroplating bath control — chromic acid, nickel sulfate, and zinc sulfate baths where density is the primary concentration indicator

• Industrial acid concentration QC — sulfuric acid dilution and concentration at chemical manufacturing sites where regulatory compliance requires documented measurement precision

• Mineral processing and hydrometallurgy — leach solution density monitoring in copper, nickel, and gold processing circuits

Frequently Asked Questions

What is the difference between 0.0005 and standard 0.001 subdivision hydrometers?
A 0.001 subdivision hydrometer resolves 70 divisions across a 0.07-unit range. A 0.0005 hydrometer resolves 140 divisions across the same range — every scale mark represents half the density change. For concentrated acid applications where a 0.001 SG difference represents a meaningful concentration change (e.g., ~0.1% sulfuric acid), the 0.0005 resolution allows twice the measurement confidence.

Do I need a temperature correction with these hydrometers?
Yes — all glass hydrometers require temperature correction for measurements not made at the reference temperature (60°F for the 6602 series). The standard correction factor for sulfuric acid is approximately +0.0007 SG per °C above 60°F. VEE GEE recommends using a separate calibrated thermometer and applying the appropriate temperature-density correction table for your specific liquid.

Are these autoclavable?
Not listed as autoclavable for the ultra-precision 6602 series — the fine graduation scale is more susceptible to thermal shock. For general lab use requiring sterilization, the standard 6603 series (autoclavable) is a better choice.

Quality Assurance

VEE GEE Scientific manufactures the 6602 ultra-precision hydrometer series with permanently graduated glass scales and factory verification against calibrated reference liquids. The 0.0005 subdivision accuracy is verified at the 60°F reference temperature. Backed by a 1-year warranty against manufacturing defects.
