TrippNT Quadruple ABS Bottle Holder 500mL | HPLC Quaternary Fume Hood Strip 50157

Technical Narrative

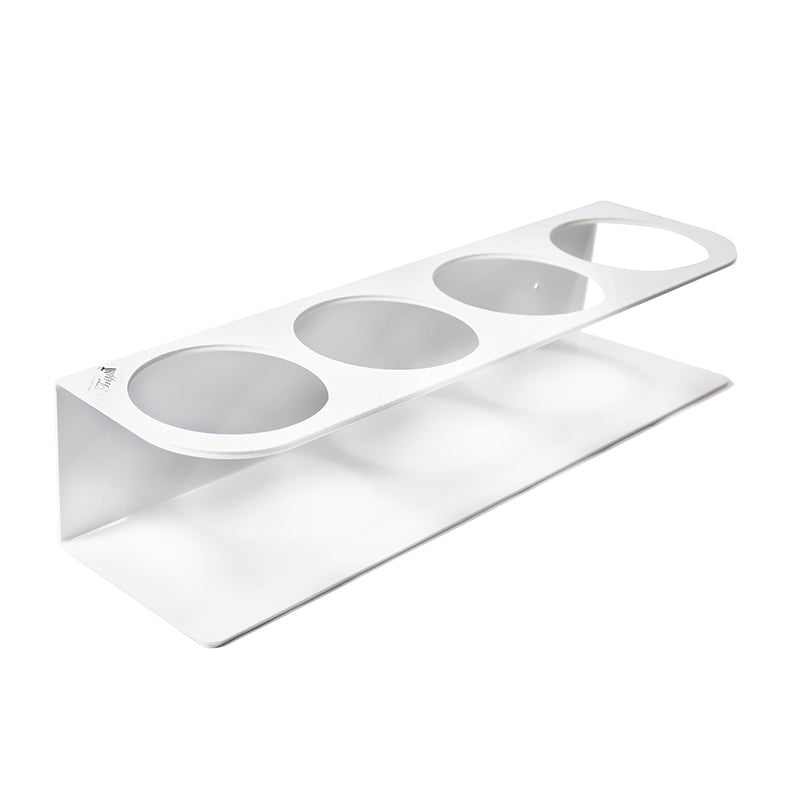

The TrippNT 50157 Quadruple ABS Bottle Holder, 500 mL is the largest member of the 500 mL bottle-restraint family, engineered for HPLC benches, extraction stations, and fume-hood solvent zones where four 500 mL mobile-phase or reagent bottles must be held side-by-side in a single wall-mount strip without individual holders scattered across the panel. Each of the four positions uses the same ⅛″ white ABS open-rectangular body and top-circle collar slot to create a two-point restraint — neck registered at the top, base captured in the open body — holding each bottle upright through vibration, fume-hood airflow, and incidental contact. The 14⅞″ W strip aligns all four bottles at consistent height and spacing, supporting HPLC quaternary mobile-phase sets (A/B/C/D) or paired solvent plus rinse/blank arrays in a single organized fixture.

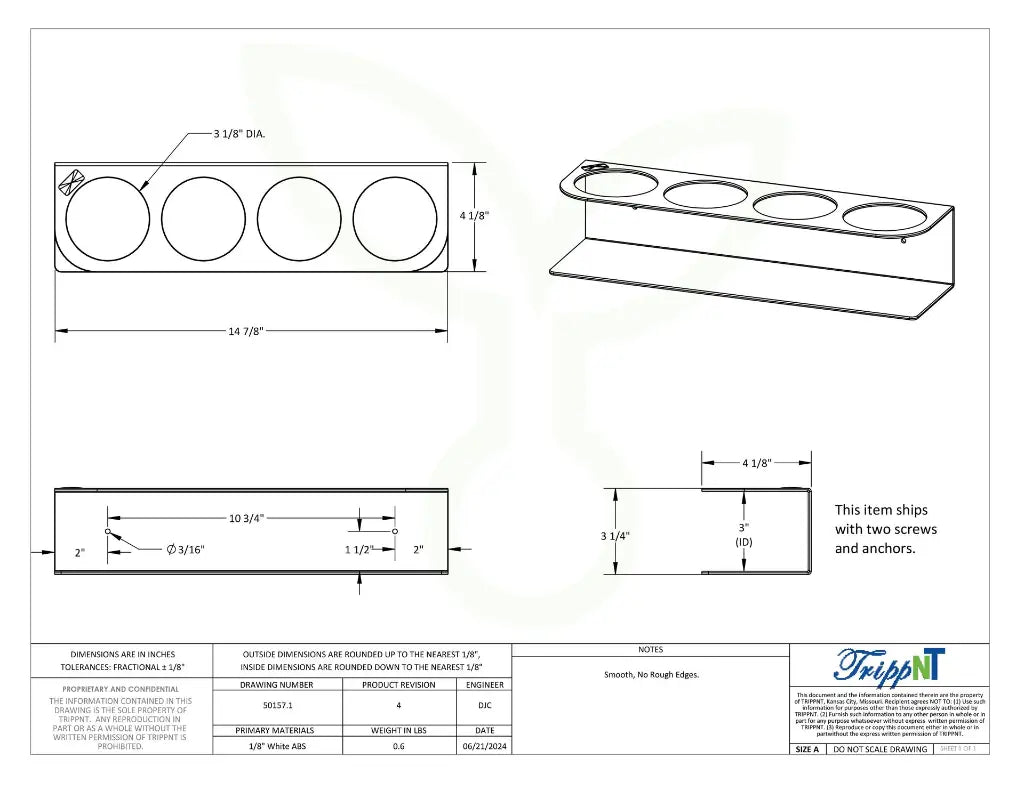

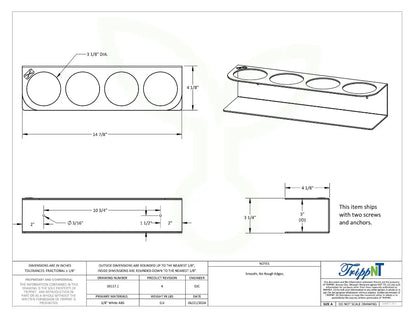

External dimensions are 14⅞″ W × 4⅛″ H × 3¼″ D with a 0.52 lb finished weight. Wall-mount keyhole slots and mounting hardware are included. Ships fully assembled. Backed by TrippNT's 100% Lifetime Guarantee. Scales within the same family to Single (50016), Double (50017), and Triple (50011) for installations requiring fewer positions; all share the same 4⅛″ H × 3¼″ D profile and keyhole mounting pattern for consistent staging wall aesthetics.

Technical Specifications

Laboratory and Clinical Applications

The 50157 is deployed across regulated and research environments requiring four-position 500 mL bottle restraint, including HPLC quaternary mobile-phase staging (A/B/C/D channels), pharmaceutical QC and API synthesis fume hoods, biotechnology R&D extraction solvent zones, USP 800 hazardous drug compounding hoods requiring four bottle positions, environmental and water-quality testing HPLC mobile-phase benches, academic analytical chemistry fume hoods, forensic toxicology quaternary solvent staging, food-and-beverage R&D extraction benches, industrial QC multi-solvent chromatography stations, and flammable-storage cabinet interior four-bottle restraint. Pairs with the same-family single (50016), double (50017), and triple (50011) holders to build modular solvent staging walls using consistent mounting hardware.

Product Documentation

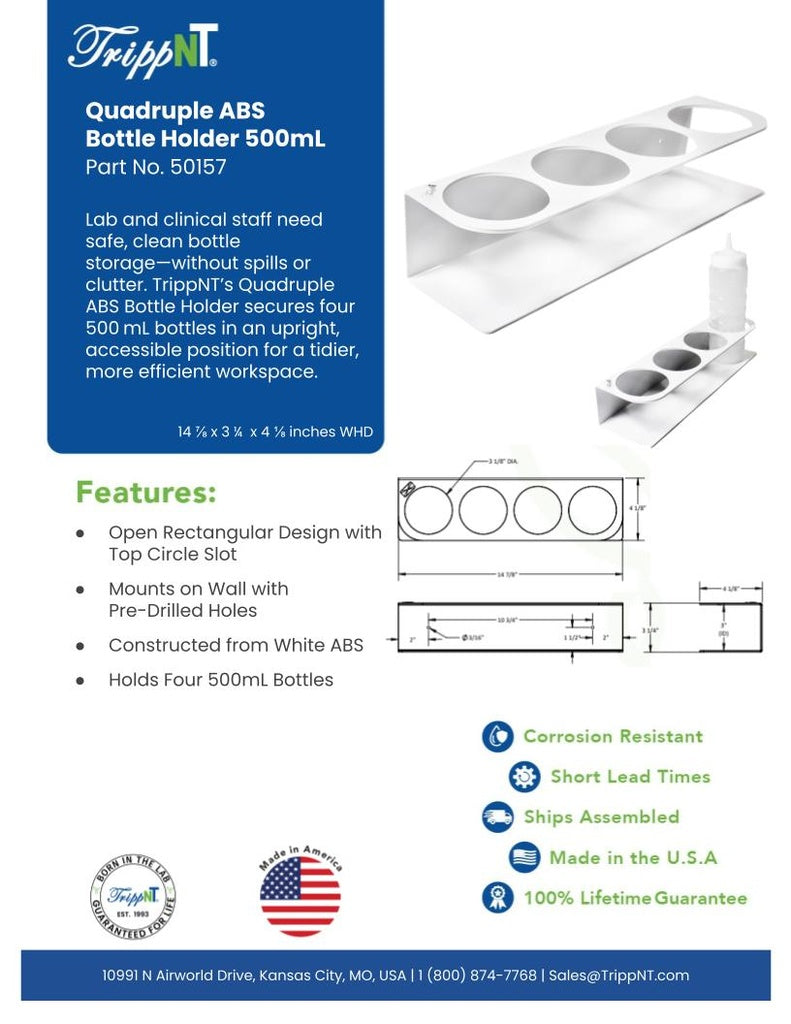

• Sales Sheet — 50157 Quadruple ABS Bottle Holder 500mL (PDF)

Made in the U.S.A. & Lifetime Guarantee

Proudly manufactured in the United States by TrippNT. This bottle holder is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your laboratory. Institutional pricing and bulk discounts are available for universities, hospital systems, and government agencies.

Frequently Asked Questions

Is the 50157 suitable for HPLC quaternary pump mobile-phase staging — do standard 500 mL HPLC solvent bottles fit all four positions?

Yes. The four-position strip accommodates standard 500 mL HPLC-grade solvent bottles from Honeywell/Burdick & Jackson, Fisher Chemical, Sigma-Aldrich, and VWR, whose neck profiles are consistent with the collar slot geometry. For systems running quaternary gradients (channels A, B, C, D), the 50157 provides a single wall-mount fixture that positions all four bottles at uniform height with consistent tubing-adapter clearance. For binary pumps (A/B only), specify the double holder (50085 for 1000 mL family or 50017 for 500 mL family) instead.

Does the 50157 four-position strip fit on standard fume-hood side panels, and are all four family sizes dimensionally consistent?

Yes. The 14⅞″ W footprint installs on standard 48″, 60″, and 72″ fume-hood side panels with margin. All four 500 mL family holders — single (50016) at ~4″ W, double (50017) at ~9″ W, triple (50011) at ~12″ W, and quadruple (50157) at 14⅞″ W — share the same 4⅛″ H × 3¼″ D profile and identical keyhole mounting pattern, so all can be combined on the same hood wall using a single hardware specification.
