TrippNT Quadruple ABS Bottle Holder 1000 mL | HPLC Quaternary Fume Hood 4-Pos 50189

Technical Narrative

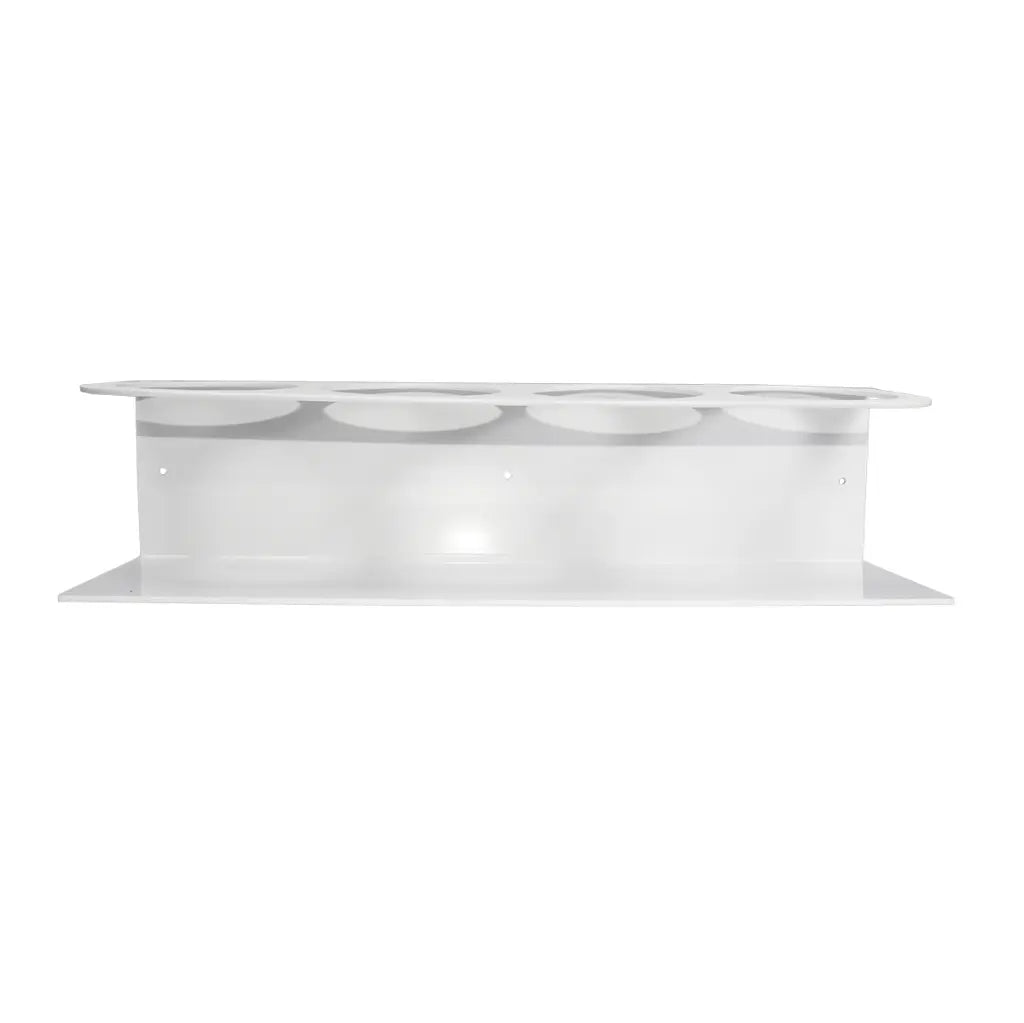

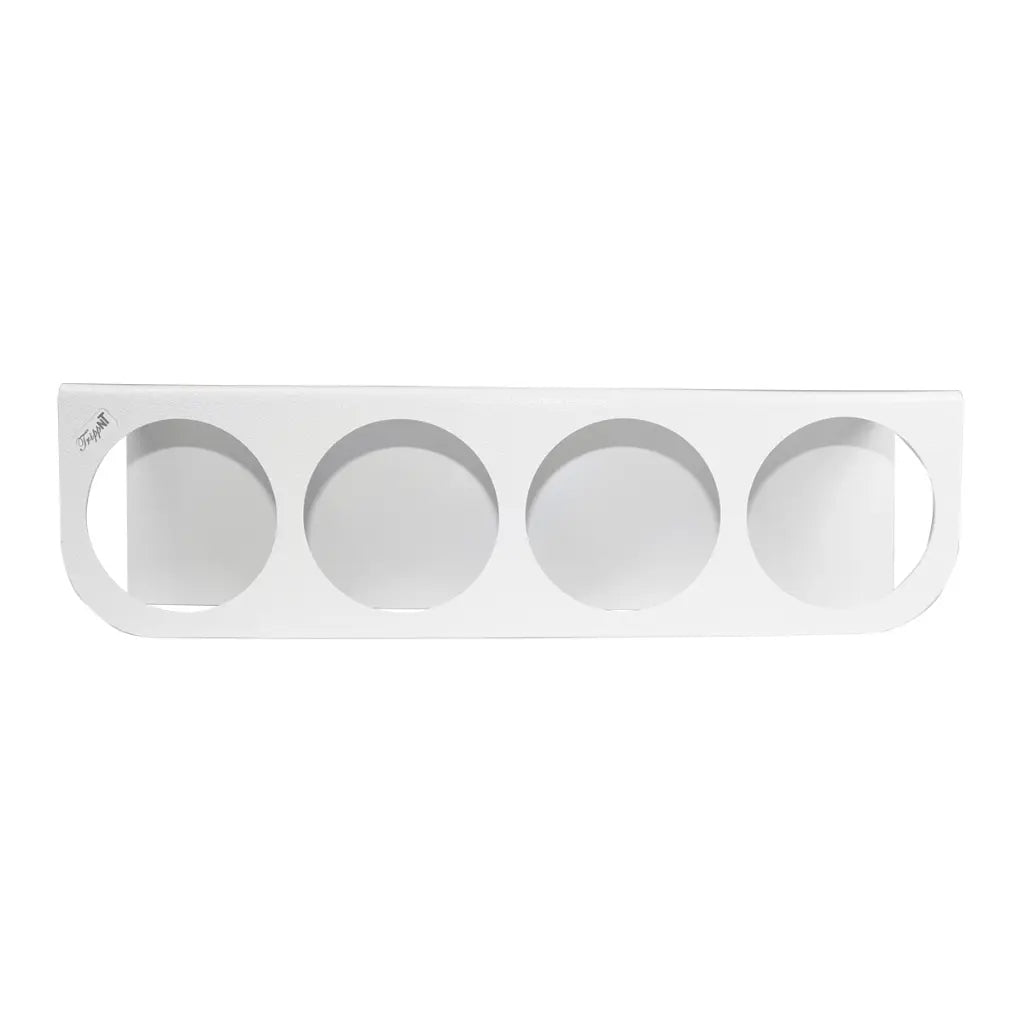

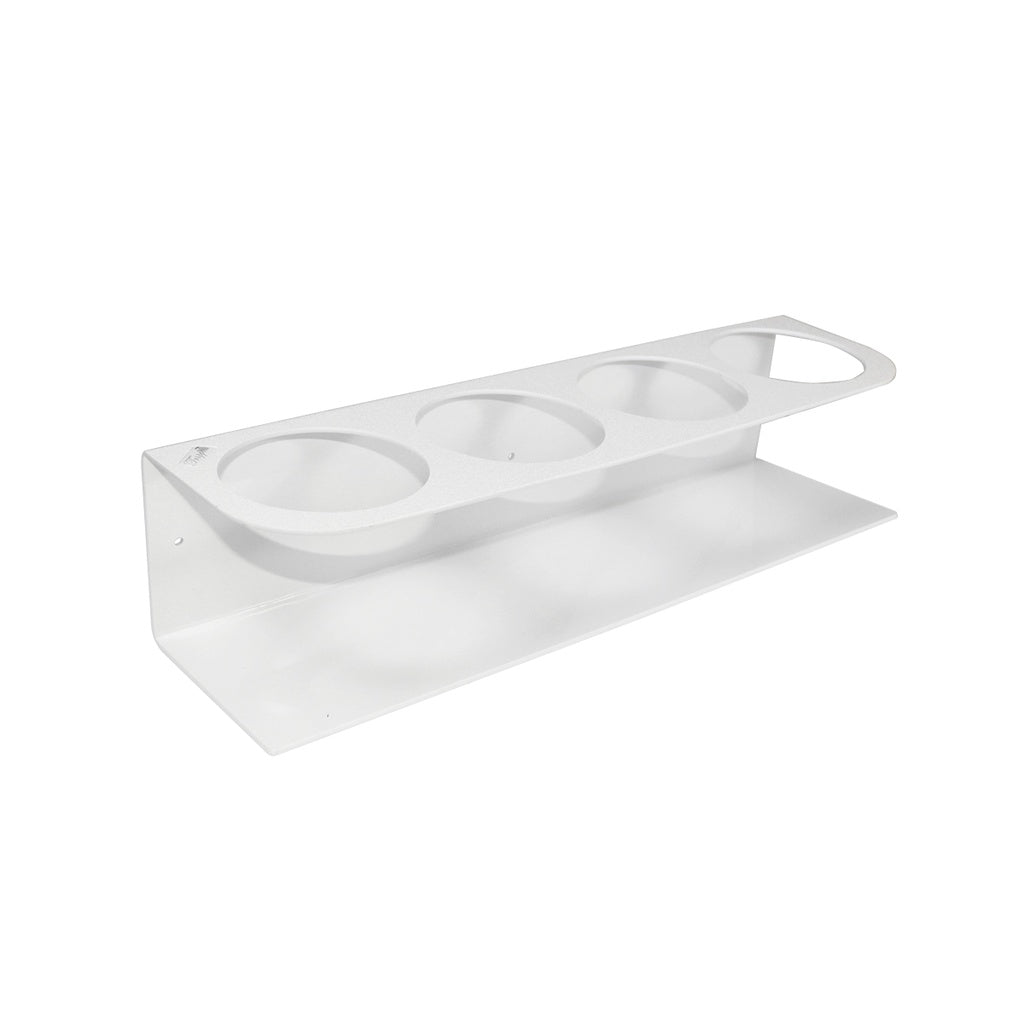

The TrippNT 50189 Quadruple ABS Bottle Holder, 1000 mL is the largest member of the 1000 mL bottle-restraint family, engineered for HPLC benches, extraction stations, and fume-hood solvent zones where four 1-liter mobile-phase or reagent bottles must be held side-by-side in a single wall-mount strip. Each of the four positions uses the same ⅛″ white ABS open-rectangular body and 3.75″ circular collar to create a two-point restraint — neck registered at the top, base captured in the open body — holding each bottle upright through vibration, fume-hood airflow, and incidental contact. Aligning four 1-liter bottles at consistent height and spacing supports HPLC quaternary mobile-phase sets (A/B/C/D) and paired solvent plus wash/rinse arrays on a single fixture.

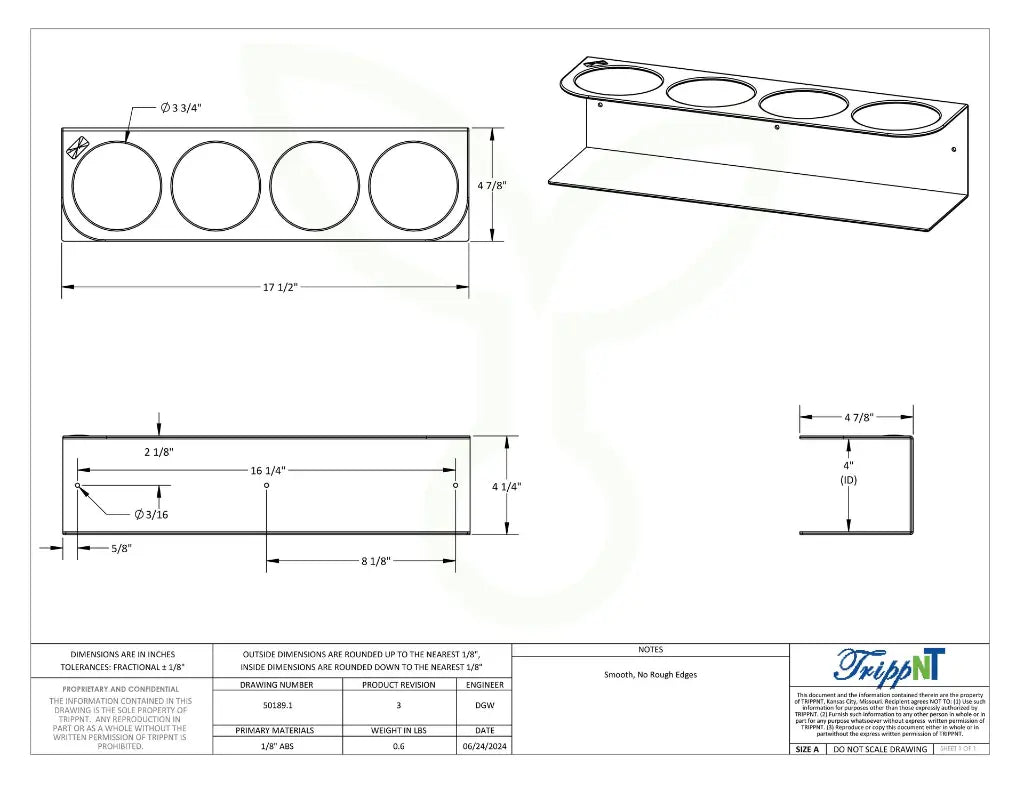

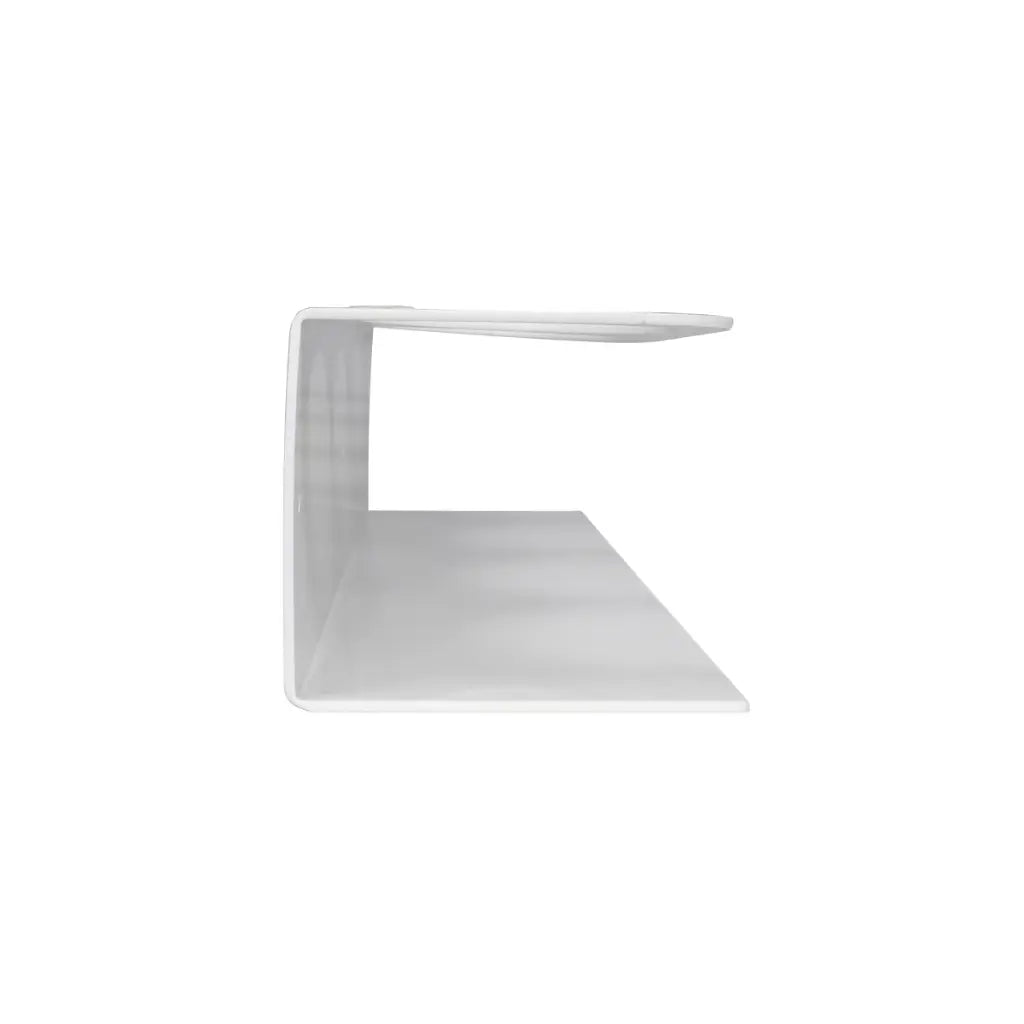

External dimensions are 17½″ W x 4¼″ H x 4⅞″ D with a 0.6 lb finished weight. The 17½″ strip fits on standard 48″, 60″, and 72″ fume-hood side panels with margin. Wall-mount keyhole slots and mounting hardware are included. Ships fully assembled. Backed by TrippNT’s 100% Lifetime Guarantee. Scales within the same 1000 mL family to Single (50080), Double (50085), and Triple (50411); all share the same 3.75″ collar, 4¼″ H x 4⅞″ D profile, and keyhole mounting pattern.

Technical Specifications

Laboratory and Clinical Applications

The 50189 is deployed across regulated and research environments requiring four-position 1-liter bottle restraint, including HPLC quaternary mobile-phase staging, pharmaceutical QC and API synthesis fume hoods, biotechnology R&D extraction and purification solvent zones, USP 800 hazardous drug compounding hoods requiring four 1-liter bottle positions, environmental and water-quality testing HPLC mobile-phase stations, academic analytical chemistry and preparative HPLC fume hoods, forensic toxicology quaternary solvent staging, food-and-beverage R&D extraction benches, industrial QC multi-channel chromatography solvent management, and flammable-storage cabinet interior four-bottle restraint. Pairs with the single (50080), double (50085), and triple (50411) for mixed-channel installations using one hardware system.

Product Documentation

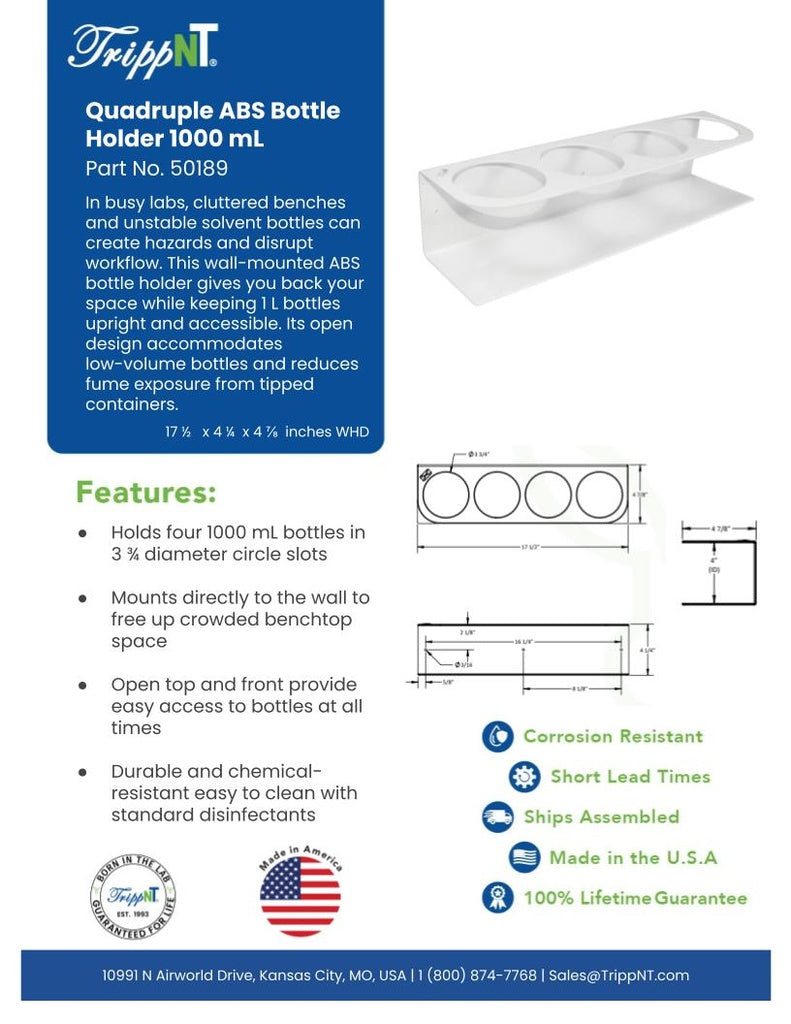

• Sales Sheet — 50189 Quadruple ABS Bottle Holder 1000 mL (PDF)

Made in the U.S.A. & Lifetime Guarantee

Proudly manufactured in the United States by TrippNT. This bottle holder is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your laboratory. Institutional pricing and bulk discounts are available for universities, hospital systems, and government agencies.

Frequently Asked Questions

Is the 50189 suited for HPLC quaternary pump mobile-phase staging — do standard 1-liter HPLC solvent bottles fit all four positions?

Yes. The four 3.75″ collar positions accommodate standard 1-liter HPLC-grade glass and HDPE solvent bottles from Honeywell/Burdick & Jackson, Fisher Chemical, Sigma-Aldrich, and VWR, whose 1-liter neck profiles are consistent with the 3.75″ collar geometry. For quaternary gradient systems (A, B, C, D channels), the 50189 aligns all four mobile-phase bottles at uniform height with consistent tubing-adapter clearance. For binary HPLC (A/B), specify the double holder 50085 instead.

How does the 50189 four-position 1-liter strip compare to the 50157 four-position 500 mL strip — when do I use each?

Both are four-position ABS bottle-holder strips sharing the same keyhole mounting pattern and 4¼″ H profile. Specify the 50189 (17½″ W, 3.75″ collar) when using 1-liter HPLC mobile-phase or reagent bottles. Specify the 50157 (14⅞″ W, smaller collar) when using 500 mL bottles. The 50189 is 2⅝″ wider than the 50157 to accommodate the larger 1-liter bottle base diameter; both fit standard 48″ and larger fume-hood side panels.
