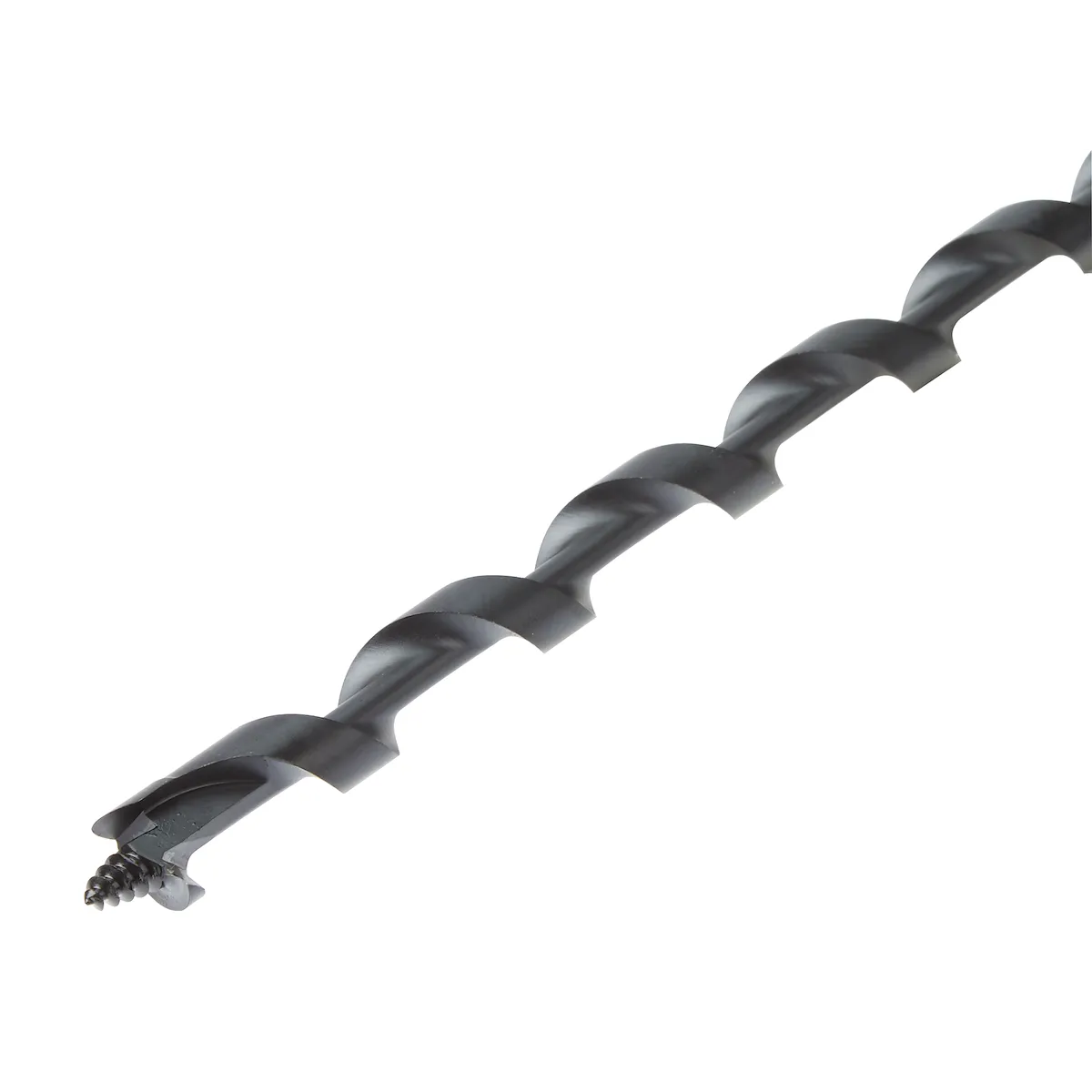

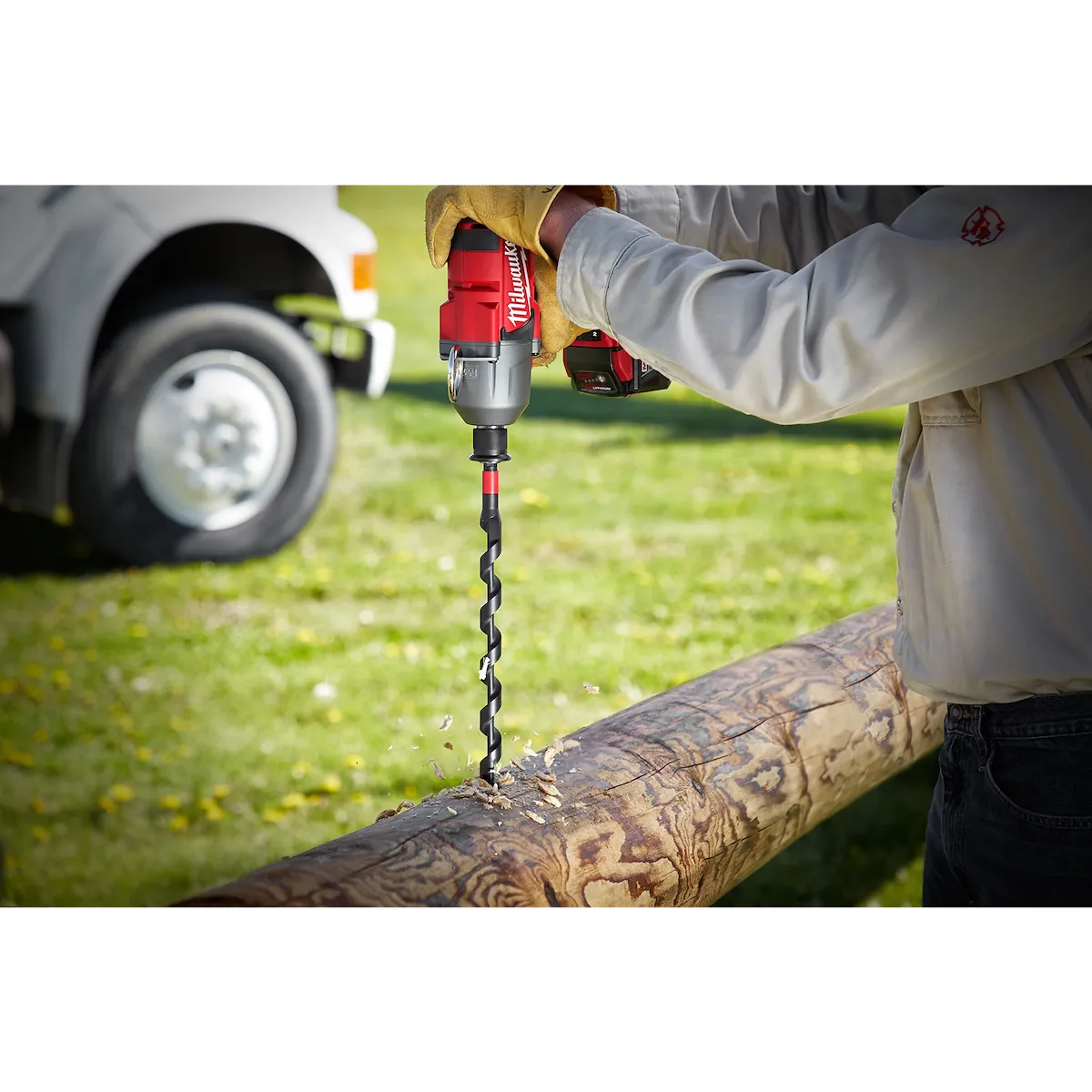

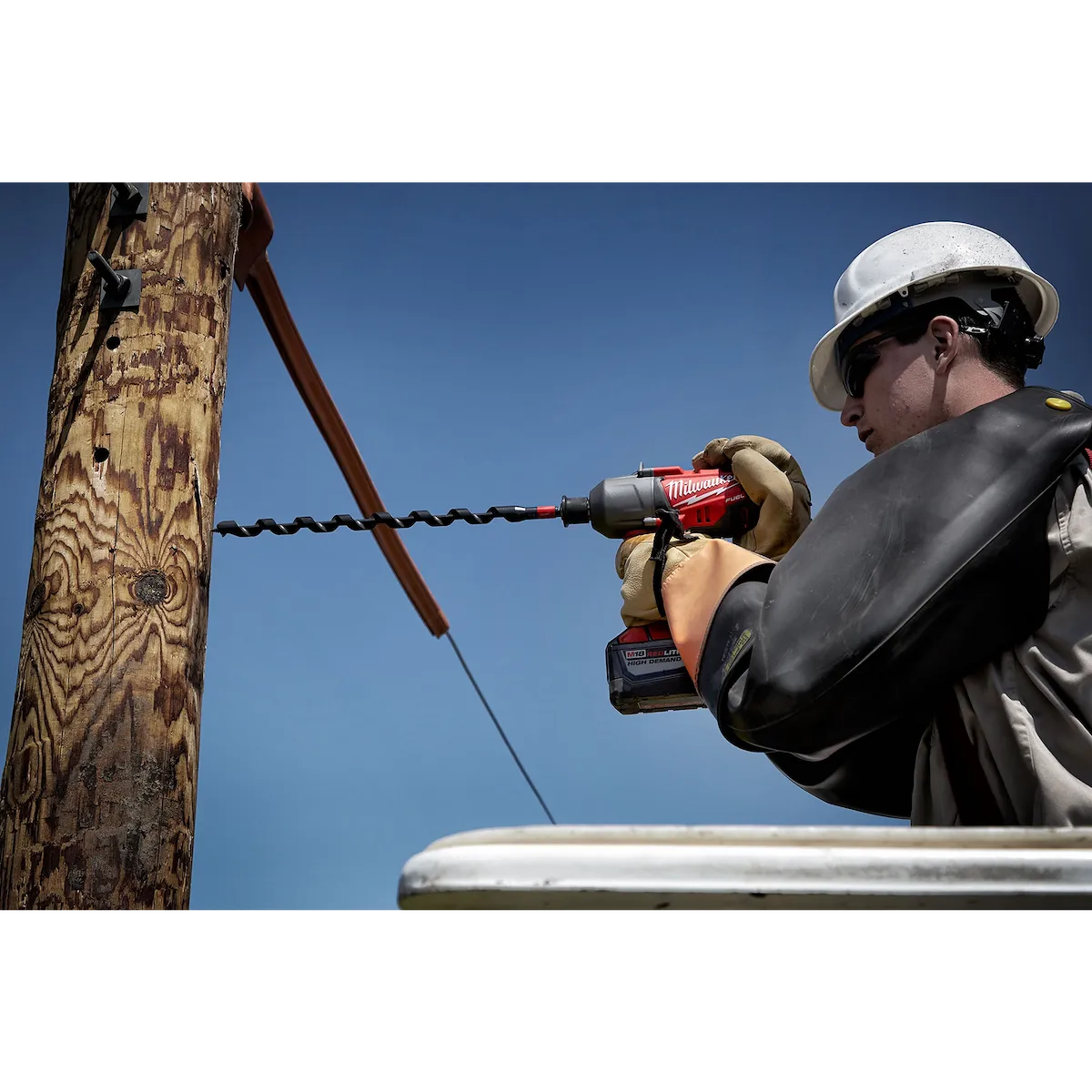

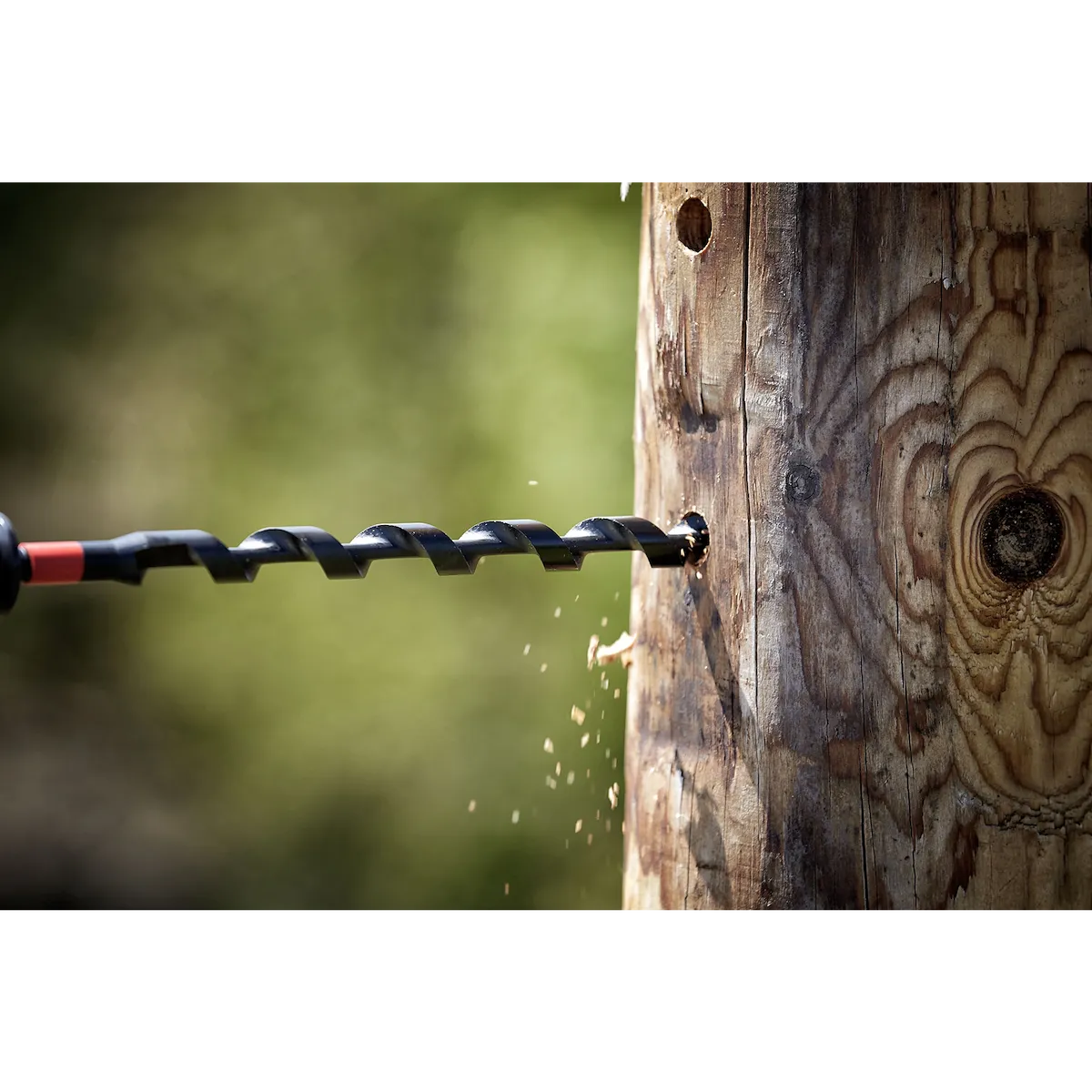

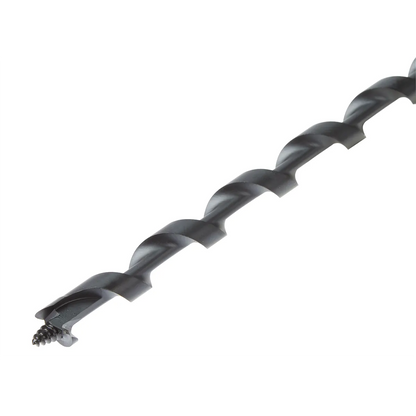

The SHOCKWAVE Lineman's Impact Auger Bits are engineered to deliver cleaner, faster holes in wooden utility poles. They feature a single spur design, which scores the edge of the hole, creating a cleaner finish that allows bolts to slide through without resistance. The bits are coated with a reinforced anti-friction PTFE coating for overall smoother drilling and easier removal of the bit from the pole. The aggressive feed screw and cutting edge pull the bit through the material while the optimized wide flute geometry quickly ejects the chips to clear the hole and reduce clogs, leading to overall faster drilling speeds.
- 7/16" hex shank for quick connection into 7/16" quick connect chucks
- Aggressive Feed Screw and Cutting Edge for faster drilling speeds.

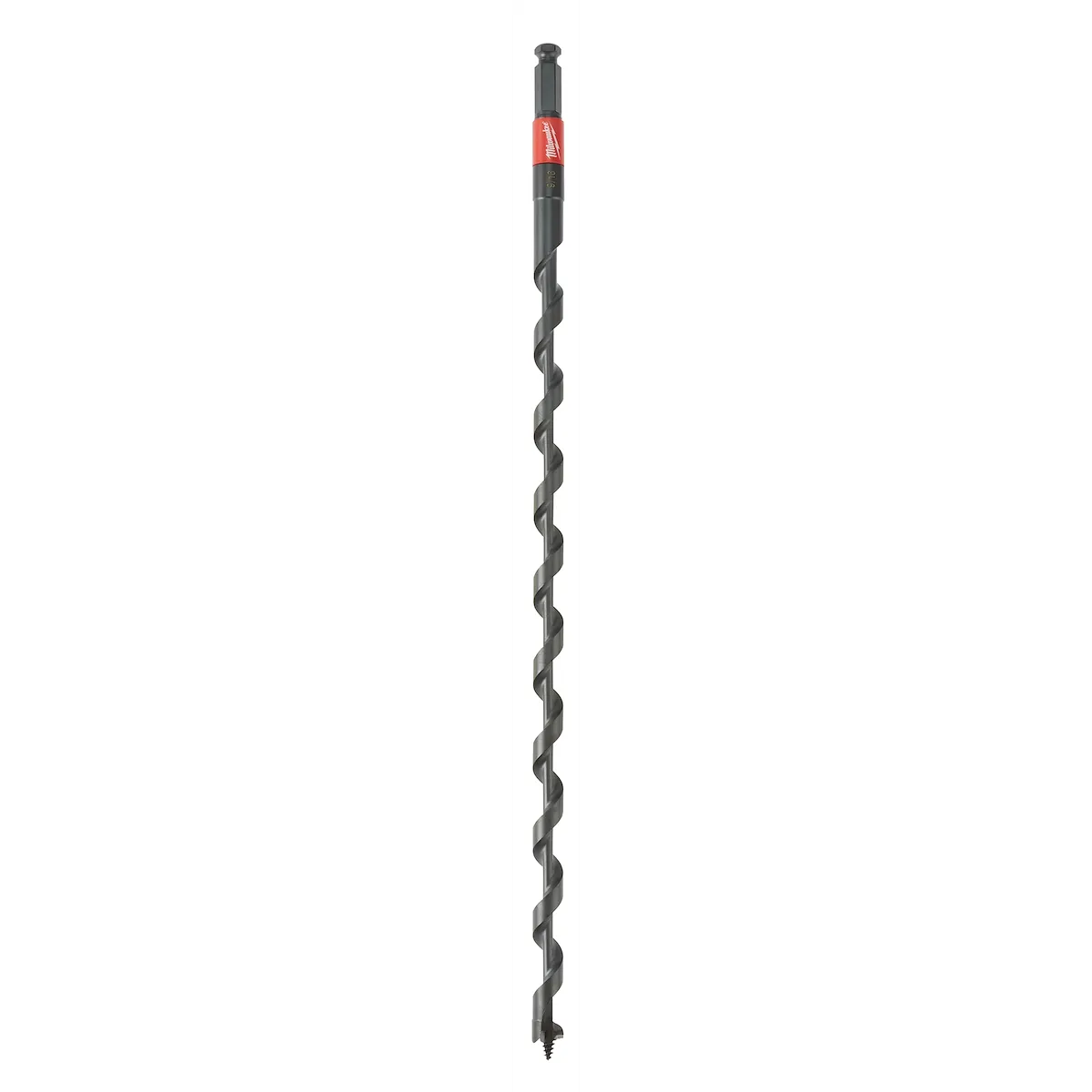

- Available in 18" and 24" lengths
- Designed for drilling into wooden utility poles.
- Engineered for the Power Utility Lineman to drill cleaner, faster holes in wooden utility poles.
- Optimized Wide Flute Geometry for faster chip ejection
- Recommended for clean wood only.
- Reinforced Anti-Friction PTFE Coating for overall smoother drilling
Specifications
| Bit Diameter | 9/16 in |
|---|---|
| Bit Type | Auger |
| Drill Bit Type | Auger Bit |
| Drilling Depth | 15 in |
| Flute Length | 15 in |
| Material Application | Wood |
| Number of Pieces Included | 1 |
| Pack Quantity | 1 |
| Shank Size | 7/16 in |
| Shank Style | Hex |
| Useable Length | 15 in |
| Cutting Depth | 15 in |
| Pack Qty | 1 Pack |
| Material Composition | Steel |
| Shank | Hex |
Part Number Cross-Reference
| Option | Milwaukee Part # | ORS Item # | UPC |
|---|---|---|---|
| 9/16" | 48-13-6703 | 495-48-13-6703 | 0045242503407 |
| 13/16" | 48-13-6707 | 495-48-13-6707 | 0045242503421 |
| 15/16" | 48-13-6709 | 495-48-13-6709 | 0045242503438 |
