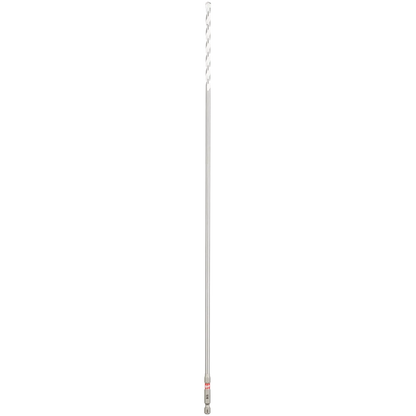

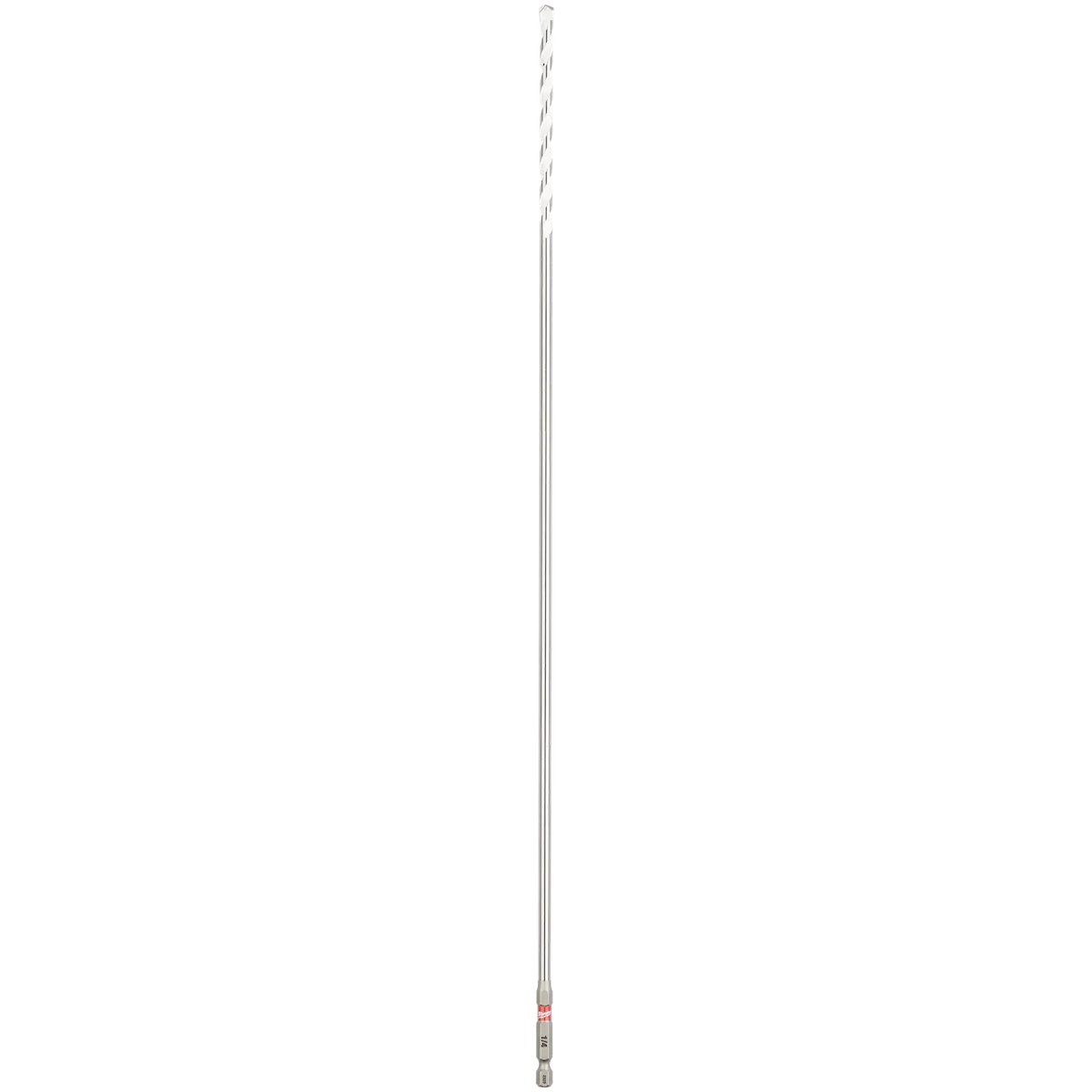

Our SHOCKWAVE Impact Duty Carbide Multi-Material Bellhanger Bits are the most versatile bellhanger bits, designed to tackle materials such as brick, block, concrete, steel, aluminum, ceramic tile, backerboard, wood, PVC, and drywall for small wire system installation. Designed with a hole in the tip for cable & wire pulling applications when installing computer, security, phone, and cable systems. These installer bits, standing at 18” in length, provide extra reach for complete through-hole applications. The bits feature an aggressive multi-grind carbide tip, which delivers up to 10x longer life in stacked materials and up to 85% faster drilling speeds in metal. Equipped with a 1/4" hex shank, these general-purpose bits are compatible with impacts, drill/drivers, and hammer drills. MILWAUKEE SHOCKWAVE Impact Duty Multi-Material Bellhanger Bits provide the ideal all-in-one solution for wire-pulling applications.
- The Most Versatile Bellhanger Bit.

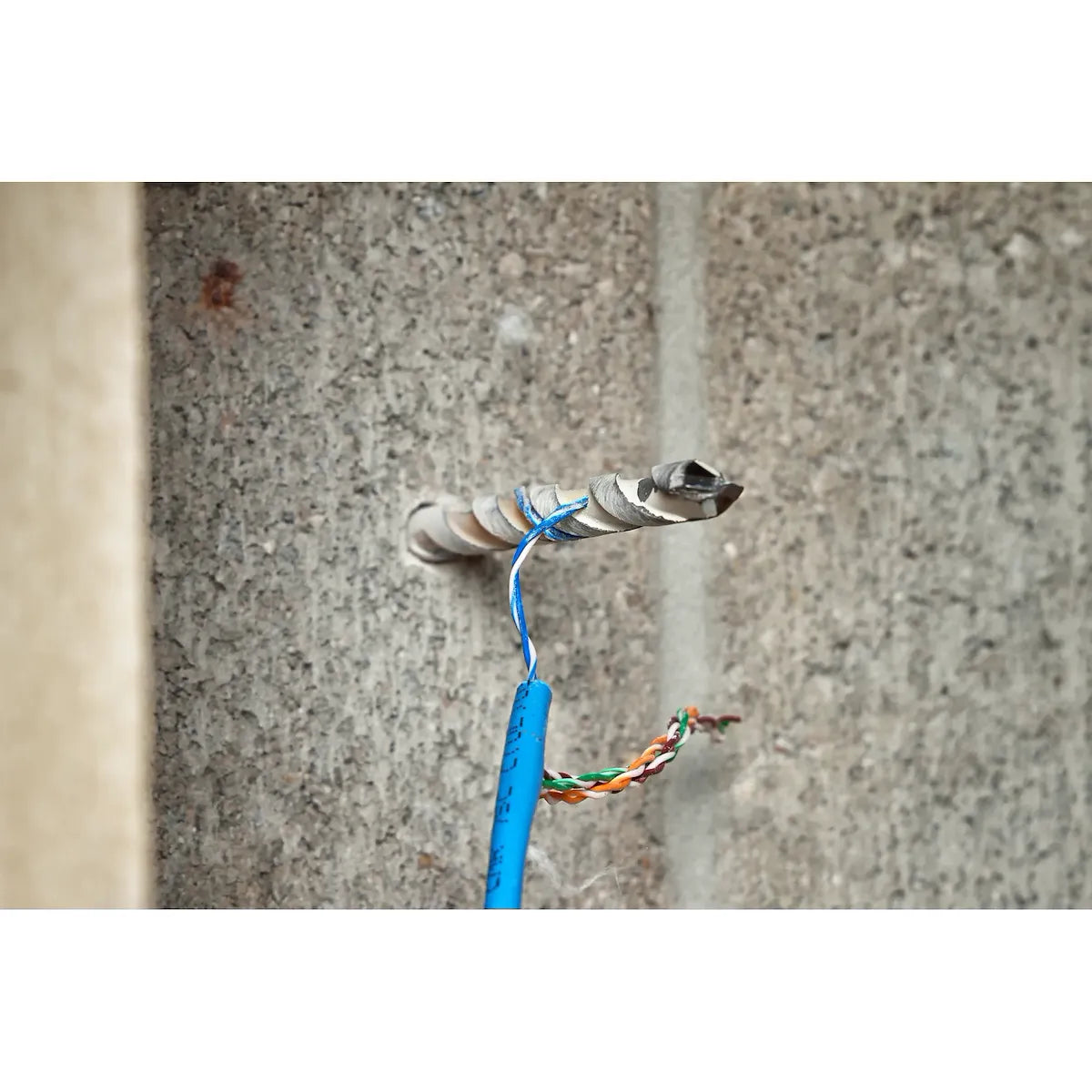

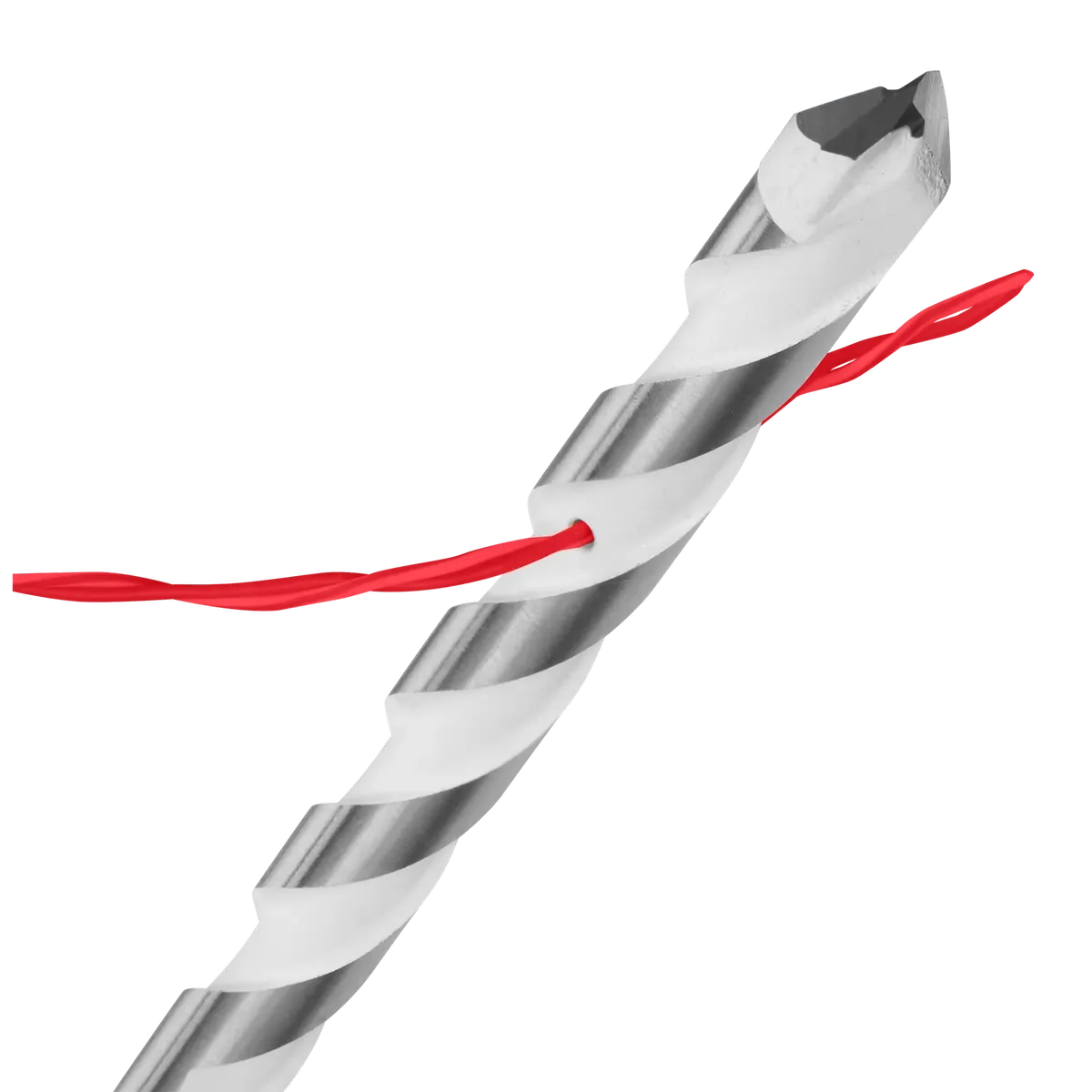

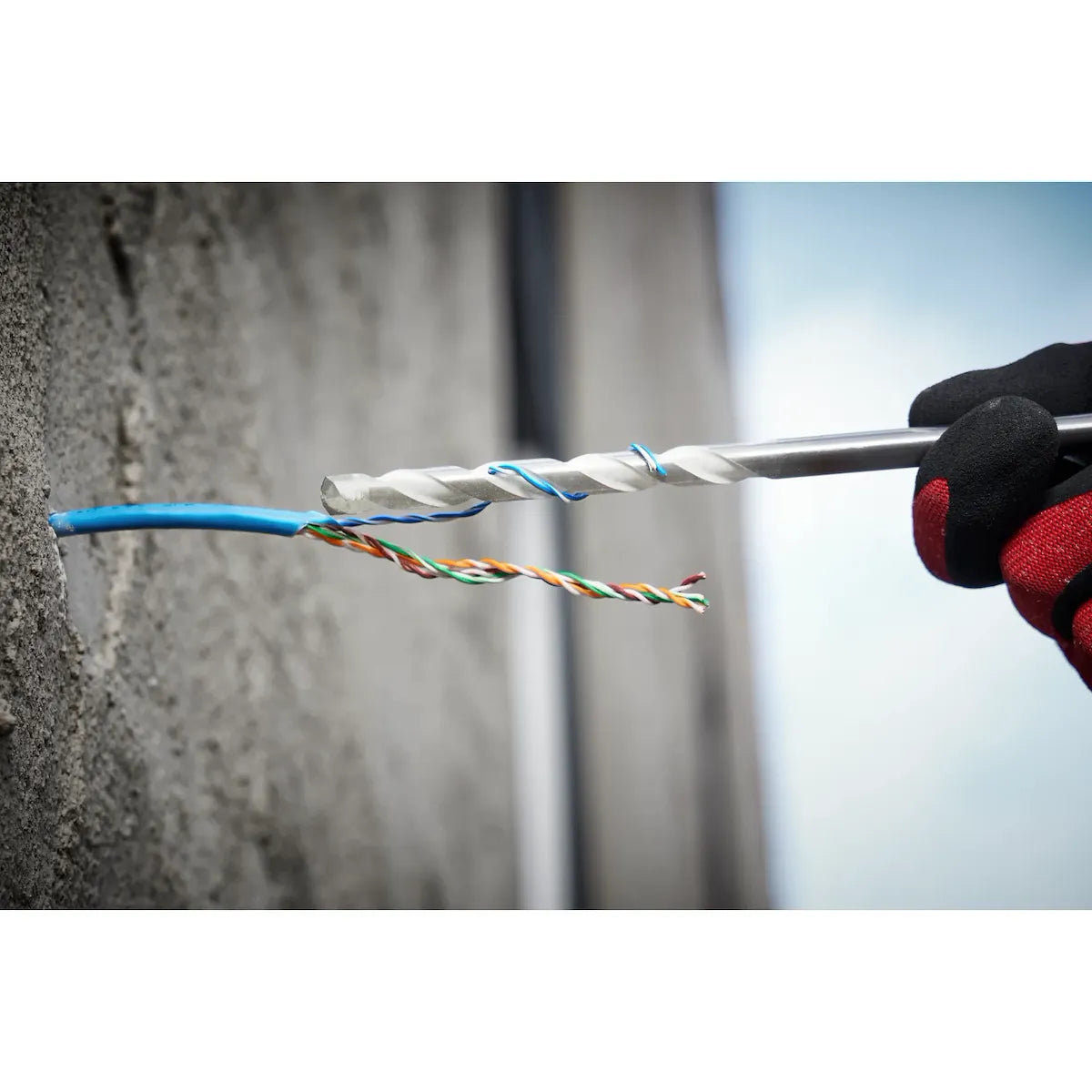

- Designed with a pull-through hole in the tip for cable & wire pulling applications
- For use with brick, block, concrete, steel, aluminum, ceramic tile, backer-board, wood, PVC, stucco, and drywall
- Up to 10x longer life in stacked materials
- Up to 85% faster in metal vs. standard masonry drill bits
- For installing small wire systems including computer, security, phone, cable, and tv systems

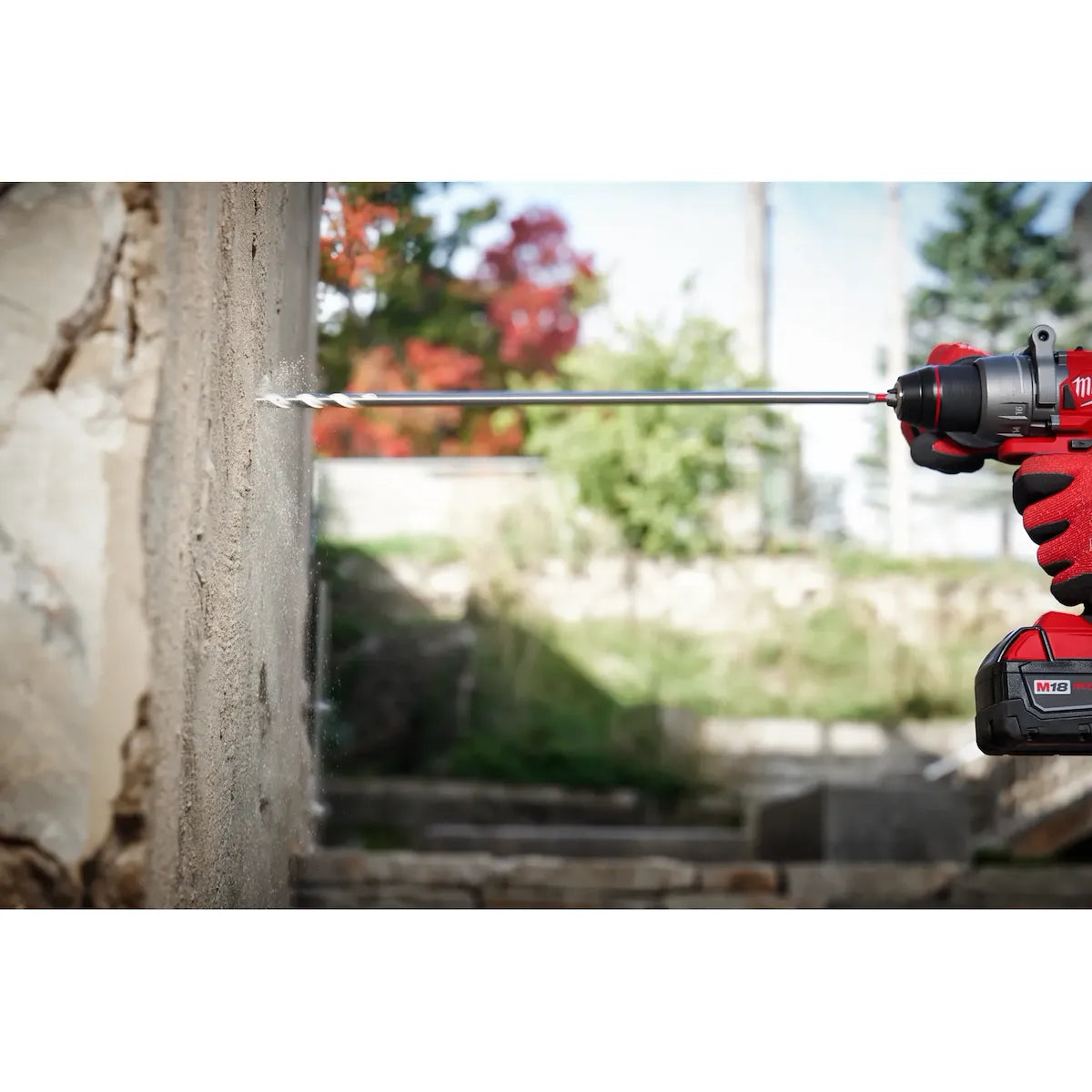

- SHOCKWAVE Impact Duty engineered for hammer drills and impacts

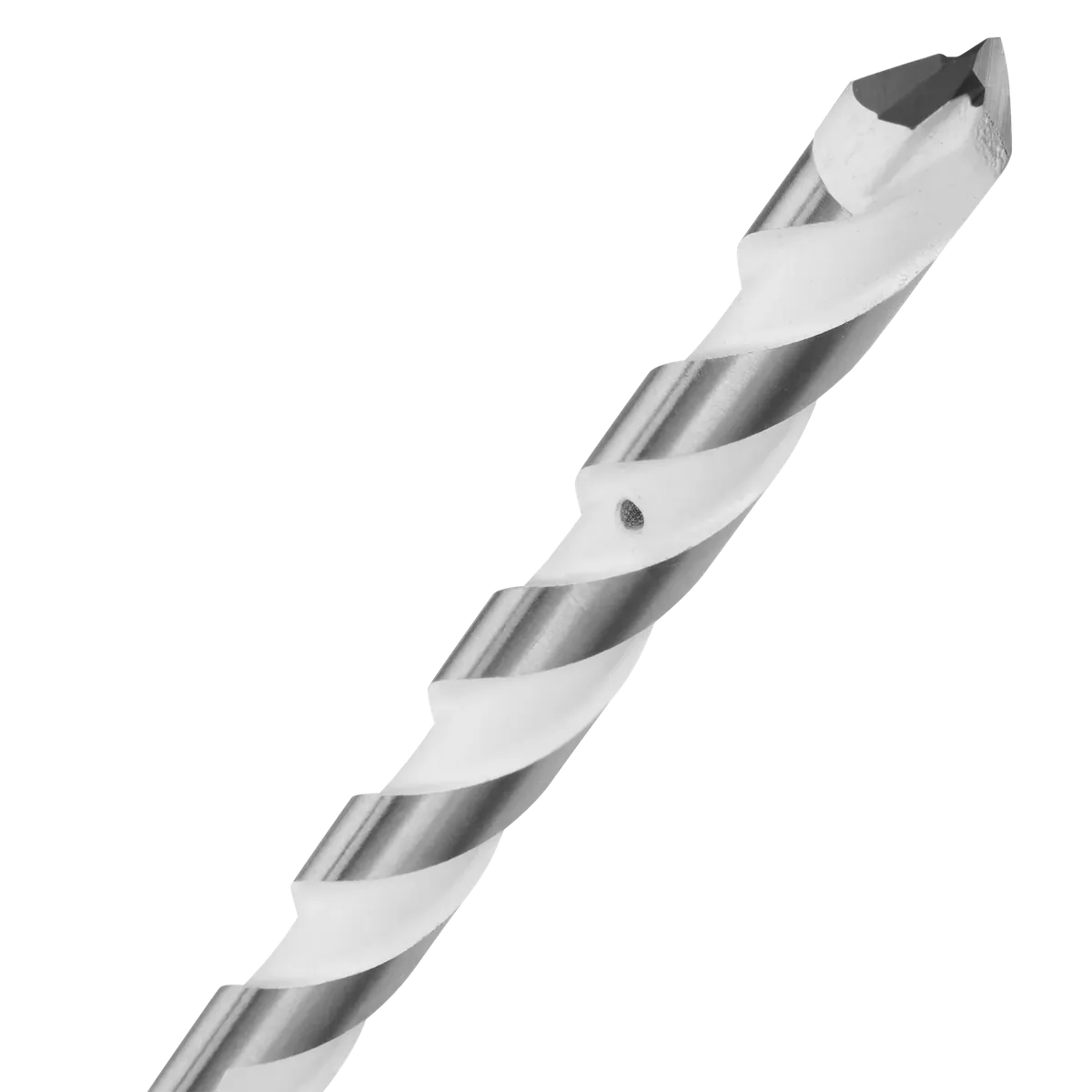

- Durable carbide tip for a wide range of tough applications
Specifications
| Bit Type | Installer |
|---|---|
| Drill Bit Type | Percussion Bit |
| Drilling Depth | 16 in |
| Flute Length | 16 in |
| Kit Type | Non-Kit |
| Material Application | Multi-Purpose |
| Number of Pieces Included | 1 |
| Pack Quantity | 1 |
| Shank Size | 1/4 in |
| Shank Length | 1.5 in |
| Shank Style | Hex |
Part Number Cross-Reference
| Option | Milwaukee Part # | ORS Item # | UPC |
|---|---|---|---|
| 1/4" | 48-20-8860 | 495-48-20-8860 | 045242798476 |
| 5/16" | 48-20-8862 | 495-48-20-8862 | 045242798483 |
| 3/8" | 48-20-8864 | 495-48-20-8864 | 045242798490 |
| 1/2" | 48-20-8866 | 495-48-20-8866 | 045242798506 |
