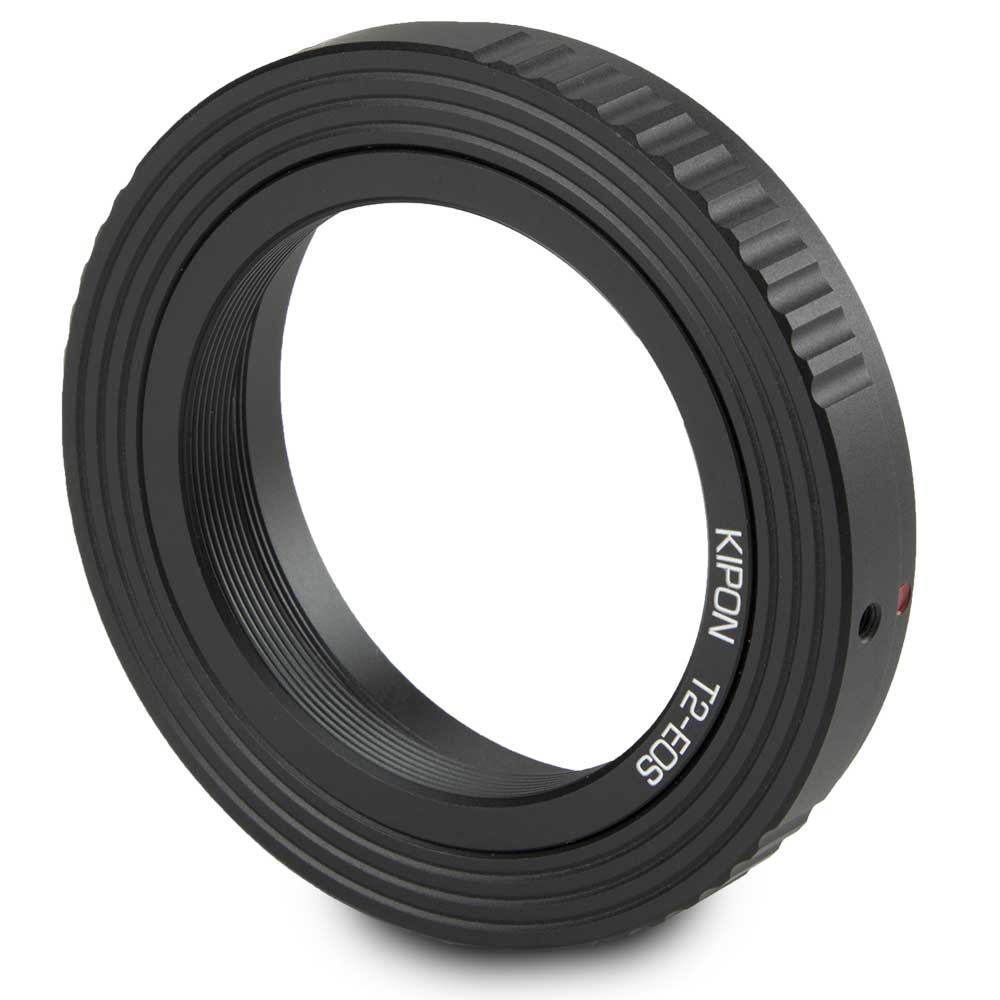

Globe Scientific T2 Ring Adapter for Canon EOS SLR Digital Cameras (EAE-5040) — Microscope Photomicrography

The Globe Scientific T2 Ring for Canon EOS SLR Cameras (EAE-5040) is a brand-specific adapter that connects Canon EOS digital SLR cameras to microscopes for photomicrography. This T2 ring threads into the universal EAE-5130 adapter (sold separately, with built-in 2x objective), which fits into any standard 23.2mm trinocular tube. Together, these two components allow you to capture photomicrographs directly through your Canon EOS camera's sensor.

Two-Component Adapter System

DSLR photomicrography on Globe Scientific microscopes requires this brand-specific T2 ring plus the universal EAE-5130 adapter (sold separately). The EAE-5130 provides the optical relay with a built-in 2x objective that projects the microscope image onto the camera sensor. The T2 ring provides the mechanical connection to the Canon EOS EF/EF-S lens mount. Both components are necessary — neither works alone.

Compatible Canon Cameras

This T2 ring fits Canon cameras with the EOS EF and EF-S mount, including the Rebel series (T7, T8i, SL3), EOS 90D, EOS 7D Mark II, EOS 5D Mark IV, EOS 6D Mark II, and other EF/EF-S mount models. It does not directly fit Canon EOS R-series mirrorless cameras (RF mount) without an additional EF-to-RF adapter (third-party, not supplied by Globe Scientific).

Canon vs. Nikon: Choosing the Right T2 Ring

The T2 thread standard is universal — the optical interface is identical. The only difference between the EAE-5040 (Canon) and EAE-5025 (Nikon) is the camera-side mount flange. Purchase the ring that matches your specific camera body. If your lab has both Canon and Nikon cameras, you need both T2 rings but only one EAE-5130 universal adapter.

Setting Up Canon EOS Photomicrography Step by Step

Assembly is identical to the Nikon process with one difference — the Canon EOS mount uses a different bayonet rotation: (1) Thread the EAE-5040 T2 ring onto the EAE-5130 universal adapter. (2) Align the red dot on the T2 ring with the red dot on your Canon camera body, twist clockwise until it locks. (3) Insert the EAE-5130's 23.2mm tube into your trinocular microscope's photo port. (4) Set the camera to manual or aperture-priority mode. (5) Use Live View for focusing — the optical viewfinder will show a dim image since there is no lens to transmit focus confirmation data. All focus adjustment is done through the microscope's focus knobs.

Canon-Specific Advantages for Photomicrography

Canon EOS cameras offer Dual Pixel CMOS AF in Live View on newer models, which can sometimes assist with focus confirmation even through the T2 adapter — though manual focus via microscope controls remains more reliable. Canon's Magic Lantern firmware (available for some models) adds features useful for photomicrography: focus peaking overlay in Live View, intervalometer for time-lapse capture of live specimens, and exposure bracketing for HDR micrographs of high-dynamic-range specimens like H&E stained tissue sections. These are advanced features beyond standard use but demonstrate the flexibility of using a full DSLR versus a dedicated microscope camera.

Technical Specifications

• SKU: EAE-5040

• Type: T2-to-Canon-EF/EF-S-mount adapter ring

• Required Companion: EAE-5130 universal adapter with 2x objective (sold separately)

• Microscope Requirement: Standard 23.2mm trinocular tube

• Manufacturer: Globe Scientific (Euromex)
