Lab Flask Types Explained: Erlenmeyer, Volumetric, Round-Bottom

The right lab flask type isn’t about personal preference — it’s about matching vessel geometry to what the liquid needs to do. Erlenmeyer, volumetric, and round-bottom flasks each do one job exceptionally well and perform poorly when forced into the wrong role. In our experience working with research, clinical, teaching, and industrial labs, flask selection errors show up constantly: volumetric flasks used for heating, round-bottom flasks left sitting on benches without cork rings, Erlenmeyers used to prep standard solutions where the ±0.5% tolerance matters. This guide fixes that.

Why Flask Shape Isn’t Arbitrary

Every flask shape is an engineering decision. The geometry directly controls 4 things that matter for lab work:

• Heat distribution — Round bottoms distribute thermal stress evenly across the glass surface. Flat bottoms concentrate stress at the base-wall junction under direct heat.
• Mixing efficiency — Conical shapes direct swirling liquid toward the center, keeping it in contact with the reaction zone. Round bottoms allow full vortex circulation.
• Evaporation rate — Wide mouths accelerate evaporation during open reflux. Narrow necks on volumetric flasks minimize it to protect solution concentration.
• Volume accuracy — Volumetric flasks have a single calibration line at one precise volume. Erlenmeyers and round-bottom flasks have rough graduation markings — they are not volumetric instruments.

Erlenmeyer Flasks: The Workhorse of the Lab

The Erlenmeyer flask (also called a conical flask or titration flask) is the most-used flask in the lab for good reason. Its flat base, tapered conical body, and cylindrical neck solve more everyday problems than any other flask shape.

What Erlenmeyers are built for:

• Mixing and swirling — The tapered base funnels liquid back toward the center on every swirl. You can mix aggressively without splashing. This is why they’re the default flask for titrations, microbiology culture work, and reaction monitoring.
• Heating on a hot plate — The flat base provides full contact with a hot plate surface. For direct heating of aqueous solutions up to boiling, an Erlenmeyer on a hot plate with a stir bar is the standard setup.
• Filtration setups — An Erlenmeyer fits under a Büchner funnel for gravity filtration. The side-arm version (vacuum filtration flask) is a direct Erlenmeyer derivative.
• Culture and incubation — Wide-mouth Erlenmeyers with or without baffles are standard in microbiology for shake-flask cultures. The conical shape is aerobically efficient and fits most orbital shakers.
• Storage — Erlenmeyers accept standard stoppers and parafilm, and are appropriate for short-term solution storage that doesn’t require volumetric integrity.

Where Erlenmeyers fail:
They carry graduation marks but those marks are reference only — tolerances of ±5–10% at working volumes. Never use an Erlenmeyer to prepare a standard solution, a dilution series, or any solution where concentration accuracy matters. The graduation marks exist to help you avoid overfilling, not to measure volume precisely.

Globe Scientific and Heathrow Scientific Erlenmeyers available at LabSupplies.com are manufactured from 3.3 borosilicate glass — chemically resistant, thermally stable, and ships from the USA.

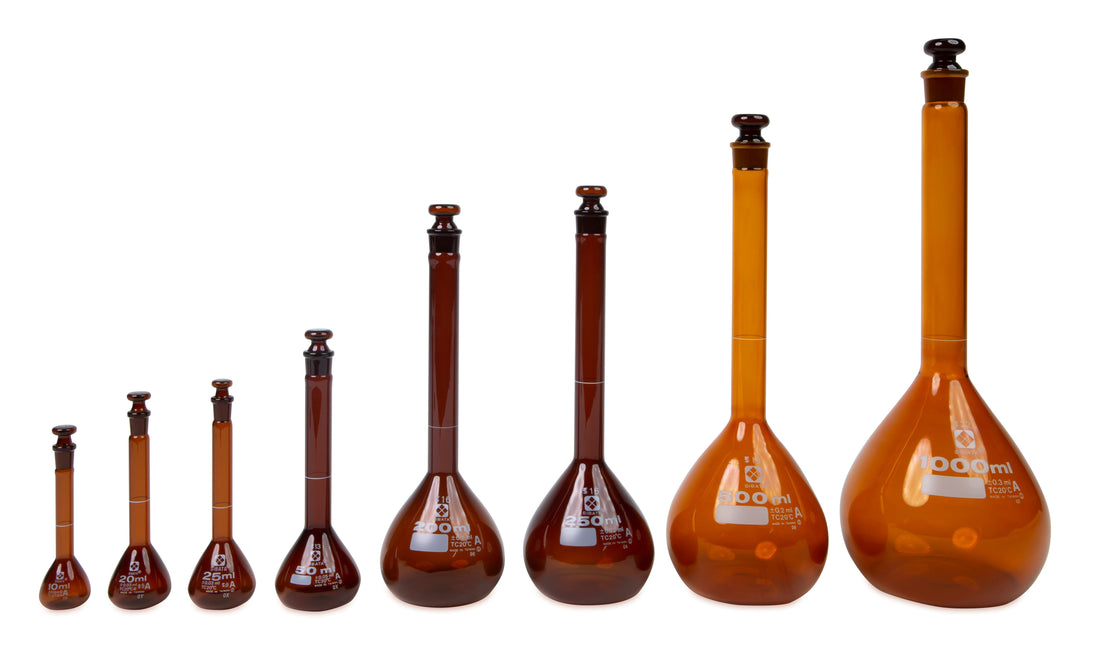

Volumetric Flasks: Precision First, Nothing Else

A volumetric flask does exactly one thing: it holds one specific volume at one specific temperature with maximum possible accuracy. Everything about its design — the pear-shaped body, the long narrow neck, the single etched calibration line — serves that purpose.

Volumetric flasks are calibrated TC (“To Contain”): the flask holds the stated volume at 20°C. This is the opposite of most other volumetric ware (graduated cylinders, pipettes) which are TD (“To Deliver”). The distinction matters when you’re calculating concentrations — TC means you add solute, bring to volume, and the volume in the flask is the denominator in your concentration calculation.

ASTM E288 and Class A tolerance:

Flask Volume	Class A Tolerance (±mL)	Class B Tolerance (±mL)
5mL	±0.020 mL	±0.040 mL
10mL	±0.020 mL	±0.040 mL
25mL	±0.030 mL	±0.060 mL
50mL	±0.050 mL	±0.100 mL
100mL	±0.080 mL	±0.160 mL
250mL	±0.120 mL	±0.240 mL
500mL	±0.200 mL	±0.400 mL
1000mL	±0.300 mL	±0.600 mL
2000mL	±0.500 mL	±1.000 mL

Source: ASTM E288

A 1000mL Class A volumetric flask delivers your solution within ±0.3mL — a 0.03% error. That level of accuracy is what you need when making 1.000 M stock solutions, preparing HPLC mobile phases, or running titrations.

What volumetric flasks are built for:

• Preparing standard solutions of known exact concentration
• Serial dilution to precise concentration targets
• Analytical chemistry sample prep (HPLC, AAS, ICP-MS)
• Pharmaceutical formulation under USP standards
• Any workflow where concentration error in the stock propagates to every downstream data point

What volumetric flasks are NOT for:
Never heat a volumetric flask. Never use it as a mixing vessel or reaction vessel. The narrow neck prevents adequate mixing, the glass is calibrated at 20°C (heating changes the volume), and the long neck is mechanically fragile under thermal stress. Prepare your solution in the volumetric flask, transfer it, and store it in a properly stoppered reagent bottle.

Heathrow Scientific volumetric flasks available at LabSupplies.com are made from premium borosilicate glass with a low expansion coefficient, feature sharply defined graduation lines, and meet both ASTM E288 Class A specifications and USP glassware standards. Available with glass stopper or snap cap from 5mL to 2000mL. Ships from the USA.

As an authorized dealer for Heathrow Scientific, we work directly with their engineering teams and can help you spec the right volumetric ware for your application. Reach out at support@labsupplies.com.

Browse our full lab flasks collection to compare Erlenmeyer, volumetric, and round-bottom options →

Round-Bottom Flasks: Built for Heat and Distillation

The round-bottom flask (RBF) is the correct flask when your application involves serious heat — distillation, reflux, rotary evaporation, or synthesis reactions at high temperature. The spherical geometry distributes thermal stress evenly across the entire surface, eliminating the stress concentration points that cause flat-bottom flasks to crack under direct flame or oil bath heating.

What round-bottom flasks are built for:

• Distillation and reflux — RBFs mount directly to distillation apparatus via standard ground-glass joints (most commonly 14/20, 24/40, or 29/32). The round bottom sits in an oil bath, sand bath, or heating mantle for uniform heat distribution.
• Rotary evaporation — Rotovap flasks are round-bottom by design. The spherical surface provides maximum contact with the warm bath water, and the shape prevents solid residues from getting trapped in corners during concentration.
• Synthesis reactions — Any reaction requiring reflux uses an RBF. Multi-neck variants (2-neck, 3-neck) allow simultaneous reflux, addition, and temperature monitoring.
• Vacuum applications — Round bottoms withstand vacuum without imploding far better than flat-base or conical flasks. If you’re running a vacuum distillation, use an RBF.

Where round-bottom flasks require care:
They cannot stand upright on a bench without a cork ring, clamp stand, or flask support. This is the most common lab accident involving RBFs. Always use a cork ring or flask stand — never set an RBF down unsupported.

Standard joint sizes:

• 14/20 — Small-scale synthesis and distillation (25–250mL flasks)
• 24/40 — The most common size; fits most standard distillation glassware kits (100–2000mL)
• 29/32 — Large-scale synthesis (1000mL+)

Flask Type Comparison: Quick-Reference Decision Matrix

Feature	Erlenmeyer Flask	Volumetric Flask	Round-Bottom Flask
Primary use	Mixing, culture, titration, heating	Preparing exact-concentration solutions	Distillation, reflux, rotary evaporation
Volume accuracy	±5–10% (reference marks only)	±0.02–0.5mL (ASTM E288 Class A)	±5–10% (reference marks only)
Calibration type	None (approximate)	TC — To Contain at 20°C	None (approximate)
Can be heated directly?	Yes — hot plate, flame	No	Yes — oil bath, heating mantle, flame
Sits upright on bench?	Yes — flat base	Yes — flat base	No — requires cork ring or stand
Fits standard ground-glass joints?	No	No	Yes — 14/20, 24/40, 29/32
Standard size range	25mL – 5000mL	5mL – 2000mL	25mL – 5000mL
Compliance documentation	None required	Batch cert (Class A)	None required
Autoclavable (borosilicate)?	Yes	Not recommended	Yes
Best material	Borosilicate 3.3 glass or PP	Borosilicate 3.3 glass	Borosilicate 3.3 glass

Specialty Flask Types Worth Knowing

Büchner (Filter) Flask — A thick-wall Erlenmeyer with a side arm for vacuum filtration. The heavy wall is critical — a standard Erlenmeyer will implode under vacuum. Never substitute a standard Erlenmeyer for vacuum filtration. Heathrow Scientific filter flasks at LabSupplies.com are constructed from heavy-wall borosilicate glass rated for high vacuum.

Kjeldahl Flask — A round-bottom flask with an elongated, pear-shaped neck designed specifically for Kjeldahl nitrogen determination. The long neck reduces splashing during digestion. Used primarily in food testing, environmental, and agricultural labs per AOAC Official Methods.

Pear-Shaped (Pearform) Flask — A rotary evaporation flask with a “rounded V” base. Solid residues can be scraped out from the base angle more efficiently than from a full round-bottom flask, making it the preferred choice for evaporating to dryness during synthesis.

Fernbach Flask — A wide, flat-bottom culture flask used for large-volume microbial fermentation. The wide base dramatically increases surface-to-volume ratio and dissolved oxygen transfer compared to a standard Erlenmeyer.

Borosilicate vs Soda-Lime vs Plastic: Material Selection

Borosilicate 3.3 glass (ASTM E438 Type I) is the correct material for the vast majority of lab flask applications. Its low thermal expansion coefficient (~3.3 × 10⁻⁶/K) means it resists cracking when transitioning between hot and cold environments. It’s chemically resistant to most acids, bases, and solvents (exception: hydrofluoric acid and hot concentrated alkalis).

Soda-lime glass is cheaper but thermally fragile — it cracks under rapid temperature changes and is not appropriate for heating applications. If you find soda-lime glassware in your lab inventory, restrict it to room-temperature liquid storage only.

Polypropylene (PP) flasks are required for hydrofluoric acid (HF) work, concentrated sodium hydroxide, and environments where glass breakage is a serious safety concern. PP flasks are not suitable for heating above ~121°C, organic solvents (acetone, toluene, hexane), or any application requiring volumetric accuracy.

See the lab glassware guide for a full breakdown of material selection across all glassware types, and the lab storage and safety guide for chemical compatibility charts.

How to Specify Flasks for a New Lab

When stocking a new lab, most setups require a core flask inventory. Here’s the practical starting point based on workflow type:

General research / analytical lab:

• Erlenmeyers: 125mL, 250mL, 500mL, 1000mL (6–12 each in borosilicate)
• Volumetric flasks: 10mL, 25mL, 50mL, 100mL, 250mL, 500mL, 1000mL (2–4 each, Class A with certs)
• Round-bottom flasks: 100mL, 250mL, 500mL, 1000mL (2–4 each, 24/40 joint)

Microbiology / cell culture lab:

• Erlenmeyers: 250mL, 500mL, 1000mL, 2000mL baffled and non-baffled
• Volumetric flasks: 100mL, 500mL, 1000mL Class A for media prep
• No RBFs typically required unless running chemical sterilization protocols

Teaching lab:

• Erlenmeyers: high quantity Class B or PP at 250mL and 500mL
• Volumetric flasks: 100mL and 250mL Class B (accuracy acceptable for most curricula)
• RBFs: 250mL and 500mL 24/40 with cork rings for distillation practicals

Frequently Asked Questions

What is the difference between an Erlenmeyer flask and a volumetric flask?

An Erlenmeyer flask is designed for mixing, heating, and culture work. Its graduation marks are approximate (±5–10%) and it should never be used to prepare solutions of exact concentration. A volumetric flask is a precision instrument with a single calibration mark meeting ASTM E288 Class A tolerances (as tight as ±0.02mL at 10mL). Use a volumetric flask any time concentration accuracy matters.

Can you heat a volumetric flask?

No. Volumetric flasks are calibrated at 20°C and are not designed for heat exposure. Heating causes thermal expansion that permanently alters the flask’s volume calibration, and the narrow neck concentrates thermal stress. Dissolve your solute using a beaker or Erlenmeyer, allow it to cool to room temperature, then transfer to the volumetric flask and bring to volume.

Why does a round-bottom flask have a round bottom?

The spherical geometry distributes thermal stress evenly across the entire glass surface, eliminating stress concentration points that cause flat-bottom vessels to crack under direct flame or oil bath heating. It also creates uniform fluid circulation during reflux and provides maximum surface contact with rotary evaporator water baths. The tradeoff is that RBFs cannot stand upright without a support — always use a cork ring or clamp stand.

What does “TC” mean on a volumetric flask?

TC stands for “To Contain.” The flask holds the stated volume at 20°C. This differs from “TD” (To Deliver) instruments like graduated cylinders and pipettes, which are calibrated for the volume that drains out. When preparing a solution in a volumetric flask, you bring the liquid level to the calibration mark — the volume in the flask is your total volume for concentration calculations.

What size flask should I use?

Match the flask to the volume of your solution with room to spare. For Erlenmeyers, fill to no more than 50% capacity to avoid splashing during mixing. For volumetric flasks, use the flask size that exactly matches your target volume. For round-bottom flasks in distillation, fill to 50–67% of capacity to allow vapor headspace.

---
