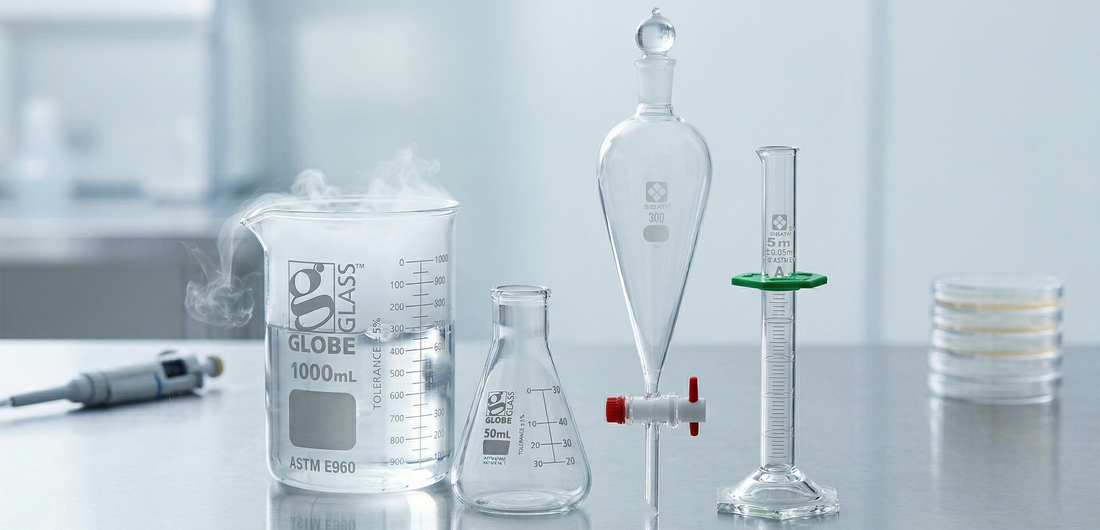

Lab Glassware 101: Types, Uses, and Care

Lab glassware is the one category every researcher takes for granted — until a beaker cracks on a hot plate, a graduated cylinder gives a 5% error, or a flask implodes under vacuum. After years of helping labs spec their glassware, we can tell you that most accuracy problems and most breakage come from the same root cause: using the wrong vessel for the job.

This guide gives you a precision hierarchy so you always pick the right vessel, a head-to-head material comparison so you never put soda-lime glass on a hot plate again, and a care protocol that extends the life of your glassware by years. Bookmark it — you'll come back to this page.

The Precision Hierarchy: Picking the Right Vessel for the Right Job

This is the section that will change how you think about glassware. Every vessel has an accuracy class, and most labs use the wrong one for measurement.

Vessel	Typical Accuracy (at 100mL)	Primary Purpose	Use It to Measure?
Volumetric Flask	±0.08mL (±0.08%)	Preparing solutions at exact concentrations	Yes — this is what it's for
Class A Graduated Cylinder	±0.50mL (±0.5%)	Measuring liquid volumes for transfer	Yes — the standard measuring tool
Class B Graduated Cylinder	±1.0mL (±1.0%)	Approximate volume measurement	Acceptable for non-critical work
Erlenmeyer Flask	±5mL (±5%)	Mixing, titration, reaction vessel	No — graduations are estimates only

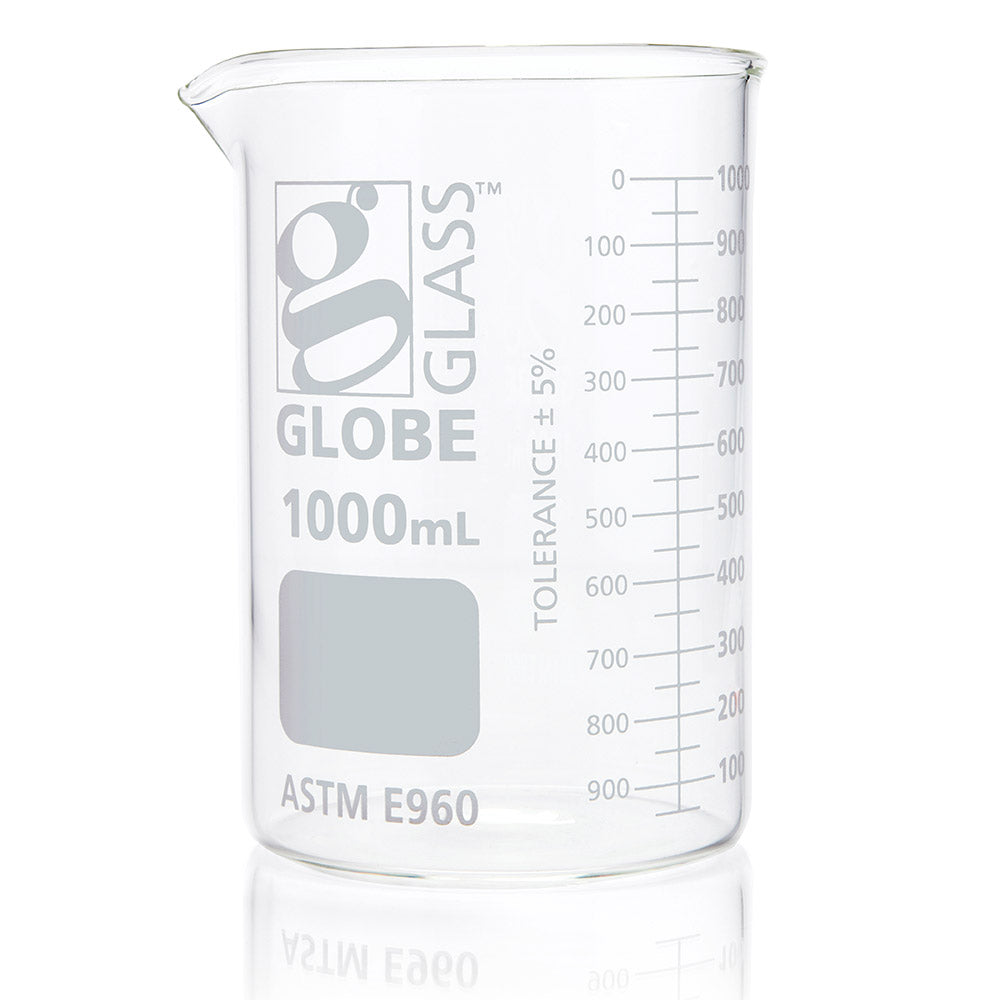

Beaker	±5mL (±5%)	Mixing, heating, holding, pouring	No — never use a beaker to measure

The takeaway: A 100mL beaker is accurate to about ±5%. A 100mL Class A volumetric flask is accurate to ±0.08%. That's a 60x difference. If your experiment requires anything better than ±5% accuracy, stop using beakers to measure. We see this mistake constantly — a researcher eyeballs 50mL of buffer in a beaker and wonders why their dilution series is inconsistent.

Use each vessel for what it was designed to do. Beakers hold and mix. Erlenmeyers contain reactions. Graduated cylinders measure. Volumetric flasks prepare exact concentrations. Match the tool to the task and your results improve overnight.

Browse our beakers and graduated cylinders at LabSupplies.com.

Every Flask Type Explained (With When to Actually Use Each One)

Flasks confuse people because there are so many shapes. Each shape exists for a specific reason — the geometry solves a physics problem. Here's the breakdown.

Flask Type	Shape Feature	Primary Use	Typical Sizes

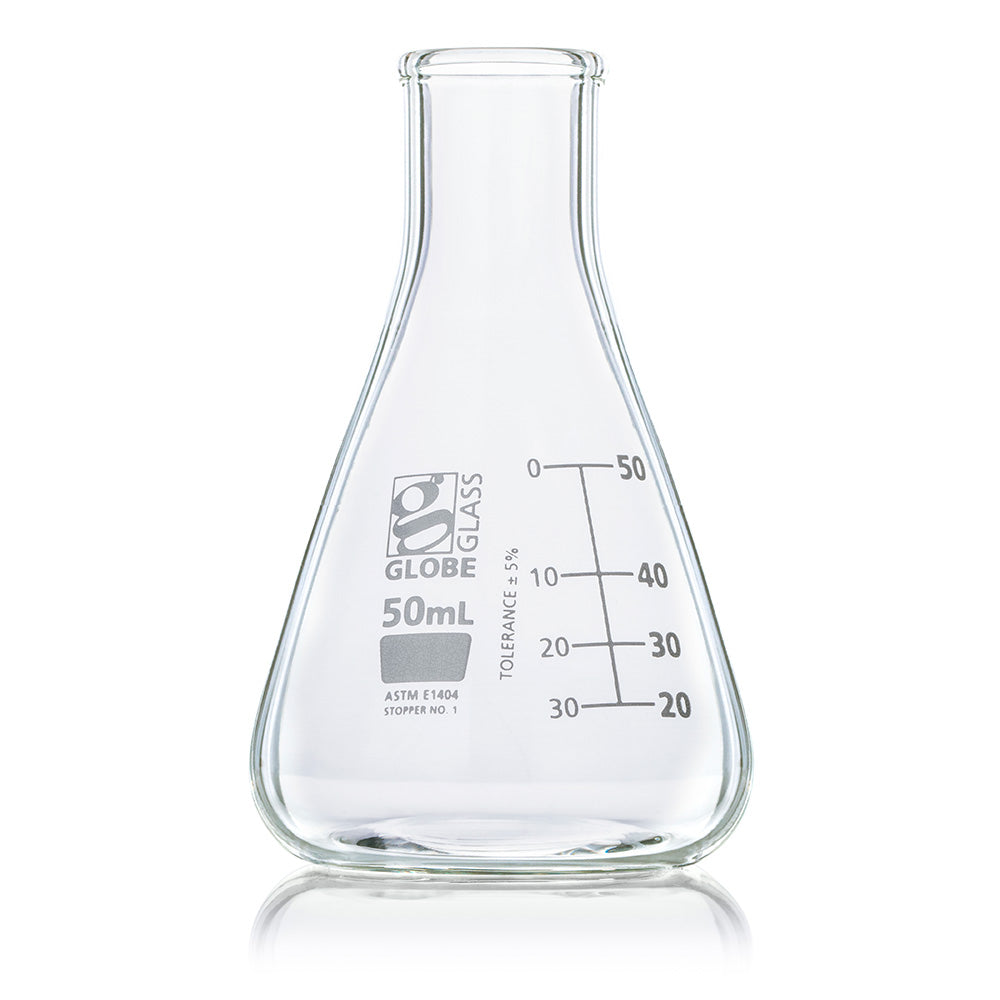

Erlenmeyer	Conical body, narrow neck	Mixing, titration, media prep, culturing	25mL – 5,000mL
Volumetric	Pear-shaped body, long narrow neck with single calibration line	Preparing solutions at exact concentrations	5mL – 2,000mL
Round-Bottom (Florence)	Spherical body, no flat base	Heating, distillation, rotary evaporation	50mL – 5,000mL
Boiling Flask	Round body, flat bottom	Heating liquids on flat surfaces (hot plates)	50mL – 2,000mL
Büchner / Filtering Flask	Heavy-wall Erlenmeyer with side-arm	Vacuum filtration (connects to vacuum pump)	125mL – 4,000mL
Distillation Flask	Round body with side-arm outlet	Simple distillation setups	50mL – 1,000mL

Ground-Glass Joints: What the Numbers Mean

If you see "24/40" stamped on a flask's neck, that's the ground-glass joint size. The first number (24) is the diameter in mm at the widest point of the taper. The second number (40) is the length of the taper zone in mm. Standard taper sizes you'll encounter:

• 14/20: Small — used on micro-scale glassware and small distillation setups
• 19/22: Medium — common on smaller flasks and adapters
• 24/40: The most common size in research and teaching labs. Most condensers, adapters, and stoppers default to 24/40.
• 29/42: Large — used on industrial-scale or large-volume setups

Compatibility rule: All components in a glassware assembly must use the same joint size. A 24/40 flask won't seal with a 19/22 condenser. When building a distillation or reflux setup, check every joint before you start heating.

Browse our lab flasks collection at LabSupplies.com.

Borosilicate vs Soda-Lime Glass: The Material Decision

This is the most important material decision in your lab glassware. Get it wrong and you get thermal shock fractures, chemical etching, or worse — an autoclave failure that sends hot glass shrapnel across your bench.

Property	Borosilicate 3.3	Soda-Lime
Thermal Expansion	3.3 × 10⁻⁶/K (very low)	9.0 × 10⁻⁶/K (nearly 3x higher)
Thermal Shock Resistance	Excellent — withstands rapid temp changes	Poor — cracks under sudden heating/cooling
Max Working Temp	~500°C	~250°C
Autoclavable	Yes (121°C, routine)	Risky — can crack from thermal stress
Chemical Resistance (acids)	Excellent	Moderate
Chemical Resistance (alkali)	Good (etches slowly with hot concentrated NaOH)	Poor (etches faster)
Resistance to Organic Solvents	Excellent	Excellent
Cost	1.5–2x more than soda-lime	Baseline
Best For	Heating, autoclaving, chemistry, any critical work	Room-temp storage, measurement, teaching labs where breakage cost matters

Our clear recommendation: Use borosilicate for anything involving heat, temperature cycling, or aggressive chemicals. Use soda-lime only for room-temperature measurement and storage where cost matters more than durability.

The Pyrex Gotcha That Catches Everyone

Here's a detail that no competitor mentions and that could save your lab a safety incident. The brand name "Pyrex" (lowercase "yrex") sold in the United States is now manufactured from tempered soda-lime glass, not borosilicate. It has been since Corning licensed the brand to World Kitchen (now Corelle Brands). The European brand "PYREX" (all caps) sold by International Cookware is still borosilicate.

If you have older Pyrex labware with the original Corning markings, it's borosilicate. If you purchased consumer-grade Pyrex recently in the US, it may be soda-lime. For lab use, always verify the glass type by checking for "Boro" or "Borosilicate 3.3" on the item — don't rely on brand name alone.

Our glassware at LabSupplies.com is clearly labeled by glass type on every product page. No guessing.

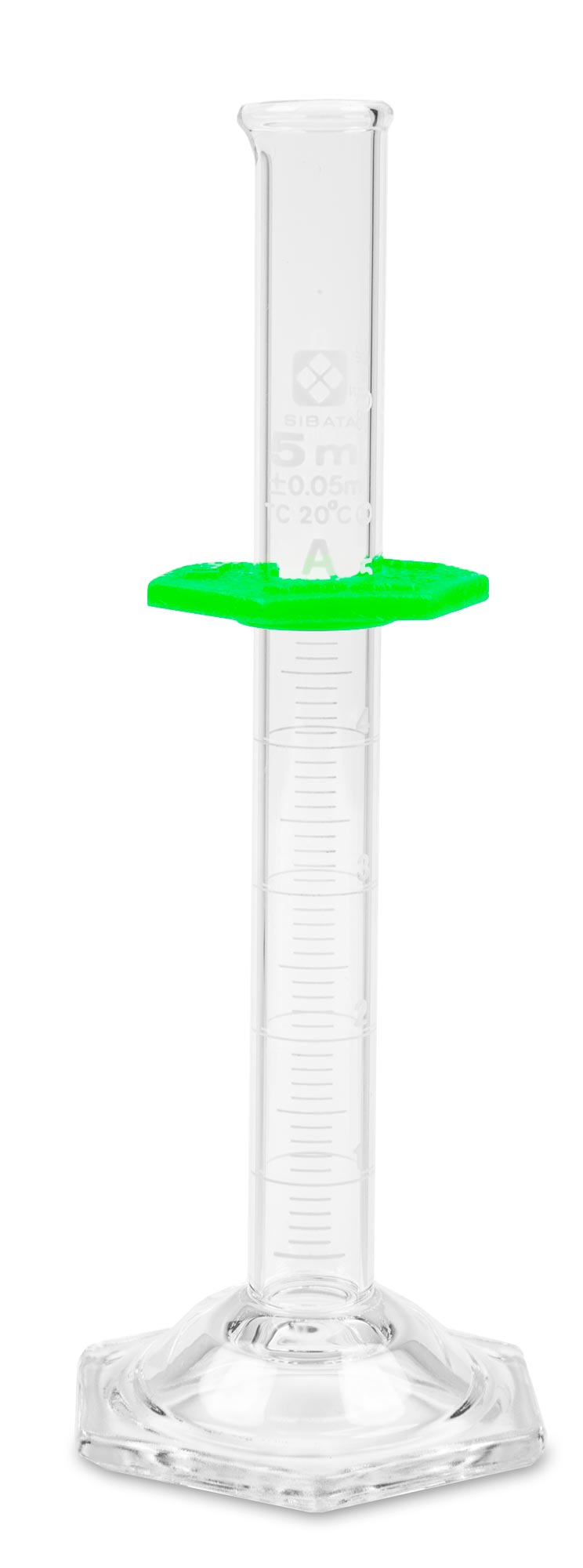

Graduated Cylinders: Class A vs Class B and Reading the Meniscus

Graduated cylinders are the standard tool for measuring liquid volumes. But not all cylinders are equal — and most labs don't check whether they're using Class A or Class B.

Class A vs Class B Tolerance

ASTM E1272 defines two accuracy classes for graduated cylinders. Class A has half the tolerance (twice the accuracy) of Class B.

Cylinder Size	Class A Tolerance	Class B Tolerance
10mL	±0.10mL	±0.20mL
25mL	±0.17mL	±0.34mL
50mL	±0.25mL	±0.50mL
100mL	±0.50mL	±1.00mL
250mL	±1.00mL	±2.00mL
500mL	±2.50mL	±5.00mL
1,000mL	±5.00mL	±10.00mL

For analytical work, quality control, or any measurement that feeds into a calculation, use Class A. For buffer prep, wash steps, and non-critical volumes, Class B saves money without meaningful consequence.

We carry ASTM E1272 certified Class A borosilicate graduated cylinders with dual-scale markings. Browse them in our graduated cylinders collection.

TD vs TC: A Detail That Matters for Analytical Chemistry

TD (To Deliver) cylinders are calibrated to deliver the stated volume when you pour. A small amount of liquid remains clinging to the walls — that's accounted for in the calibration. Most lab cylinders are TD.

TC (To Contain) cylinders are calibrated so the contained volume is exact. You'd need to rinse the cylinder to get the full stated volume out. TC is used when you're measuring a fixed volume to leave in the vessel (e.g., for dilution in the cylinder itself).

Check the marking on your cylinder: "TD" or "TC" is printed near the top. If you're pouring from the cylinder into another vessel, you want TD. If you're measuring a fixed volume to react inside the cylinder, you want TC.

Reading the Meniscus Correctly

Aqueous solutions form a concave meniscus (curves downward at the center). Read the volume at the bottom of the meniscus, with your eye at the same level as the liquid surface. Looking down reads high. Looking up reads low. This parallax error can add 0.5–2% to your measurement — enough to matter in analytical work.

Specialized Glassware: Separatory Funnels & Büchner Filtration

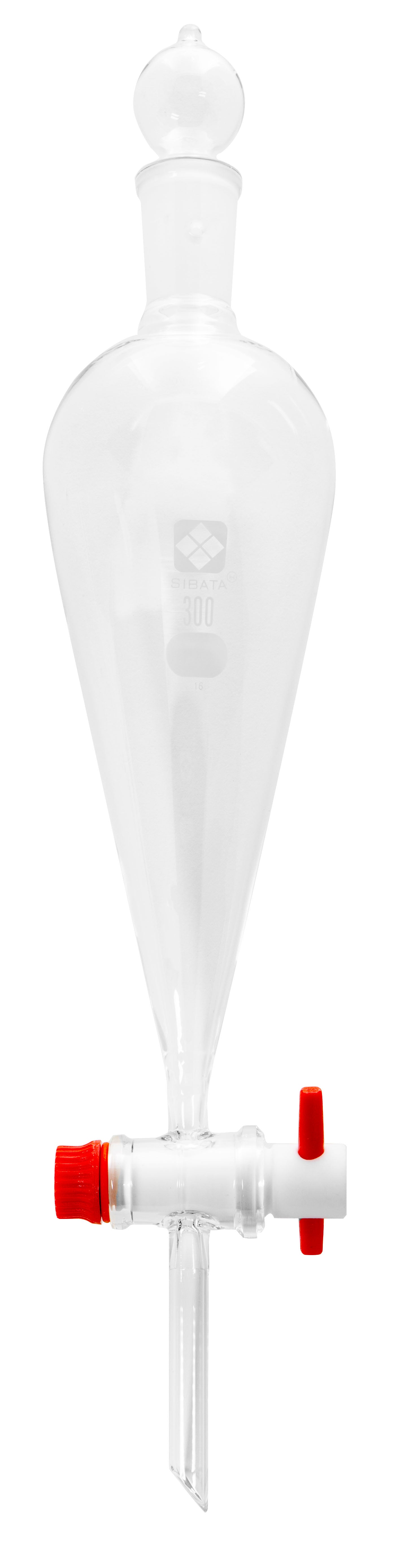

Separatory Funnels

Separatory funnels (sep funnels) are used for liquid-liquid extraction — separating two immiscible liquids (typically an aqueous layer and an organic solvent layer) based on density. The PTFE stopcock is critical: glass stopcocks can seize when exposed to organic solvents, while PTFE remains chemically inert and turns smoothly regardless of what you're running through it.

Key selection criteria: size (match to your extraction volume — the funnel should be no more than 2/3 full to leave room for venting), stopcock material (always PTFE for organic chemistry), and glass type (borosilicate mandatory for solvent work).

We carry Heathrow Scientific glass separatory funnels with PTFE stopcocks in multiple sizes. Browse them in our glassware collection.

Büchner Funnels & Vacuum Filtration

Büchner funnels are flat-bottomed funnels with a perforated plate that sits inside a filtering (side-arm) flask. You place filter paper on the plate, apply vacuum through the side-arm, and the pressure differential pulls liquid through the filter while solids are retained. It's dramatically faster than gravity filtration.

Material options: porcelain (traditional, acid-resistant, autoclavable, reusable for decades) or polypropylene (lighter, chemical-resistant, won't chip if dropped, but can't handle high-temperature drying). For routine aqueous filtration, PP works fine and costs less. For acid digestions or applications requiring autoclaving, porcelain is the standard.

We carry both porcelain Büchner funnels and polypropylene Büchner funnels at LabSupplies.com. Pair with our vacuum & filtration equipment for a complete setup.

Cleaning, Inspection & Storage

Dirty glassware gives you dirty data. And damaged glassware gives you a trip to the ER. Both are preventable.

Cleaning Protocol

• Immediately after use: Rinse with tap water, then deionized water. The longer residue sits, the harder it is to remove.
• For organic residue: Rinse with acetone or ethanol first (collect in waste), then wash with lab detergent and DI water.
• For stubborn residue: Soak in a base bath (2–5% NaOH or KOH in isopropanol) overnight. Avoid chromic acid cleaning solutions — they're an environmental and safety hazard, and modern lab detergents work just as well.
• For trace-metal-clean work: Acid bath (10% HNO₃ or 10% HCl) overnight, followed by triple rinse with ultrapure water.
• Drying: Air dry inverted on a drying rack or peg board. Never use paper towels inside glassware — they leave fibers.

Inspection: What to Look For

Inspect every piece of glassware before use. Look for:

• Star cracks: Small star-shaped fractures, usually at the base. These are caused by thermal shock or impact. A star crack weakens the glass structurally — the piece can fail catastrophically under heat or vacuum. Discard immediately.
• Chips: Chips on rims create sharp edges (cut hazard) and weaken the vessel. Minor chips on non-critical glassware can be fire-polished smooth by a glassblower. Major chips → discard.
• Scratches on inner surfaces: Deep scratches from stir bars or metal spatulas create nucleation sites that cause bumping during heating. Replace scratched flasks used for boiling.
• Clouding or etching: White haze on glass indicates alkali etching. The glass is thinner than spec and should be retired from critical use.

Storage

Store glassware in padded cabinets or on pegboards with appropriate support. Never stack beakers or flasks inside each other — they wedge together and crack when you try to separate them. Ground-glass joints should be stored with a thin layer of stopcock grease or with paper sleeves between joints to prevent seizing.

Bottles & Containers: Reagent, Media, Wash & Specimen

Your lab's bottle collection is part of the glassware ecosystem. Here's a quick-reference for the bottle types we carry.

Bottle Type	Material	Cap Thread	Best For	Collection
Reagent Bottles	Borosilicate or HDPE	GL45 / GL32	Chemical storage, dispensing	Shop →
Media Bottles	Borosilicate	GL45	Autoclaving and storing media	Shop →
Wash Bottles	LDPE or FEP	Integral nozzle	Dispensing DI water, ethanol, acetone	Shop →
Specimen Containers	PP or PS	Screw cap	Clinical sample collection	Shop →
Carboys	PP or HDPE	Wide-mouth screw	Large-volume storage (DI water, waste, buffers)	Shop →

For reagent and media bottles, the GL45 cap thread is the universal standard. It accepts pour rings, vented caps, PTFE-lined closures, and bottle top dispensers. Always check that your caps match your bottle thread — GL45 and GL32 are not interchangeable.

Frequently Asked Questions

Can I heat soda-lime glass on a hot plate?

It's risky. Soda-lime glass has nearly 3x the thermal expansion coefficient of borosilicate, making it much more susceptible to thermal shock. A rapid temperature change — like placing a cold soda-lime beaker on a pre-heated hot plate — can cause fracture. Use borosilicate for any heating application.

How do I know if my glassware is borosilicate or soda-lime?

Check for markings: "Boro," "Borosilicate 3.3," or "Boro 3.3" stamped on the glass. Brand names alone are not reliable — US consumer Pyrex is now soda-lime glass, while European PYREX remains borosilicate. When in doubt, check the manufacturer spec sheet or ask your supplier.

What's the difference between Class A and Class B graduated cylinders?

Class A cylinders meet ASTM E1272 tolerances — roughly half the error margin of Class B. At 100mL, Class A is accurate to ±0.50mL versus ±1.00mL for Class B. Use Class A for analytical work and quality control. Class B is acceptable for buffer prep and non-critical measurements.

How often should I replace lab glassware?

There's no fixed schedule. Inspect every piece before each use. Replace immediately if you find star cracks, major chips, deep scratches, or visible etching (white cloudiness). Well-maintained borosilicate glassware can last decades. Heavily used beakers and flasks in teaching labs may need replacement annually.

What's the best way to remove stubborn residue from glassware?

Soak overnight in a base bath (2–5% KOH in isopropanol) for organic residue, or a 10% nitric acid bath for inorganic residue. Avoid chromic acid — it's a carcinogen and environmental hazard. Modern lab detergents like Alconox work well for most cleaning tasks and are much safer to handle and dispose of.

Build Your Glassware Collection the Right Way

Glassware is a long-term investment when you buy the right material and take care of it. Borosilicate for anything involving heat or chemicals. Class A cylinders for anything involving measurement. Proper cleaning and inspection to catch damage before it becomes a safety incident.

As an authorized dealer for Heathrow Scientific, we work directly with their team and can help you spec the right glassware for your application. Reach out at support@labsupplies.com.

Starting a new lab? Our LaunchLab program gives you 15% off everything for 12 months — including all the glassware, flasks, cylinders, and bottles on this page. See if you qualify →

Ready to stock your lab? Browse our glassware and labware collections: glassware · beakers · flasks · graduated cylinders · reagent bottles · media bottles · wash bottles · carboys — authorized dealer pricing, ships from the USA.

— By the LabSupplies.com Technical Team
